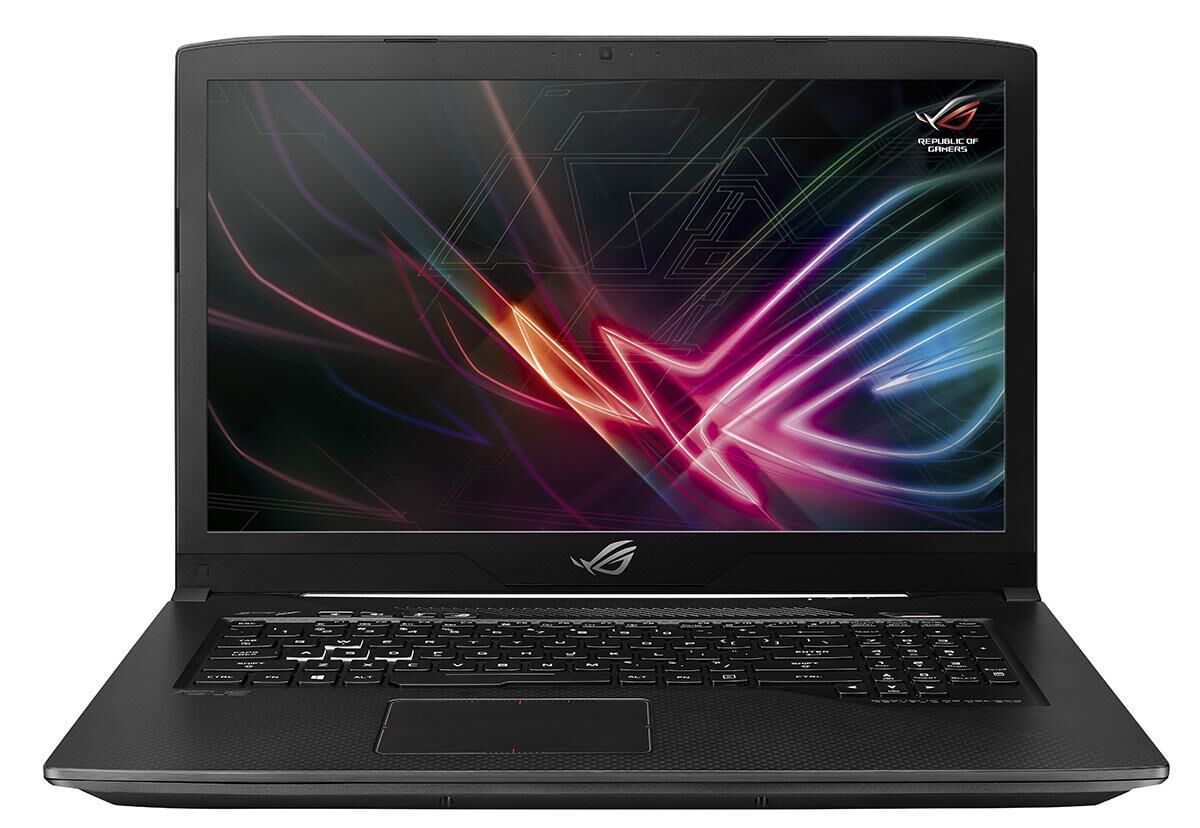

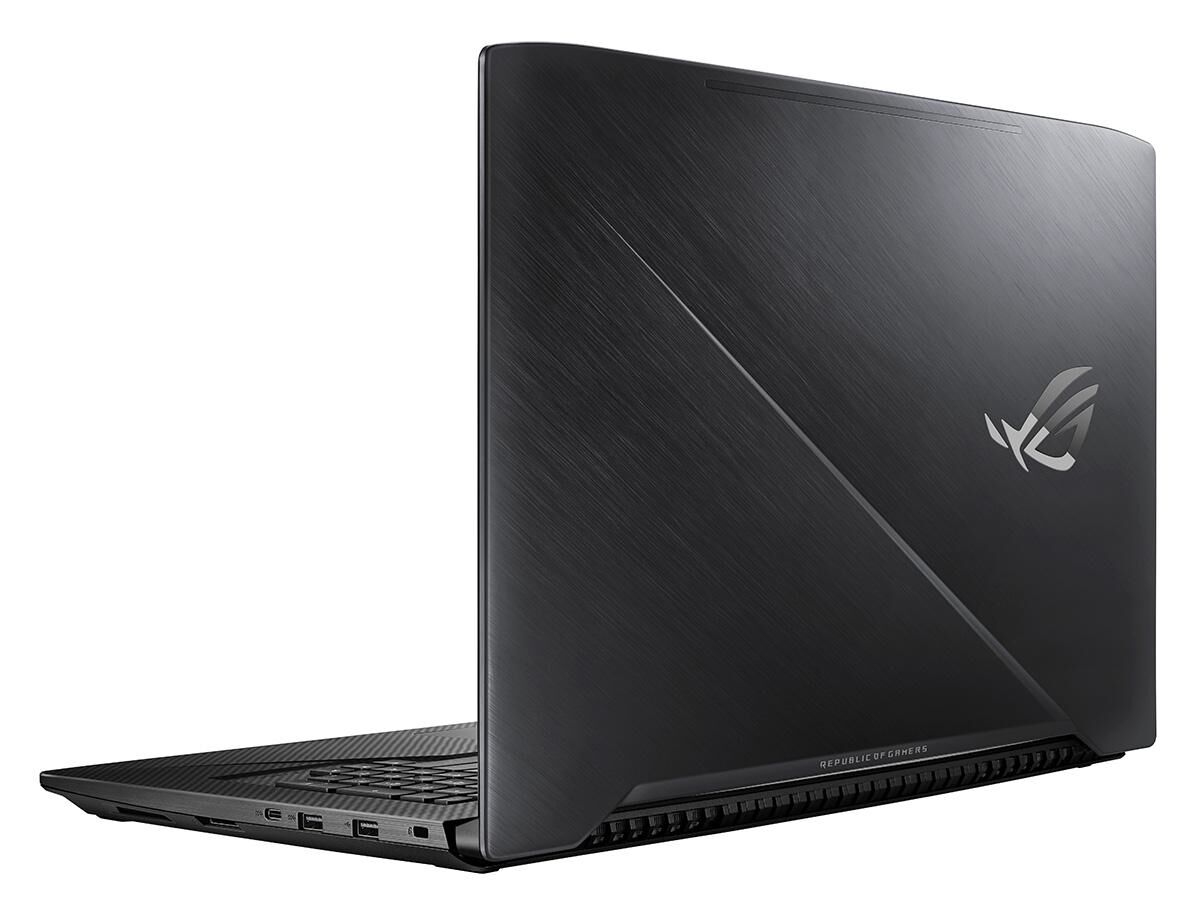

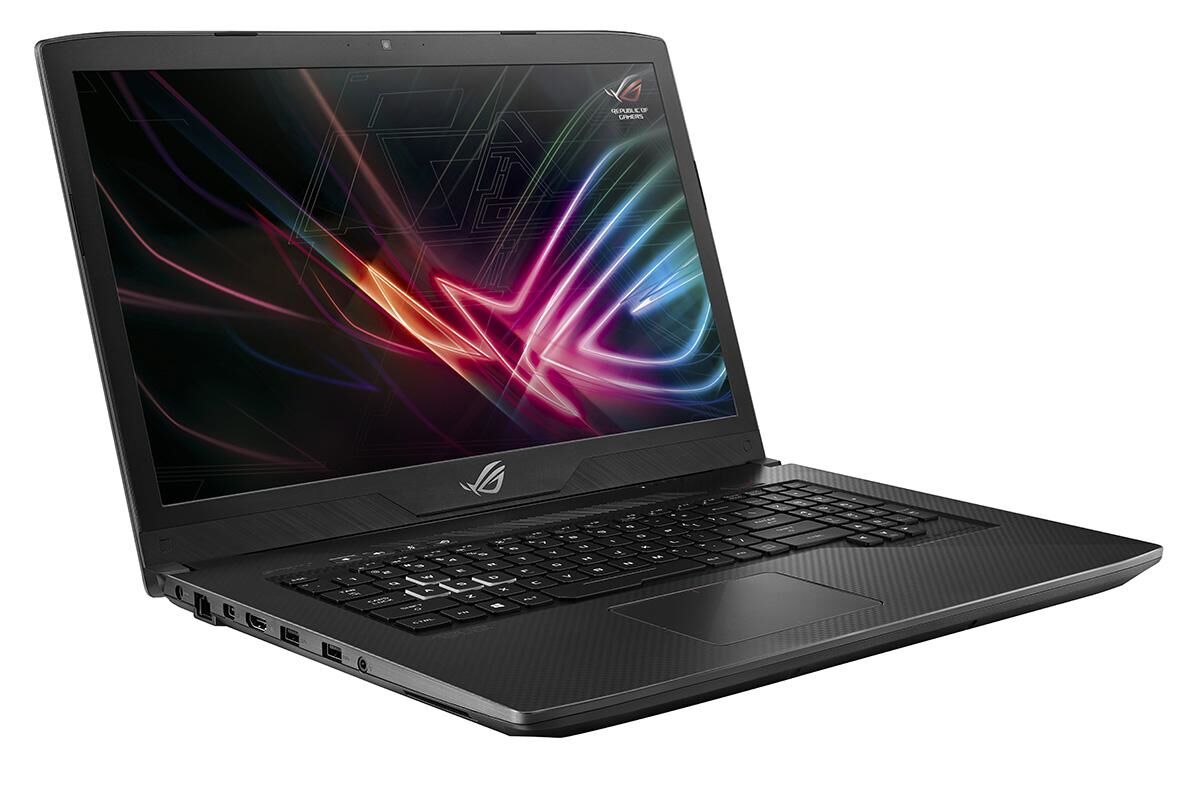

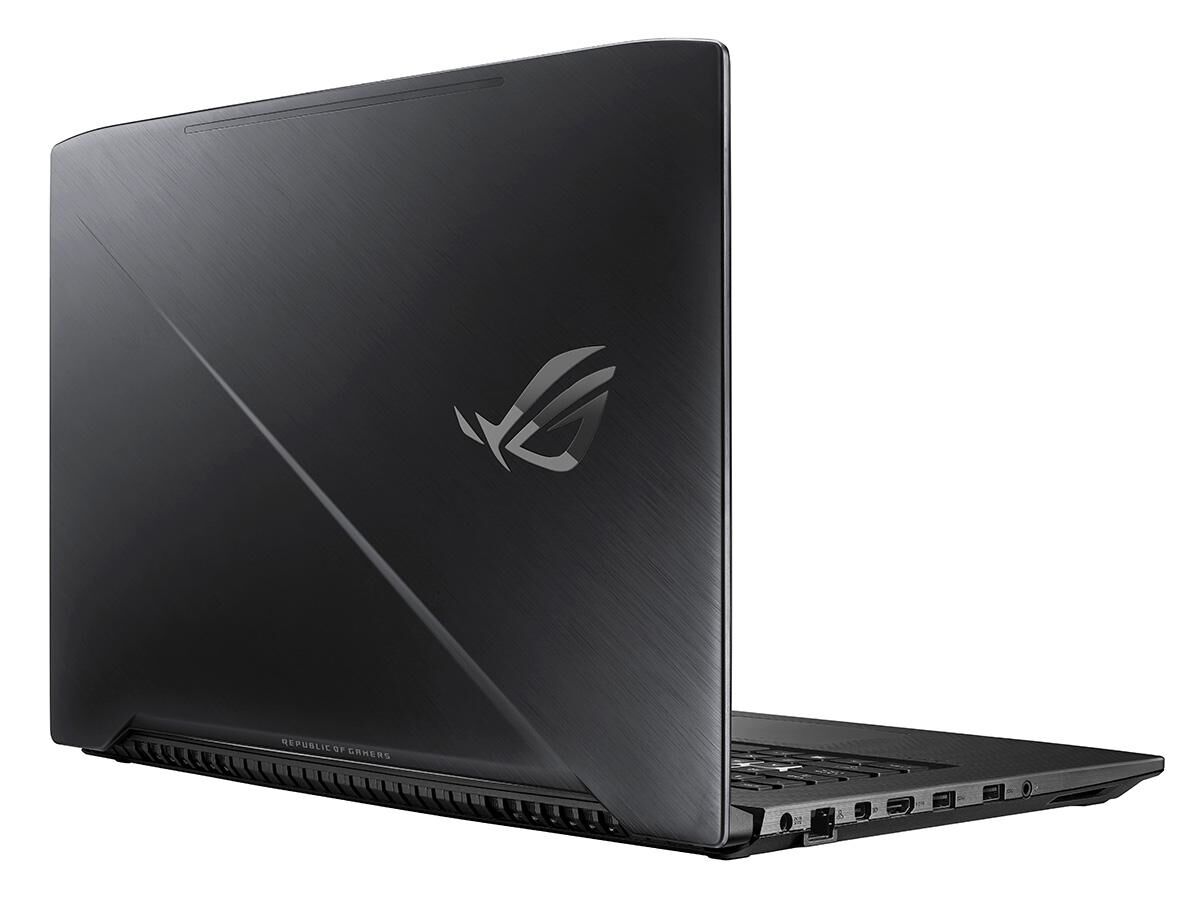

ASUS ROG GL703GE-GC075 RAM upgrade specifications
ASUS ROG Strix GL703GE-GC075 laptop memory upgrade specifications include two SO-DIMM slots supporting DDR4-SDRAM memory modules. Maximum RAM capacity reaches 32 GB total. Compatible memory operates at 2666 MHz frequency. Upgradeable memory configuration allows installation of DDR4 SO-DIMM modules in both available slots to enhance system performance and multitasking capabilities.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2666 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2666 (PC4-21328) |
| Bandwidth | 21.3 GB/s |
| Laptop Release date | 04 September 2019 |
Additional Notes
- Dual channel memory architecture requires matching module pairs to achieve full theoretical memory bandwidth.
- The maximum capacity limit of 32 GB dictates a ceiling of 16 GB per physical slot.
- Installing modules with frequencies exceeding 2666 MHz results in automatic downclocking to the motherboard chipset peak.
- Physical installation in the ASUS GL703GE-GC075 requires 260 pin modules designed for the restricted vertical clearance of low profile laptop enclosures.
- Mixing modules with different CAS latencies forces the system to operate at the timing of the slowest installed stick.
- Populating only a single slot restricts the processor to single channel mode which creates a bottleneck during memory intensive rendering tasks.
- Accessing the SO-DIMM slots typically involves removing the base panel which may expose internal components to electrostatic discharge risks.
