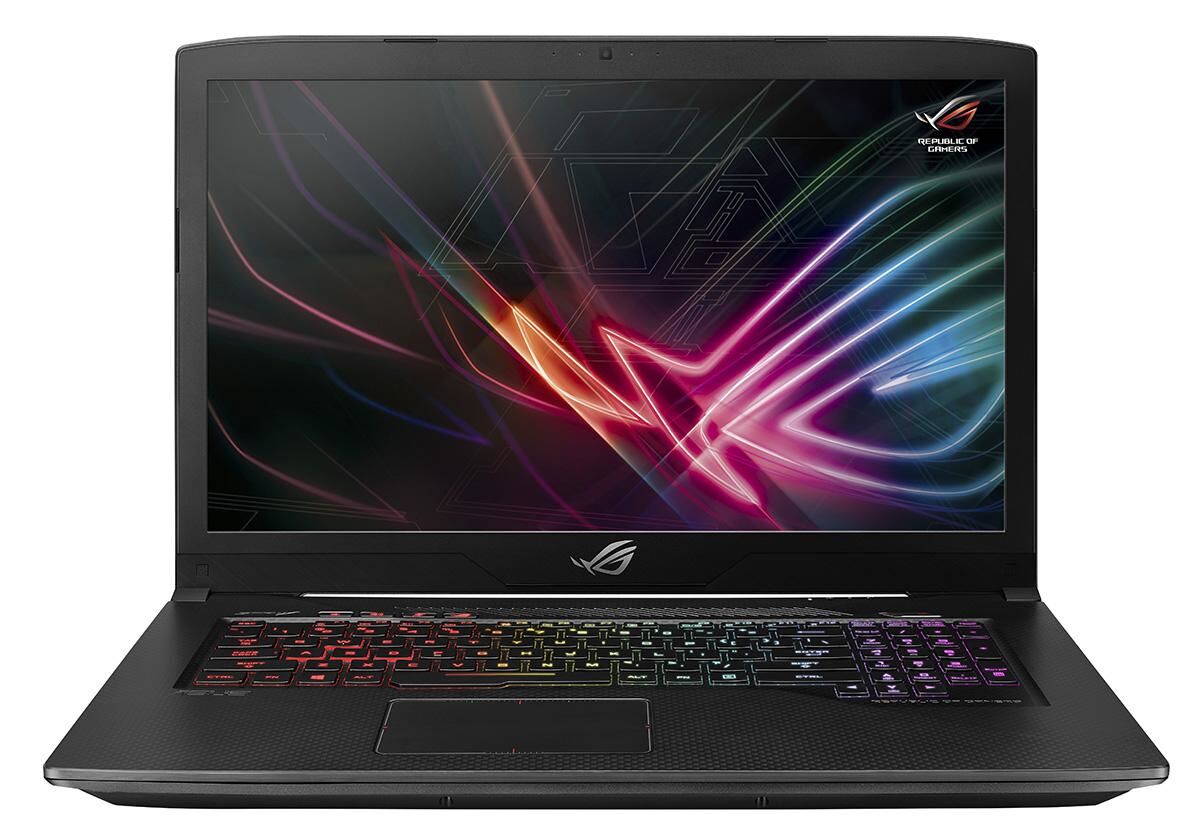

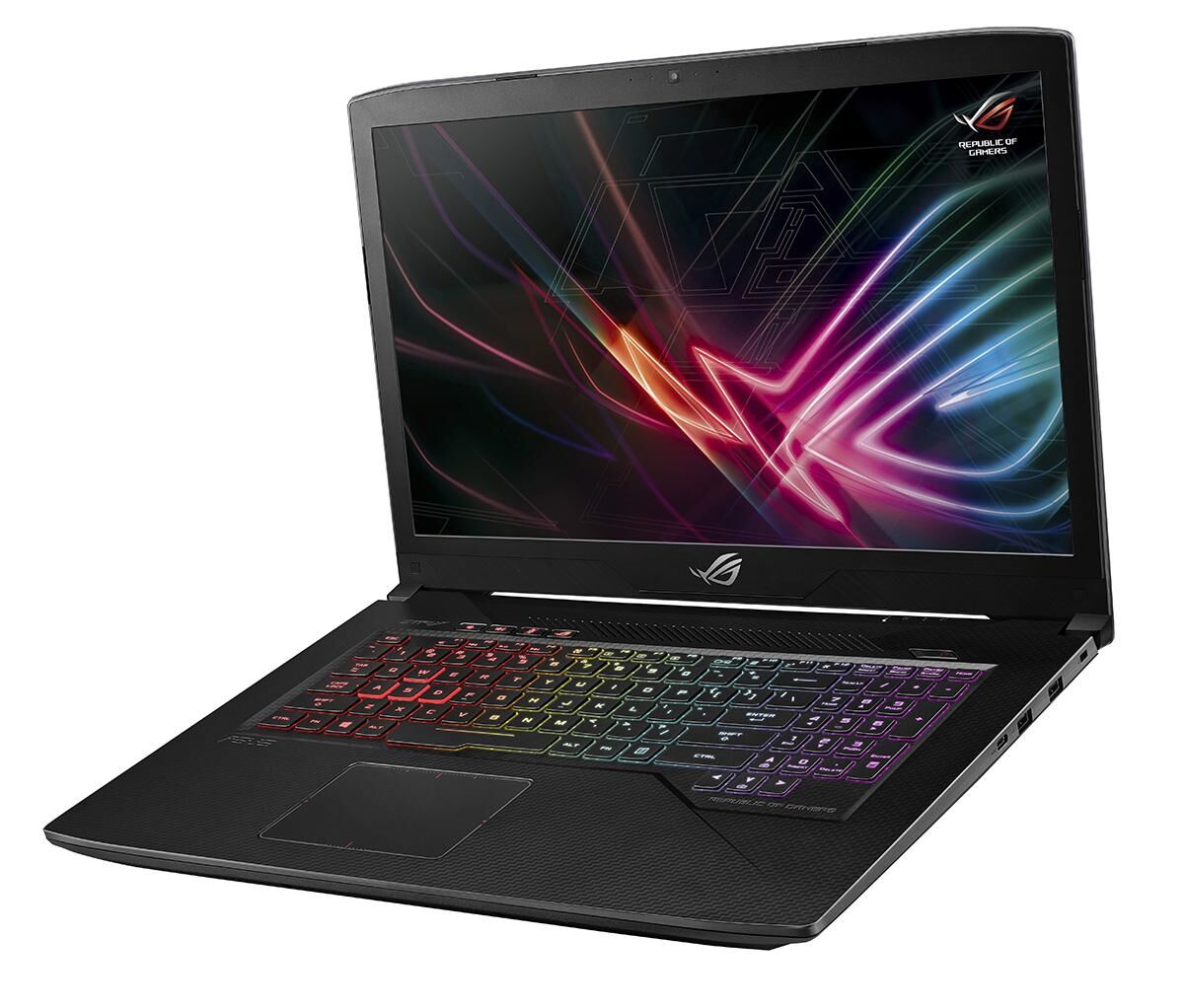

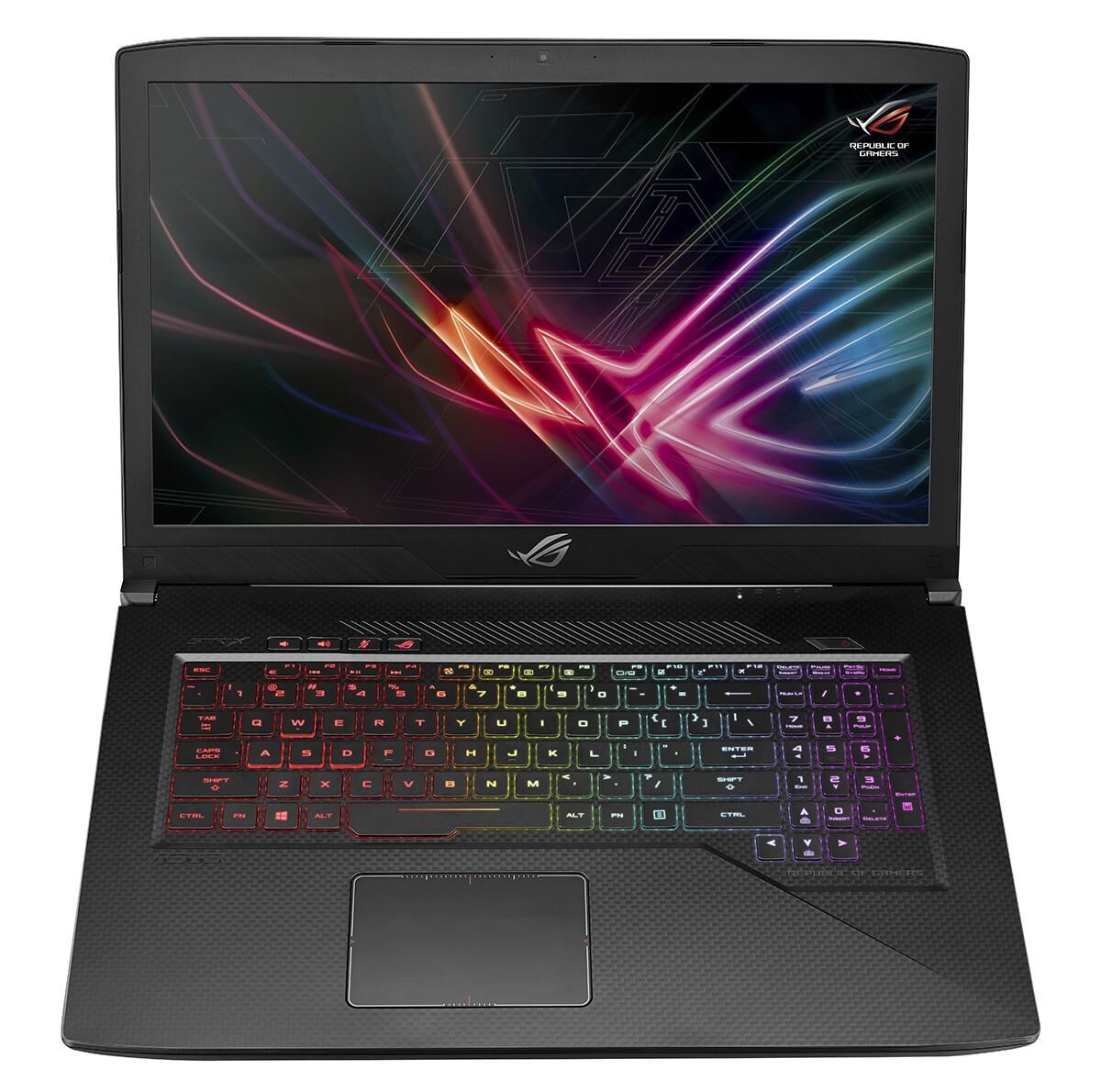

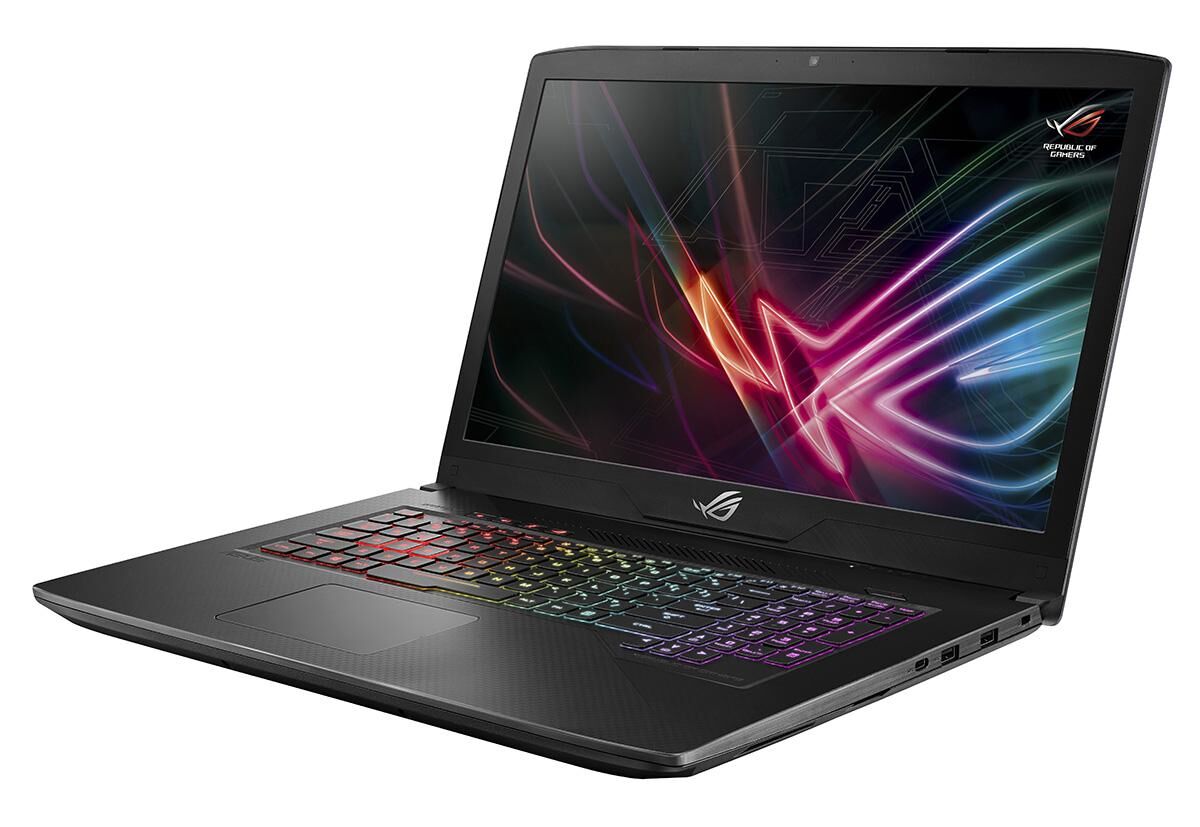

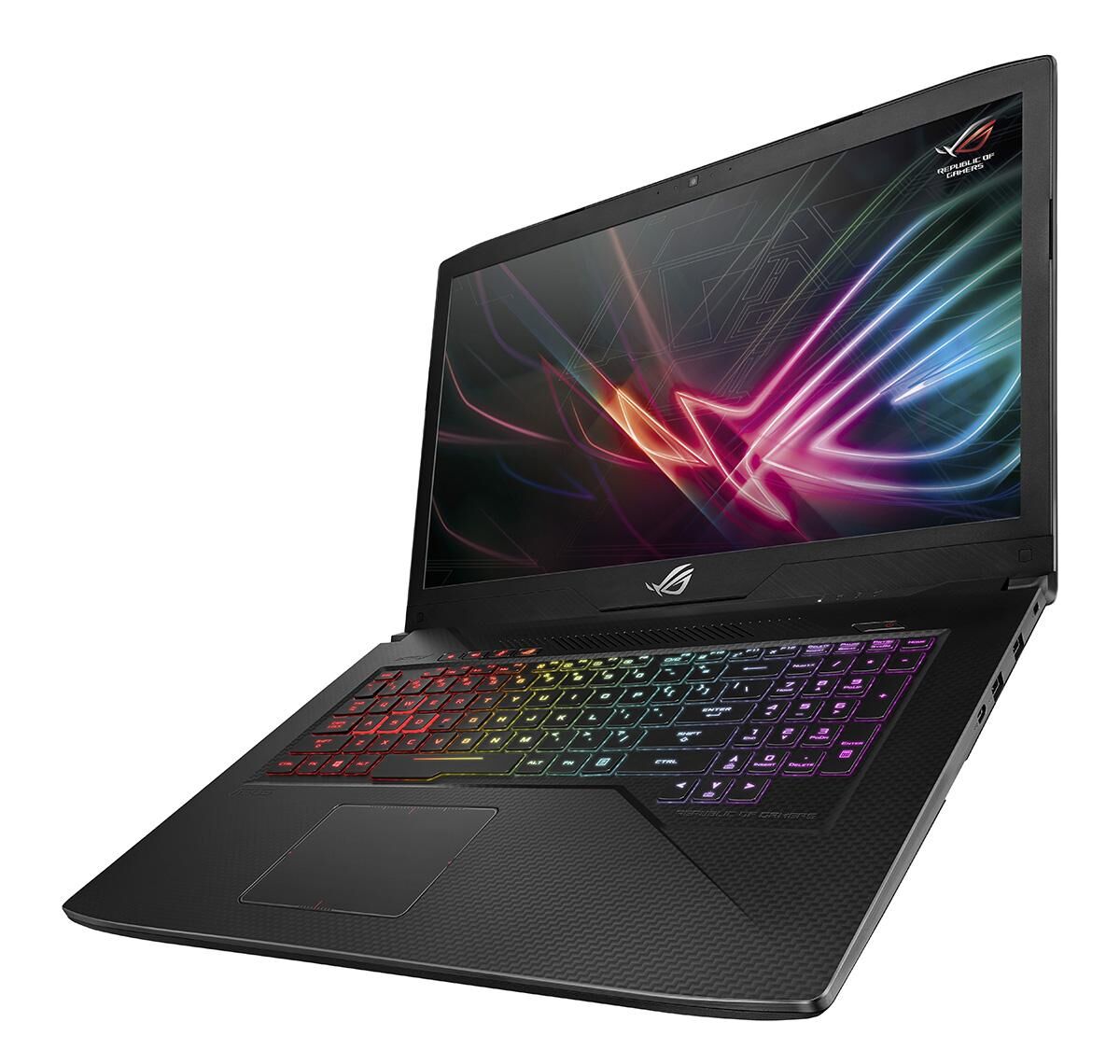

ASUS ROG GL703GS-E5069T RAM upgrade specifications
ASUS ROG Strix GL703GS-E5069T gaming laptop memory upgrade specifications include DDR4-SDRAM compatible modules in SO-DIMM form factor. System features two memory slots supporting maximum RAM capacity of 32 GB total. Memory specifications require DDR4 modules operating at 2666 MHz frequency. Upgrade compatibility requires SO-DIMM DDR4-2666 memory modules for optimal performance with this laptop model.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2666 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2666 (PC4-21328) |
| Bandwidth | 21.3 GB/s |
| Laptop Release date | 28 March 2019 |
Additional Notes
- The ASUS ROG GL703GS-E5069T accepts SO-DIMM modules only, which eliminates standard desktop DIMM compatibility and requires mobile-specific memory purchases.
- The 32 GB ceiling restricts users to a maximum 16 GB per module configuration, making 2x16 GB the only viable path for reaching full capacity.
- DDR4-2666 operation locks the memory controller to a peak theoretical bandwidth of 21.3 GB/s per channel, potentially limiting performance in bandwidth-intensive workloads compared to higher-frequency alternatives.
- Installing modules with speeds exceeding 2666 MHz will result in automatic downclocking to the chipset-supported frequency, negating any premium paid for faster RAM.
- The dual-channel SO-DIMM architecture requires matched pairs for optimal performance, meaning single-module upgrades sacrifice half the available memory bandwidth.
- DDR4 SO-DIMM physical dimensions differ from DDR3 SO-DIMM despite sharing the same slot count, preventing backward compatibility with older generation modules.
- Voltage specifications for DDR4-2666 typically default to 1.2V, though XMP-enabled modules may require BIOS intervention to prevent stability issues or rejection by the memory controller.
- Non-ECC module selection is implied by the gaming laptop platform, as ECC SO-DIMMs would be incompatible with the consumer-grade chipset architecture.
- Accessing the 2 SO-DIMM slots likely requires bottom panel removal, with potential warranty implications depending on regional consumer protection laws and manufacturer seal placement.
- Single-rank versus dual-rank module topology affects latency and interleaving behavior, though both remain physically compatible within the 260-pin SO-DIMM standard.
- Temperature tolerances for SO-DIMM modules in confined laptop chassis necessitate modules rated for 0-85°C operation, particularly under sustained gaming loads.
