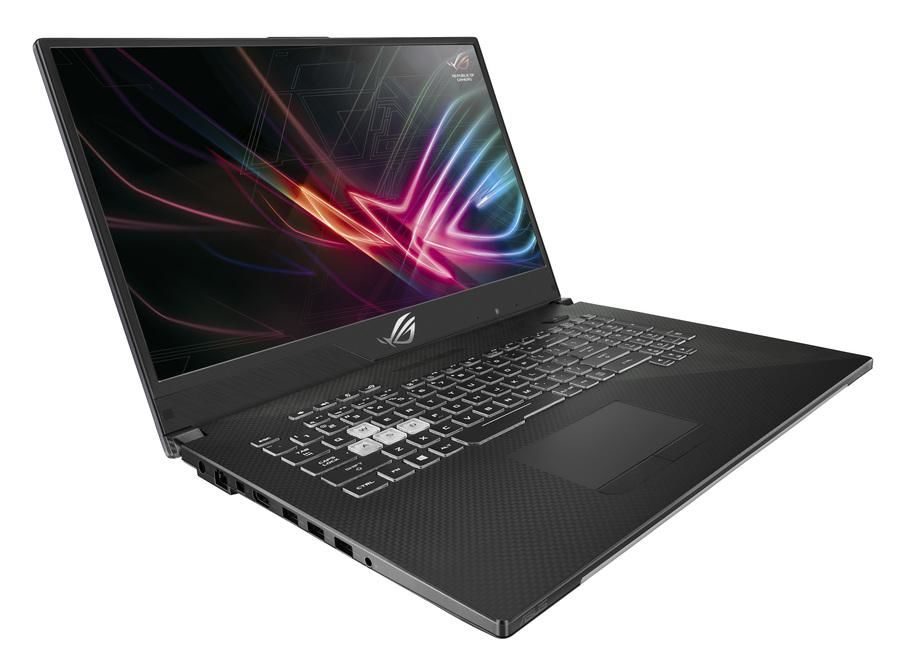

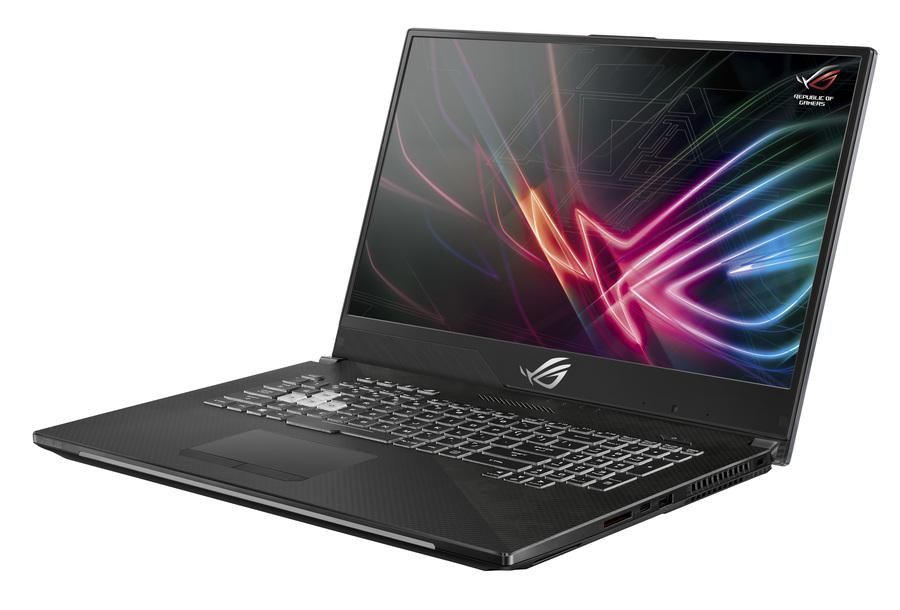

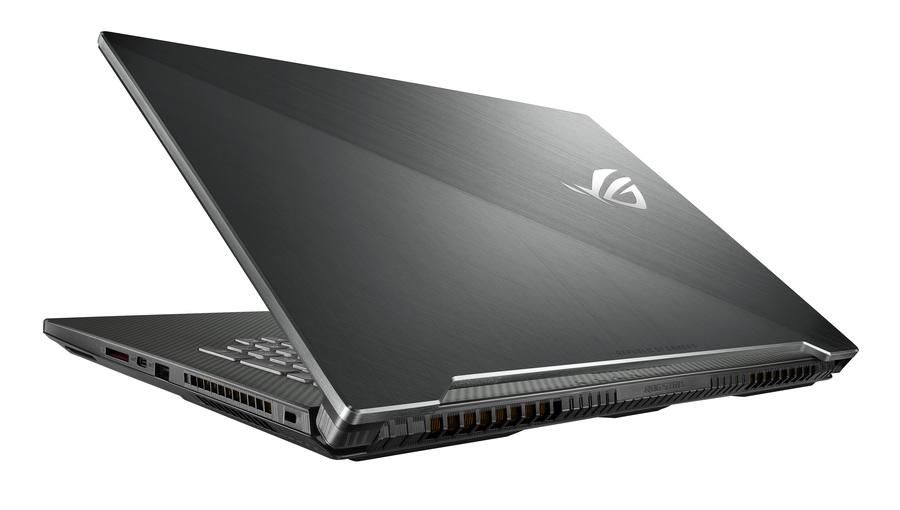

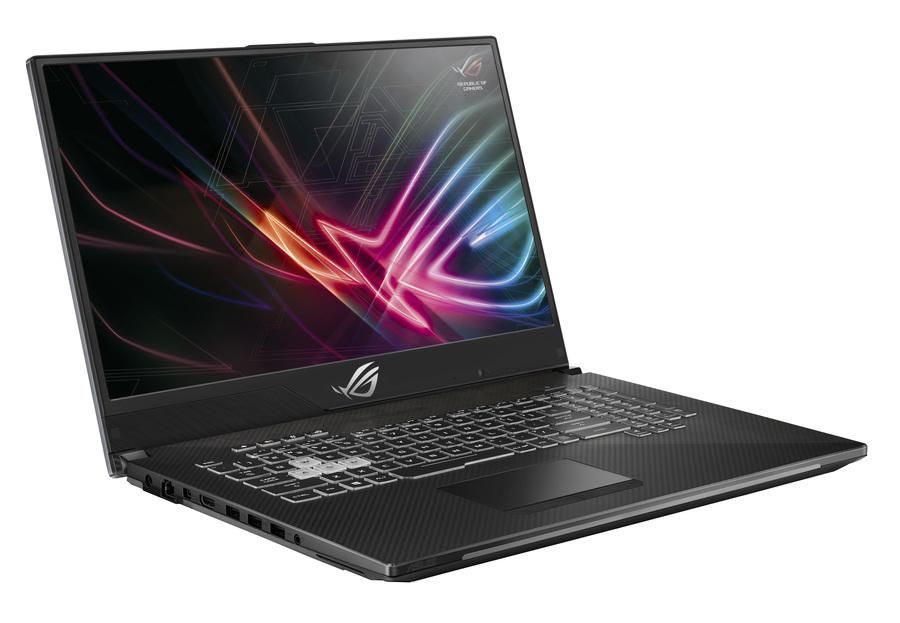

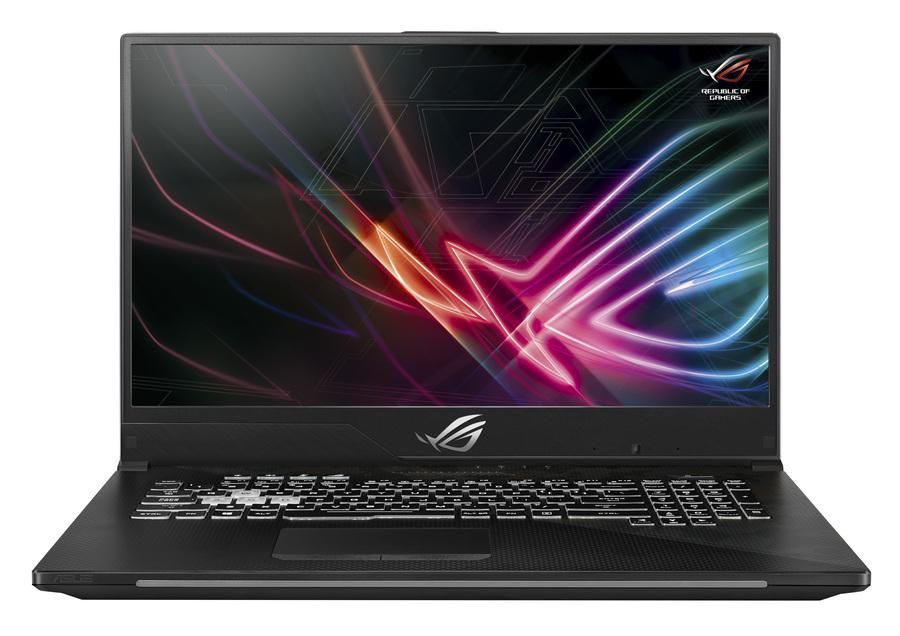

ASUS ROG GL704GM-EV033 RAM upgrade specifications

ASUS ROG Strix GL704GM-EV033 laptop supports DDR4-SDRAM memory upgrades with two SO-DIMM slots. Maximum RAM capacity reaches 32 GB total. Compatible memory modules operate at 2666 MHz frequency. Specifications enable users to upgrade from factory configuration to support enhanced multitasking and performance-intensive applications. SO-DIMM form factor modules provide standard compatibility for laptop memory expansion.

Additional Notes

• Dual channel mode requires identical module pairs across the 2 available slots to double the theoretical memory bandwidth.
• Operating speeds will downclock to the lowest common denominator if a module exceeds the 2666 MHz native frequency supported by the system.
• Installation of aftermarket modules requires a Phillips 0 size screwdriver to remove the underside chassis panel of this ASUS ROG GL704GM-EV033 unit.
• The presence of 2 SO-DIMM slots implies that reaching the 32 GB limit necessitates the replacement of existing lower capacity sticks rather than simple addition.
• The 260 pin physical architecture of the memory interface prevents the use of older DDR3 hardware or desktop size DIMM components.
• Voltage requirements must align with the 1.2V standard of the DDR4-SDRAM specification to ensure thermal stability and prevent motherboard damage.
• Latency performance depends on the CAS timing matches between the two slots to avoid system instability or boot failures.
