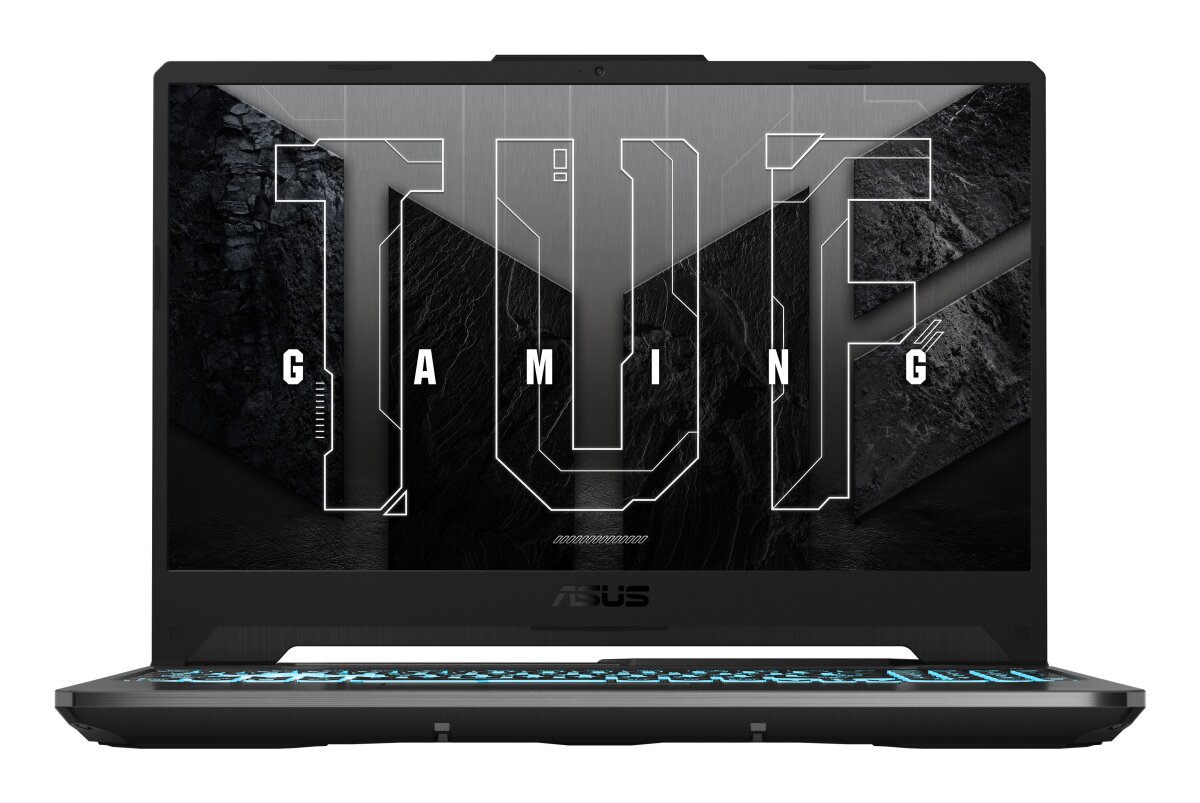

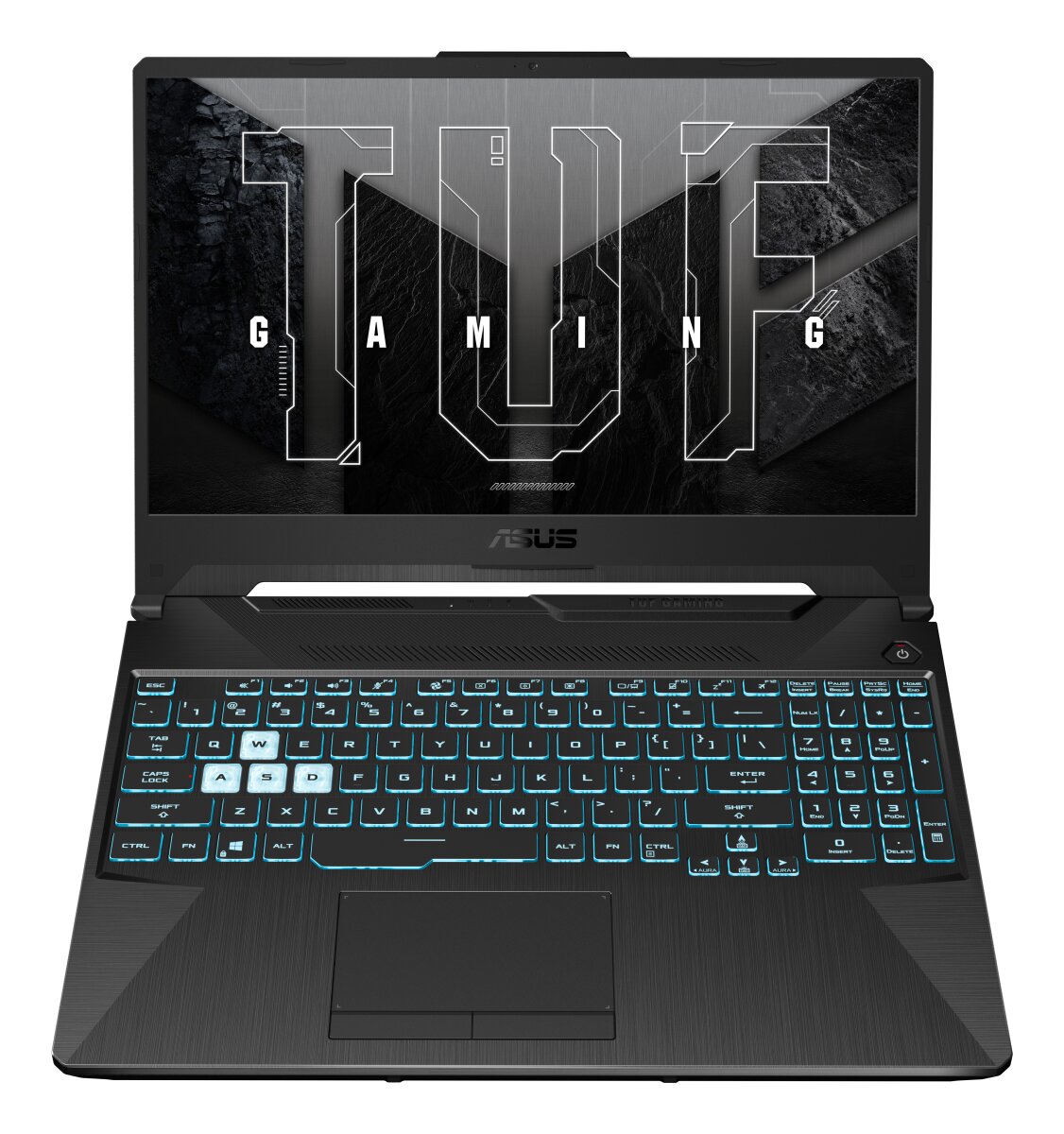

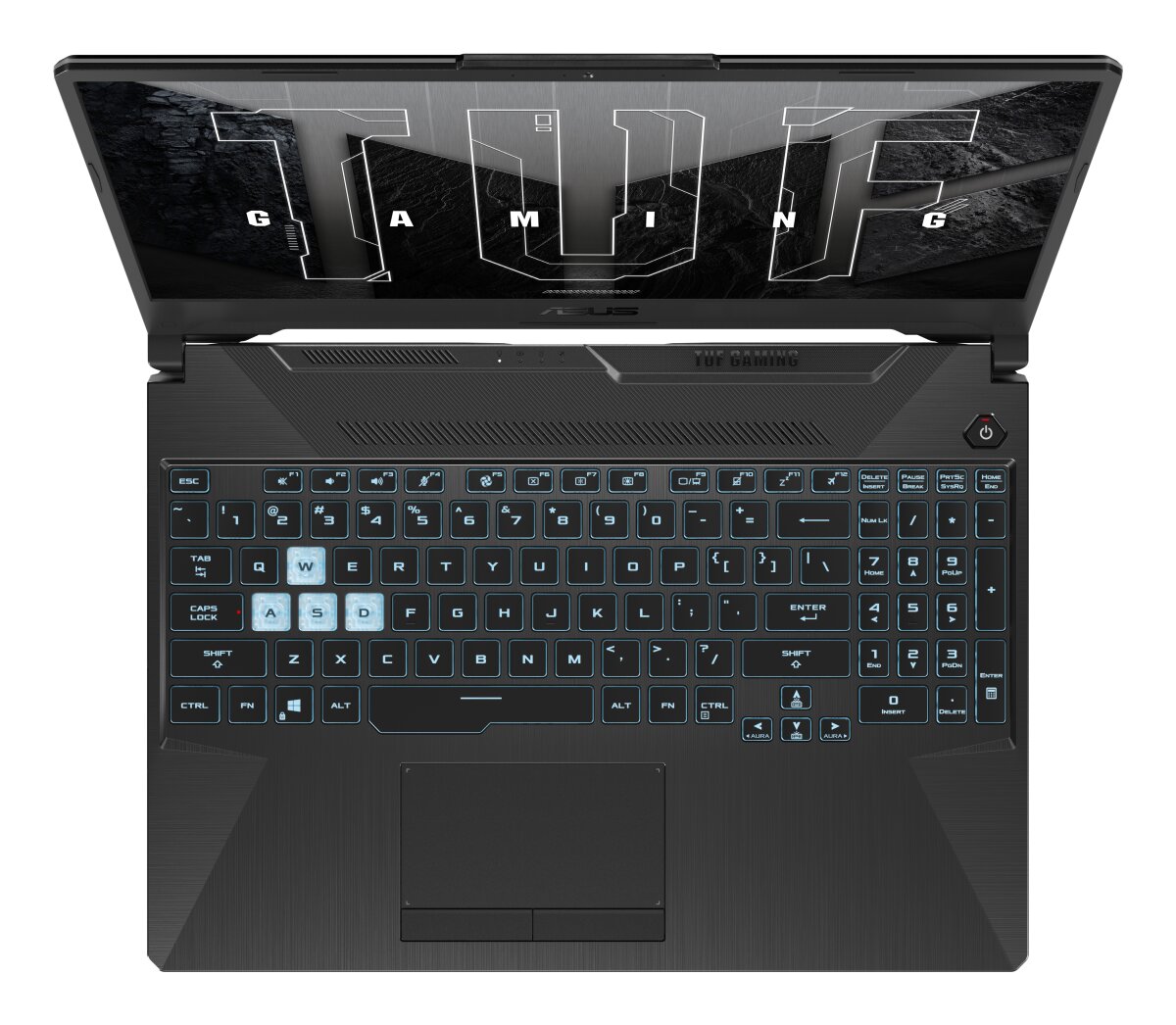

ASUS TUF Gaming FA506NC-ES51 RAM upgrade specifications
The ASUS TUF Gaming A15 FA506NC-ES51 features DDR5-SDRAM memory upgrade specifications with 2x SO-DIMM slots. The laptop supports maximum RAM capacity of 32 GB total, compatible with DDR5 modules operating at 5600 MHz frequency. Existing memory can be upgraded by replacing or adding SO-DIMM form factor modules to enhance system performance. Memory specifications support standard DDR5 compatibility for the TUF Gaming A15 series.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR5-SDRAM |
| Frequency | 5600 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.1V |
| Number of pins | 262-pin |
| Interface | PC5 |
| PC Speed Rating | PC5-5600 (PC5-44800) |
| Bandwidth | 44.8 GB/s |
Additional Notes
- Dual channel mode requires identical module pairs to optimize memory controller throughput and prevent bandwidth degradation.
- The 2 slot configuration of the ASUS TUF Gaming FA506NC-ES51 necessitates the total replacement of factory modules to reach the maximum supported capacity.
- Installing memory with frequency specifications exceeding 5600 MHz will result in a downclocking situation to match the hardware firmware limitations.
- DDR5 architecture utilizes on die ECC which manages internal bit flips but does not provide the full system level data correction found in server grade hardware.
- The use of SO-DIMM modules requires careful vertical clearance management during installation to ensure the heat spreader does not obstruct the chassis base plate.
- Upgrading beyond the 32 GB threshold carries risks of system instability or failure to POST as the internal memory controller is not validated for higher densities.
- Lower latency timings on aftermarket modules may be ignored by the BIOS if the firmware enforces strict JEDEC standard profiles.
