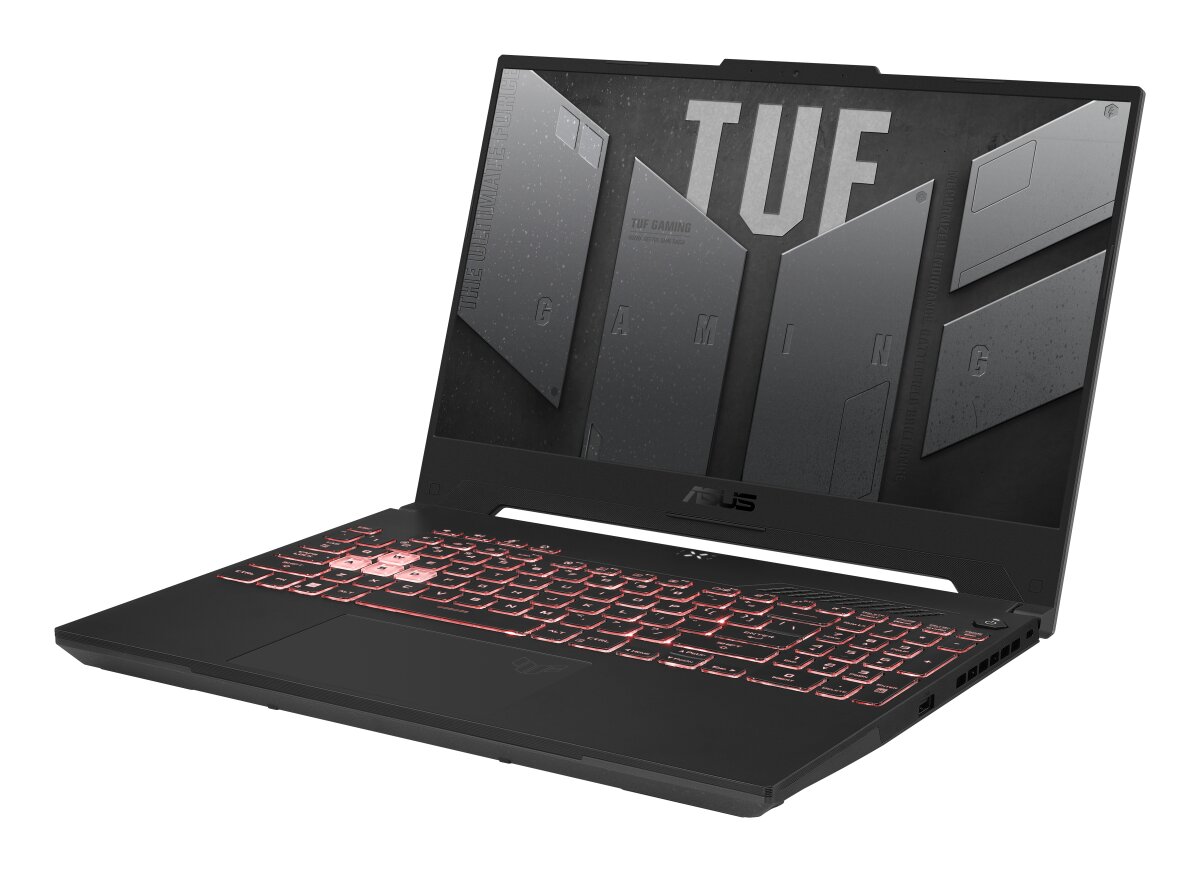

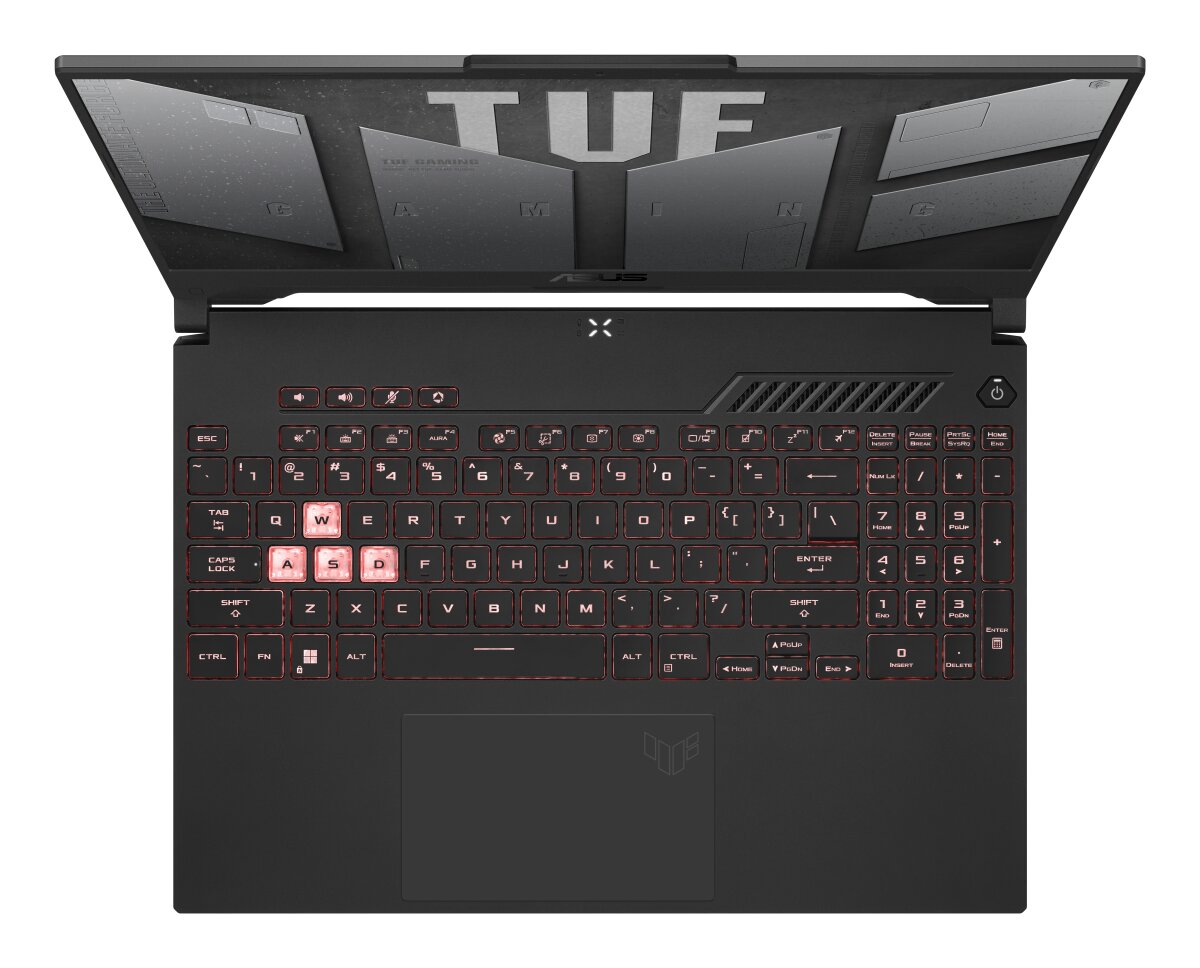

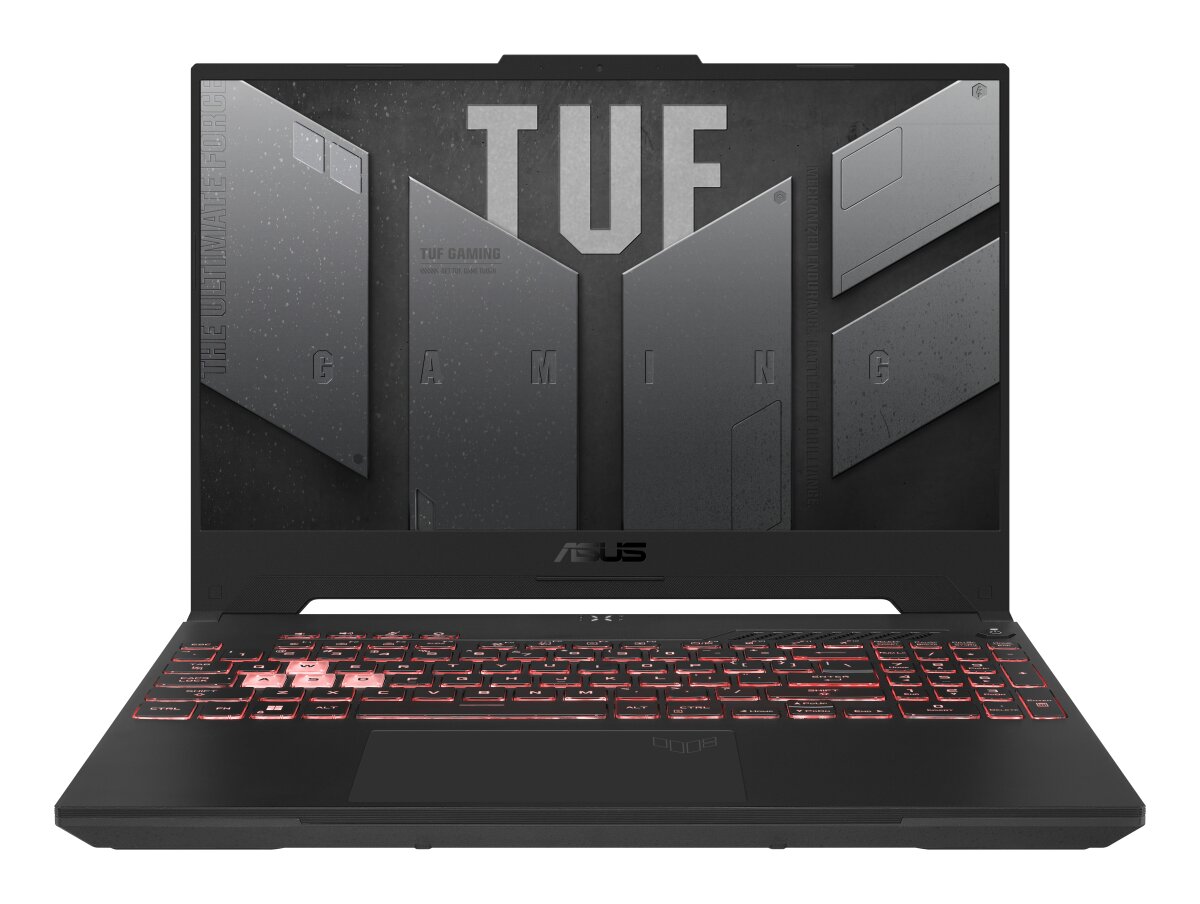

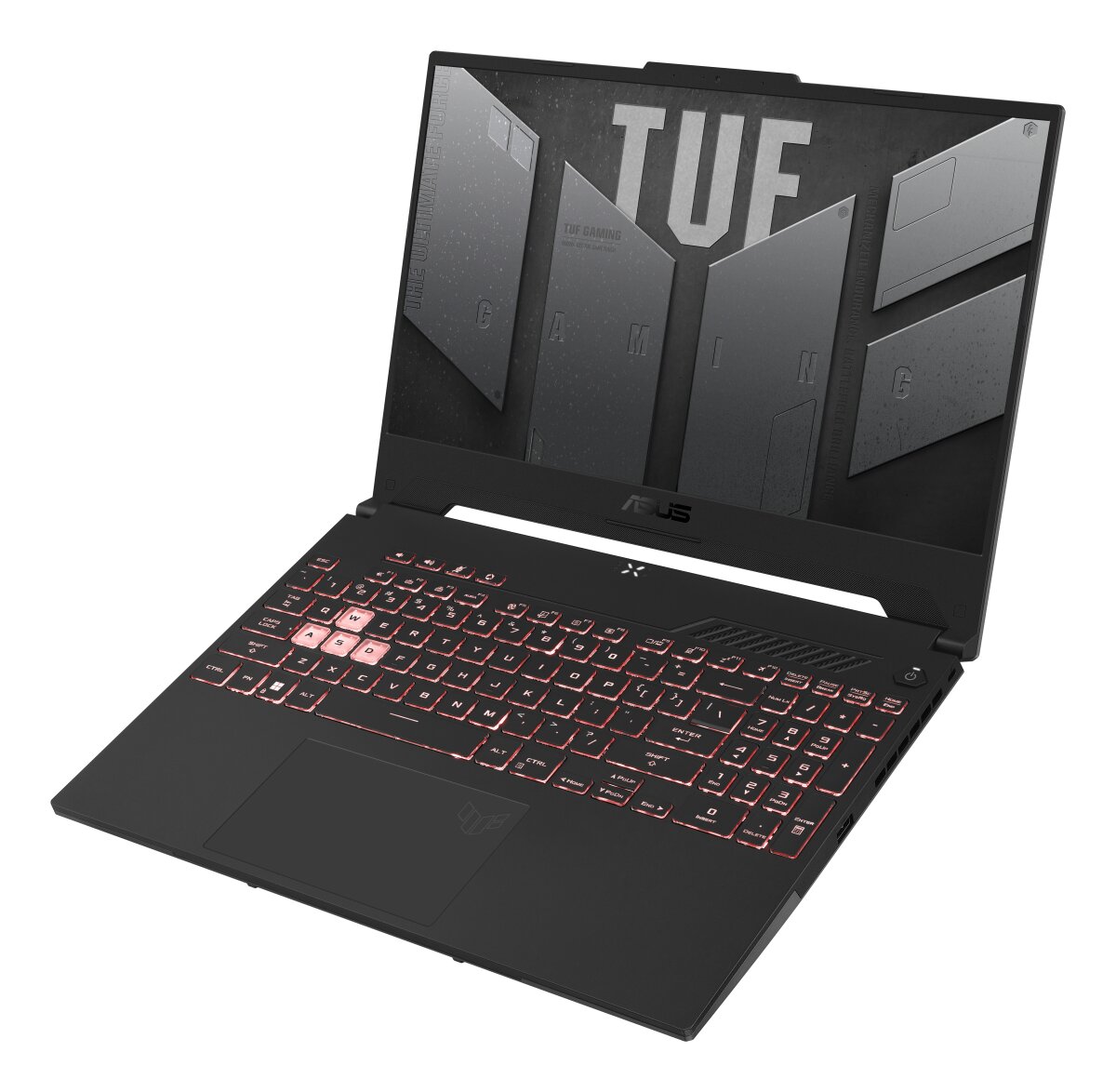

ASUS TUF Gaming FA507NV-LP146W RAM upgrade specifications
ASUS TUF Gaming A15 FA507NV-LP146W features 2x SO-DIMM slots supporting DDR5-SDRAM memory upgrade capability. Maximum RAM capacity reaches 32 GB total. Compatible memory operates at 4800 MHz frequency. Specifications indicate dual SO-DIMM slots accommodating DDR5 modules for memory expansion. Upgrade path supports DDR5-SDRAM technology with 4800 MHz operating frequency and 32 GB maximum memory capacity across available slots.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR5-SDRAM |
| Frequency | 4800 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.1V |
| Number of pins | 262-pin |
| Interface | PC5 |
| PC Speed Rating | PC5-4800 (PC5-38400) |
| Bandwidth | 38.4 GB/s |
Additional Notes
- Dual channel architectural symmetry requires matching module densities in both slots to ensure peak memory controller throughput for the ASUS TUF Gaming FA507NV-LP146W.
- The internal hardware configuration utilizes standard SO-DIMM connectors, allowing for manual chip replacement without specialized soldering tools.
- Bandwidth limitations are dictated by the 4800 MHz ceiling, meaning higher frequency modules will automatically downclock to maintain system stability.
- Integrated graphics performance scales directly with memory latency, making identical timing profiles crucial when populating both available slots.
- Physical installation of 32 GB requires two 16 GB units because the firmware does not support 32 GB single-stick density configurations.
- Thermal overhead increases slightly when moving from a single-module setup to a dual-populated configuration due to concentrated heat dissipation near the motherboard center.
- Compatibility with high-capacity aftermarket modules is restricted by the BIOS addressable space, preventing the use of 64 GB kits even if the physical slots fit the hardware.
