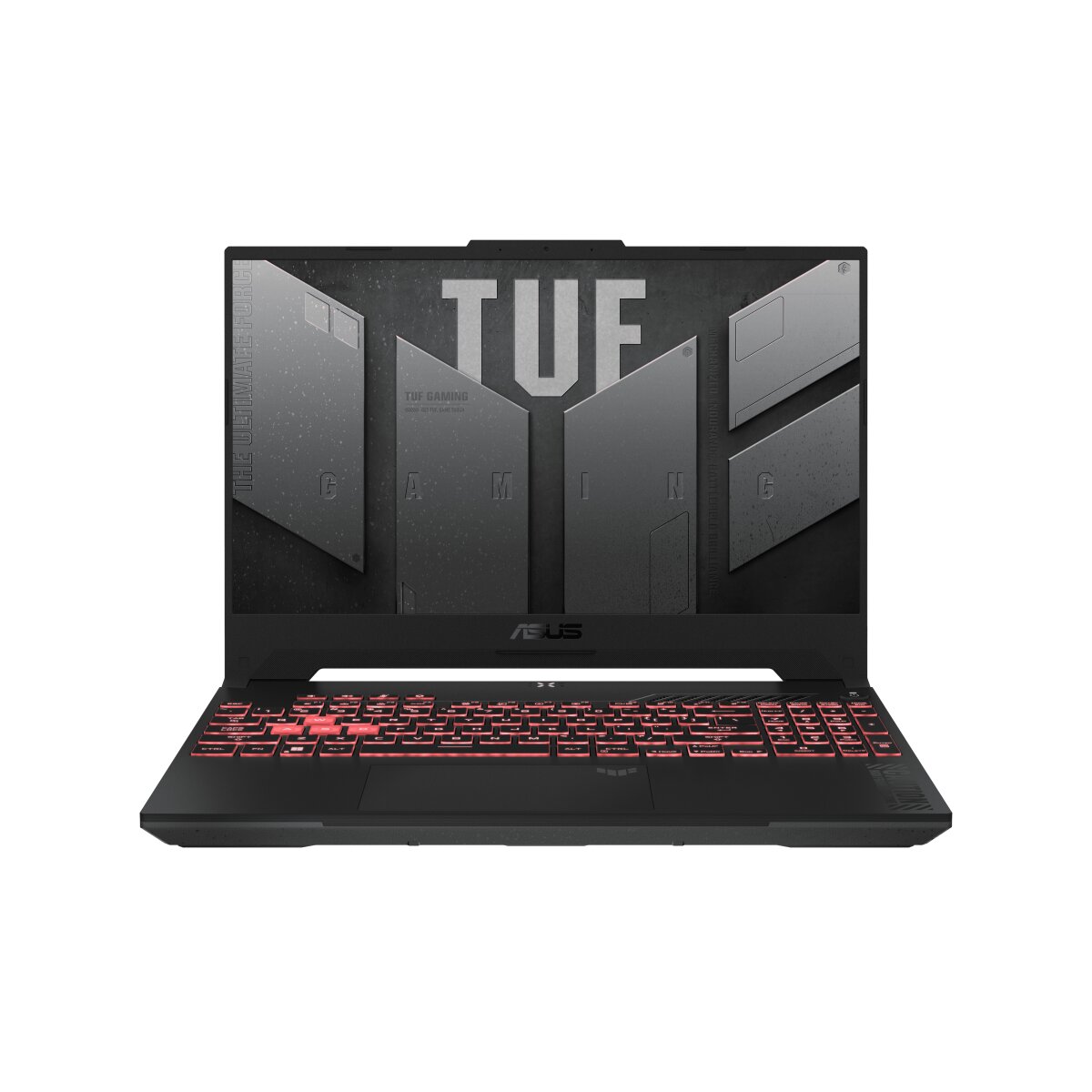

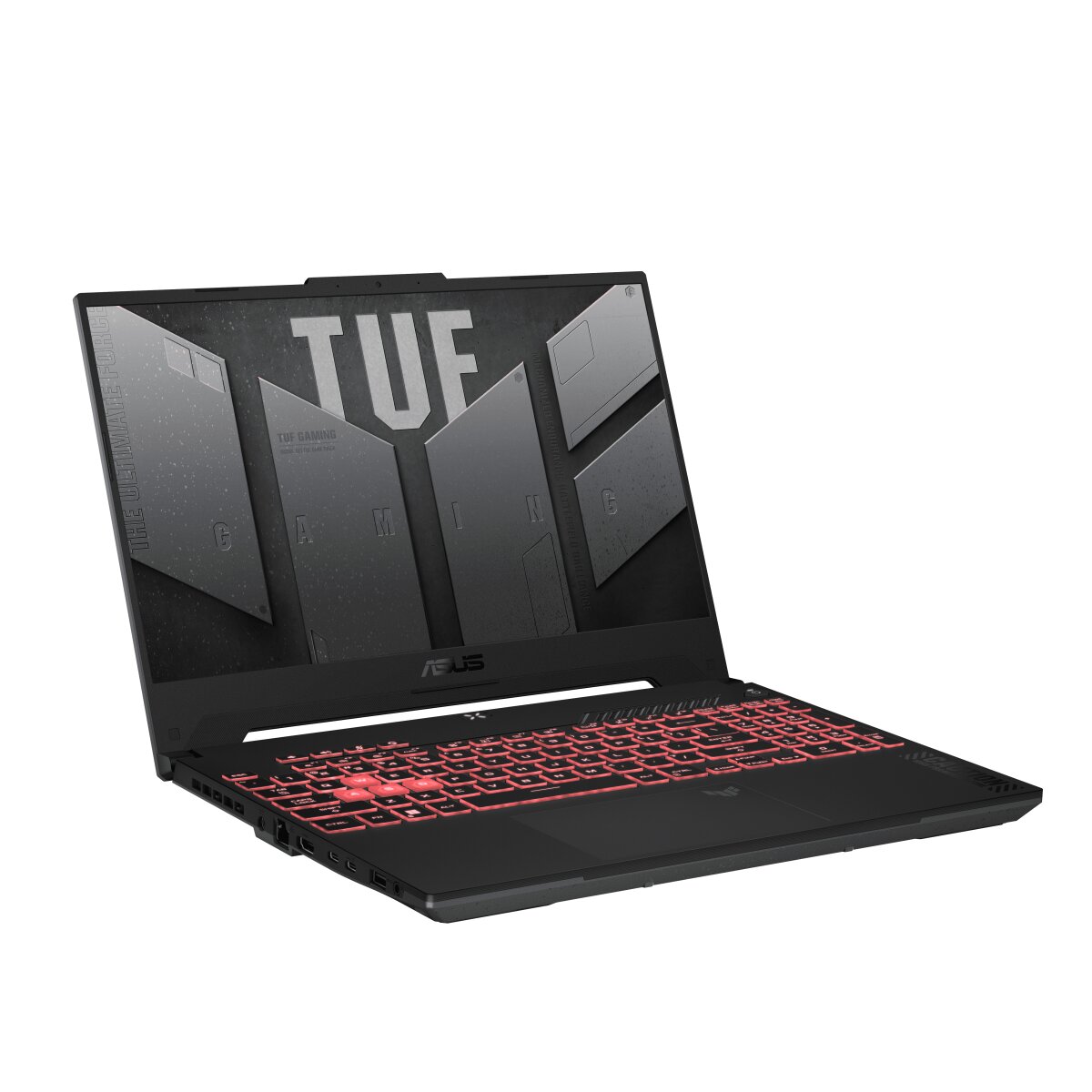

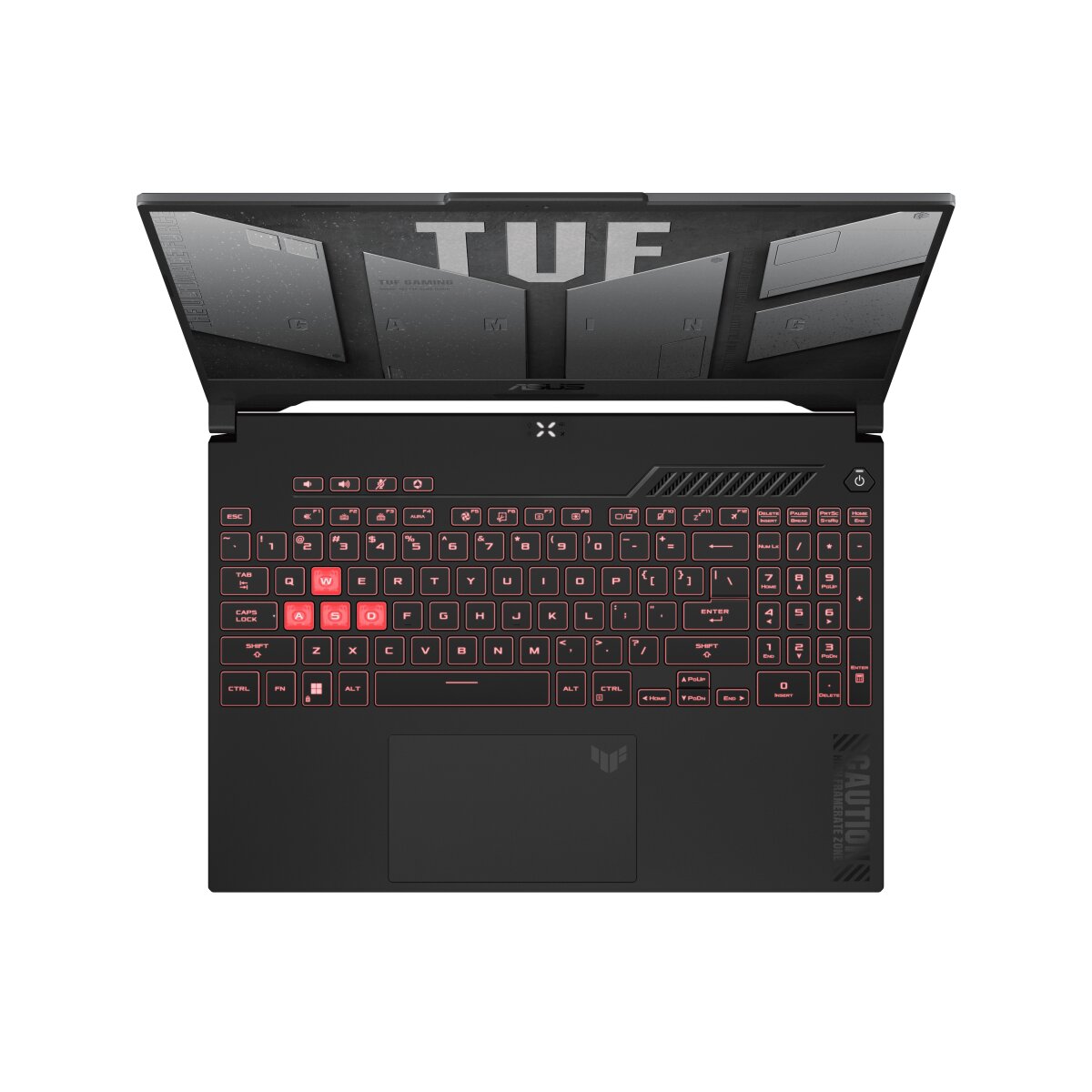

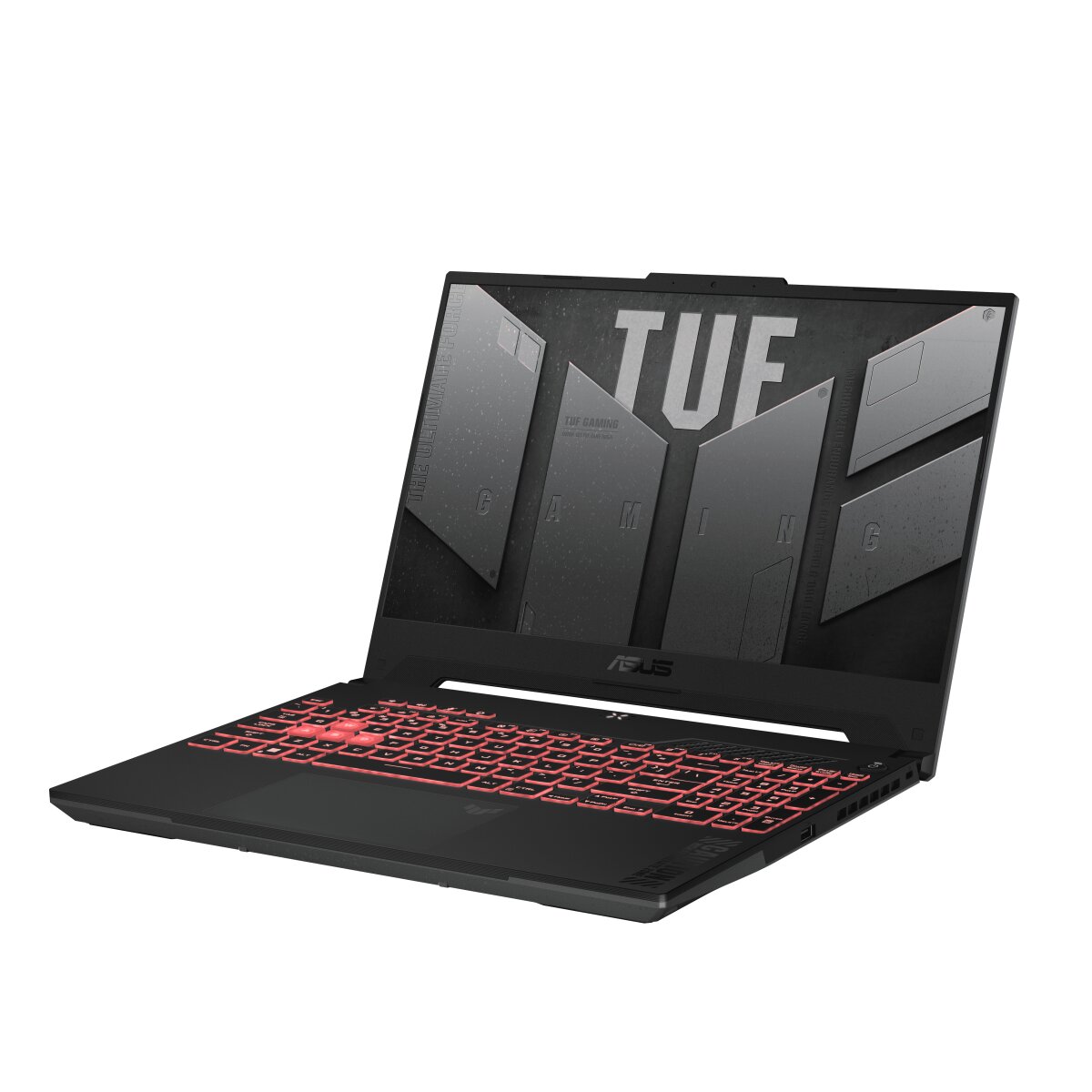

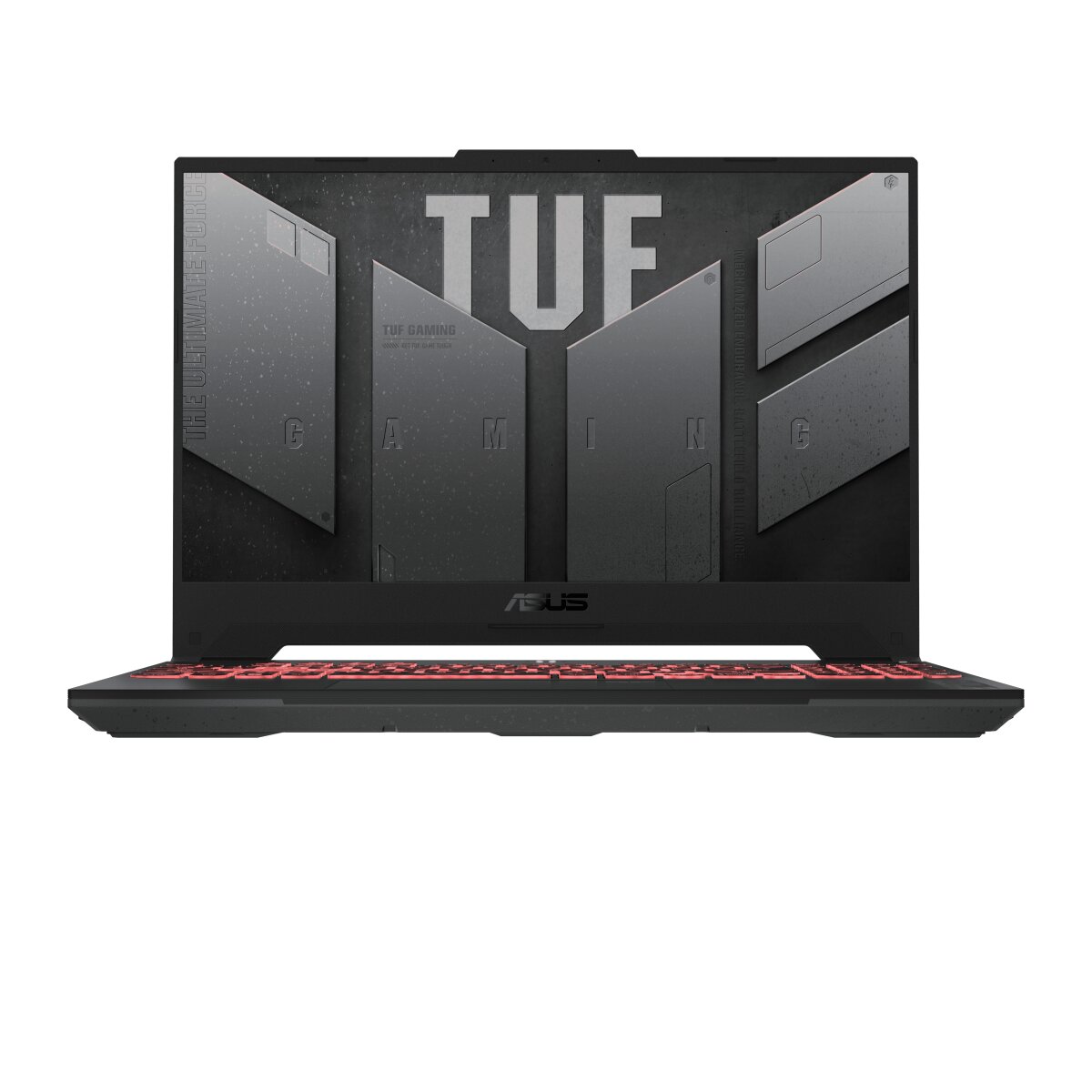

ASUS TUF Gaming TUF507NU-LP086W RAM upgrade specifications
ASUS TUF Gaming A15 series model TUF507NU-LP086W supports DDR5-SDRAM memory upgrades through two SO-DIMM slots. Maximum compatible RAM capacity reaches 32 GB total. Memory specifications include DDR5 operating at 4800 MHz frequency. Upgrade slots accommodate SO-DIMM form factor modules. Specifications confirm dual-slot configuration for memory expansion on this TUF Gaming laptop model.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR5-SDRAM |
| Frequency | 4800 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.1V |
| Number of pins | 262-pin |
| Interface | PC5 |
| PC Speed Rating | PC5-4800 (PC5-38400) |
| Bandwidth | 38.4 GB/s |
Additional Notes
- The presence of 2 physical SO-DIMM slots implies that memory operates in a dual channel configuration to maximize memory bandwidth for the AMD Ryzen processor.
- The maximum supported capacity of 32 GB suggests a hardware limitation within the BIOS or firmware that prevents the use of 24 GB or 48 GB non-binary memory modules.
- Upgrading memory requires the removal of the bottom chassis cover, which may involve breaking factory seals depending on regional service policies.
- Installing modules with frequencies higher than 4800 MHz will result in the system downclocking the RAM to match the motherboard bus speed limit.
- The ASUS TUF Gaming TUF507NU-LP086W utilizes DDR5 technology which operates at lower voltages than DDR4, resulting in improved thermal efficiency during heavy computational loads.
- Asynchronous memory pairing is possible but will force the system into flex mode, potentially reducing performance in memory intensive gaming scenarios.
- Accessing the slots necessitates ground protection to prevent electrostatic discharge from damaging the sensitive neighboring internal components.
