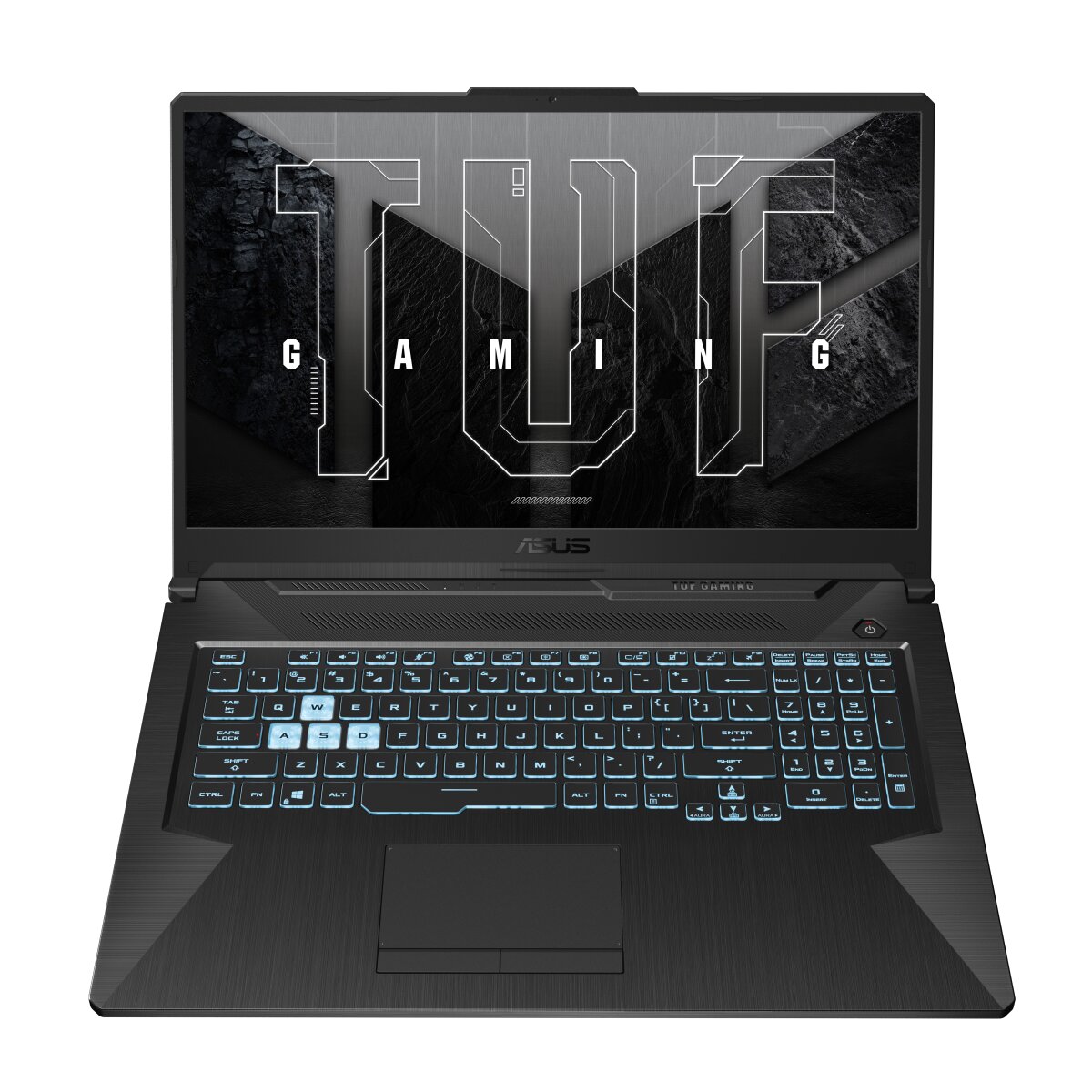

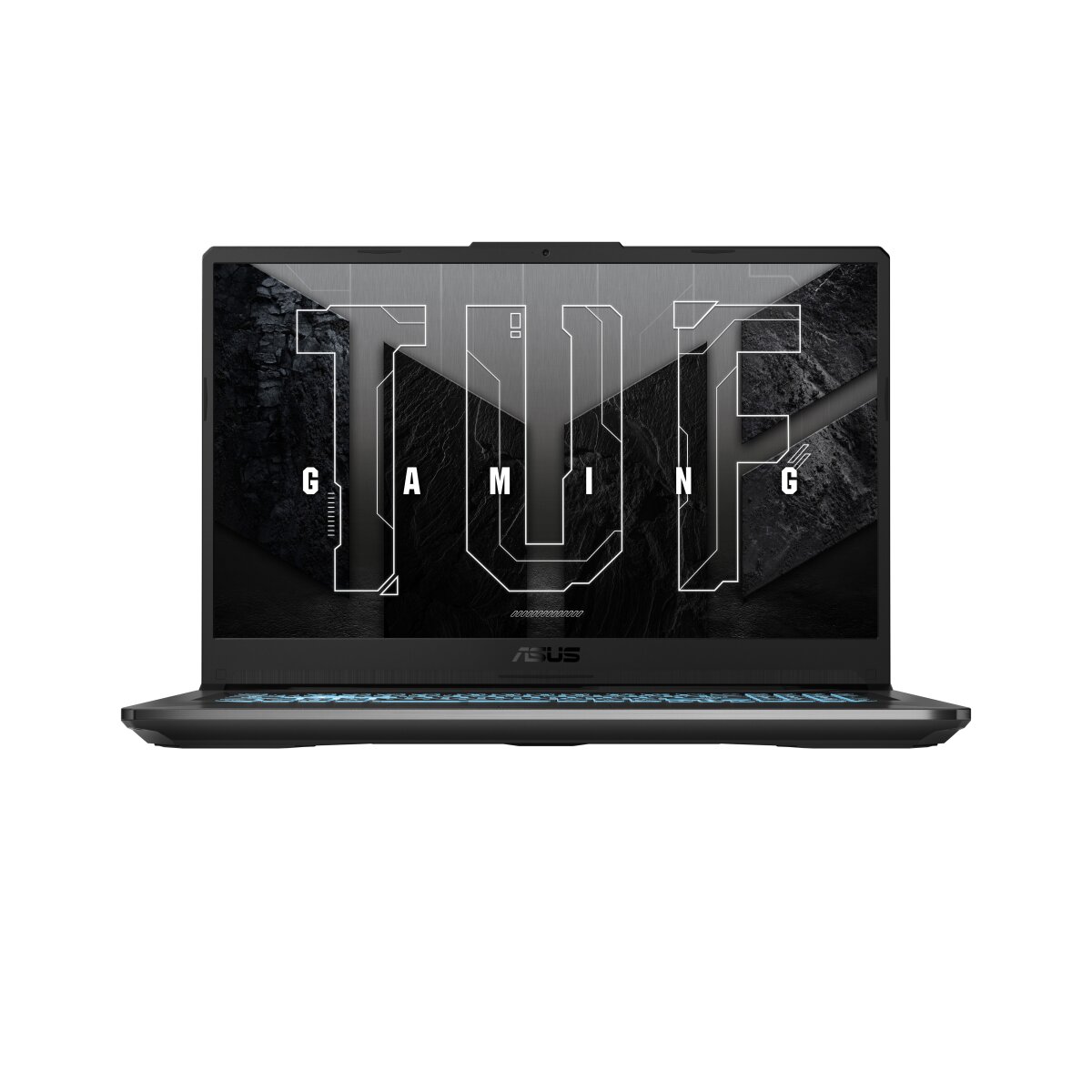

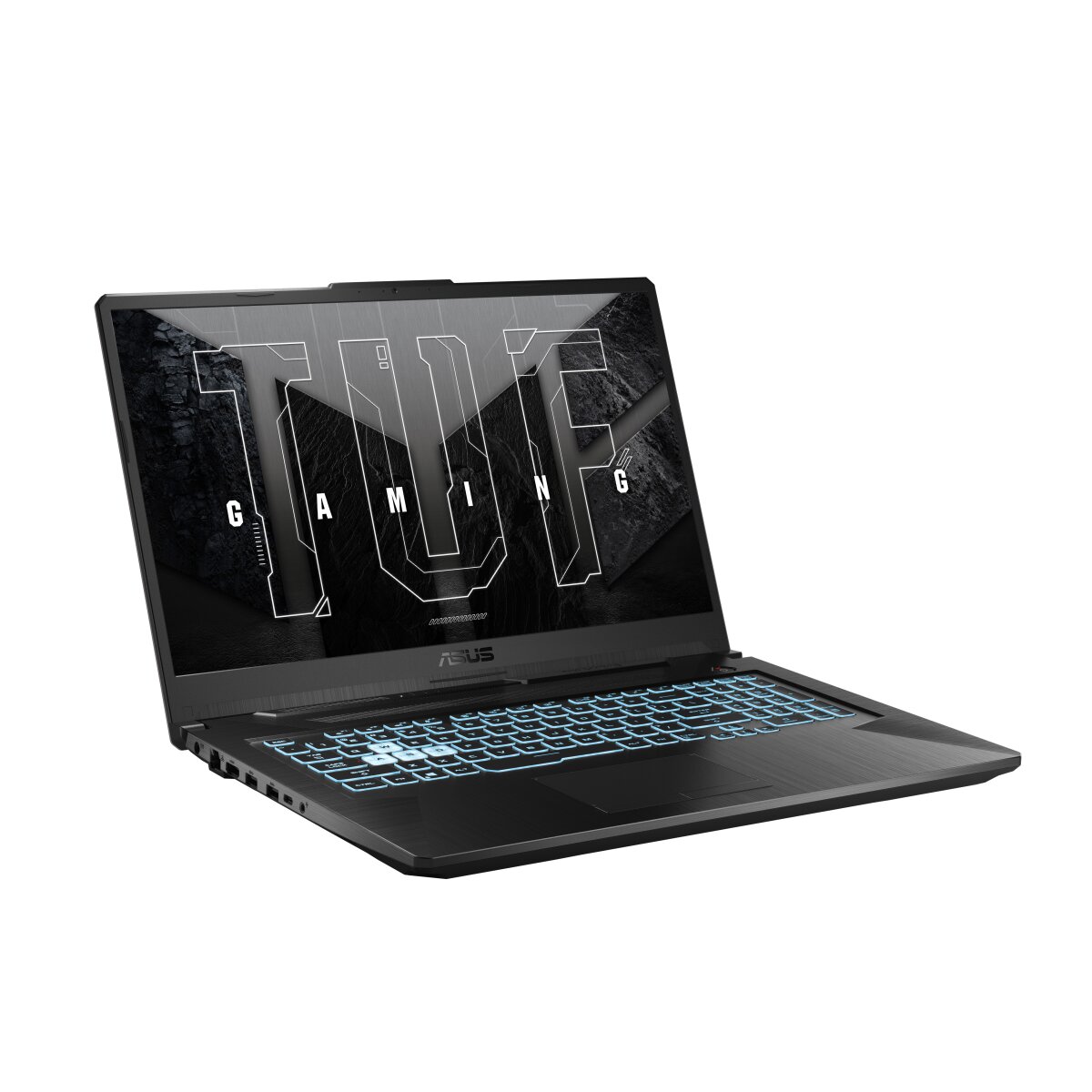

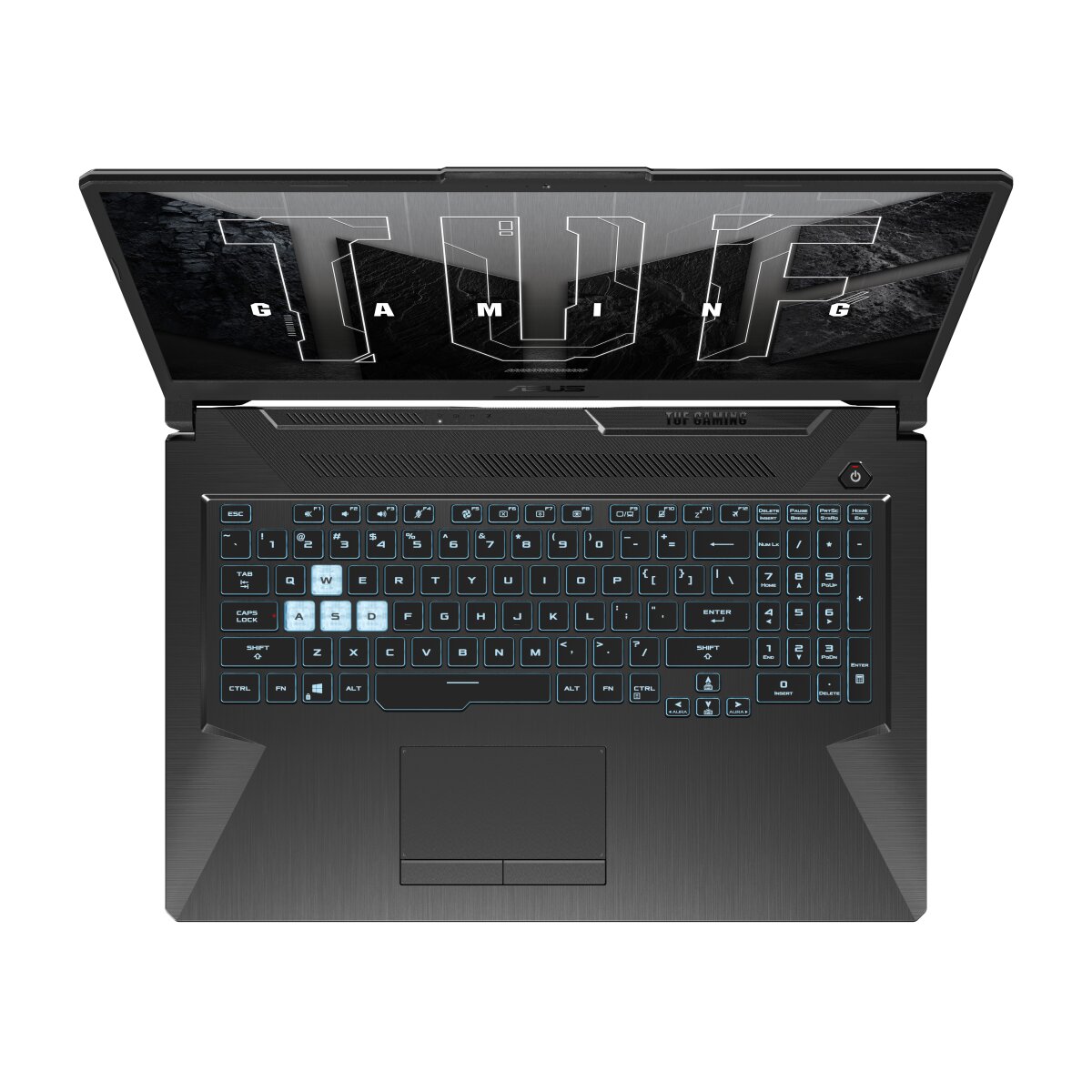

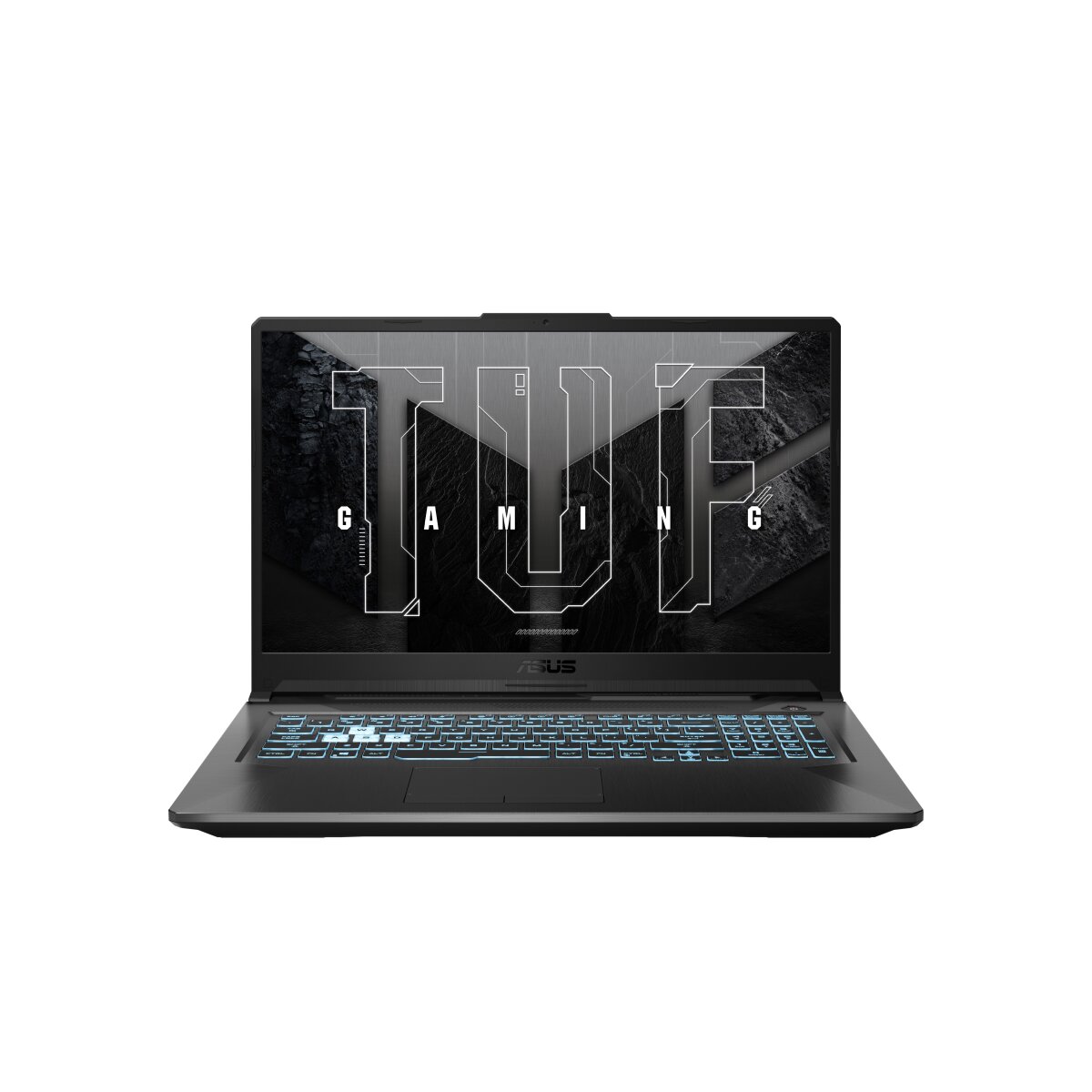

ASUS TUF Gaming FA706IHRB-HX044W RAM upgrade specifications
The ASUS TUF Gaming A17 FA706IHRB-HX044W features DDR4-SDRAM memory upgrade specifications with 2x SO-DIMM slots supporting maximum RAM capacity of 32 GB. Compatible memory modules operate at 3200 MHz frequency. The laptop accommodates SO-DIMM form factor upgrades, enabling users to expand existing memory configuration up to the maximum supported capacity. Specifications indicate dual slot architecture for memory expansion and compatibility with DDR4 technology standards.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 13 September 2022 |
Additional Notes
- Dual channel architecture requires matching memory modules in both slots to provide maximum memory bandwidth for the processor.
- The 32 GB threshold represents a hard firmware limit rather than a physical slot capacity issue.
- Installation of memory modules exceeding 3200 MHz results in automatic downclocking to the supported system frequency.
- Upgrading the ASUS TUF Gaming FA706IHRB-HX044W requires specialized tools for the bottom panel removal as typical retail units utilize captive screws and plastic clips.
- Integrated graphics performance scales directly with memory latency and speed because the GPU shares the system pool.
- Mixing modules with different CAS latencies forces the system to operate at the timings of the slowest installed stick.
- The SO-DIMM form factor necessitates 260 pin modules specifically designed for mobile chipsets.
- Accessing the interior for hardware expansion remains possible without voiding the standard manufacturer warranty provided no physical damage occurs to internal components.
