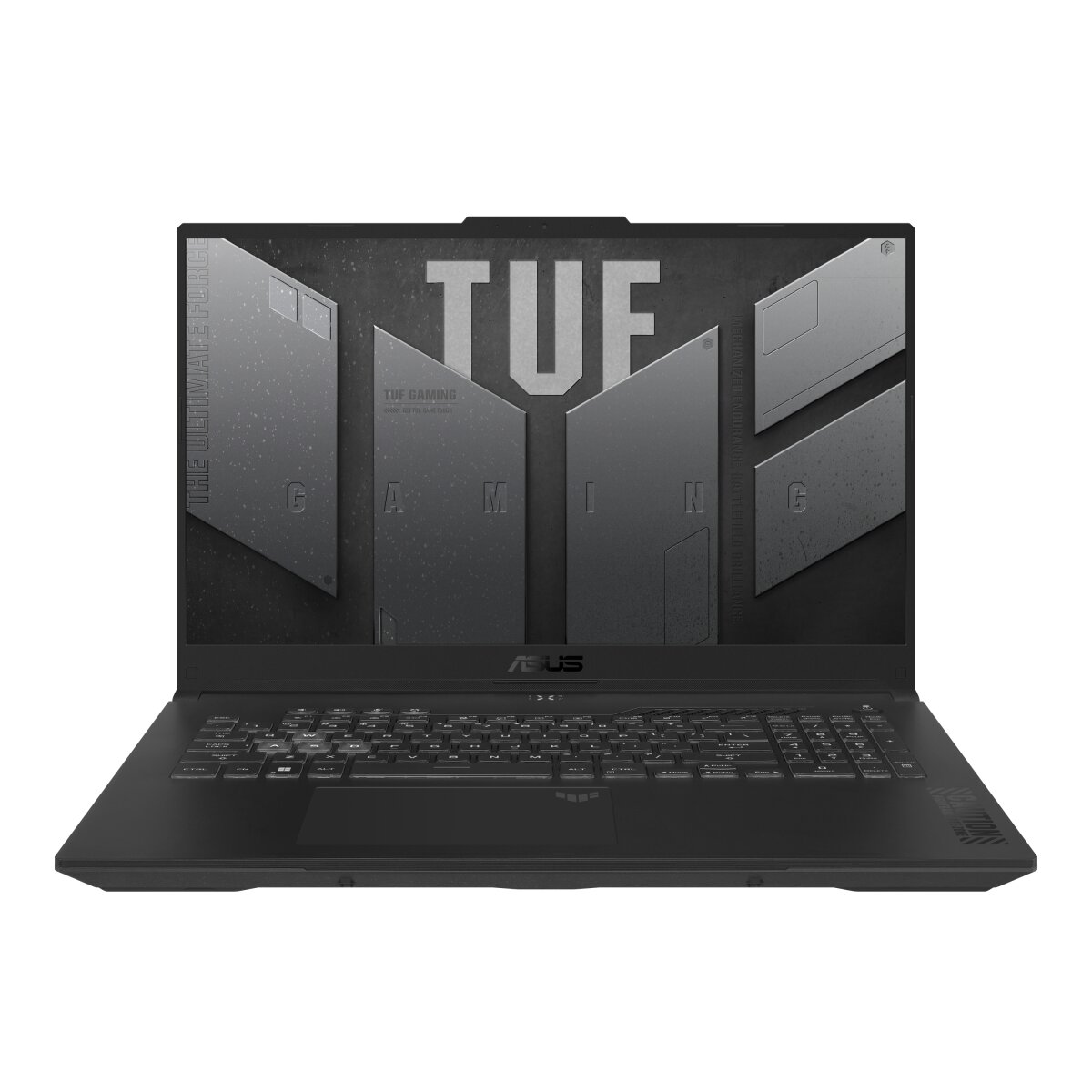

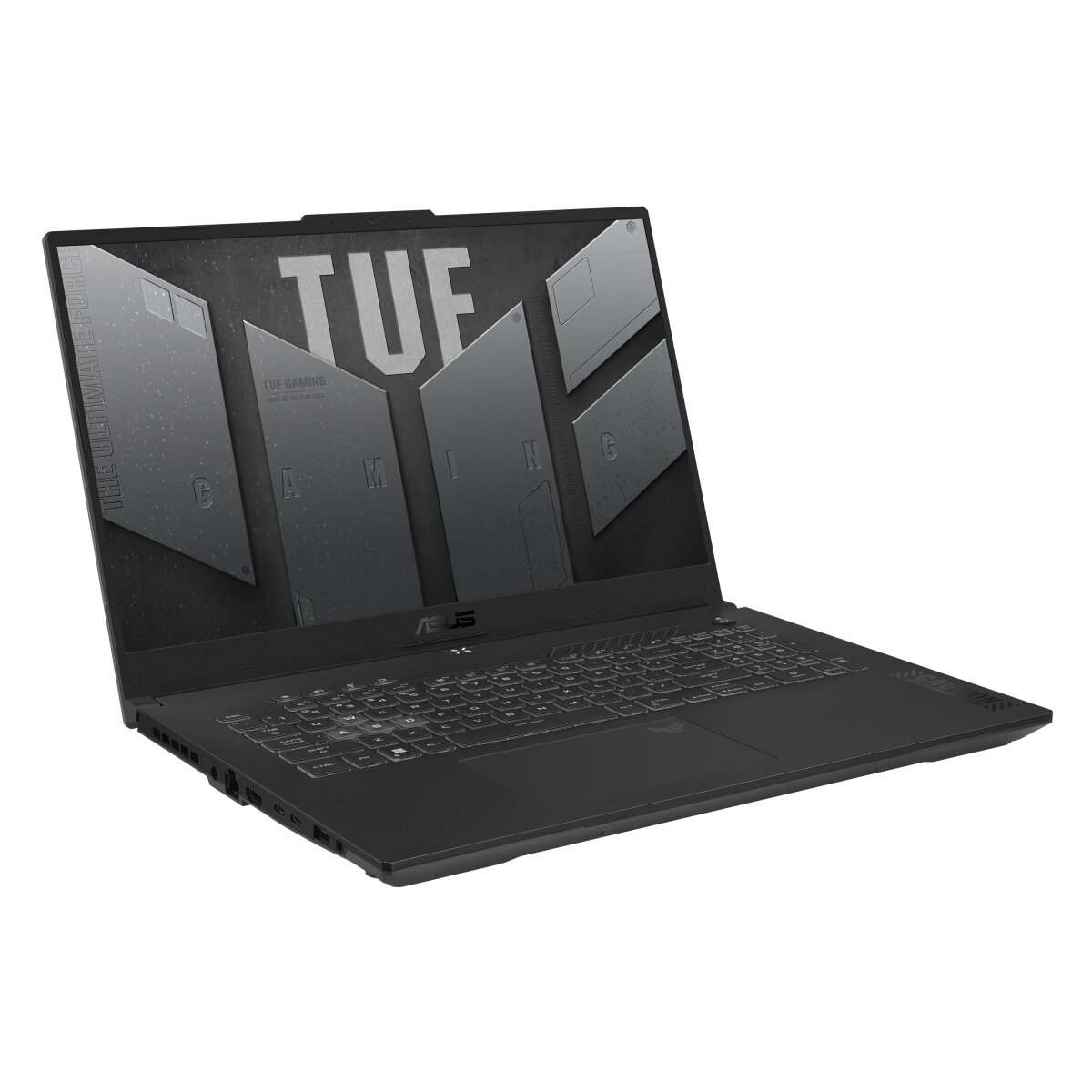

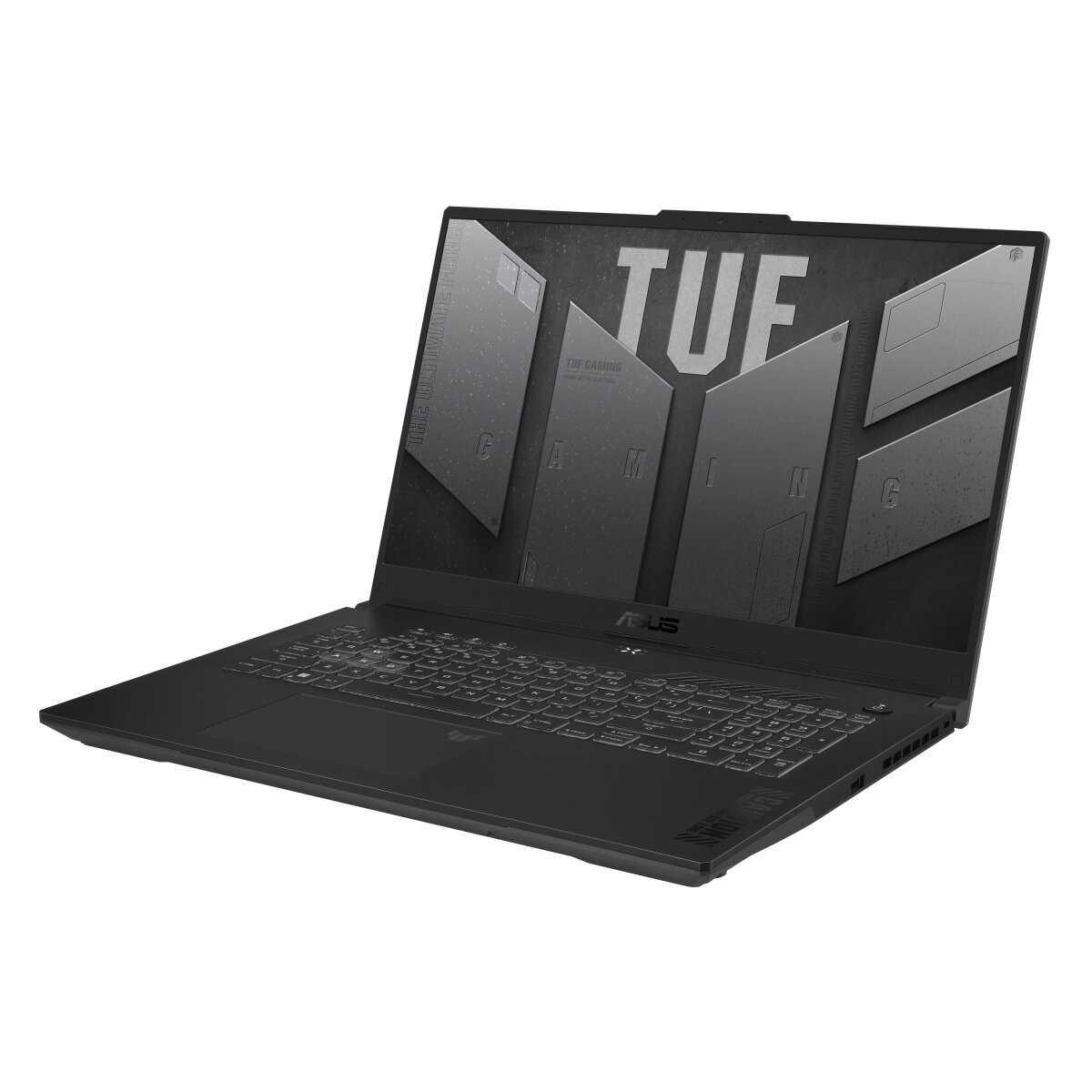

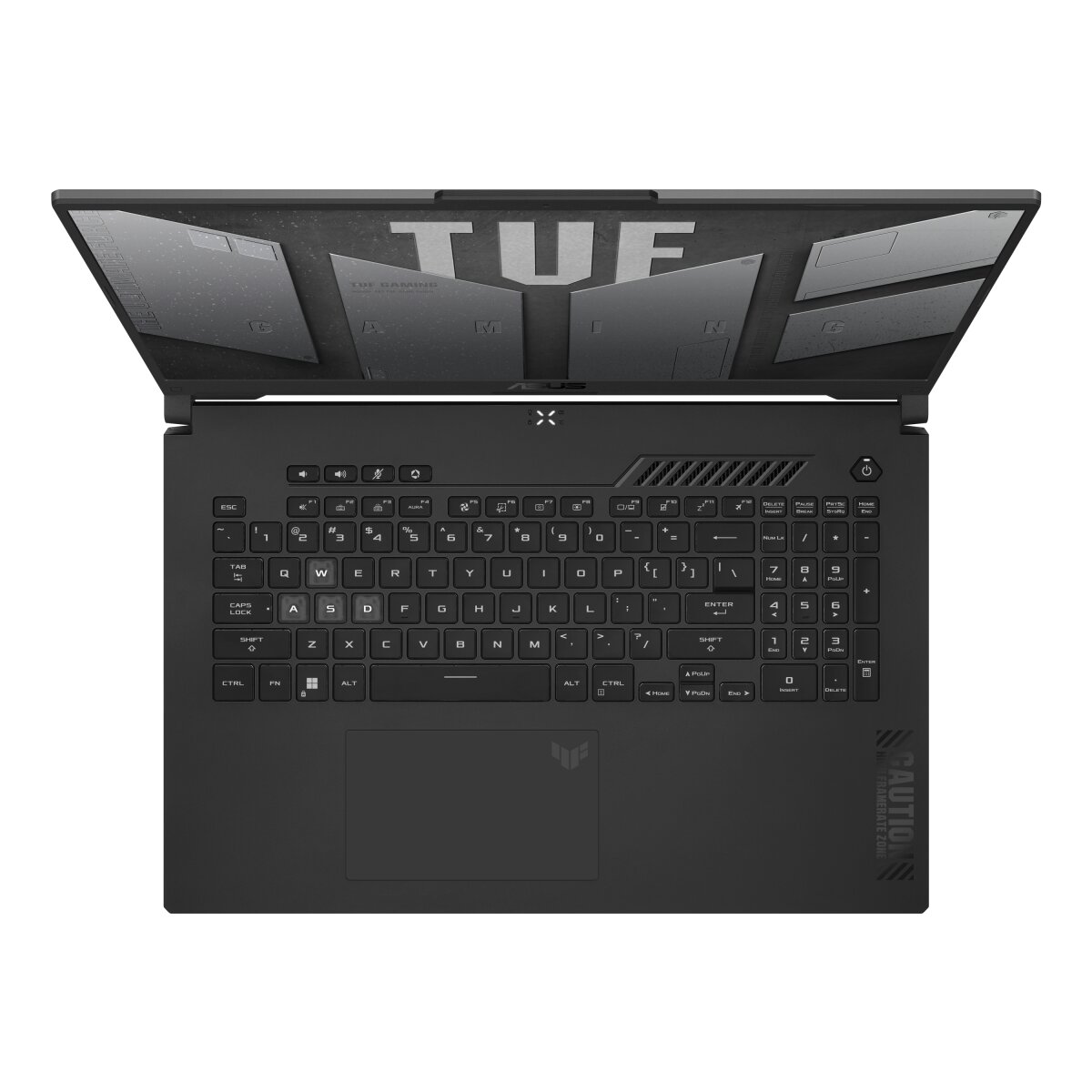

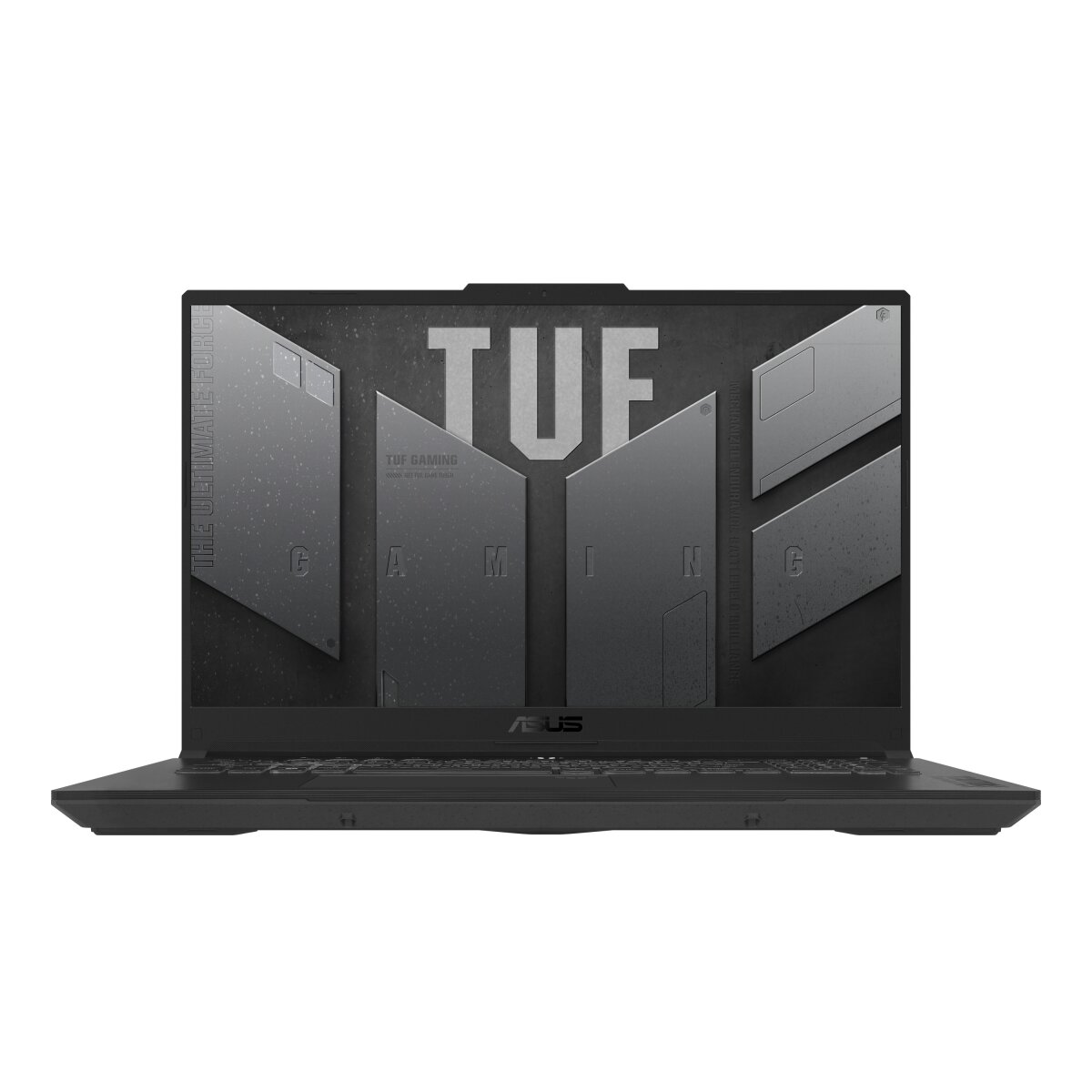

ASUS TUF Gaming FA707NU-HX052W RAM upgrade specifications

ASUS FA707NU-HX052W ASUS FA707NU-HX052W ASUS FA707NU-HX052W ASUS FA707NU-HX052W ASUS FA707NU-HX052W

The ASUS TUF Gaming A17 FA707NU-HX052W features DDR5-SDRAM memory upgrade specifications. The laptop contains two SO-DIMM slots compatible with DDR5 modules operating at 4800 MHz frequency. Maximum supported RAM capacity reaches 32 GB total. Current memory configuration allows expansion through compatible SO-DIMM form factor upgrades. DDR5 specifications provide enhanced bandwidth for demanding gaming and professional applications on the TUF Gaming A17 platform.

Memory Upgrade Specifications

SpecificationValue
Memory slots2x SO-DIMM
Form factorSO-DIMM
Memory typeDDR5-SDRAM
Frequency4800 MHz
Maximum RAM32 GB
Voltage1.1V
Number of pins262-pin
InterfacePC5
PC Speed RatingPC5-4800 (PC5-38400)
Bandwidth38.4 GB/s

Additional Notes

  • The dual-channel architecture requires 2 identical modules to achieve peak memory bandwidth and prevent CPU performance bottlenecks during intensive gaming tasks.
  • Upgrading beyond the 32 GB threshold results in system instability or failure to post due to firmware address limitations.
  • The SO-DIMM form factor necessitates manual physical access to the internal motherboard layout of the ASUS TUF Gaming FA707NU-HX052W through the removal of the bottom chassis panel.
  • Installing modules with frequencies higher than 4800 MHz will result in down-clocking to match the integrated memory controller specifications.
  • Latency timings should match the original 4800 MHz profile to avoid synchronization errors between the 2 memory slots.
  • Total memory replacement is required if both slots are currently populated with low-capacity modules because no auxiliary expansion ports exist.
  • The transition to DDR5 technology improves power efficiency over older standards but limits hardware compatibility to 262-pin modules only.
