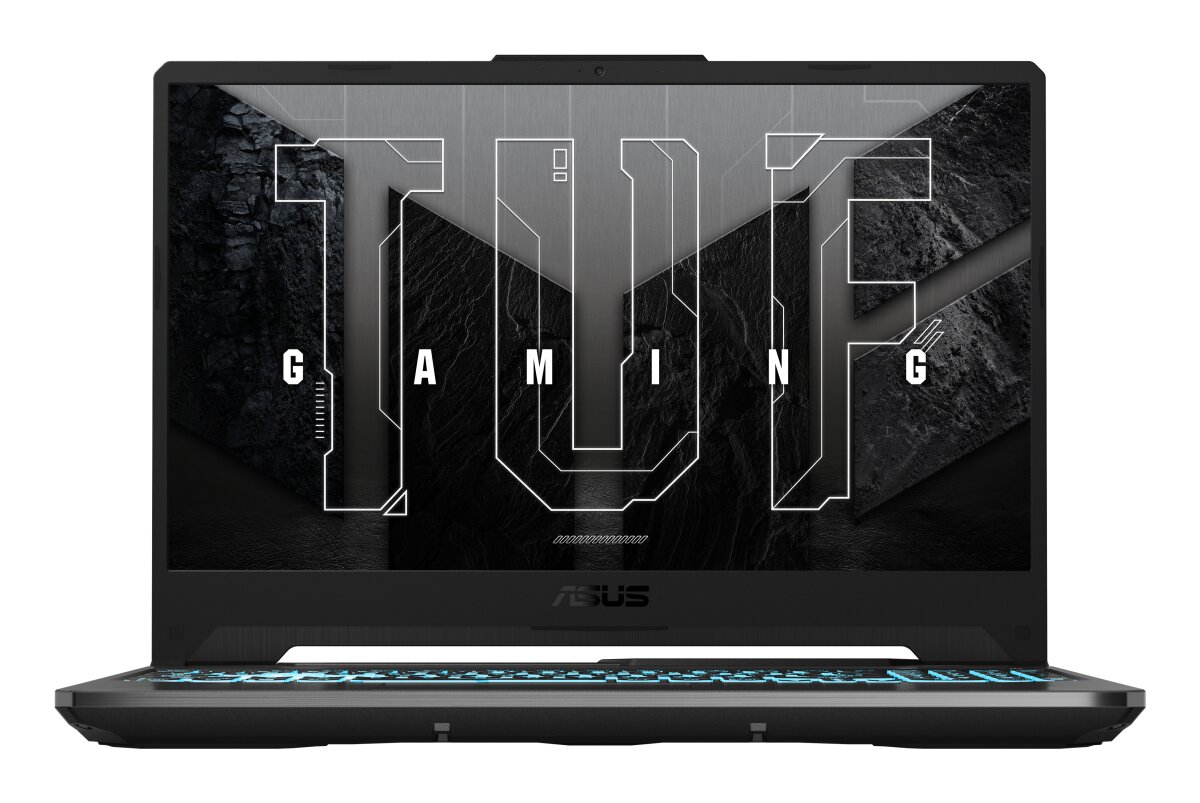

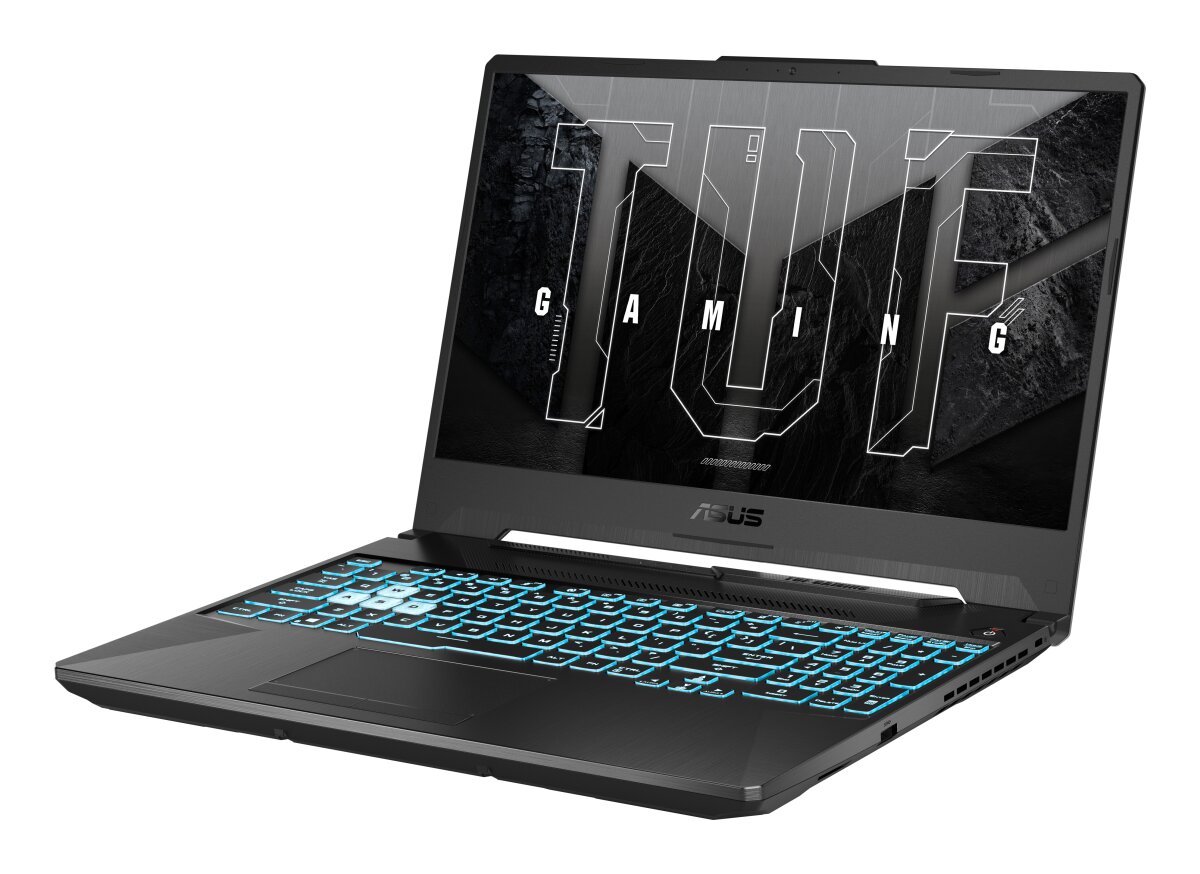

ASUS TUF Gaming FX506HC-HN111W RAM upgrade specifications

ASUS TUF Gaming F15 FX506HC-HN111W laptop features DDR4-SDRAM memory upgrade specifications. The system contains two SO-DIMM slots for RAM expansion, supporting a maximum capacity of 32 GB total memory. Compatible RAM modules operate at 3200 MHz frequency and use the SO-DIMM form factor. Specifications indicate the FX506HC-HN111W model accommodates DDR4 memory upgrades to reach the maximum 32 GB configuration across both available slots.

Additional Notes

• The 32 GB ceiling stems from the chipset's addressing limitations rather than physical slot constraints, meaning 2x16 GB modules represent the absolute maximum configuration regardless of future DDR4 density improvements.
• The ASUS TUF Gaming FX506HC-HN111W supports dual-channel operation when identical modules populate both slots, effectively doubling memory bandwidth to 51.2 GB/s compared to single-channel configurations.
• Mixing modules with different frequencies forces all memory to operate at the lowest common speed, potentially throttling 3200 MHz modules to 2933 MHz or 2666 MHz if paired with slower DIMMs.
• SO-DIMM modules measuring 67.6 mm in length represent the only compatible form factor, as standard 133.35 mm desktop DIMMs physically cannot fit the notebook's memory bay.
• Non-matching module capacities still enable dual-channel mode through flex mode technology, but only the overlapping capacity operates in dual-channel while exceeding capacity reverts to slower single-channel access.
• Voltage specifications remain fixed at 1.2V for DDR4 operation, meaning low-voltage DDR4L modules at 1.05V may encounter stability issues or refuse POST despite physical compatibility.
• Accessing the memory slots requires bottom panel removal, which typically voids seals on units still under manufacturer warranty unless performed by authorized service centers.
• CAS latency timings interact with frequency such that 3200 MHz modules with CL22 deliver similar real-world latency to 2666 MHz CL18 modules, making raw frequency comparisons incomplete performance indicators.
• Unbuffered non-ECC modules represent the required specification, as registered or ECC memory types designed for server applications lack compatibility with consumer mobile chipsets.
• XMP profiles embedded in aftermarket modules remain inactive without BIOS support, forcing memory to fall back to JEDEC standard speeds that may sit below the module's rated 3200 MHz capability.
