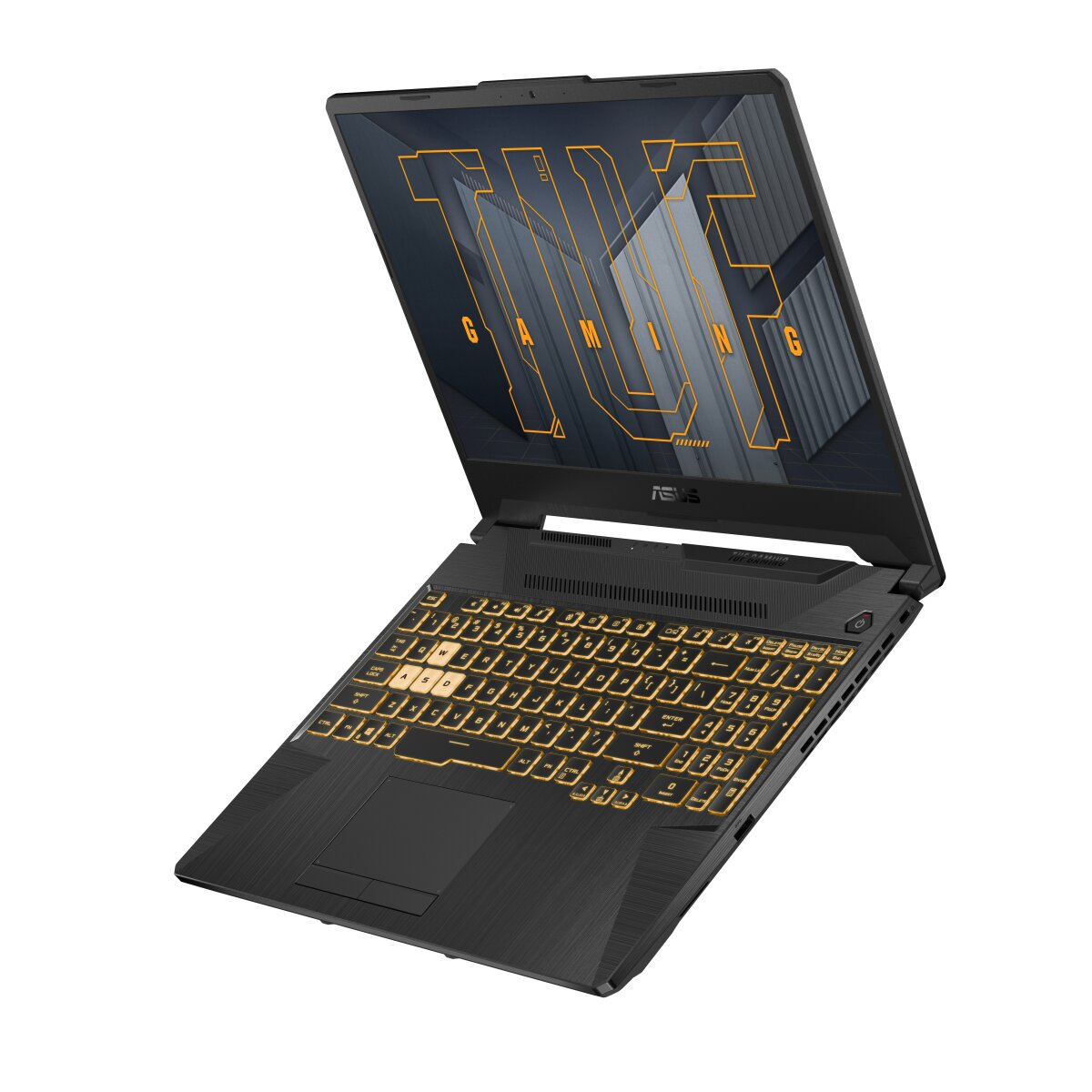

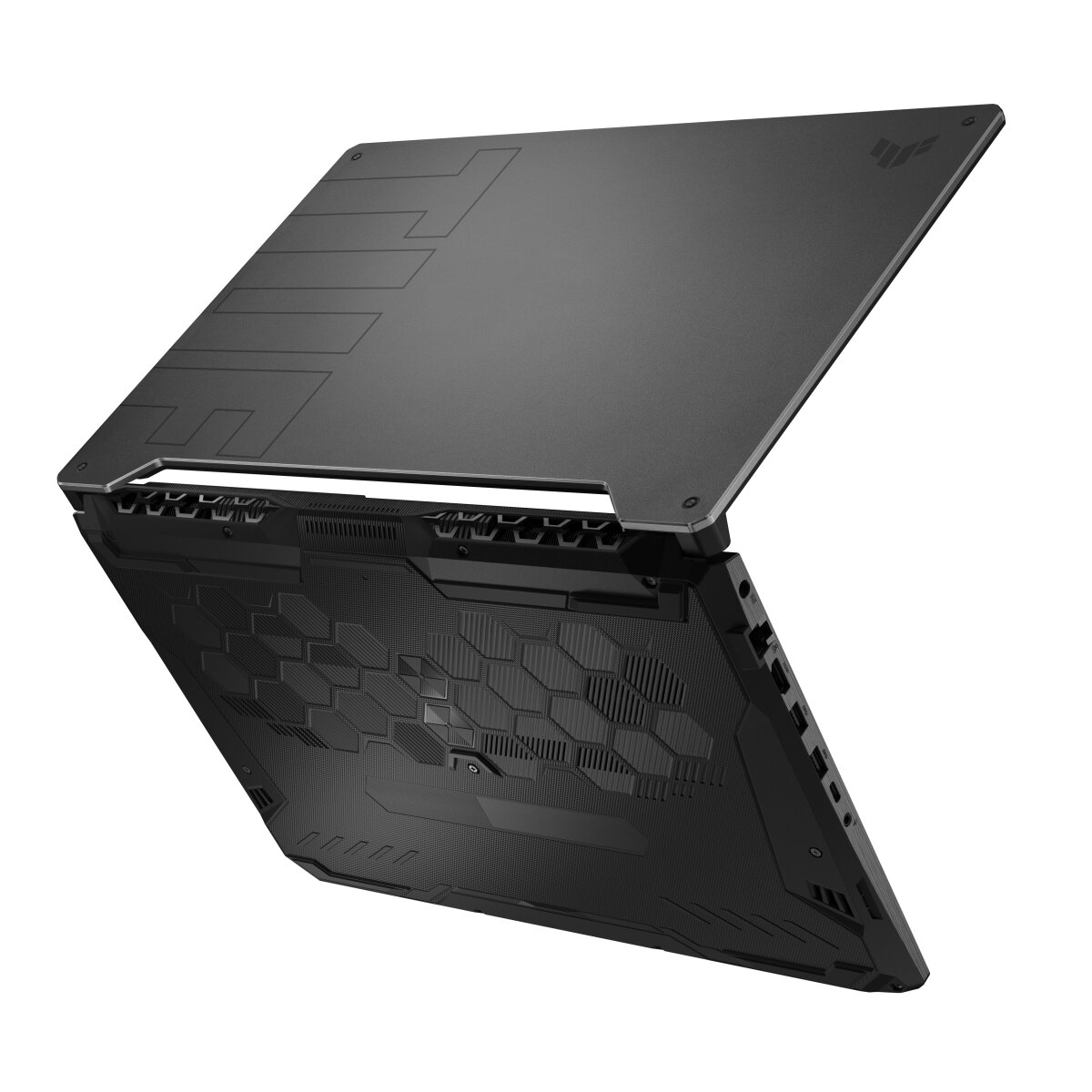

ASUS TUF Gaming FX506HCB-HN256T RAM upgrade specifications
ASUS TUF Gaming F15 FX506HCB-HN256T RAM upgrade specifications feature DDR4-SDRAM memory compatible with 2x SO-DIMM slots. Maximum supported capacity reaches 32 GB total memory. Compatible modules operate at 3200 MHz frequency. Upgrade slots accommodate SO-DIMM form factor memory modules. Specifications support memory expansion for enhanced multitasking performance on this gaming laptop model.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 02 October 2021 |
Additional Notes
- Dual channel architecture requires matching memory modules in both slots to provide maximum memory bandwidth for the processor and integrated graphics.
- The 32 GB ceiling restricts the use of high capacity 32 GB or 64 GB single sticks and limits the system to a maximum configuration of two 16 GB modules.
- Operating at the 3200 MHz frequency depends on the integrated memory controller of the installed CPU and typically requires modules featuring JEDEC profiles to avoid downclocking on the ASUS TUF Gaming FX506HCB-HN256T motherboard.
- Non ECC unbuffered SO-DIMM modules are required as the architectural design lacks support for error correction or registered memory kits.
- Accessing the SO-DIMM slots necessitates the removal of the entire bottom chassis panel which may involve various screw lengths requiring careful organization to prevent internal casing damage.
- Physical space within the 2 slots is restricted to standard height modules preventing the installation of memory kits equipped with oversized passive heat spreaders.
- Latencies remain locked to the SPD table of the hardware because these BIOS environments generally do not support XMP or manual timing adjustments.
