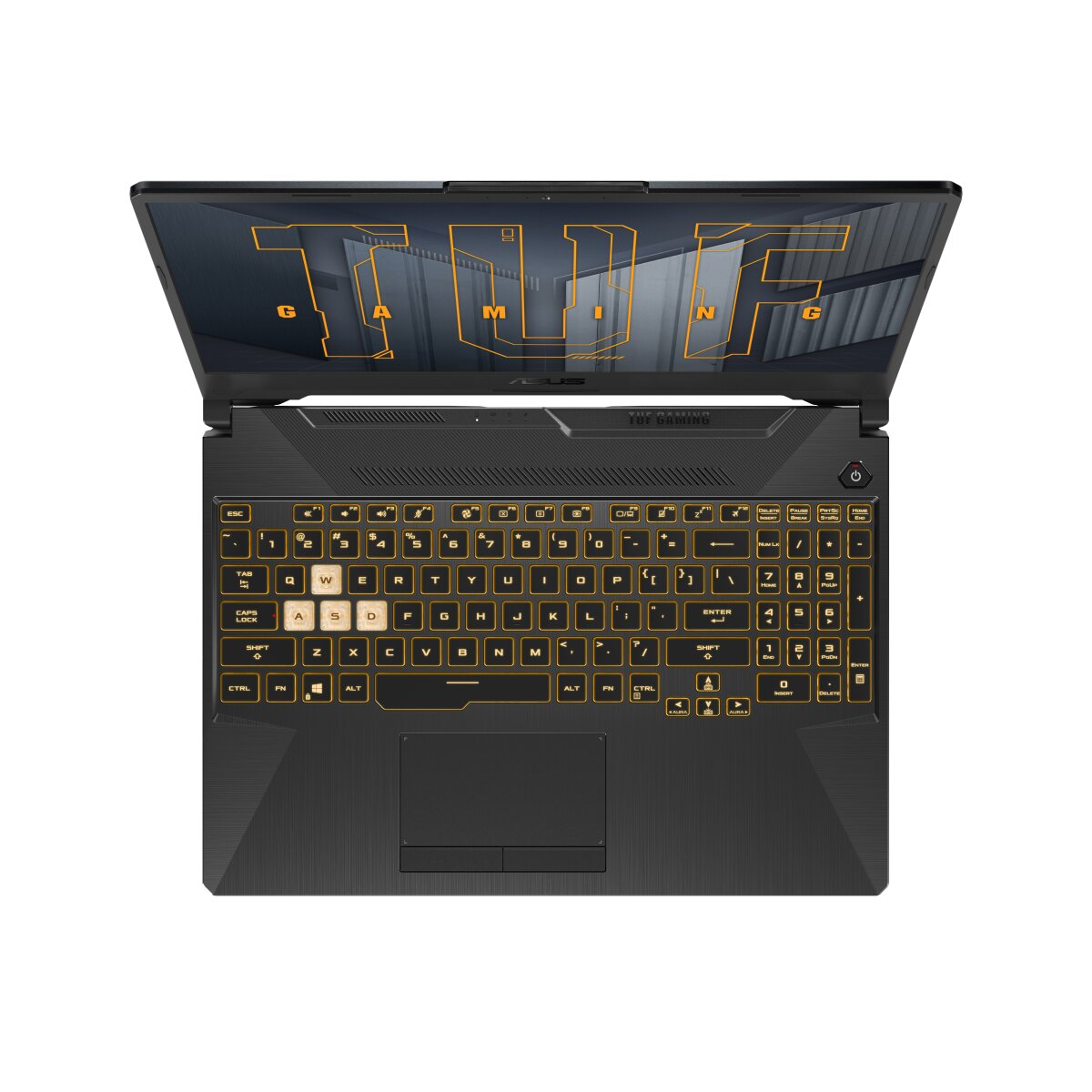

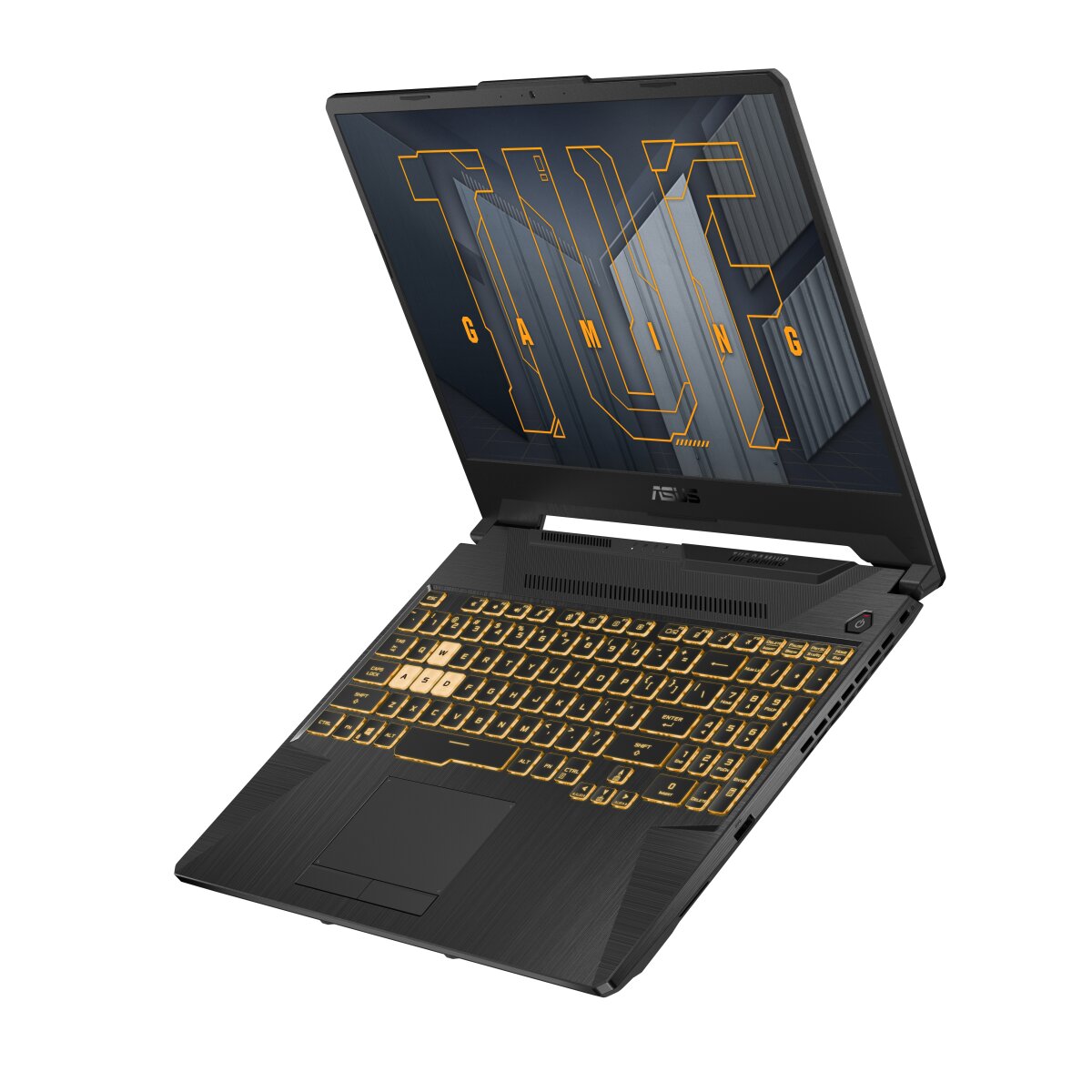

ASUS TUF Gaming FX506HEB-HN278W RAM upgrade specifications
ASUS TUF Gaming F15 FX506HEB-HN278W laptop features DDR4-SDRAM memory upgrade capabilities with 2x SO-DIMM slots supporting maximum RAM capacity of 32 GB. Compatible memory modules operate at 3200 MHz frequency and utilize SO-DIMM form factor specifications. Upgrade options allow installation of higher-capacity memory modules to enhance system performance within specified compatibility parameters.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 24 May 2022 |
Additional Notes
- The ASUS TUF Gaming FX506HEB-HN278W supports dual-channel memory architecture, enabling symmetric bandwidth distribution when both slots operate with matched modules.
- DDR4-3200 represents the maximum validated frequency for this platform, and modules rated at higher speeds will typically downclock to 3200 MHz during POST.
- The 32 GB system ceiling requires 16 GB modules in both slots, as mismatched capacities will force single-channel operation on the excess capacity portion.
- SO-DIMM packaging limits module height to approximately 30 mm, restricting compatibility to notebook-specific memory rather than desktop UDIMM variants.
- Mixing modules with different latency timings may force all installed memory to operate at the slowest common CAS value, reducing effective bandwidth despite matching frequencies.
- Access to the SO-DIMM slots typically requires bottom panel removal, and improper disassembly may void manufacturer coverage if chassis clips sustain damage.
- DDR4 operates at 1.2 V standard voltage, and high-voltage XMP profiles designed for desktop overclocking will not initialize on this mobile platform.
- Upgrading from single-channel to dual-channel configuration can yield 40-60% bandwidth improvement in memory-intensive workloads, though CPU-bound tasks show minimal gains.
- Non-ECC unbuffered modules are required, as error-correcting or registered memory types lack compatibility with consumer-grade mobile chipsets.
- Thermal considerations apply when upgrading to maximum capacity, as higher-density modules generate additional heat under sustained memory access patterns.
