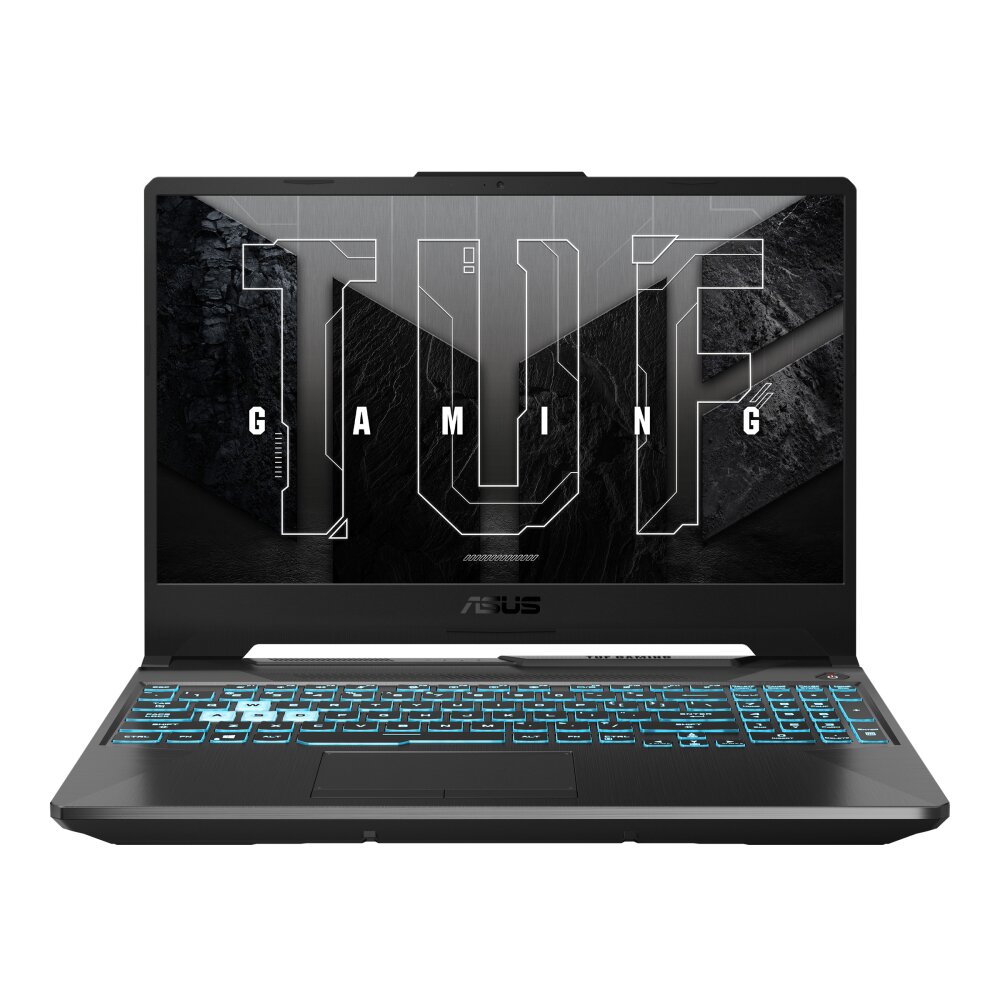

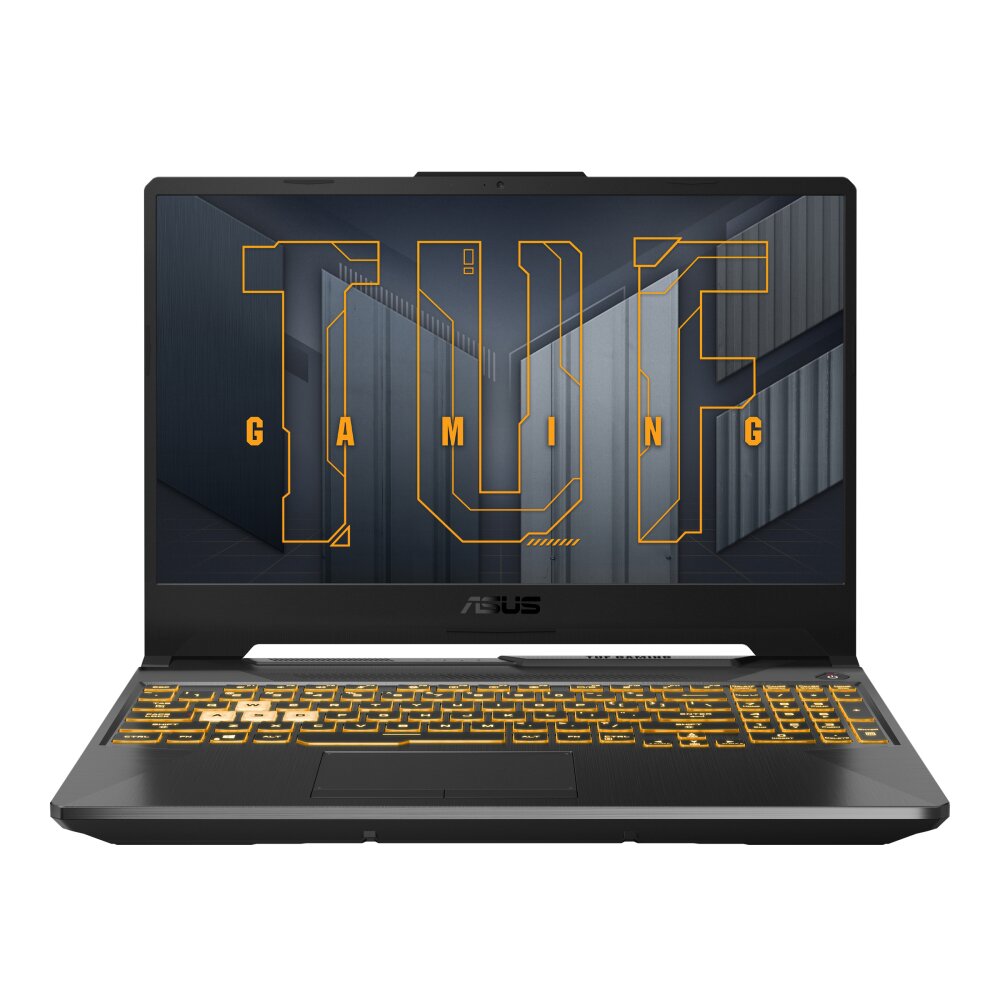

ASUS TUF Gaming FX506HEB-HN188W RAM upgrade specifications
ASUS TUF Gaming F15 FX506HEB-HN188W laptop features dual SO-DIMM memory slots supporting DDR4-SDRAM specifications. The device accommodates maximum RAM capacity of 32 GB through compatible upgrade modules operating at 3200 MHz frequency. Existing memory configuration can be expanded by replacing or supplementing SO-DIMM form factor modules. Specifications indicate dual-slot architecture enabling modular memory upgrades to achieve stated maximum capacity limitations.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 19 May 2022 |
Additional Notes
- The ASUS TUF Gaming FX506HEB-HN188W uses DDR4 SO-DIMM modules, which are laptop-specific form factors that are not interchangeable with standard desktop DIMM slots and require matched pair installation for dual-channel performance.
- Maximum addressable memory of 32 GB represents a hard ceiling imposed by BIOS firmware; exceeding this capacity will result in unrecognized or inaccessible memory modules regardless of physical compatibility.
- The 2-slot configuration means both DIMM slots must be populated to achieve dual-channel bandwidth; single-module installations operate in single-channel mode, reducing memory throughput by approximately 50 percent and creating a performance bottleneck for graphics-intensive or multitasking workloads.
- DDR4-3200 MHz specification requires replacement modules to match this exact frequency rating; modules rated below 3200 MHz will downclock to the slower specification, while modules rated above this frequency may operate at reduced speeds or cause system instability due to BIOS voltage/timing limitations.
- SO-DIMM modules occupy confined physical space within the chassis; verifying clearance around existing heatsinks, battery connectors, and internal cabling is necessary before installation to prevent mechanical interference or component damage.
- Memory upgrades to this platform typically fall outside manufacturer warranty restrictions when performed by end-users, provided the laptop is powered down and internal components are handled with electrostatic discharge precautions.
