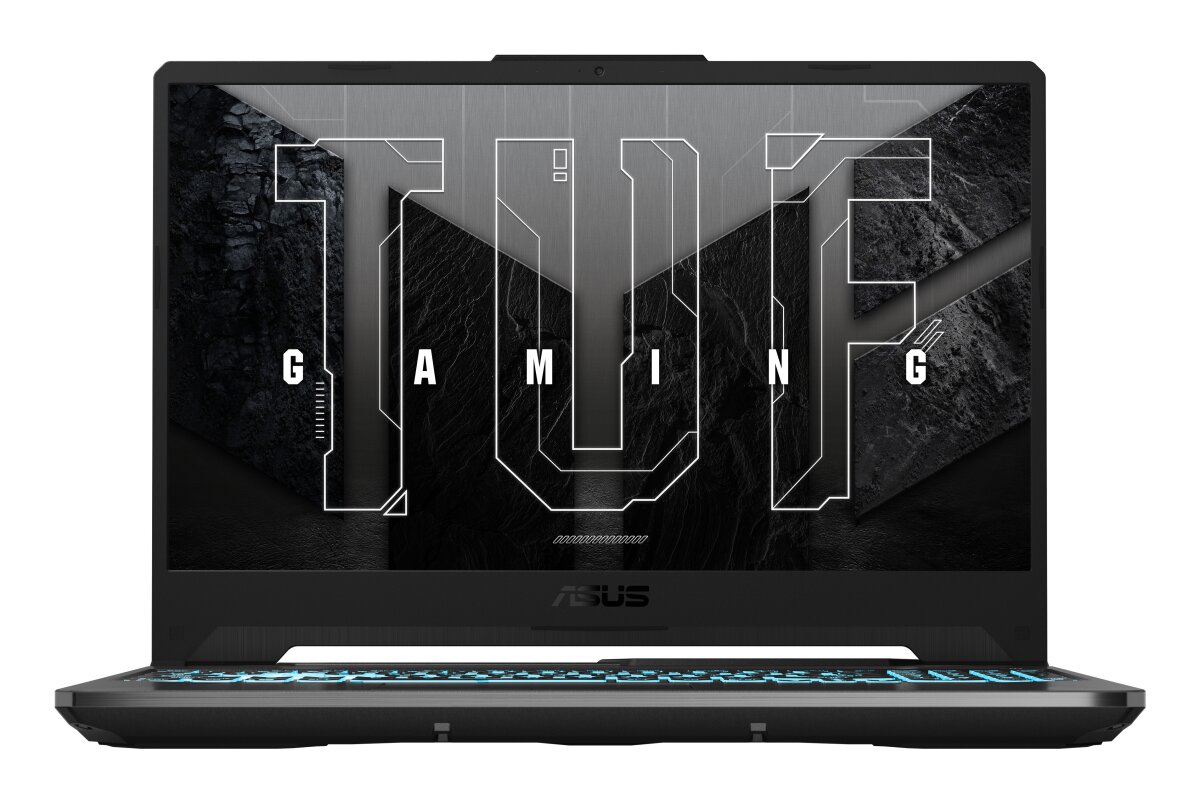

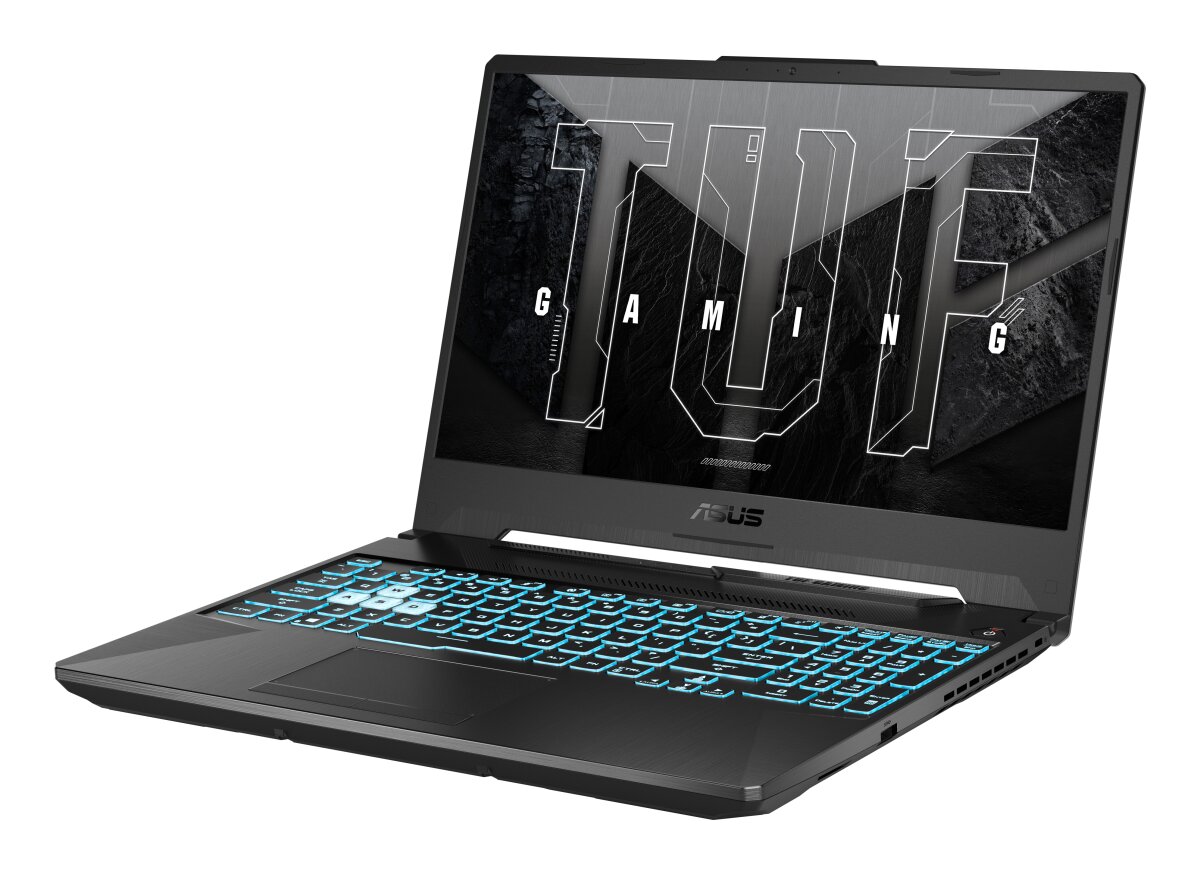

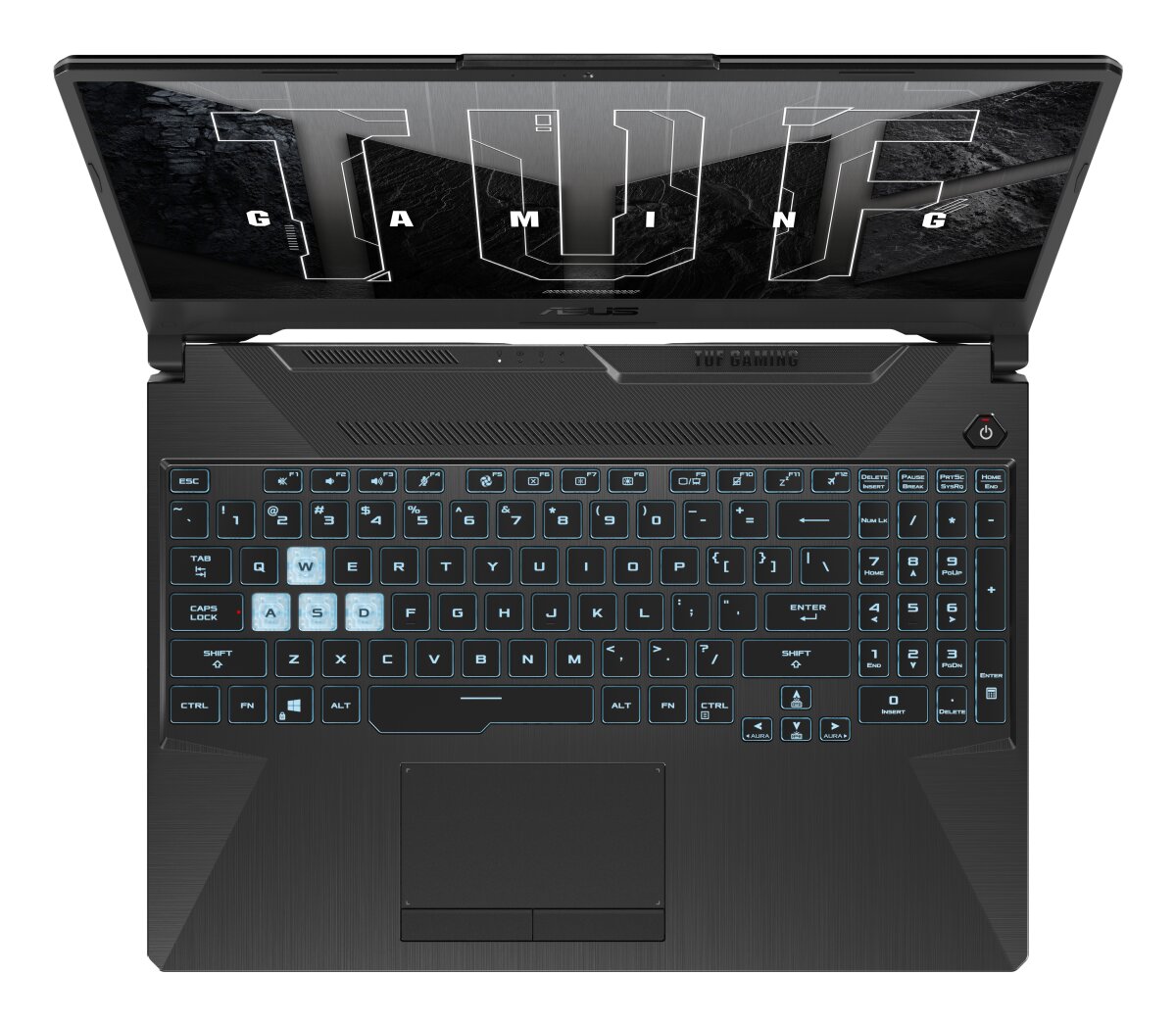

ASUS TUF Gaming FX506HF-HN021 RAM upgrade specifications
ASUS TUF Gaming F15 FX506HF-HN021 features DDR4-SDRAM memory upgrade specifications with two SO-DIMM slots supporting maximum RAM capacity of 32 GB. Compatible memory modules operate at 3200 MHz frequency. Upgrade configurations available for enhanced multitasking and gaming performance. Specifications indicate dual-slot architecture enabling flexible memory expansion up to stated maximum capacity.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
Additional Notes
- Dual channel mode is only achievable by installing 2 identical memory modules to synchronize data throughput between the processor and the controller.
- The 32 GB threshold represents the maximum addressable space supported by the motherboard firmware and hardware architecture of the ASUS TUF Gaming FX506HF-HN021.
- Installing modules with higher frequency ratings will result in automatic downclocking to the system bus limit of 3200 MHz.
- Internal circuitry depends on SO-DIMM physical dimensions which preclude the use of full-sized longitudinal desktop memory modules.
- Replacing both factory modules simultaneously is required to reach the maximum capacity since no portion of the memory is soldered to the mainboard.
- The use of DDR4 technology prevents the installation of DDR5 modules due to incompatible voltage requirements and physical notch placement.
- Performance saturation in heavy multitasking remains limited by the bandwidth of the 2 available slots regardless of individual module latency.
