ASUS TUF Gaming FX506HF-HN028W RAM upgrade specifications

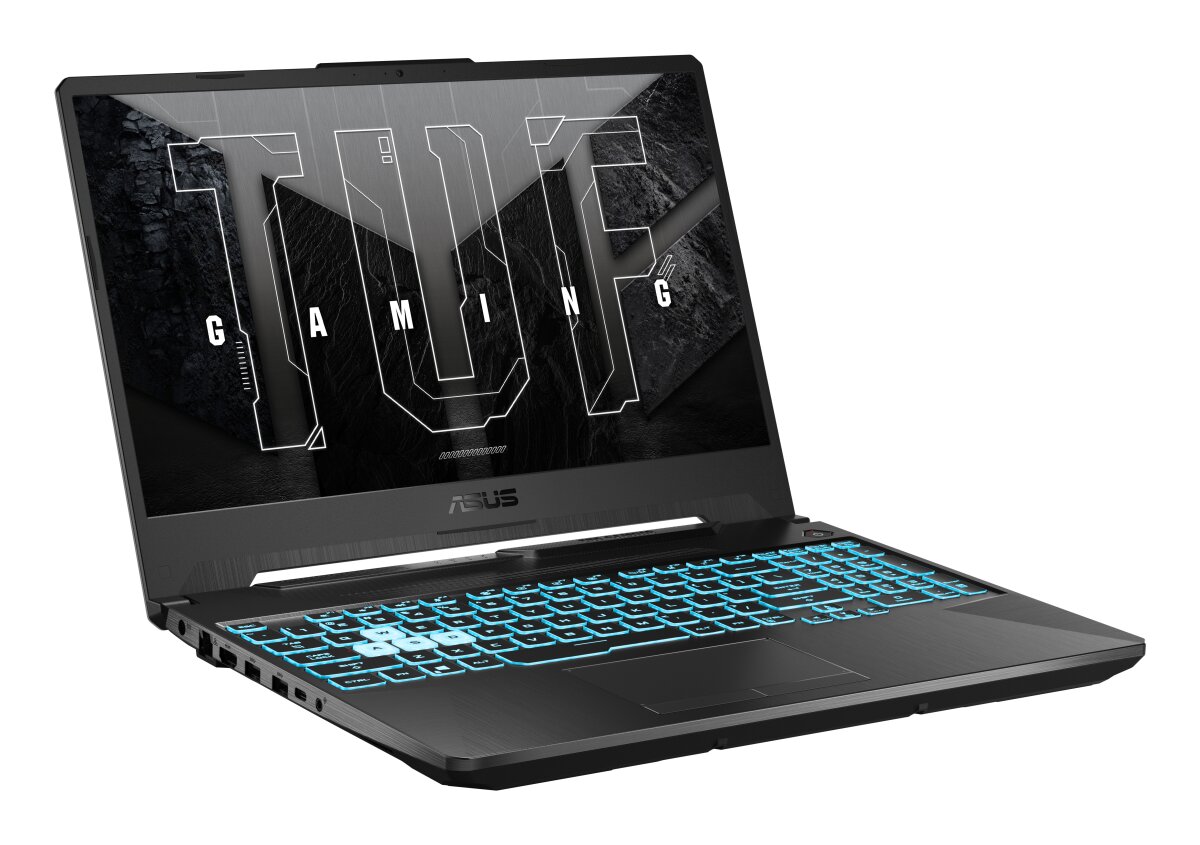

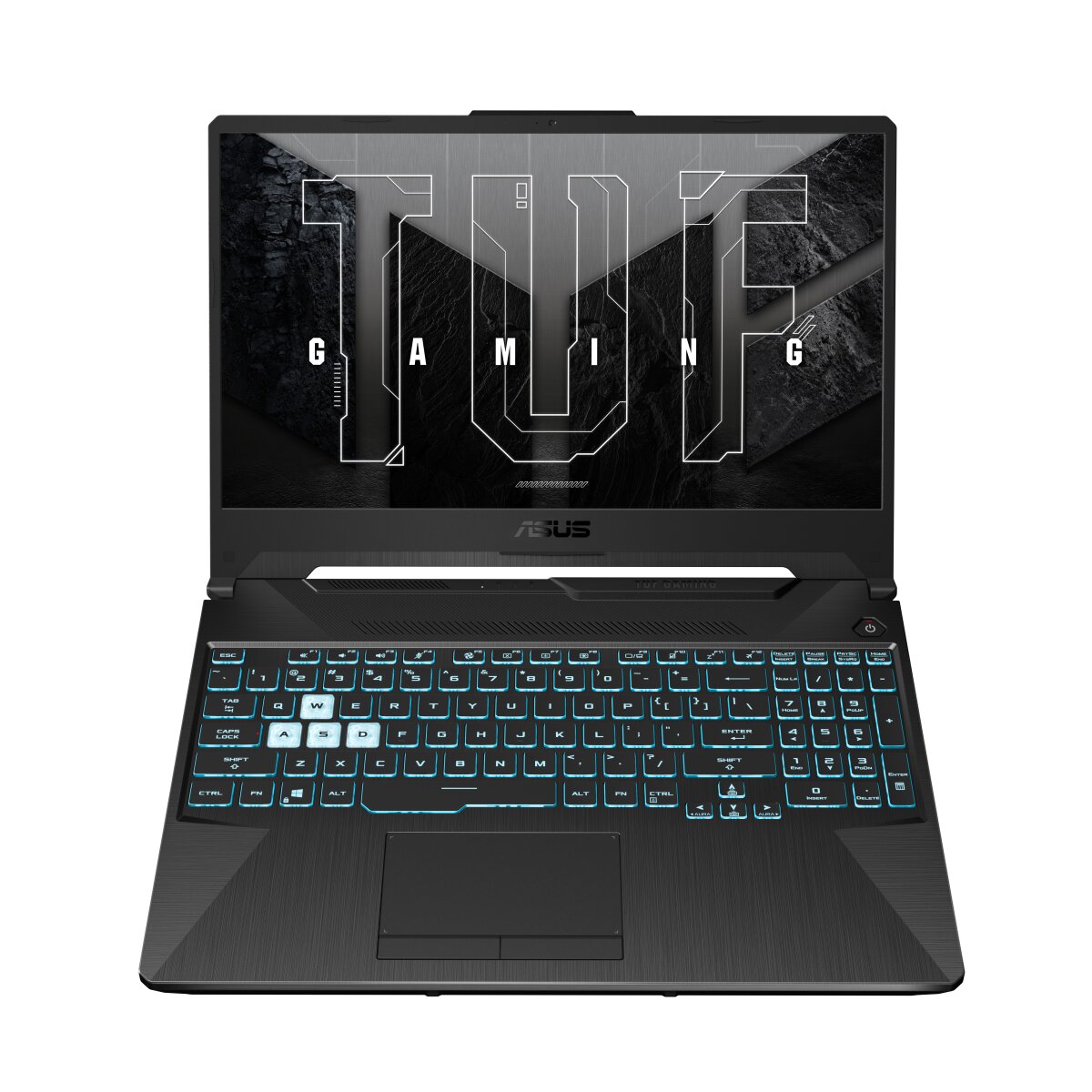

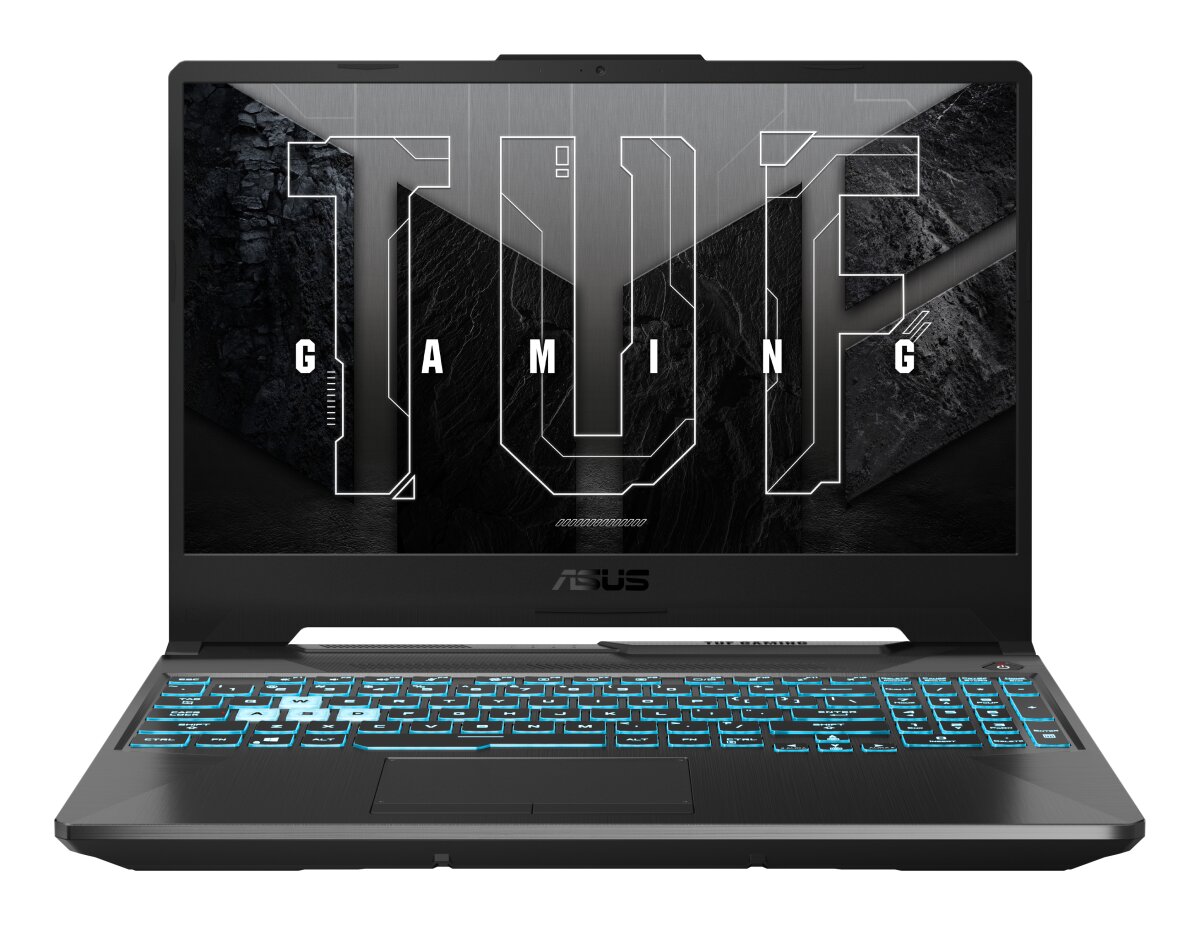

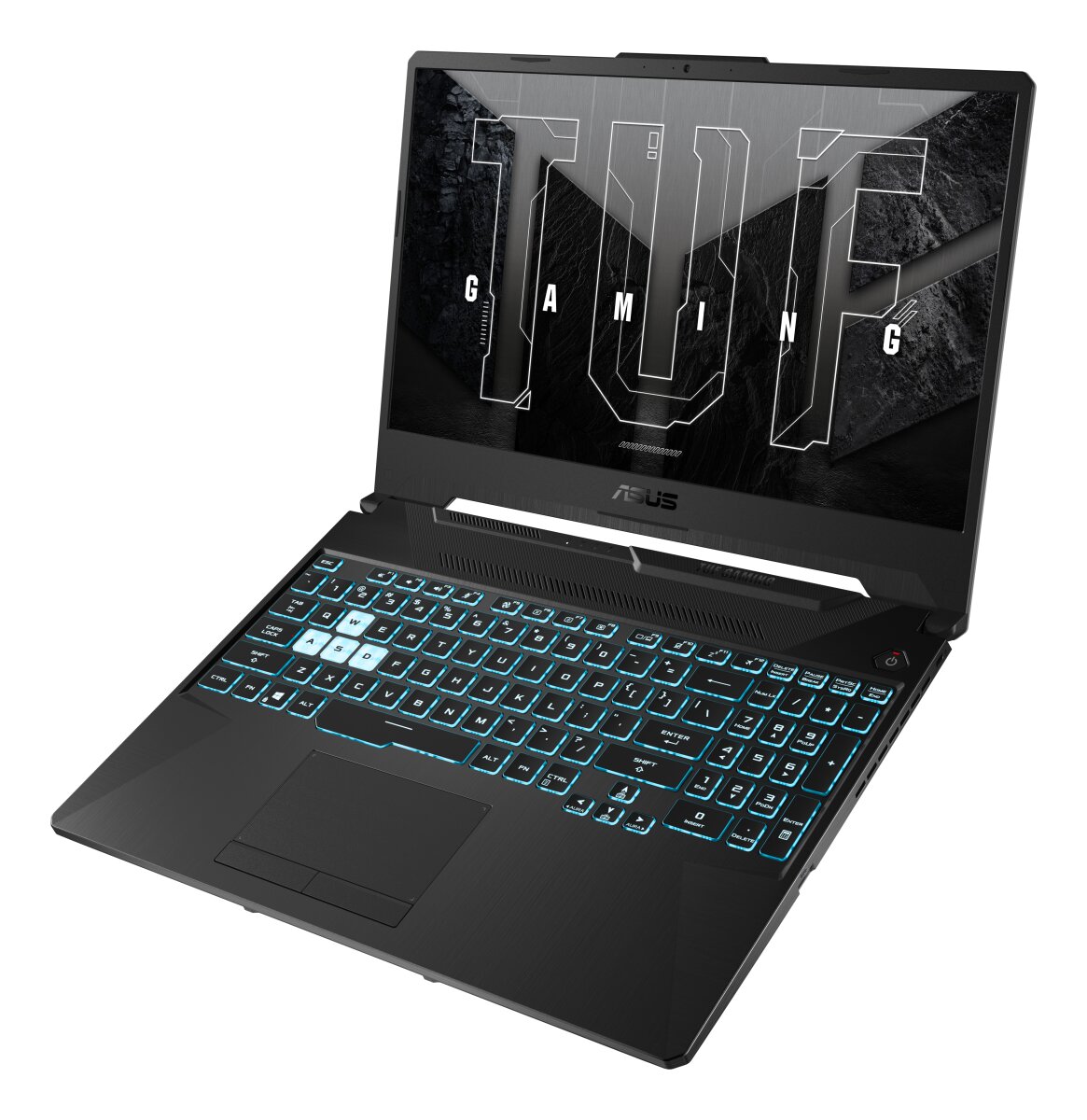

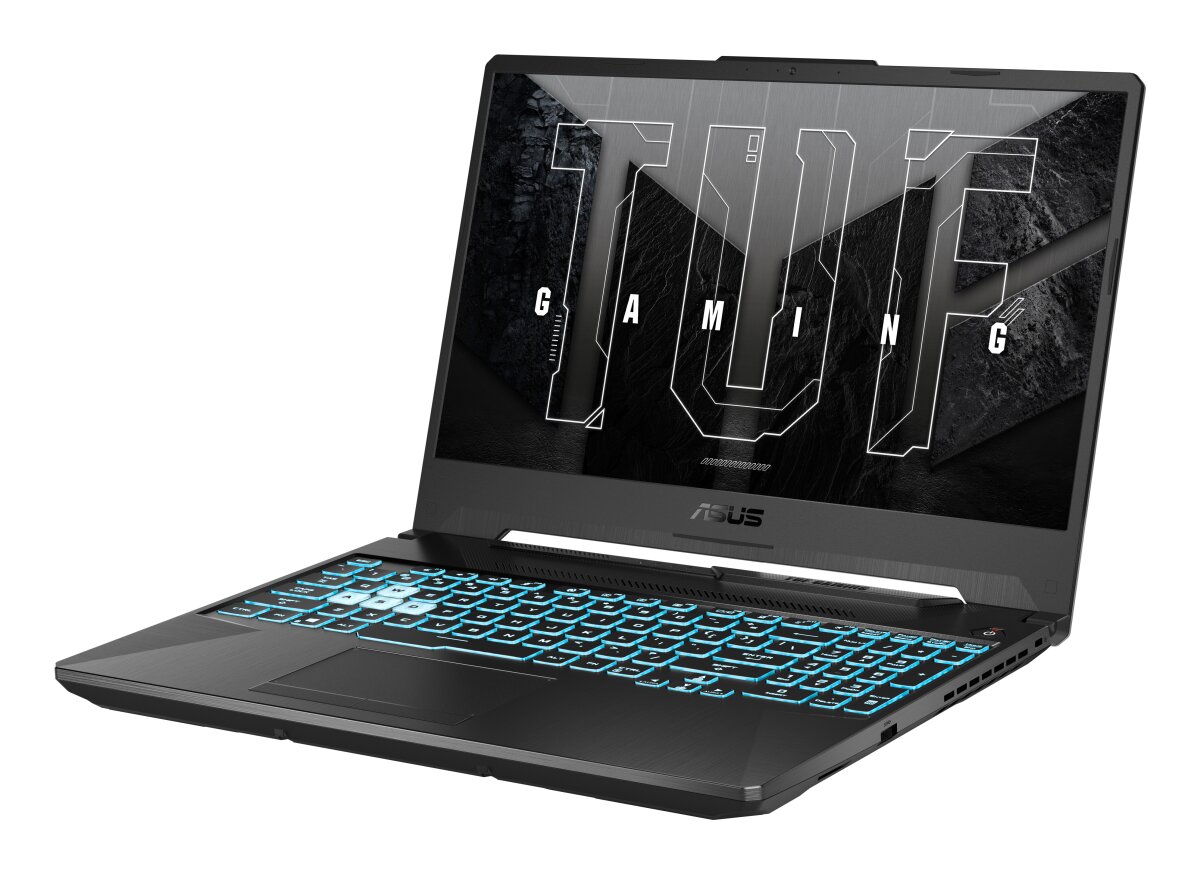

ASUS TUF Gaming F15 series model FX506HF-HN028W features DDR4-SDRAM memory upgrade specifications. The laptop contains 2x SO-DIMM slots for RAM expansion. Maximum compatible memory capacity reaches 32 GB total. Memory upgrades utilize DDR4-SDRAM operating at 3200 MHz frequency. SO-DIMM form factor modules are required for compatibility with this gaming laptop specifications.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
Additional Notes
- The ASUS TUF Gaming FX506HF-HN028W utilizes DDR4 technology, preventing compatibility with DDR5 modules regardless of physical form factor matching.
- Both SO-DIMM slots support dual-channel configuration when populated with matched pairs, potentially doubling memory bandwidth compared to single-channel operation.
- The 32 GB maximum capacity reflects chipset or BIOS limitations rather than physical slot restrictions, making higher-density modules incompatible even if they physically fit.
- Operating frequency at 3200 MHz requires modules rated at this speed or higher, though faster modules will downclock to match the system's supported specification.
- Mixing different capacity modules across the 2 slots remains functional but may disable dual-channel mode depending on configuration, reducing effective bandwidth.
- Non-matching frequencies between installed modules forces all memory to operate at the lowest common speed, creating performance penalties.
- Accessing SO-DIMM slots typically requires bottom panel removal, which may affect warranty status depending on regional regulations and seal placement.
- Single-rank versus dual-rank module architecture affects performance characteristics, with dual-rank configurations sometimes providing marginal bandwidth improvements on this platform.
- Voltage specifications matter critically, as DDR4 SO-DIMMs operate at 1.2V standard, while low-voltage variants may cause POST failures or system instability.
- The gaming-oriented platform benefits more noticeably from dual-channel memory configuration during GPU-intensive tasks due to integrated graphics memory sharing.
