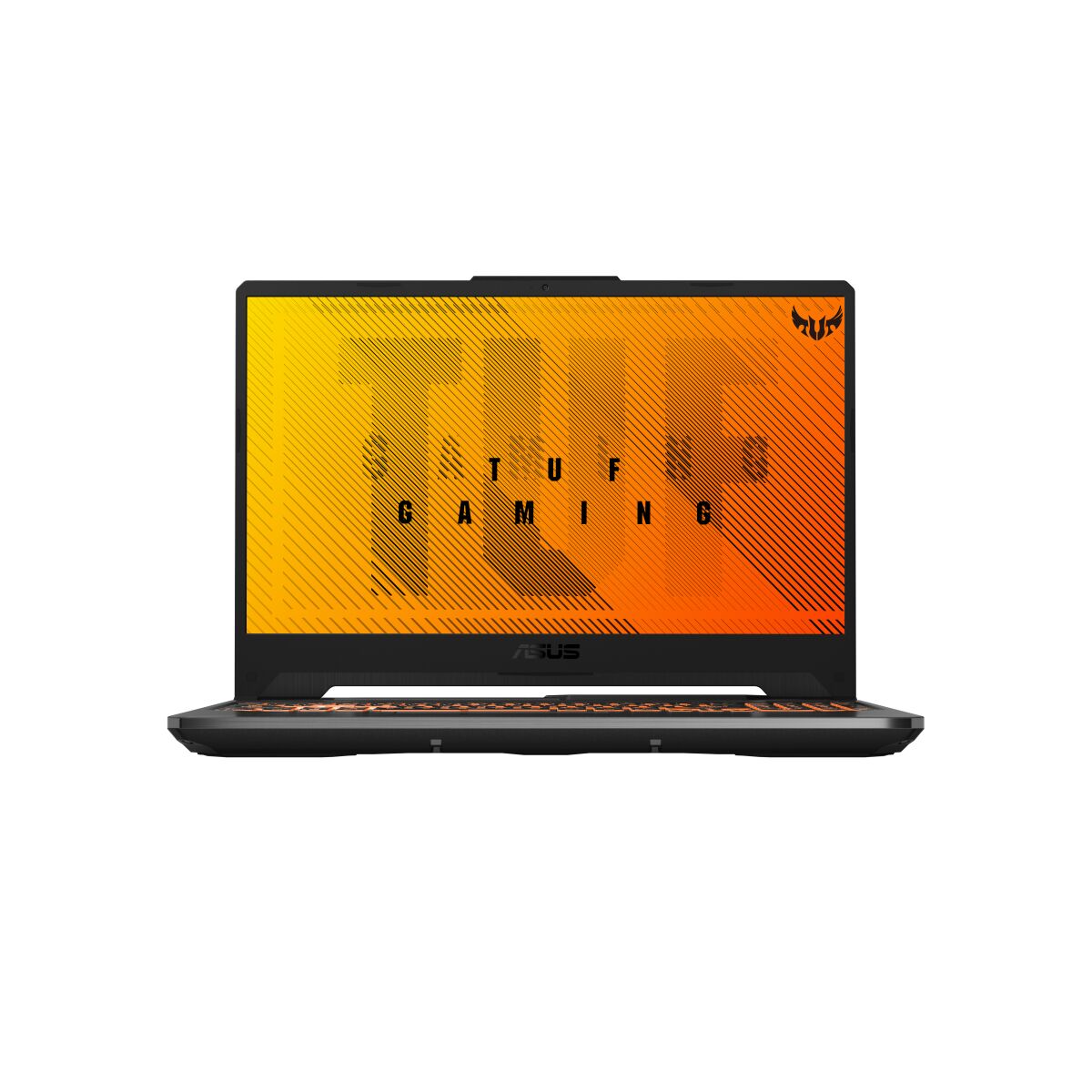

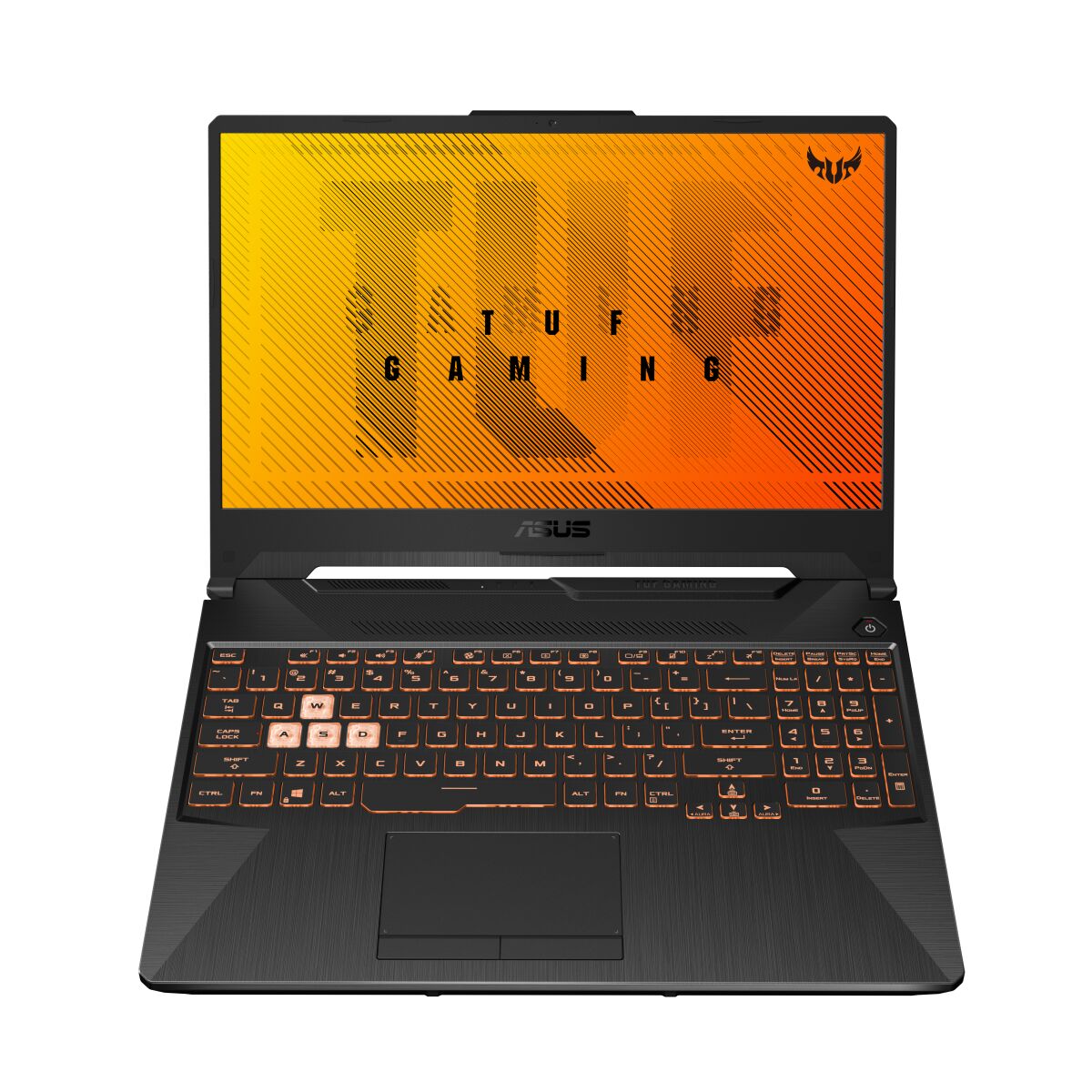

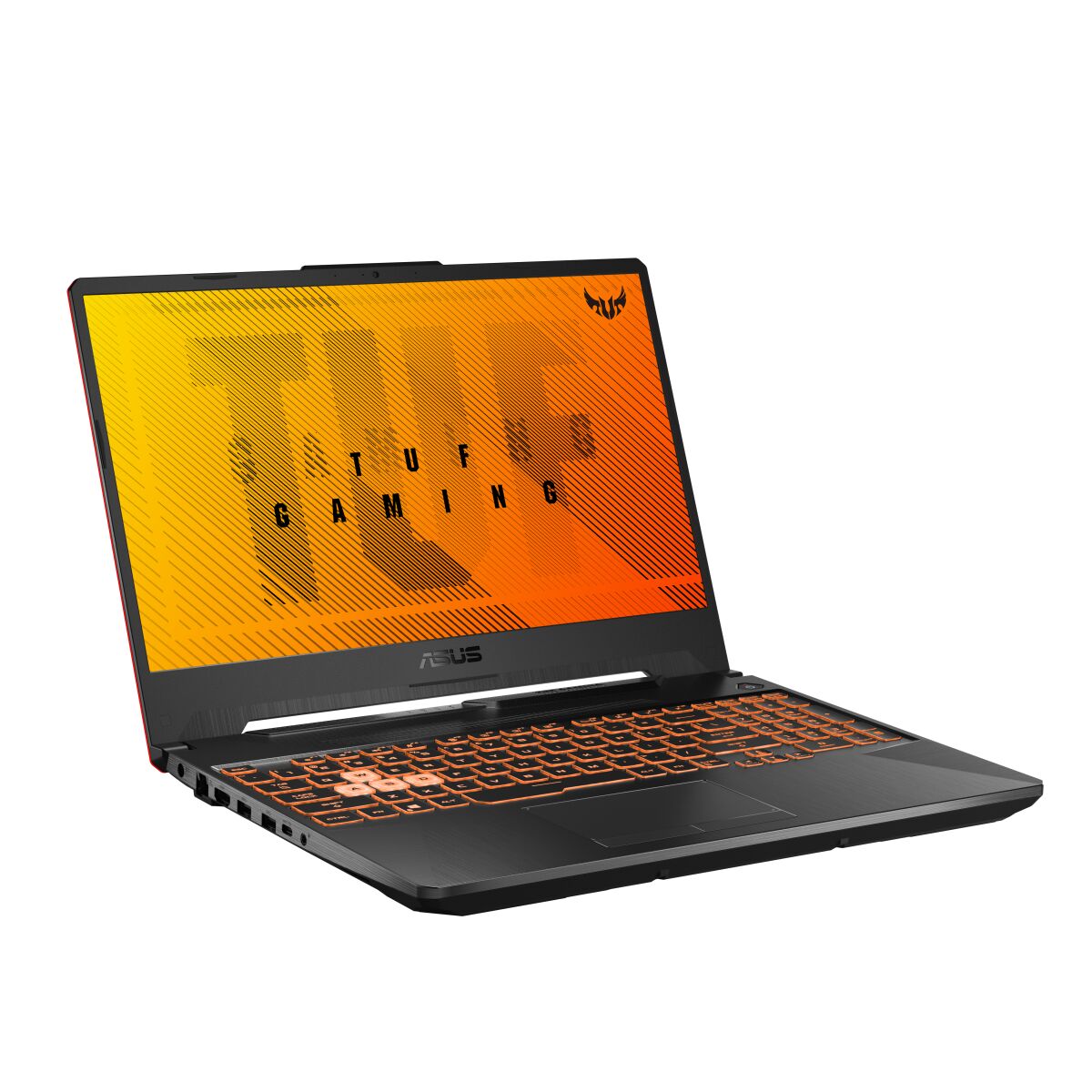

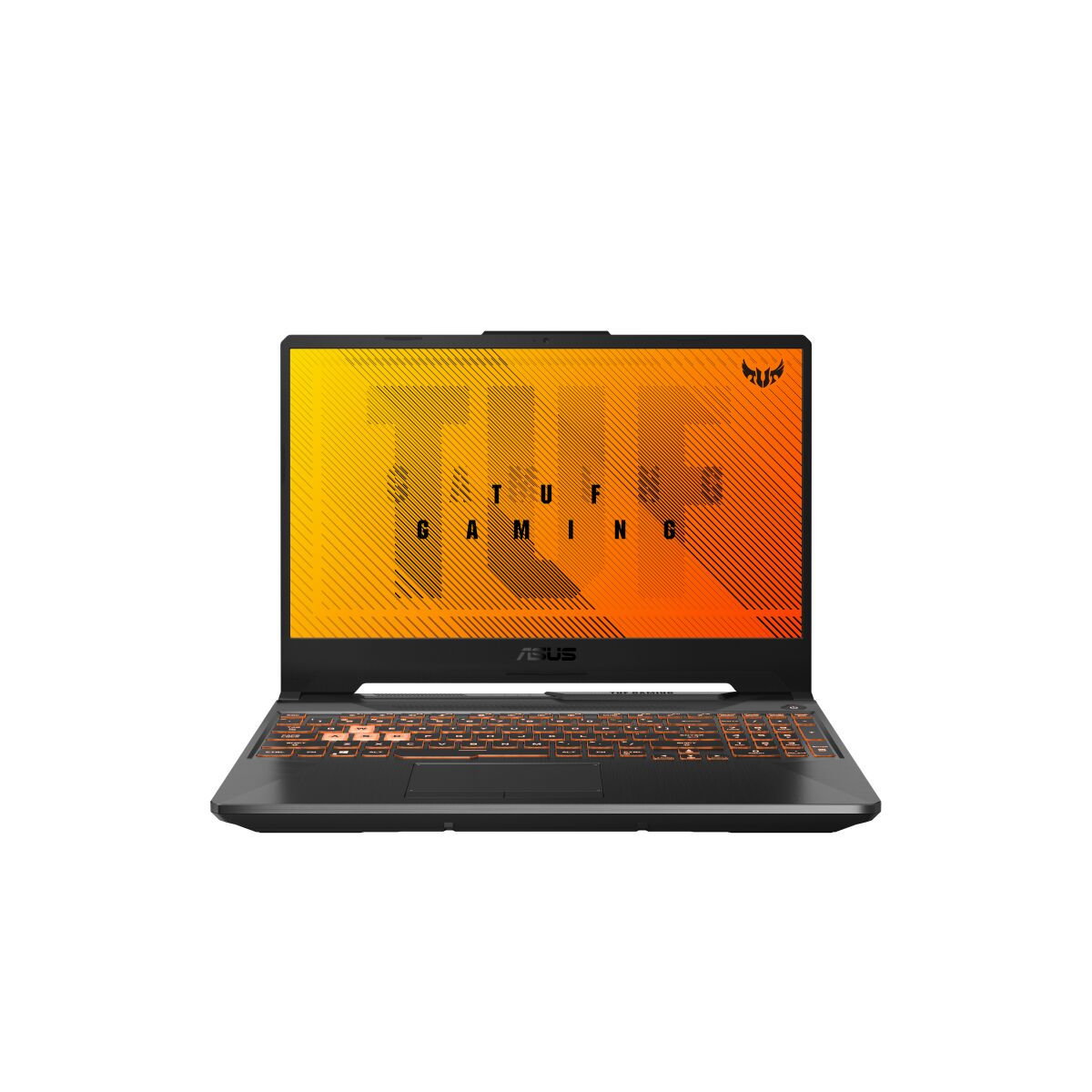

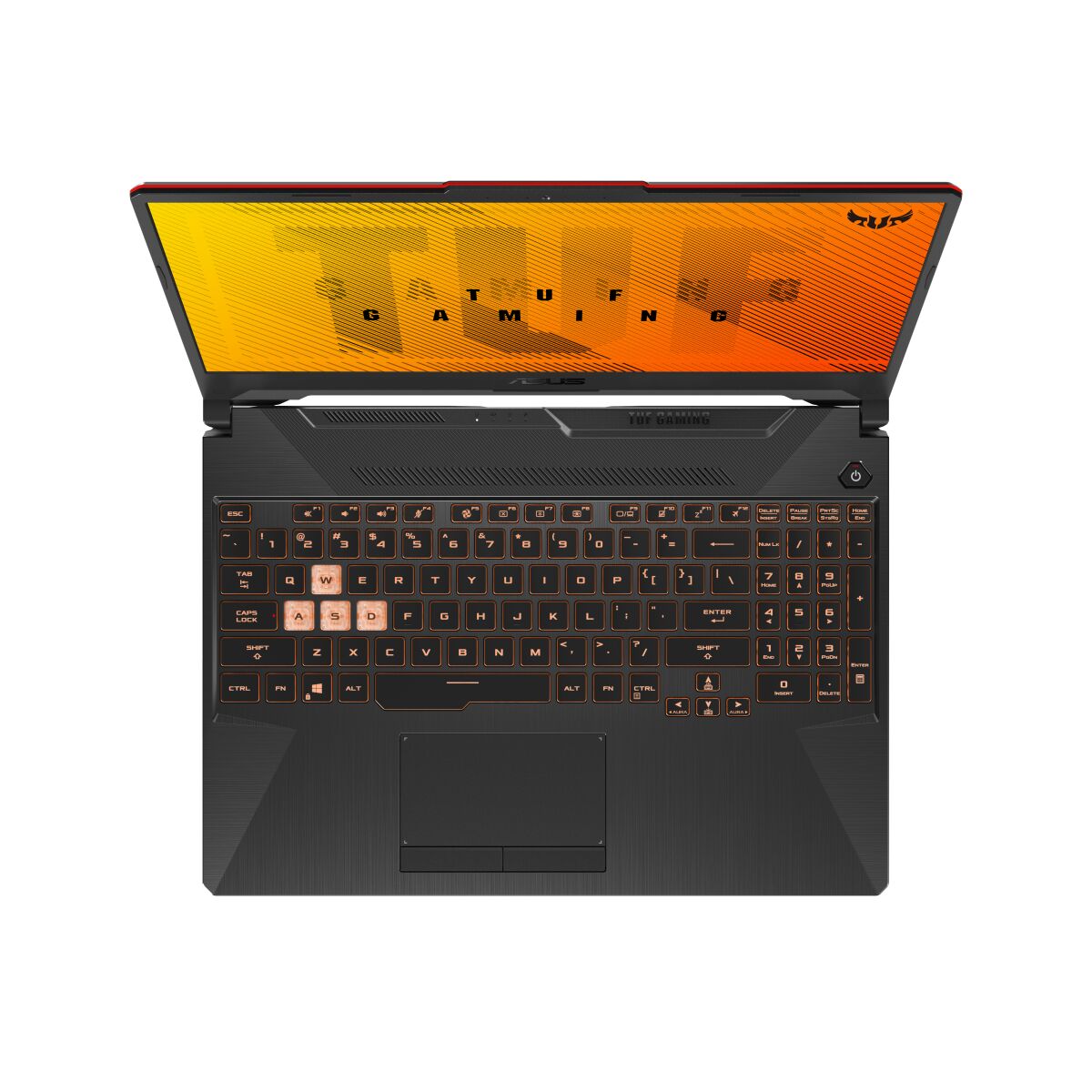

ASUS TUF Gaming FX506LI-HN077T RAM upgrade specifications

ASUS FX506LI-HN077T ASUS FX506LI-HN077T ASUS FX506LI-HN077T ASUS FX506LI-HN077T ASUS FX506LI-HN077T

ASUS TUF Gaming F15 FX506LI-HN077T RAM upgrade specifications include DDR4-SDRAM memory compatible with 2x SO-DIMM slots. Maximum RAM capacity reaches 32 GB total. Memory modules operate at 2933 MHz frequency. Upgrade specifications support SO-DIMM form factor memory modules. Compatible memory upgrades enable expansion of system RAM within maximum capacity constraints specified for this gaming laptop model.

Memory Upgrade Specifications

SpecificationValue
Memory slots2x SO-DIMM
Form factorSO-DIMM
Memory typeDDR4-SDRAM
Frequency2933 MHz
Maximum RAM32 GB
Voltage1.2V
Number of pins260-pin
InterfacePC4
PC Speed RatingPC4-2933 (PC4-23464)
Bandwidth23.5 GB/s
Laptop Release date22 April 2021

Additional Notes

  • Installed modules must operate at 1.2V to remain within standard JEDEC power specifications for this architecture.
  • The ASUS TUF Gaming FX506LI-HN077T utilizes a dual channel configuration which requires matching module capacities to optimize memory bus bandwidth.
  • Latency timings are restricted by the system BIOS which lacks support for XMP profiles or manual voltage adjustments.
  • Upgrading beyond 32 GB is prevented by the memory controller hardware limits despite the presence of two physical slots.
  • Installing modules with higher rated frequencies results in automatic downclocking to the native system speed of 2933 MHz.
  • Physical installation requires the removal of the bottom chassis panel which exposes internal components to electrostatic discharge risks.
  • The SO-DIMM form factor necessitates 260-pin modules as longer desktop DIMMs are physically incompatible with the internal layout.
  • Dual-rank modules may offer slight performance advantages over single-rank modules within the established 32 GB capacity threshold.
