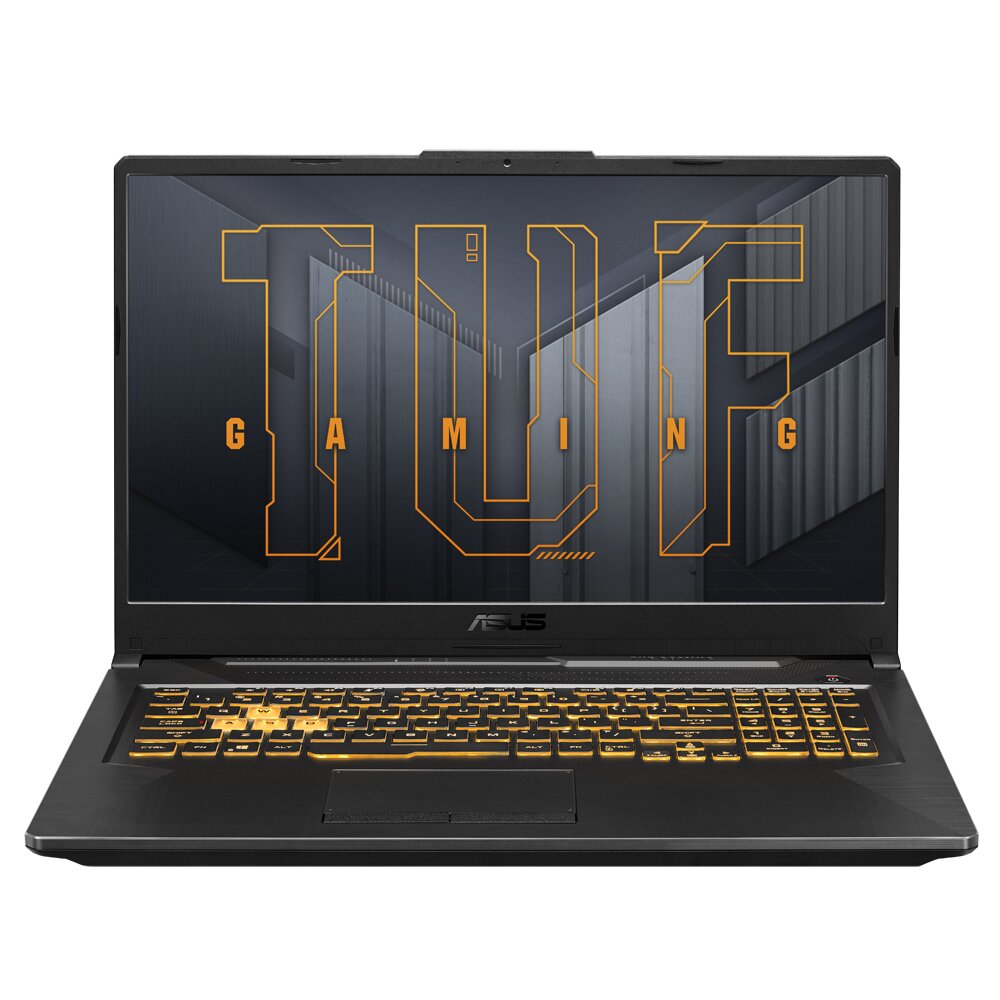

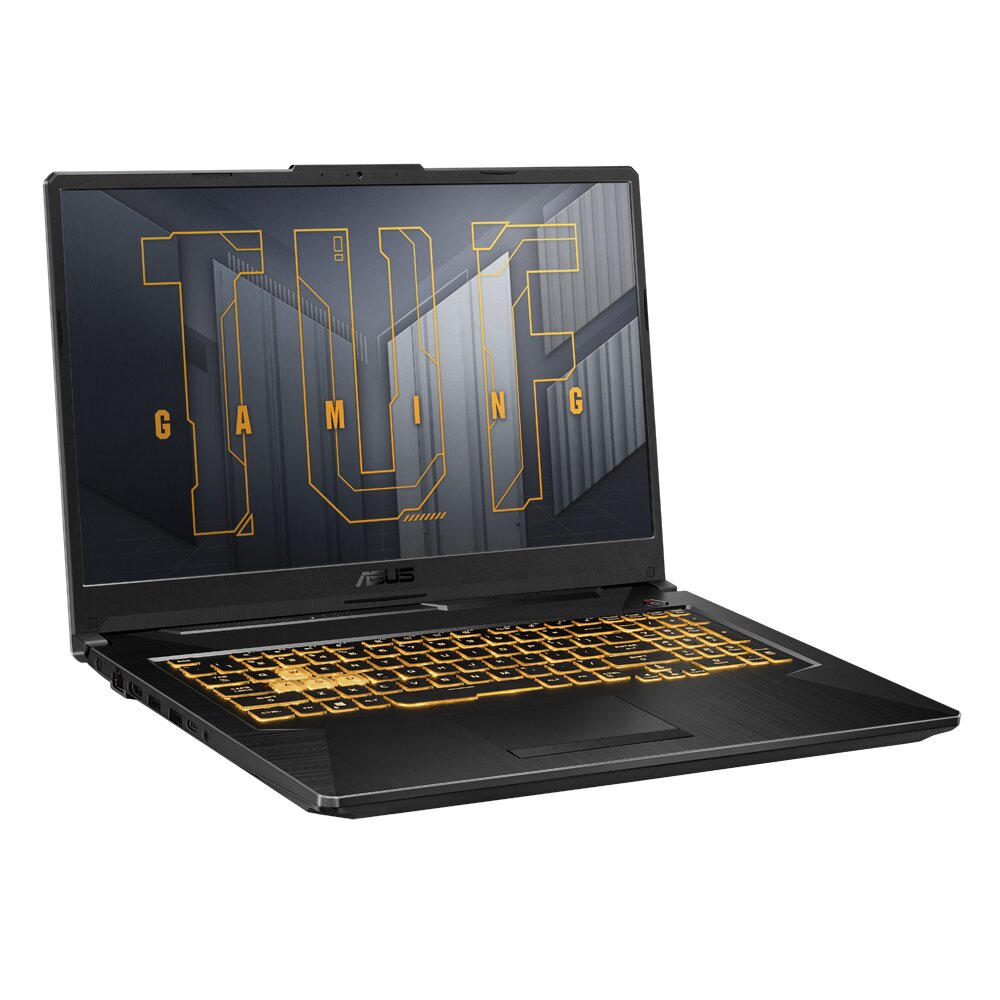

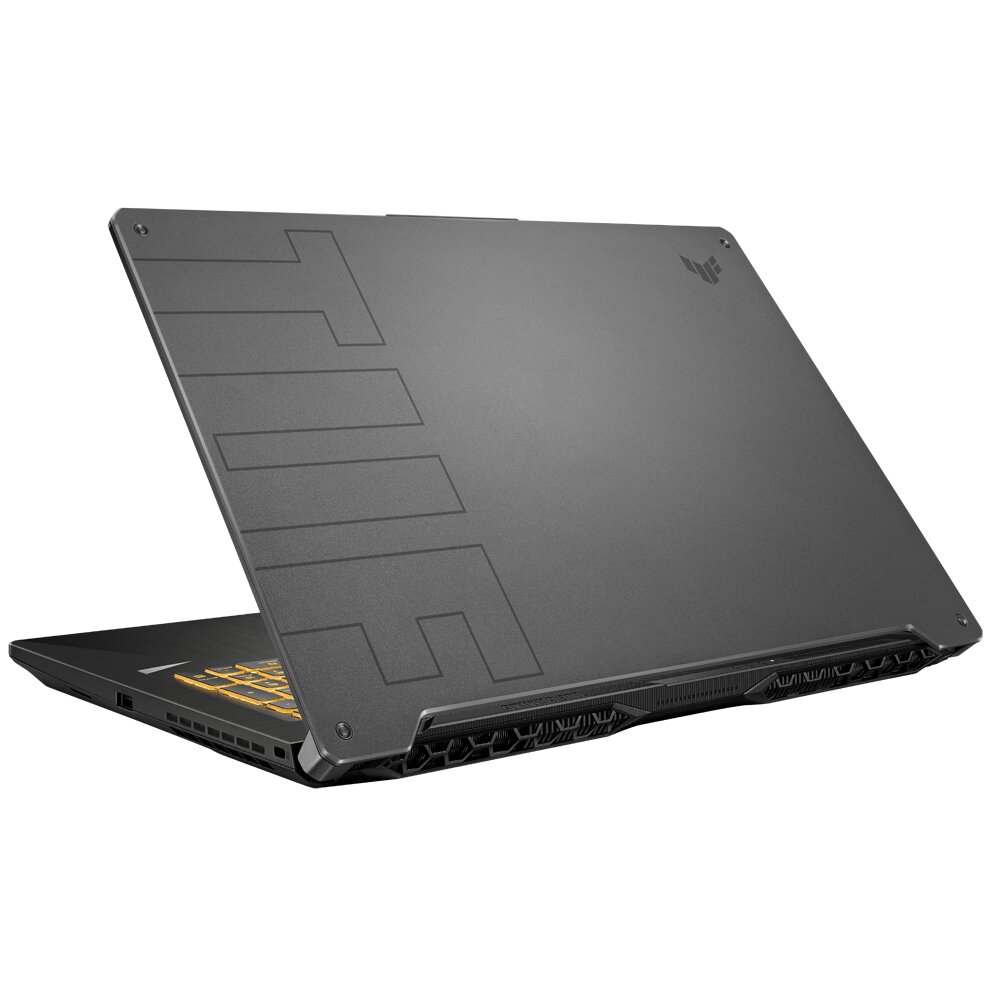

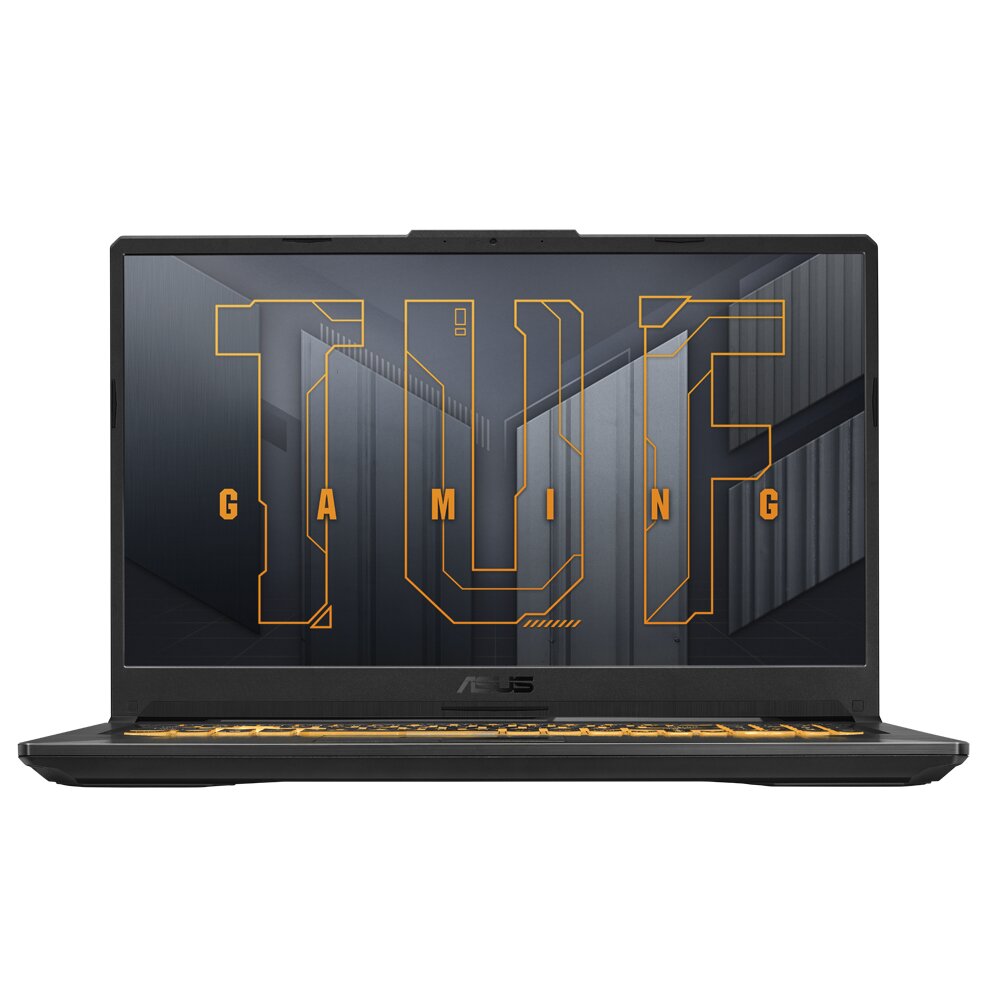

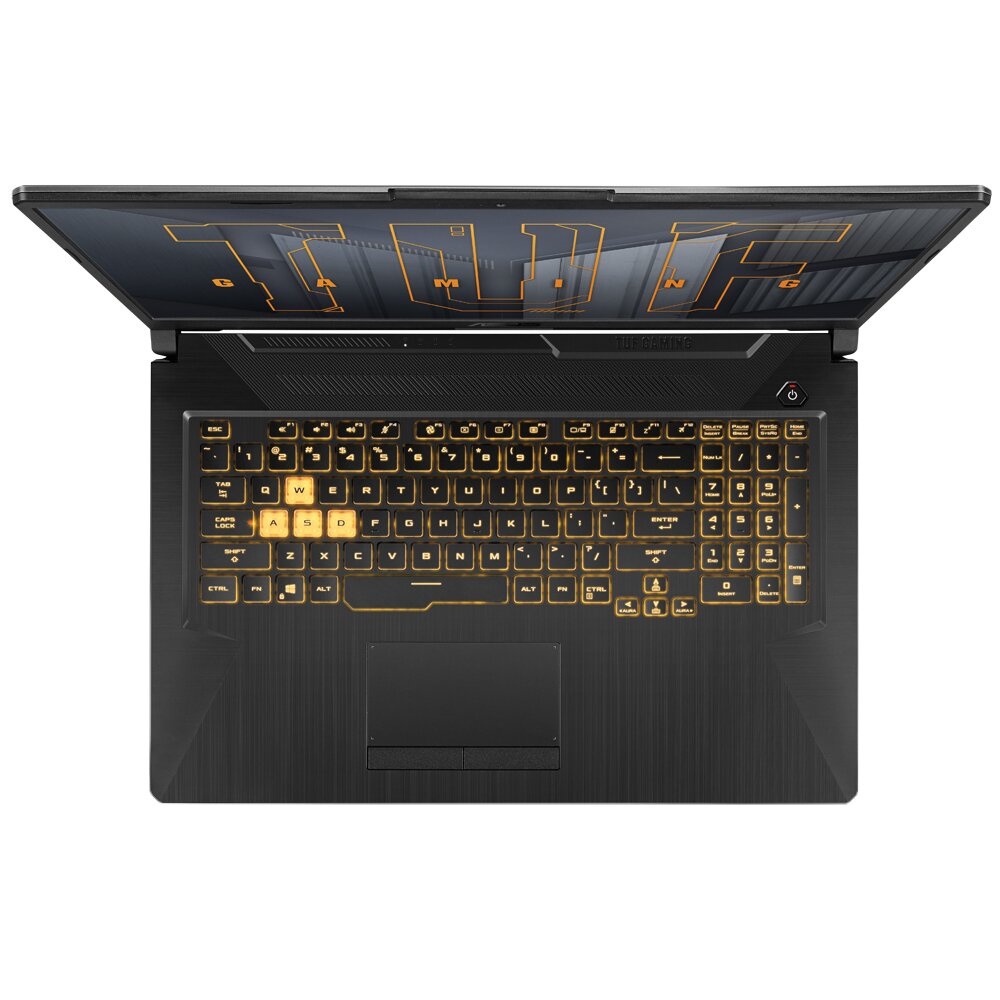

ASUS TUF Gaming FX706HCB-HX128T RAM upgrade specifications
ASUS TUF Gaming F17 series model FX706HCB-HX128T features DDR4-SDRAM memory upgrade specifications. The laptop contains 2x SO-DIMM memory slots compatible with DDR4 modules operating at 3200 MHz frequency. Maximum supported RAM capacity reaches 32 GB total, allowing for dual-channel memory configuration. SO-DIMM form factor modules are required for compatible memory upgrades on this specific laptop model.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 16 November 2021 |
Additional Notes
- The dual-channel architecture requires installing modules in identical pairs to achieve the maximum theoretical memory bandwidth for the 11th Gen Intel processor.
- Upgrading the ASUS FX706HCB-HX128T requires the removal of the entire base panel which involves a pop-open screw design to prevent plastic clip breakage during entry.
- The absence of soldered memory on the motherboard allows for a complete replacement of the factory modules if moving from 8 to 32 GB of total capacity.
- Installing modules with latencies lower than the standard JEDEC profile may result in the system defaulting to standard timings because the BIOS lacks XMP manual tuning support.
- The 32 GB limit is a firmware-enforced threshold that prevents the use of high-density 32 GB individual sticks for a total of 64 GB.
- Memory modules must operate at 1.2V to ensure thermal stability and compatibility with the existing power delivery system on the logic board.
- Standard height SO-DIMM modules are required to ensure the internal copper heat pipes for the cooling system maintain proper clearance from the RAM slots.
