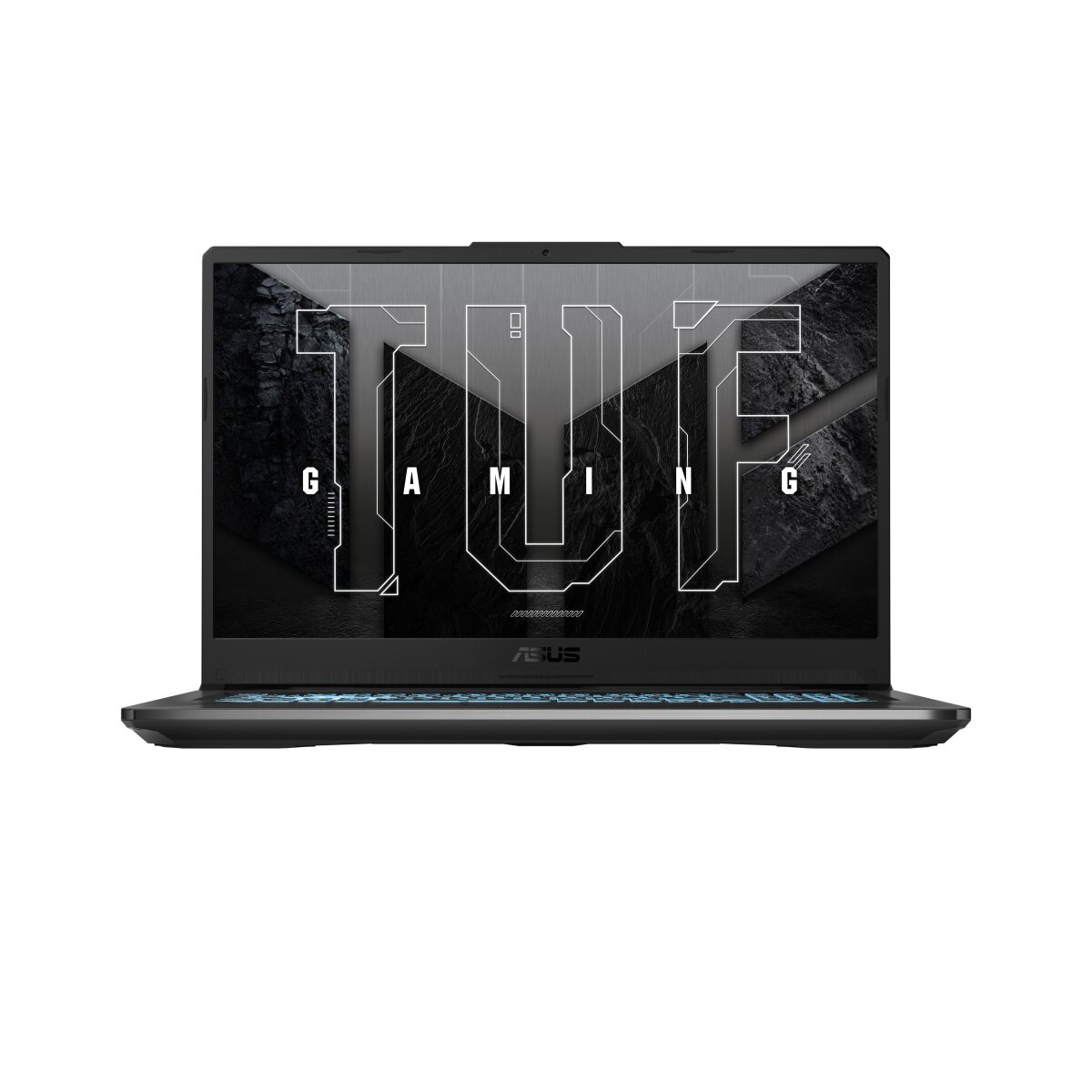

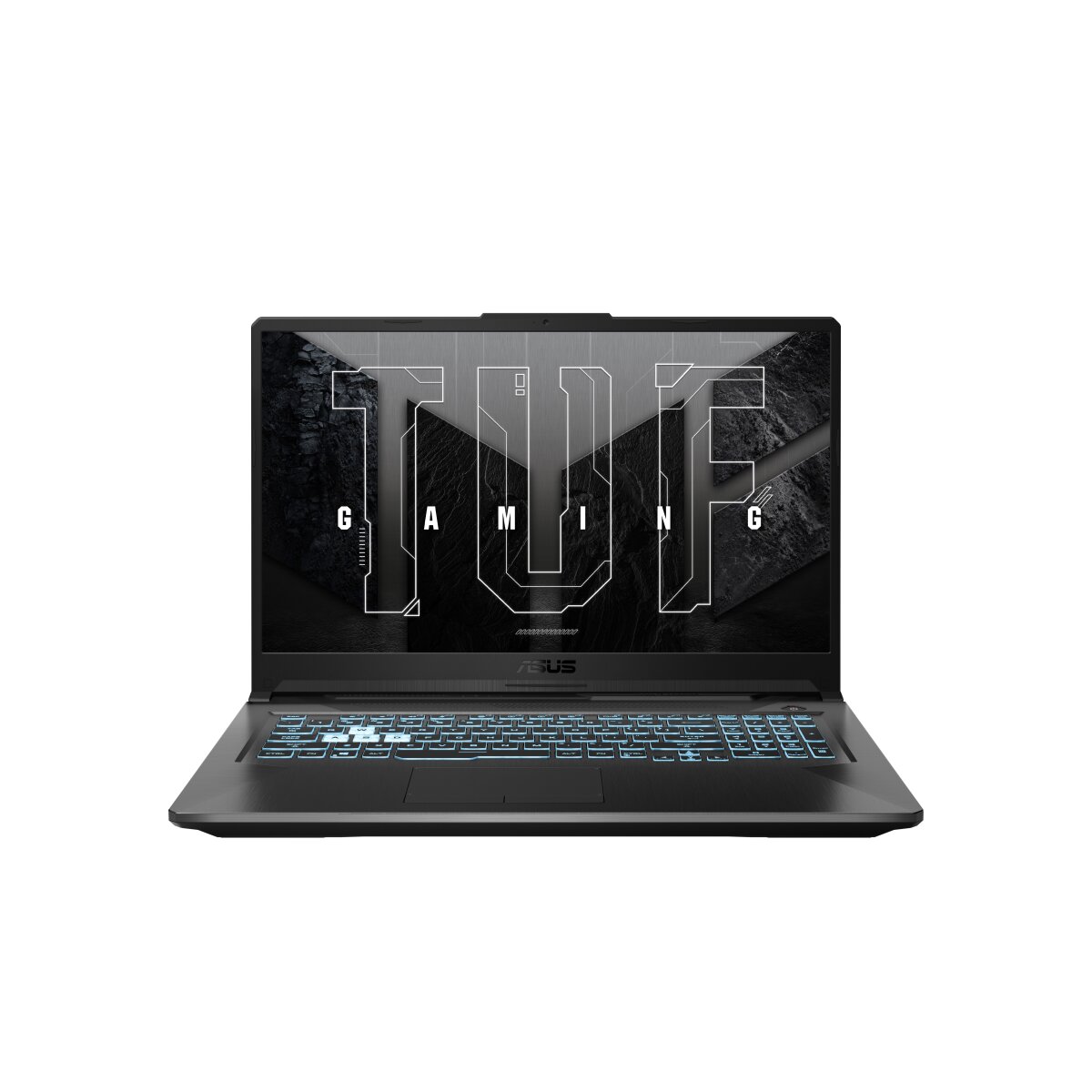

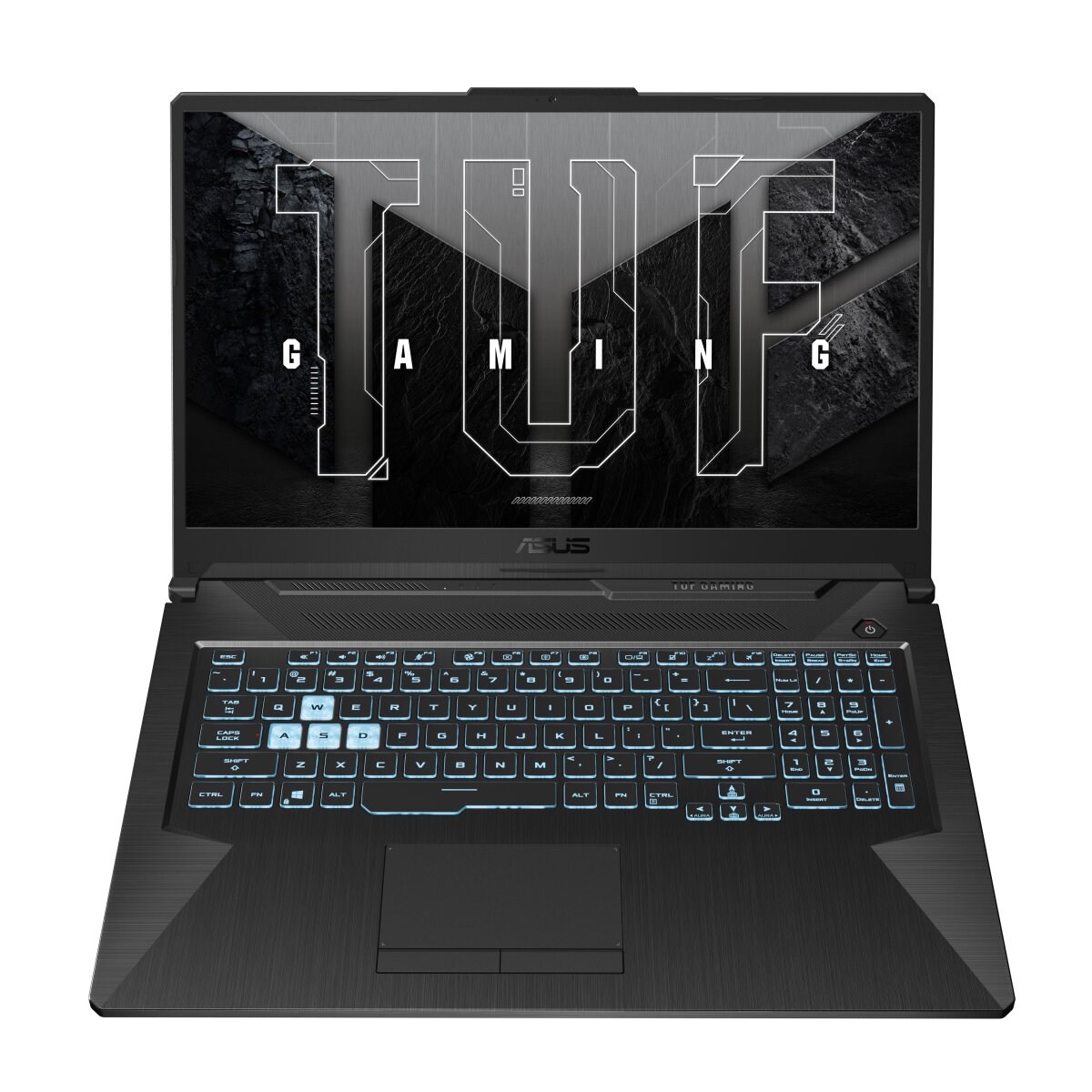

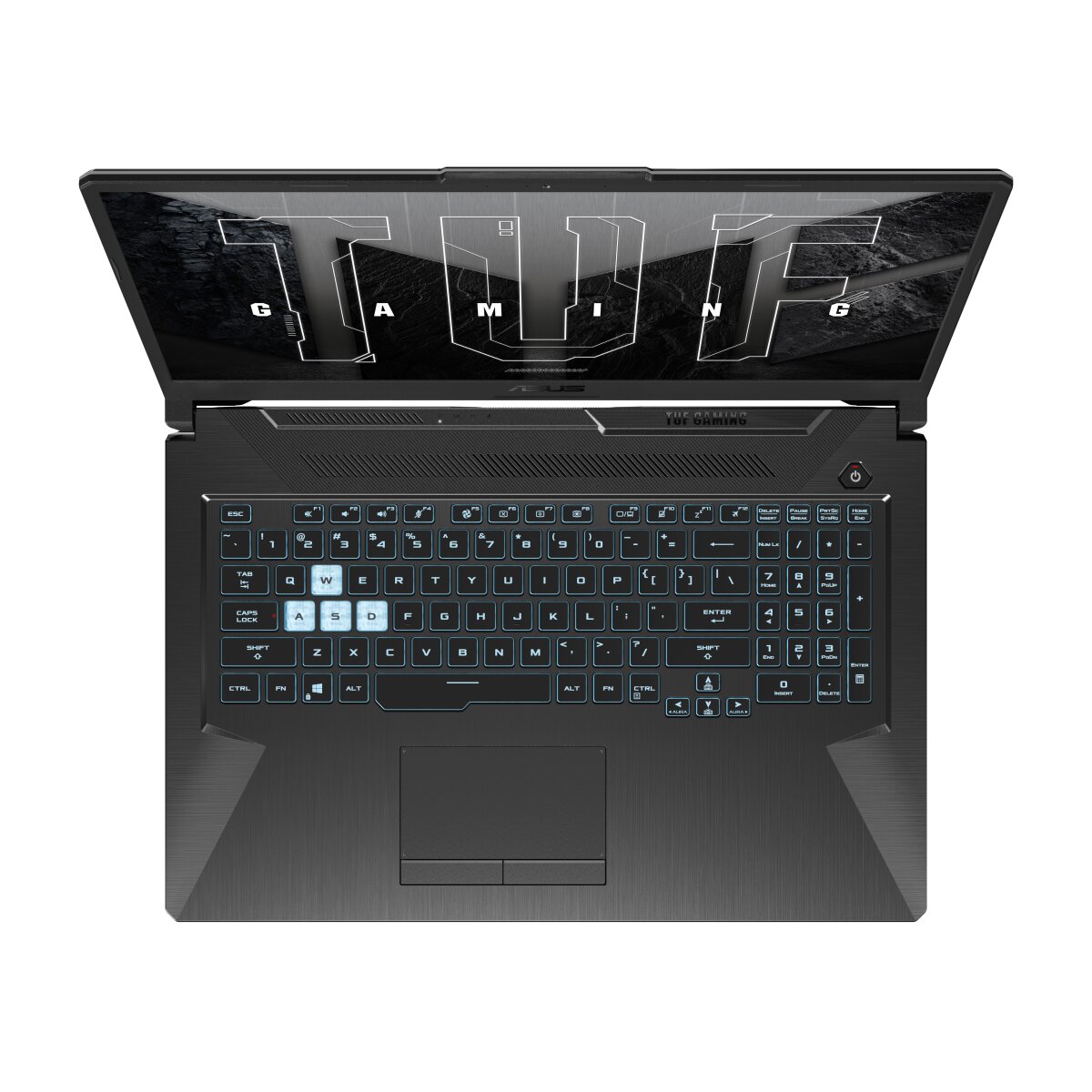

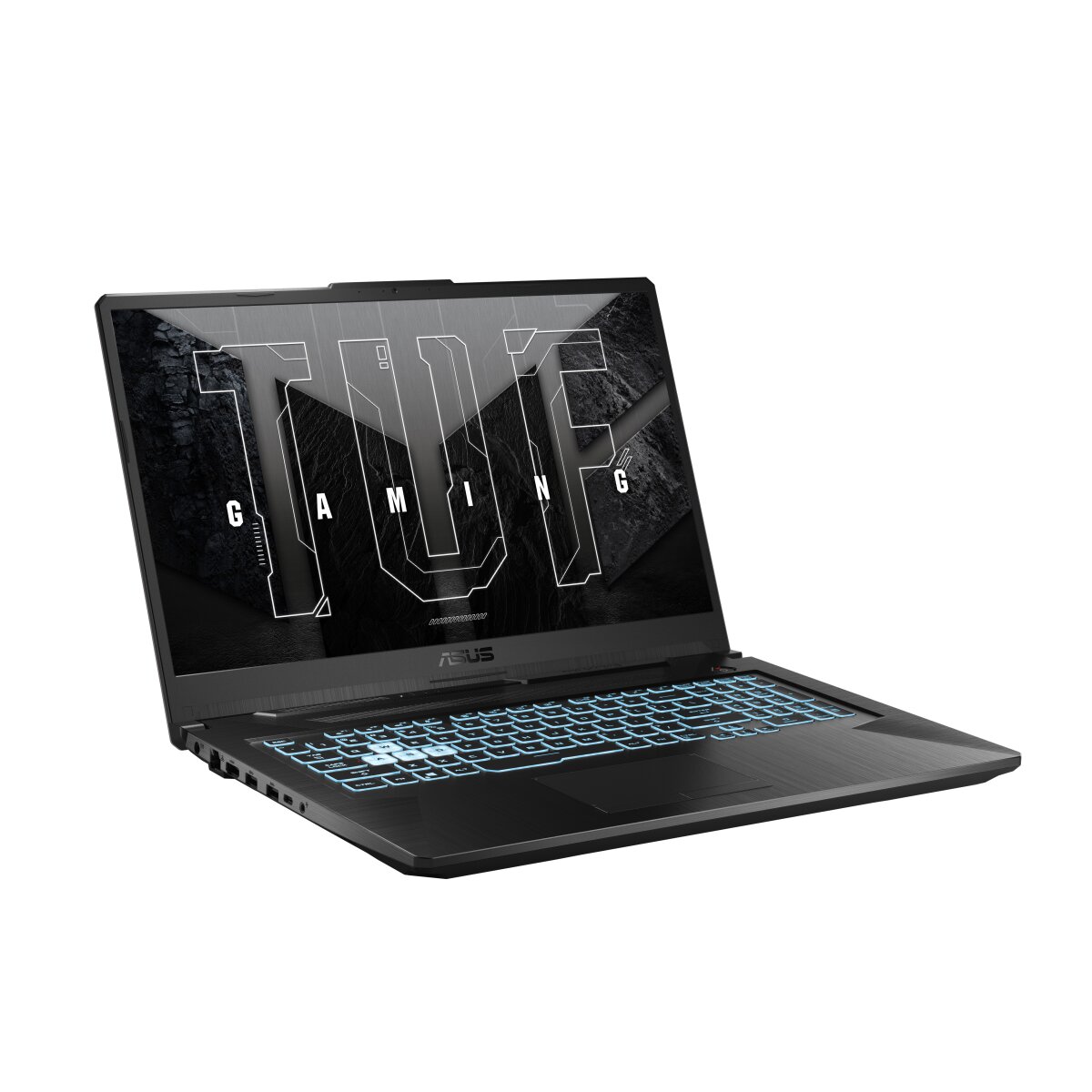

ASUS TUF Gaming FX706HCB-HX146 RAM upgrade specifications
ASUS TUF Gaming F17 FX706HCB-HX146 laptop features DDR4-SDRAM memory upgrade capability with two SO-DIMM slots supporting maximum 32 GB total capacity. Compatible RAM specifications include DDR4-3200 MHz frequency modules. The upgrade slots accommodate standard SO-DIMM form factor memory modules, allowing users to expand the laptop's memory configuration from the factory-installed capacity up to the 32 GB maximum. Memory upgrade specifications are designed for compatibility with the FX706HCB-HX146 model within the TUF Gaming series.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 07 November 2021 |
Additional Notes
- Dual channel memory architecture requires installing symmetrical pairs to optimize memory bandwidth and reduce CPU bottlenecks during gaming workloads.
- The 32 GB threshold indicates a hardware limitation in the BIOS or memory controller that prevents the use of 32 GB modules in a single slot.
- Standard voltage requirements for DDR4 SO-DIMM modules must be met to ensure stability and prevent thermal throttling within the chassis.
- Upgrading the ASUS TUF Gaming FX706HCB-HX146 requires the removal of the entire bottom panel which may involve bypassing plastic clips that are prone to fatigue.
- Internal layout constraints dictate that only non-buffered non-ECC modules are compatible with the integrated memory controller.
- Latency timings should match the existing module to prevent the system from defaulting to the lowest common denominator speed which impacts frame rates.
- Physical access to the dual SO-DIMM slots is restricted by the heat pipe assembly requiring careful tool handling to avoid component damage.
