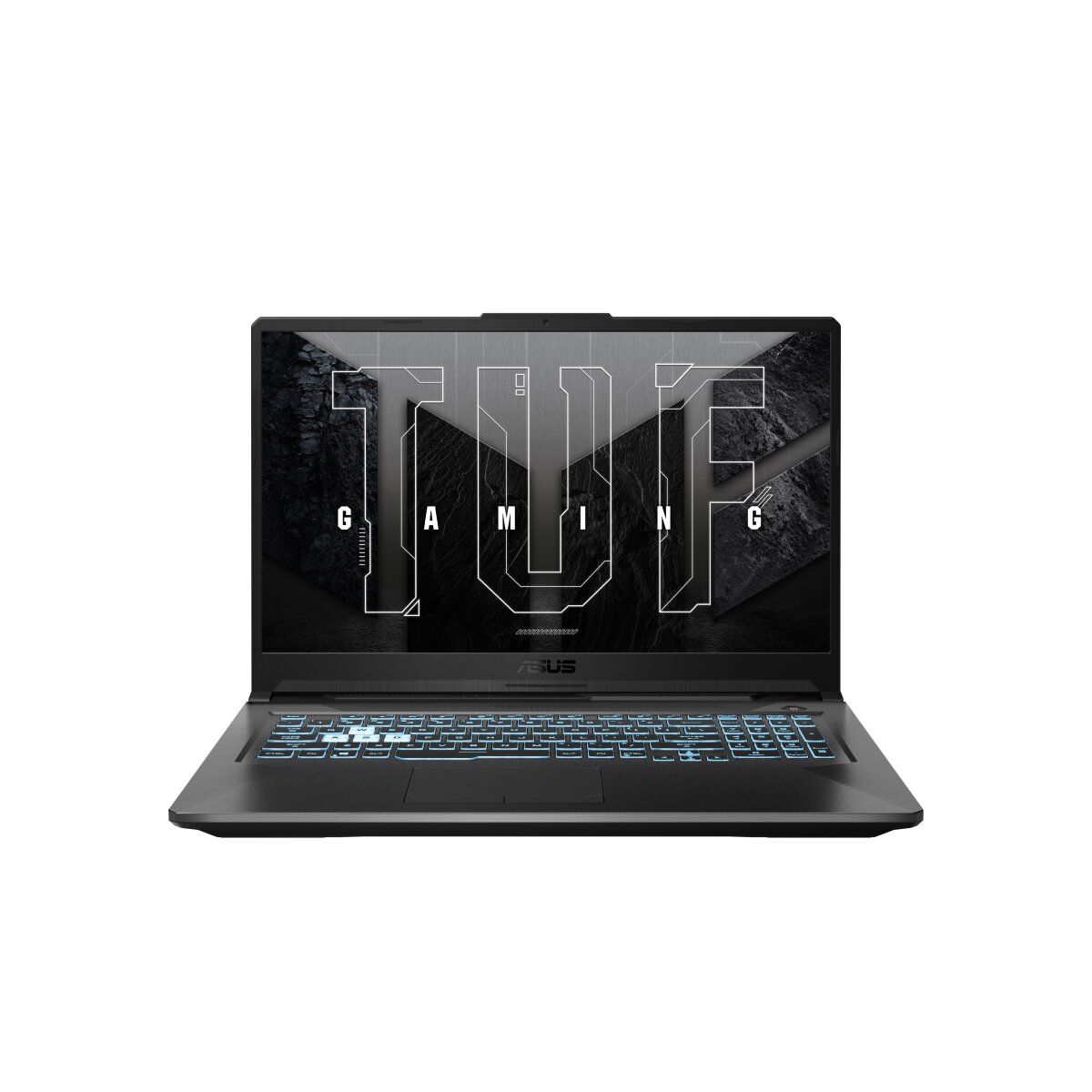

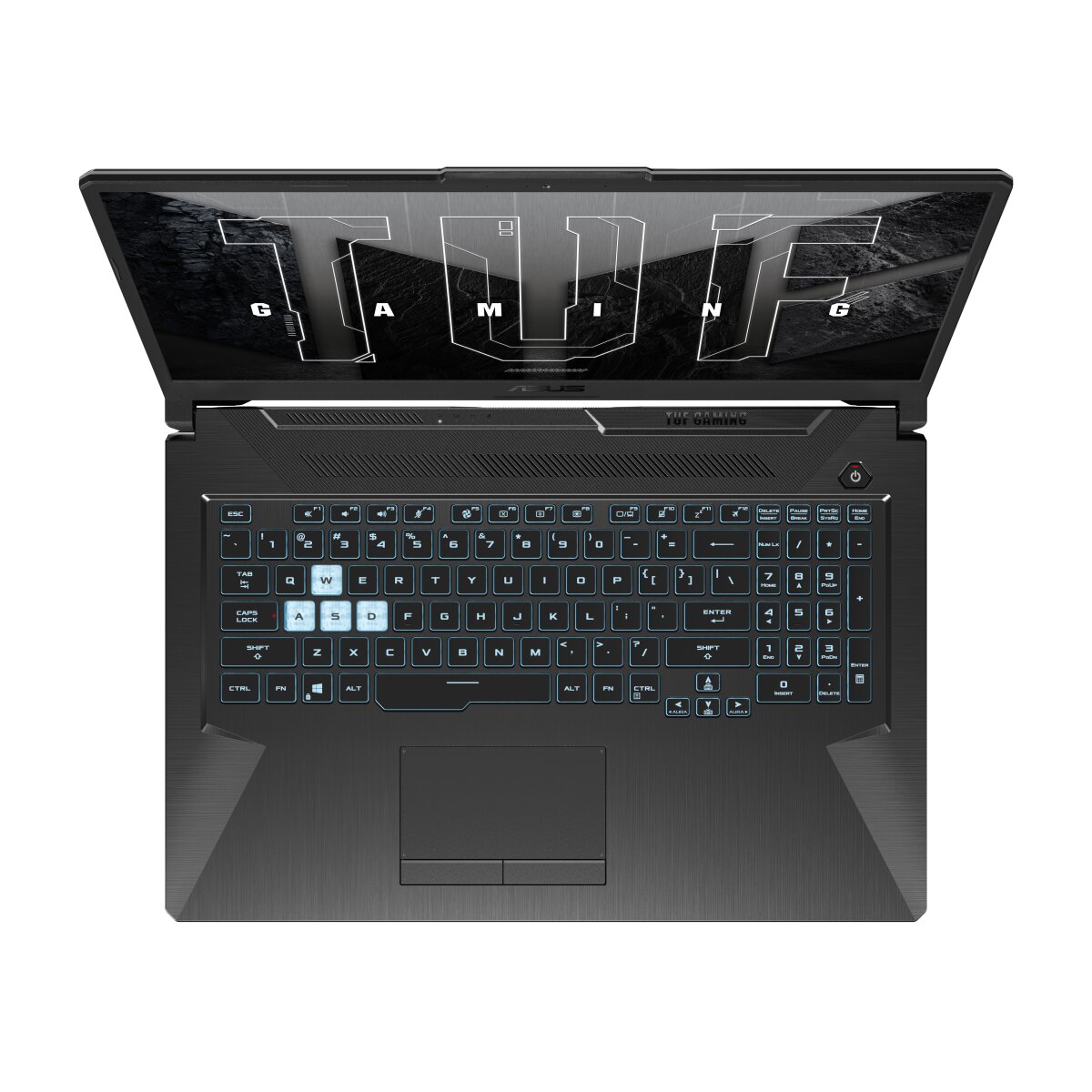

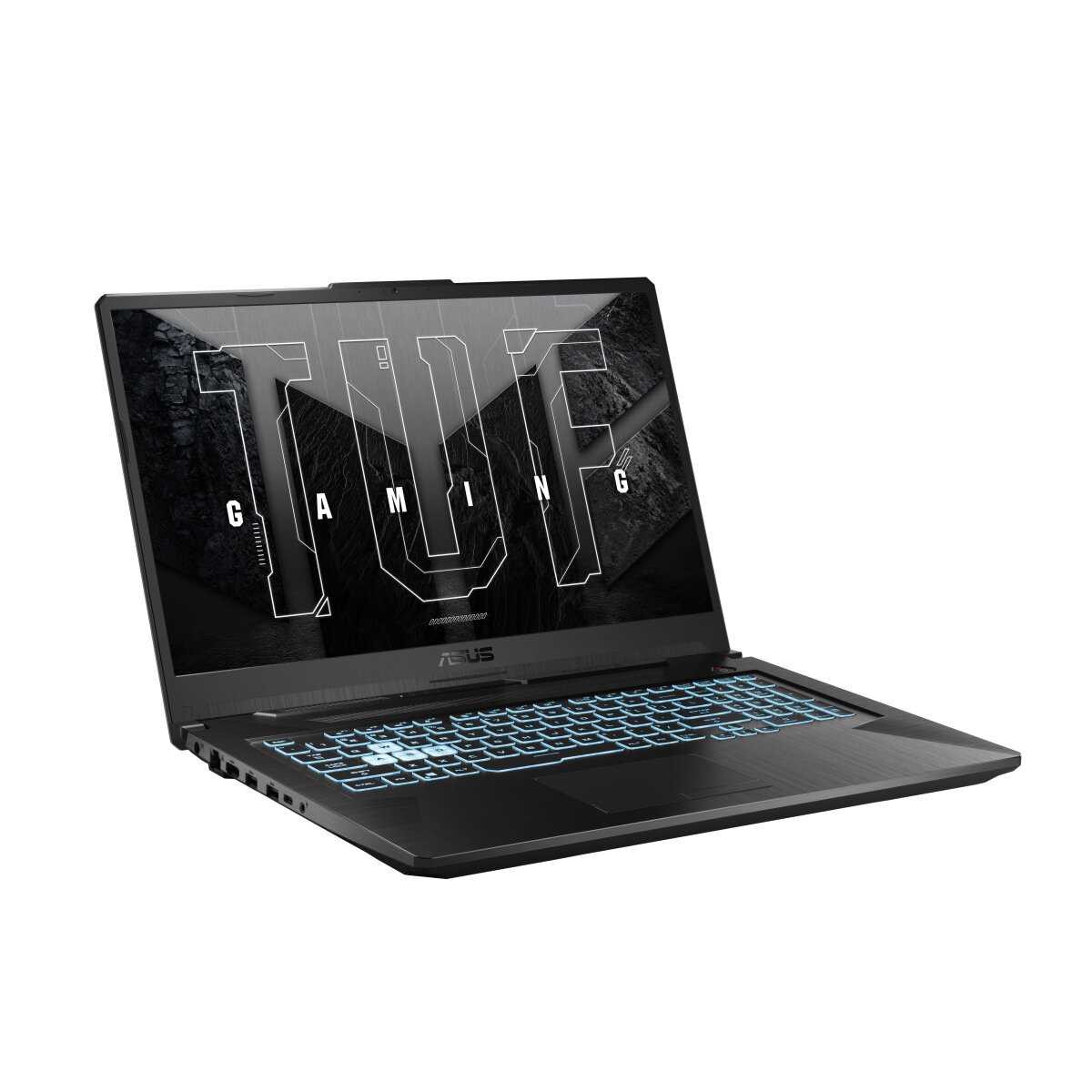

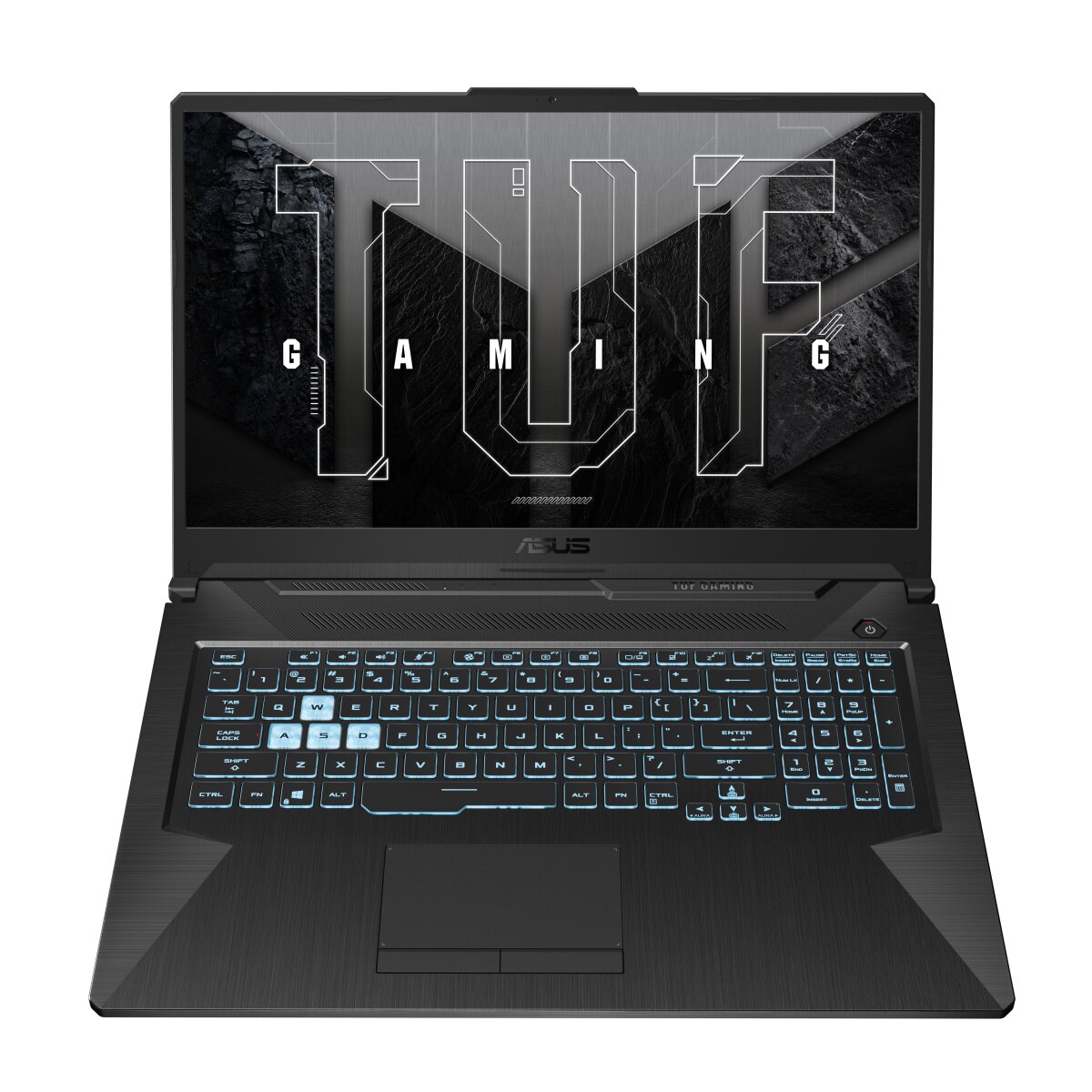

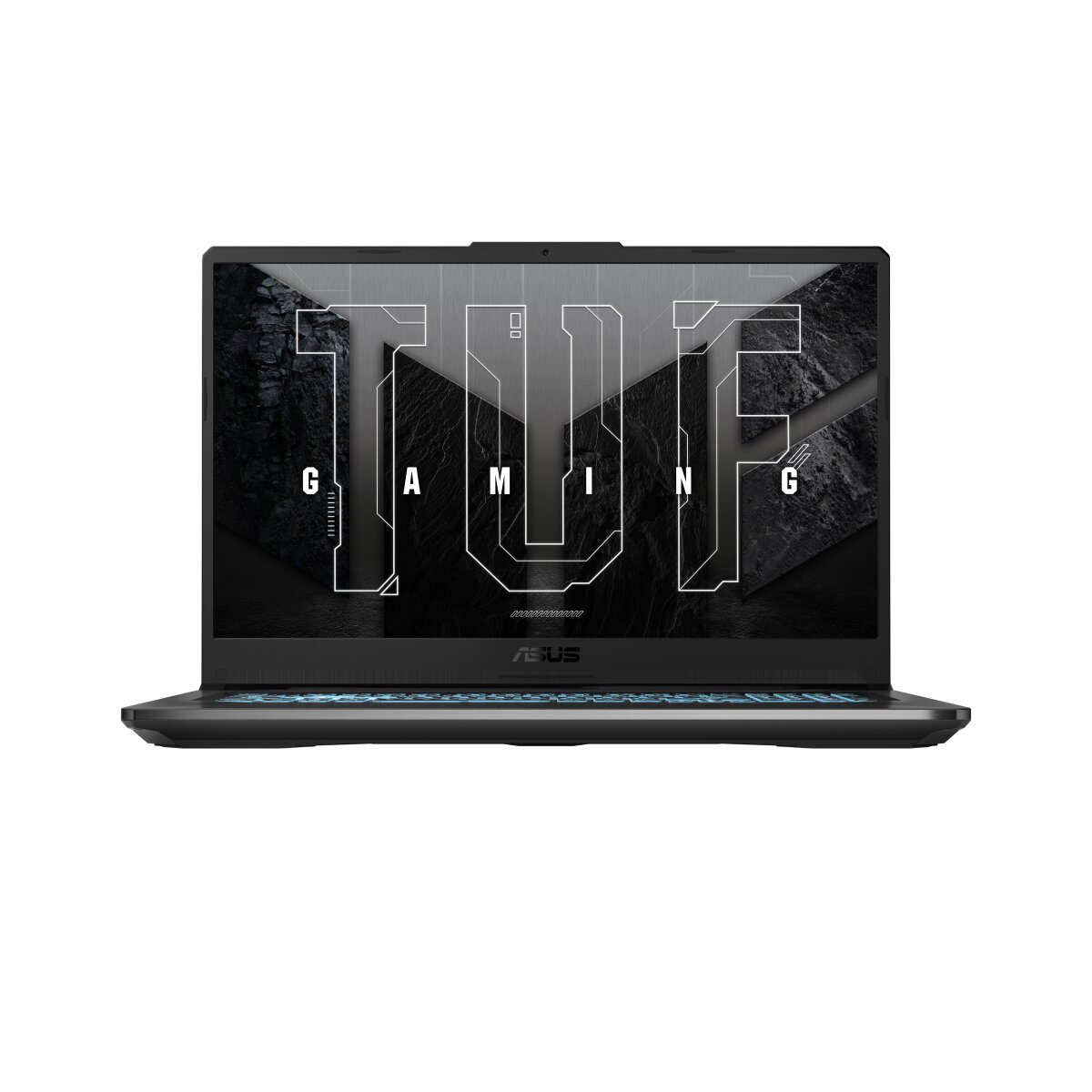

ASUS TUF Gaming FX706HM-HX037W RAM upgrade specifications
ASUS TUF Gaming F17 series model FX706HM-HX037W features DDR4-SDRAM memory upgrade specifications. The laptop contains 2x SO-DIMM slots compatible with DDR4 modules operating at 3200 MHz frequency. Maximum memory capacity reaches 32 GB total RAM. Upgrade specifications indicate SO-DIMM form factor components required for compatible memory expansion on this gaming laptop model.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 04 October 2022 |
Additional Notes
- Dual slot architecture necessitates the removal of existing modules to reach maximum capacity because no memory is soldered to the mainboard.
- The ASUS TUF Gaming FX706HM-HX037W requires matched pairs of modules to enable dual channel bandwidth for optimal integrated graphics and processor throughput.
- Utilizing modules with higher frequencies than 3200 MHz results in automatic downclocking to remain compatible with the system bus limitations.
- Populating both SO-DIMM slots reduces memory latency compared to single channel configurations but increases the thermal load within the compact memory housing.
- Physical installation of 16 GB sticks in each slot reaches the firmware addressed ceiling and prevents additional memory overhead for virtual machines or heavy rendering.
- The choice of DDR4 technology implies a lack of support for DDR5 modules due to differing notch positions and voltage requirements on the motherboard.
- Accessing the memory slots involves removing the bottom chassis panel which exposes internal components to potential electrostatic discharge risks during the physical swap.
