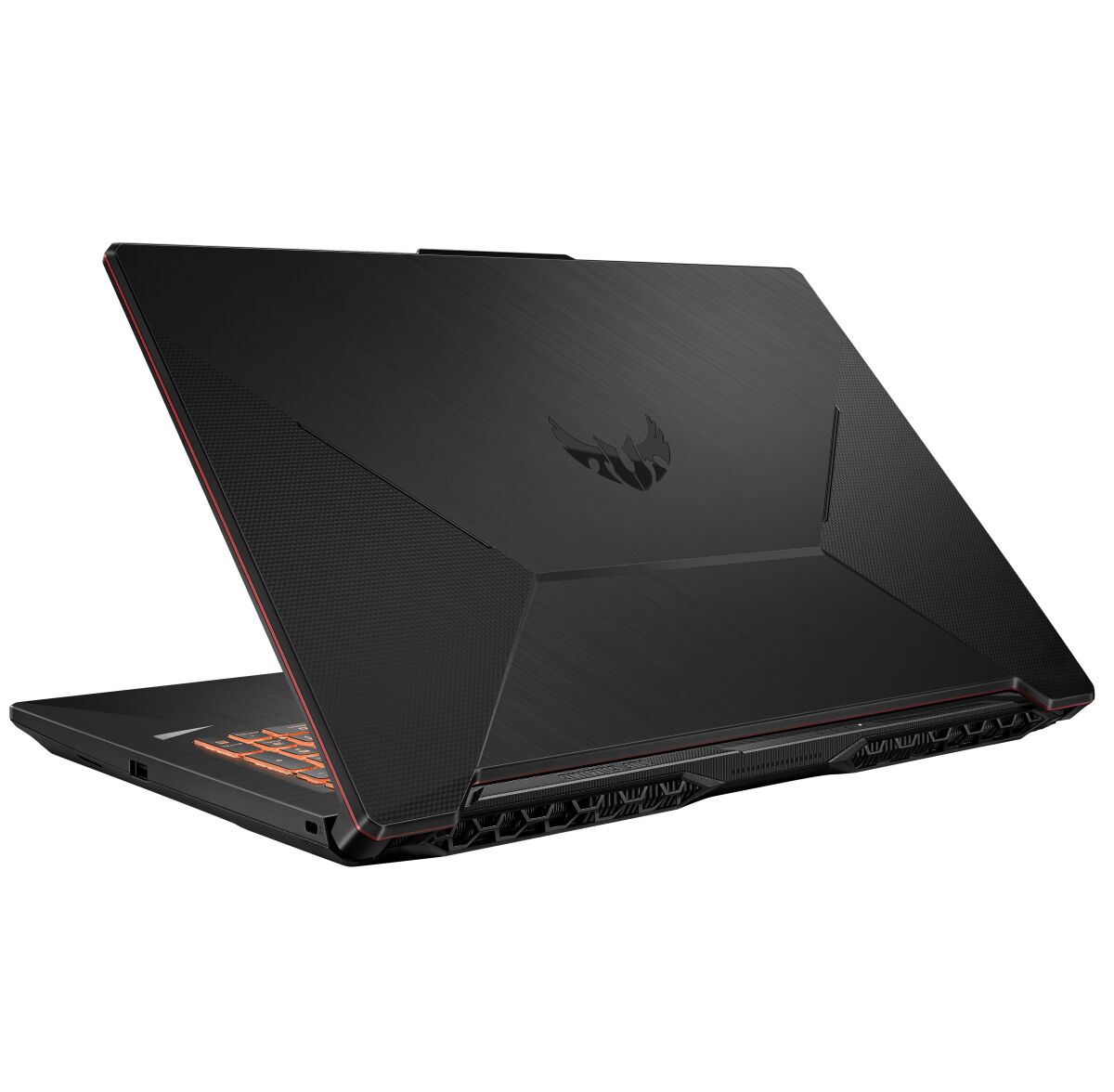

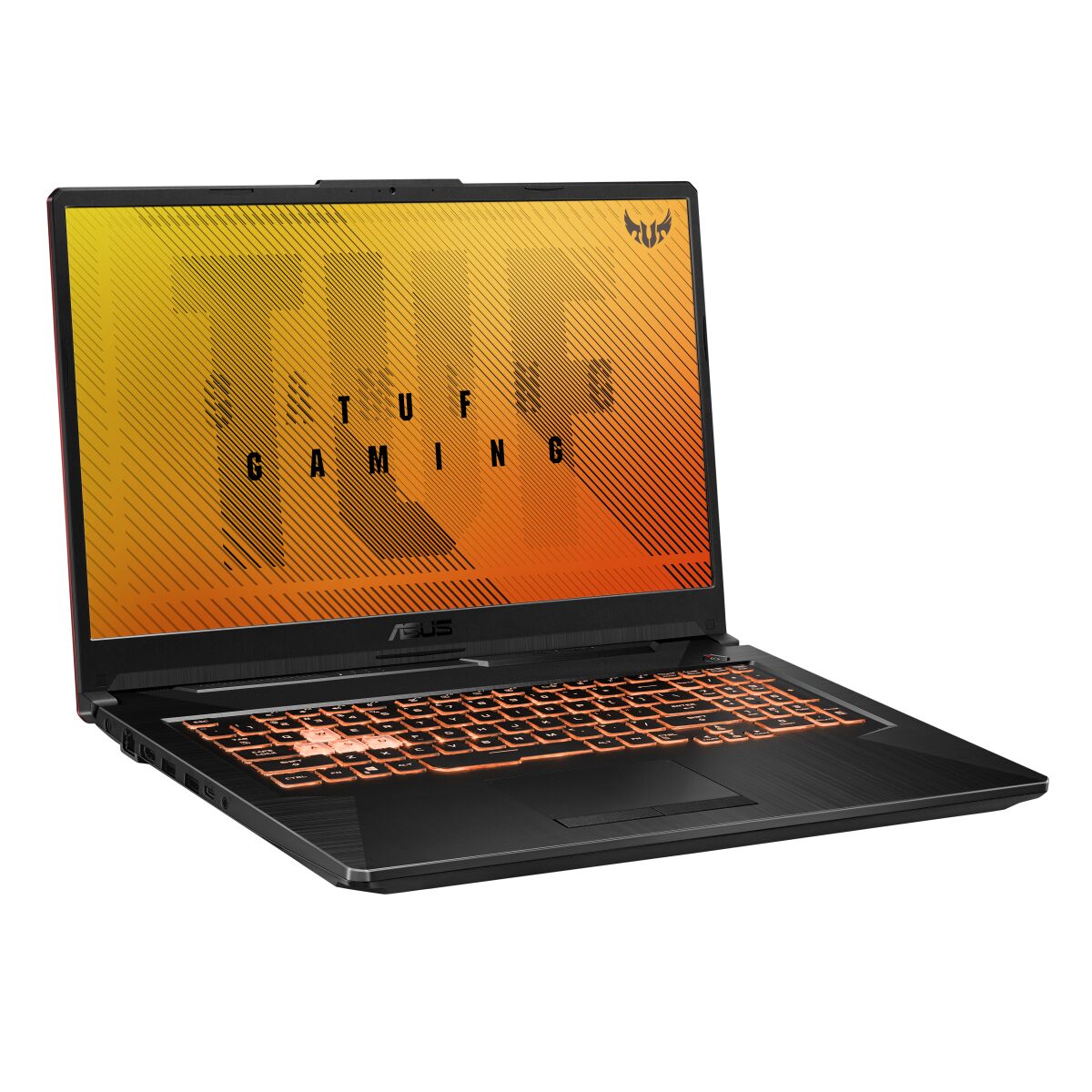

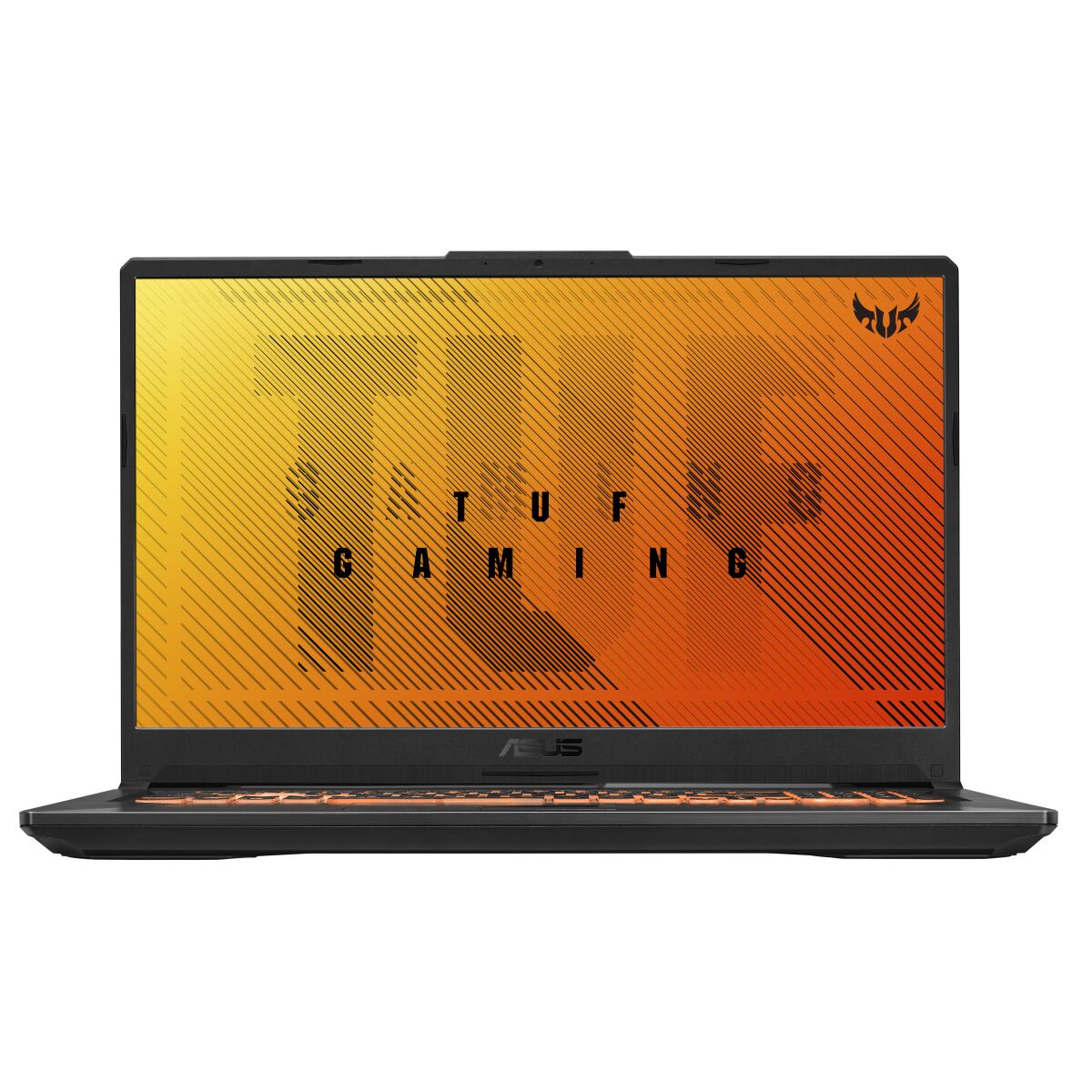

ASUS TUF Gaming FX706LI-HX247T RAM upgrade specifications
The ASUS TUF Gaming F17 FX706LI-HX247T laptop features DDR4-SDRAM memory with two SO-DIMM slots for RAM upgrades. The system supports a maximum memory capacity of 32 GB total. Compatible memory modules operate at 2933 MHz frequency and utilize the SO-DIMM form factor. The upgrade specifications allow for memory expansion to enhance system performance and multitasking capabilities on this gaming laptop model.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2933 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2933 (PC4-23464) |
| Bandwidth | 23.5 GB/s |
| Laptop Release date | 10 April 2021 |
Additional Notes
- Dual channel mode is only achievable by installing identical modules in both slots to balance the memory controller workload.
- The 2933 MHz frequency ceiling indicates a hardware limitation where higher speed 3200 MHz modules will downclock to match the system bus.
- Upgrading the ASUS FX706LI-HX247T to the 32 GB maximum requires the removal of all existing factory modules because no vacant slots remain for expansion.
- Storage of integrated graphics assets relies on shared system memory which impacts the available pool for background applications.
- Internal access for component replacement necessitates the removal of the bottom chassis panel which may involve captive screw lengths and plastic retention clips.
- Thermal constraints within the compact SO-DIMM area suggest that modules with thick heat spreaders might interfere with the assembly of the outer casing.
- Latency timings are restricted by the BIOS profile which lacks support for manual XMP adjustments or voltage overrides beyond JEDEC standards.
