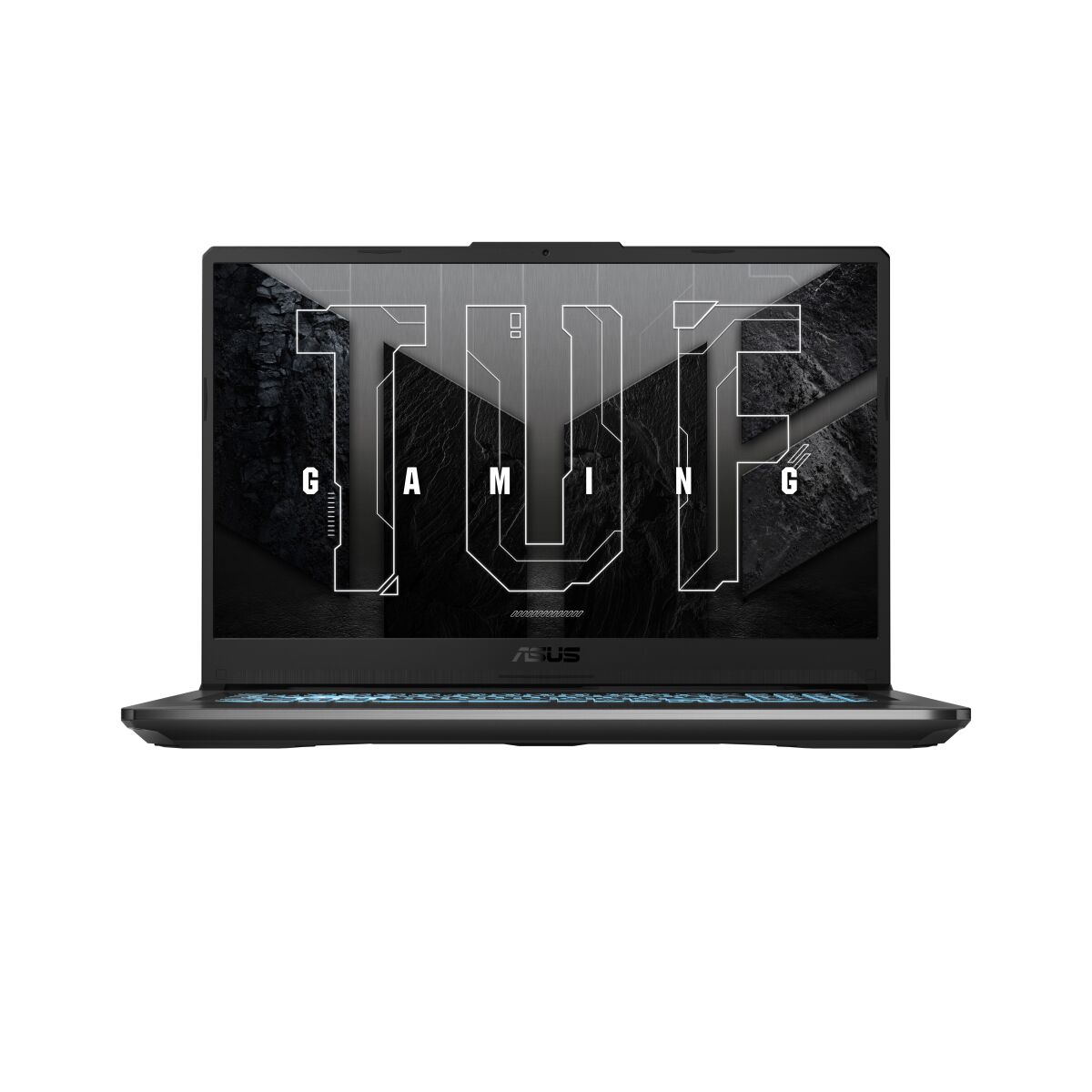

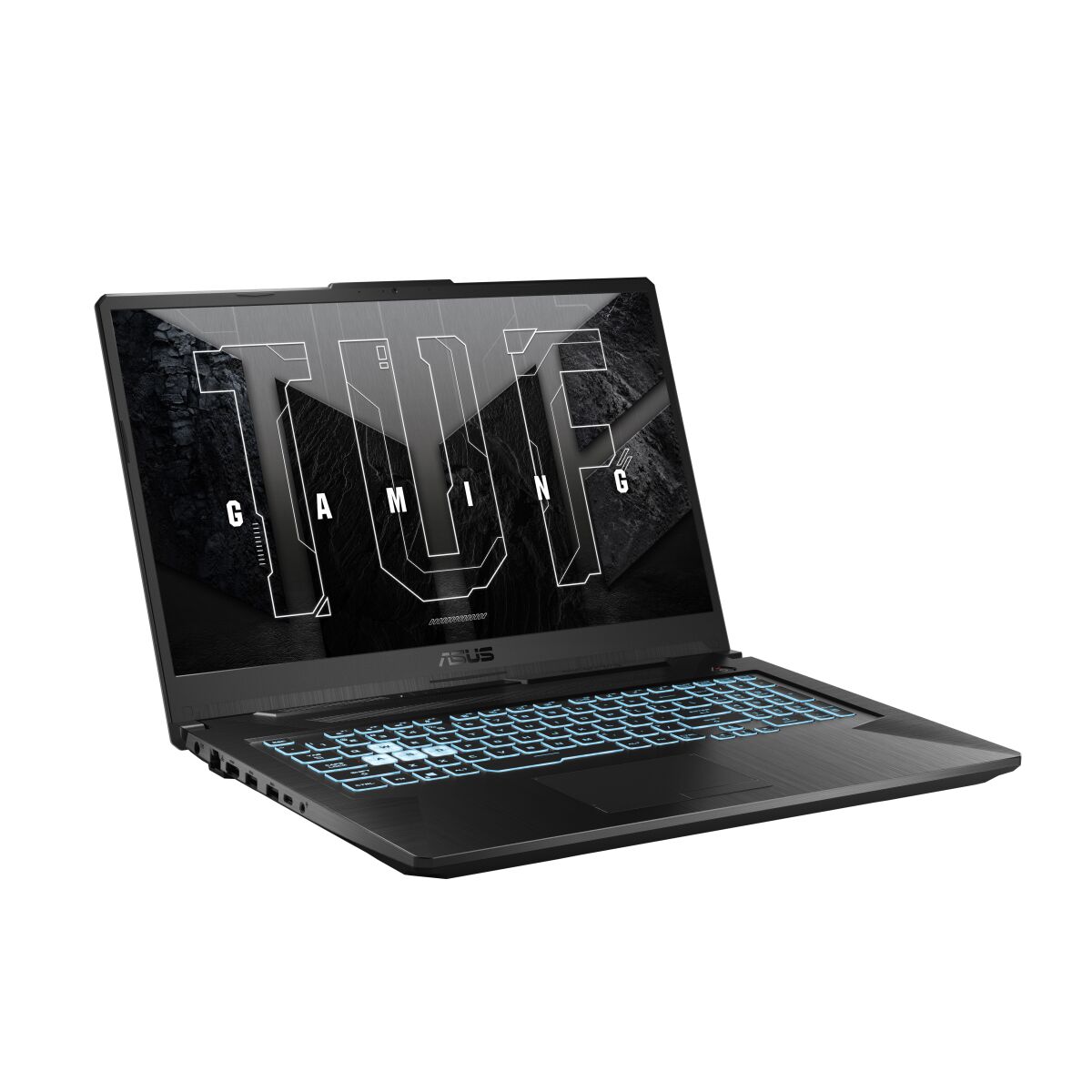

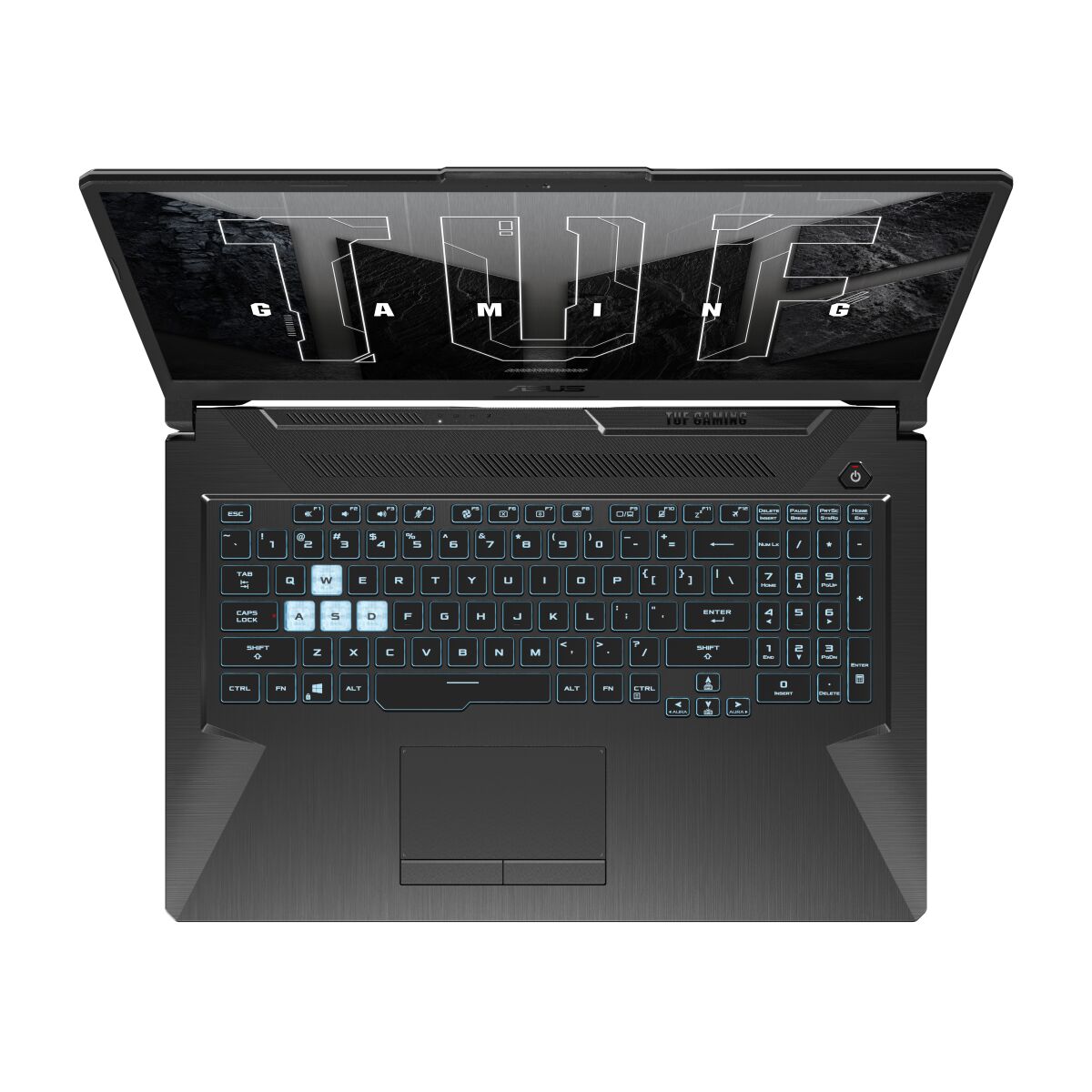

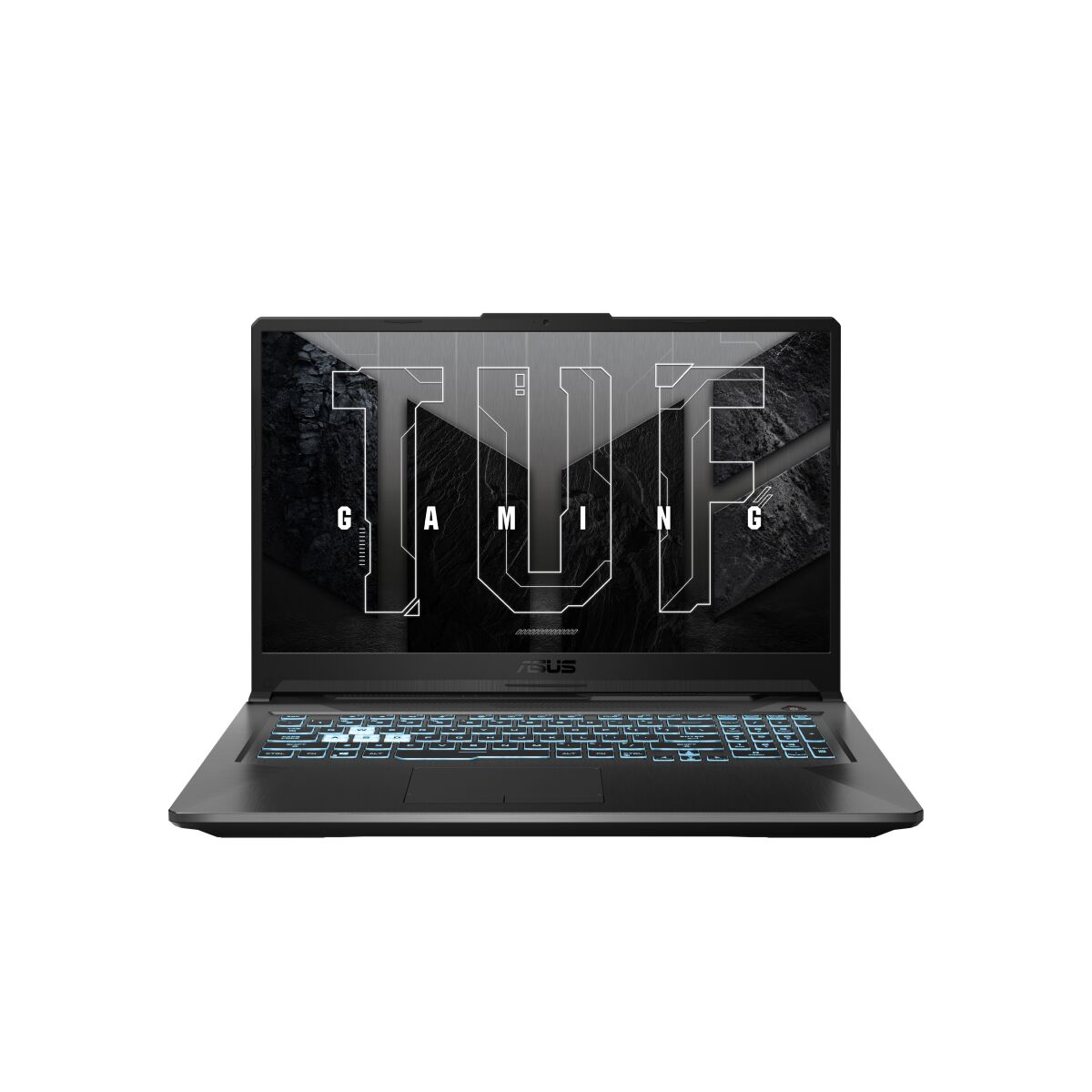

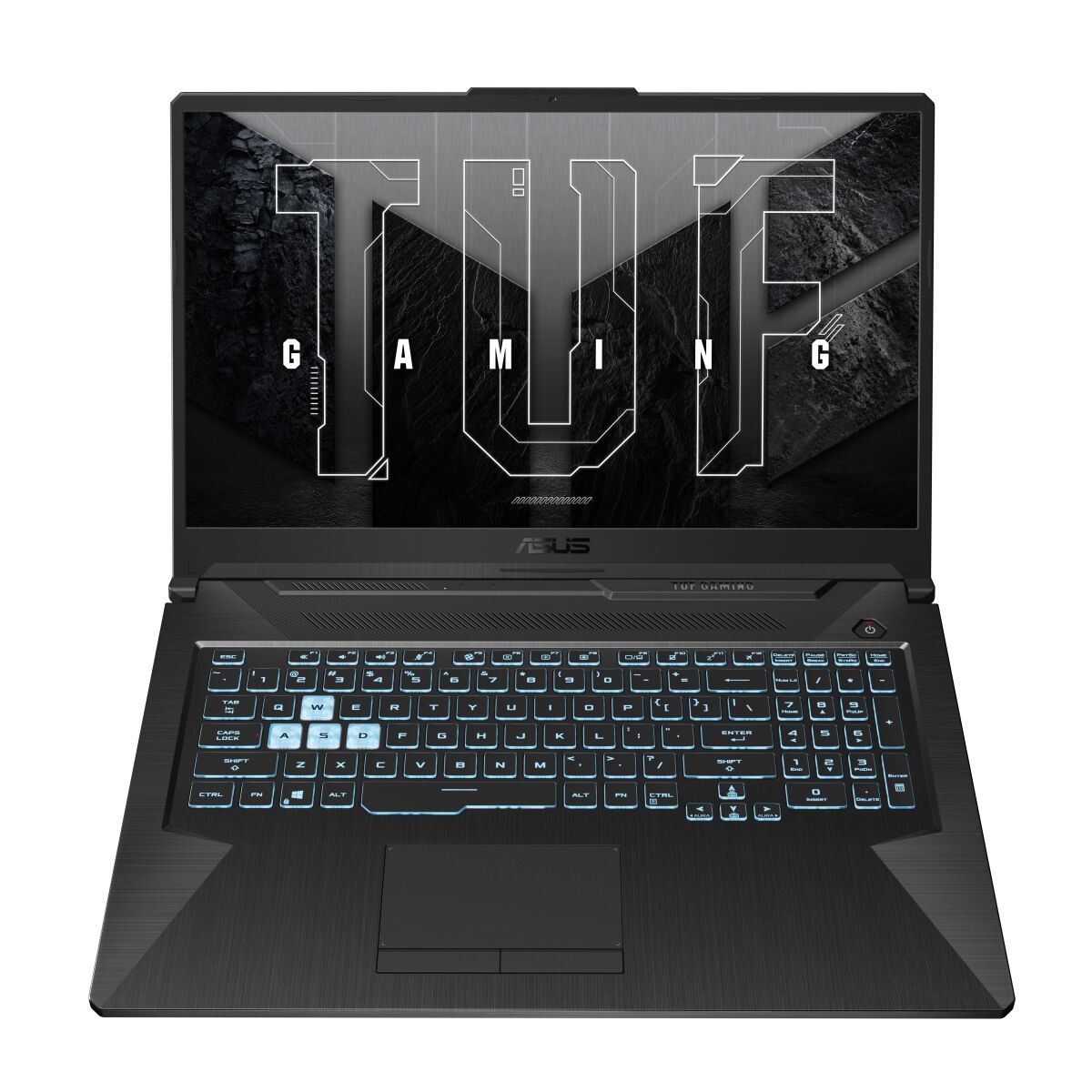

ASUS TUF Gaming TUF706HM-HX065 RAM upgrade specifications

ASUS TUF Gaming F17 Series model TUF706HM-HX065 supports DDR4-SDRAM memory upgrades with maximum capacity of 32 GB across 2 SO-DIMM slots. Compatible RAM modules operate at 3200 MHz frequency. Upgrade specifications enable replacement or expansion of existing memory configuration to achieve maximum supported capacity through compatible SO-DIMM form factor modules.

Additional Notes

• The presence of 2 SO-DIMM slots signifies that achieving maximum memory capacity necessitates a 2x16 GB matching pair to maintain dual-channel bandwidth benefits.
• Utilizing memory modules above the 3200 MHz threshold results in automatic downclocking to align with the integrated memory controller hardware limits of the ASUS TUF706HM-HX065 system.
• Upgrading beyond the 32 GB validation limit carries the risk of system instability or failure to POST as the BIOS and motherboard chipset are not rated to address higher density modules.
• The physical SO-DIMM architecture requires 260-pin modules which prevents the installation of desktop-class DIMM components or older DDR3 hardware.
• Populating only a single slot restricts the processor to single-channel mode which creates a significant data throughput bottleneck during intensive gaming or rendering tasks.
• Service access to the internal memory slots involves the removal of the bottom chassis panel which may requires the use of plastic prying tools to avoid damaging the retention clips.
• The 3200 MHz frequency rating indicates that high-performance modules must support JEDEC standard timings to reach rated speeds without relying on XMP profiles which are often unsupported in this firmware environment.
