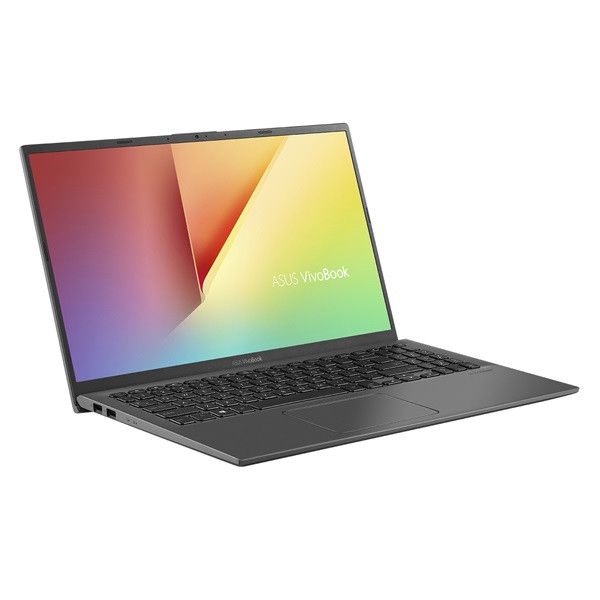

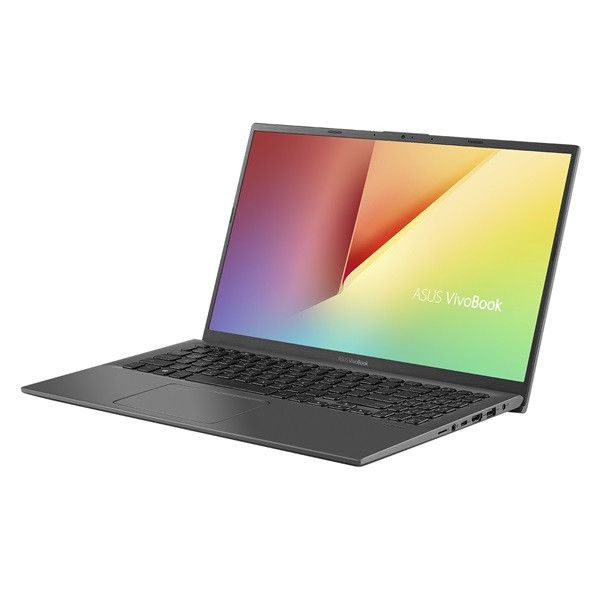

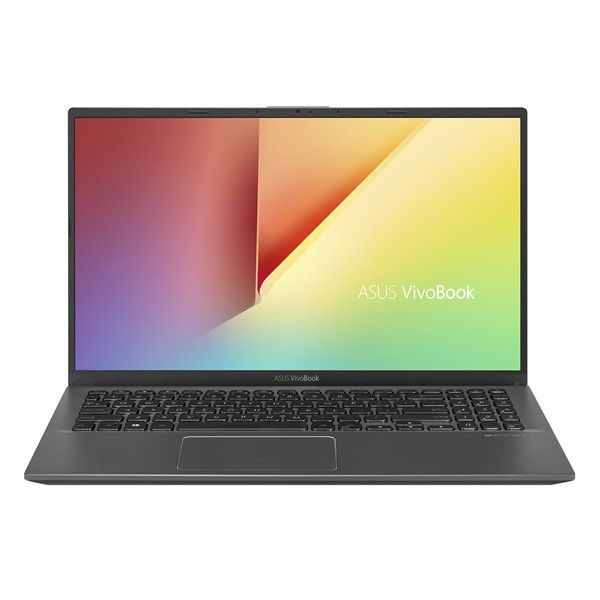

ASUS Vivobook X512FB-BQ220C RAM upgrade specifications

ASUS Vivobook Series 15 model X512FB-BQ220C supports DDR4-SDRAM memory upgrade specifications. The laptop contains one SO-DIMM slot for RAM expansion, with maximum compatible capacity of 12 GB. Memory operates at 2400 MHz frequency. The device features on-board memory configuration combined with one replaceable SO-DIMM slot, enabling users to upgrade the existing memory configuration to the maximum supported capacity of 12 GB total RAM.

Additional Notes

• The ASUS Vivobook X512FB-BQ220C contains soldered on-board memory that cannot be removed, leaving only 1 expandable slot for DDR4 modules. This architectural constraint means total capacity is capped at 12 GB regardless of module density.
• The 2400 MHz frequency specification indicates this system predates DDR4-2666 and faster standards. Inserting higher-frequency modules will downclock to 2400 MHz, eliminating any performance gain from faster JEDEC standards.
• Upgrading to the 12 GB maximum requires a single 8 GB SO-DIMM module, as the on-board portion is non-upgradeable and likely fixed at 4 GB. Dual-module configurations are not possible due to slot limitation.
• SO-DIMM compatibility is the critical constraint for physical installation. Desktop DDR4 UDIMM modules cannot fit mechanically in the single available slot, making form factor verification mandatory before purchase.
• The memory subsystem will operate as single-channel if only 1 SO-DIMM is populated, resulting in approximately 10-15 percent bandwidth penalty compared to dual-channel configurations. The on-board memory cannot be paired for dual-channel operation.
• Warranty-safe upgrades require DDR4 SO-DIMM modules rated for 2400 MHz or lower. Modules with aggressive XMP/DOCP profiles present no risk since the BIOS lacks the ability to exceed 2400 MHz operation.
