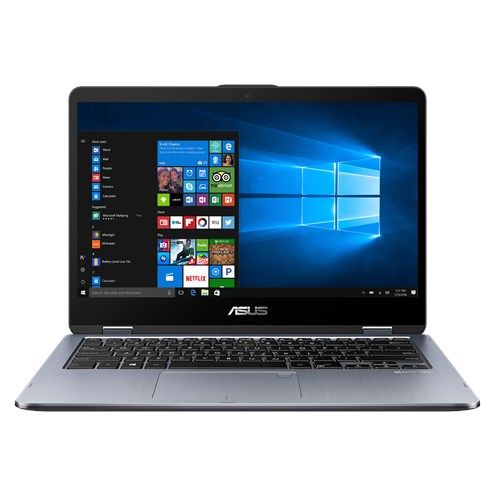

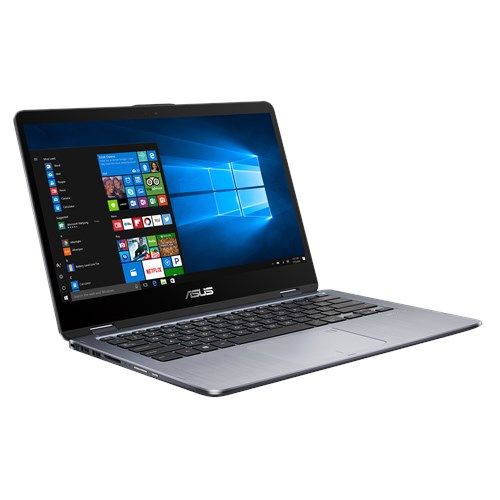

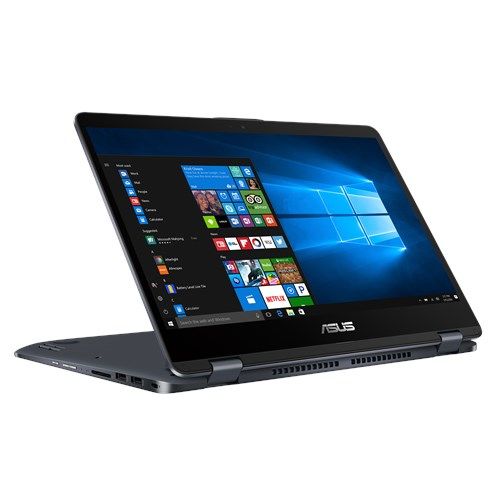

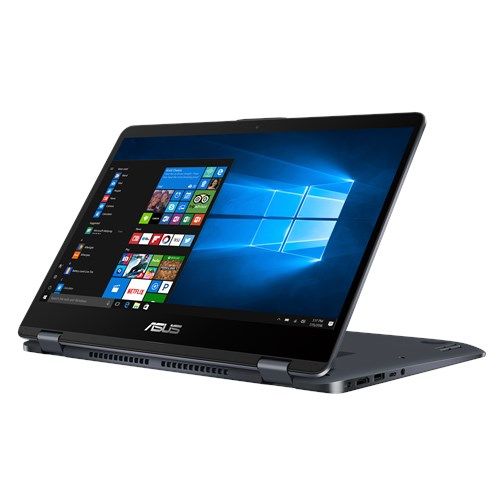

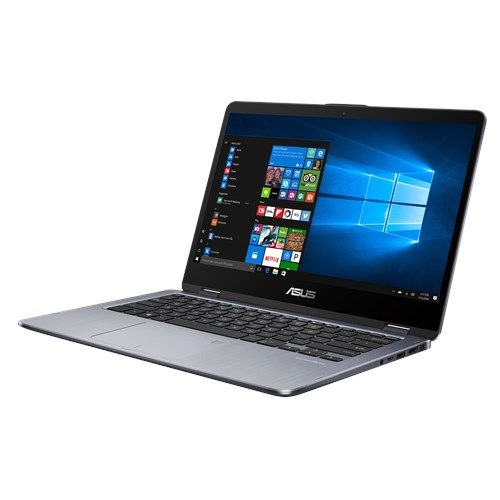

ASUS Vivobook TP410UA-EC235T RAM upgrade specifications
The ASUS Vivobook Flip TP410UA-EC235T supports DDR4-SDRAM memory upgrades with two SO-DIMM slots available for expansion. Maximum supported RAM capacity reaches 16 GB total. Memory modules operate at 2133 MHz frequency. Upgrade specifications indicate compatibility with SO-DIMM form factor modules, allowing users to expand the laptop's memory configuration according to these technical parameters and slot availability.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2133 MHz |
| Maximum RAM | 16 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2133 (PC4-17064) |
| Bandwidth | 17.1 GB/s |
| Laptop Release date | 02 February 2018 |
Additional Notes
- The presence of 2 SO-DIMM slots confirms that reaching the maximum capacity requires a dual-channel configuration, which doubles the available memory bandwidth compared to a single-channel setup.
- Physical access to the memory modules in the ASUS Vivobook TP410UA-EC235T necessitates the removal of the entire base panel, as there is no dedicated quick-access door for component swaps.
- Installing higher frequency modules results in an automatic downclocking to the system bus limit of 2133 MHz, effectively capping the data transfer rate regardless of the rated speed on the replacement stick.
- The 16 GB firmware limitation indicates that high-density 16 GB or 32 GB single modules will likely fail to initialize during the POST sequence.
- Stability and timing synchronization depend on using non-ECC unbuffered modules, as the architectural design does not support error-correcting code memory.
- System latency is determined by the slowest module installed, meaning mixing modules with different CAS latencies forces the hardware to default to the highest common denominator.
