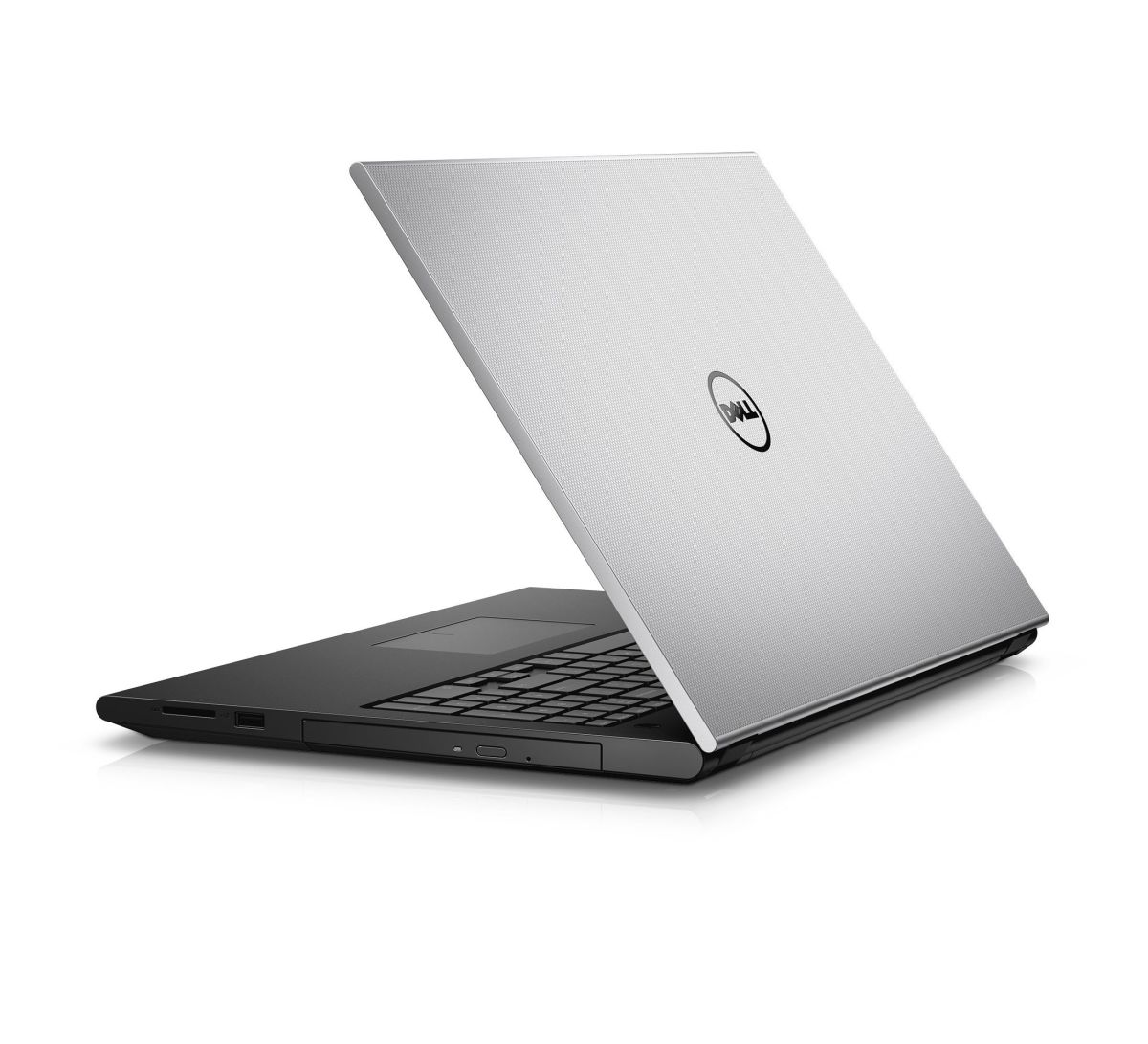

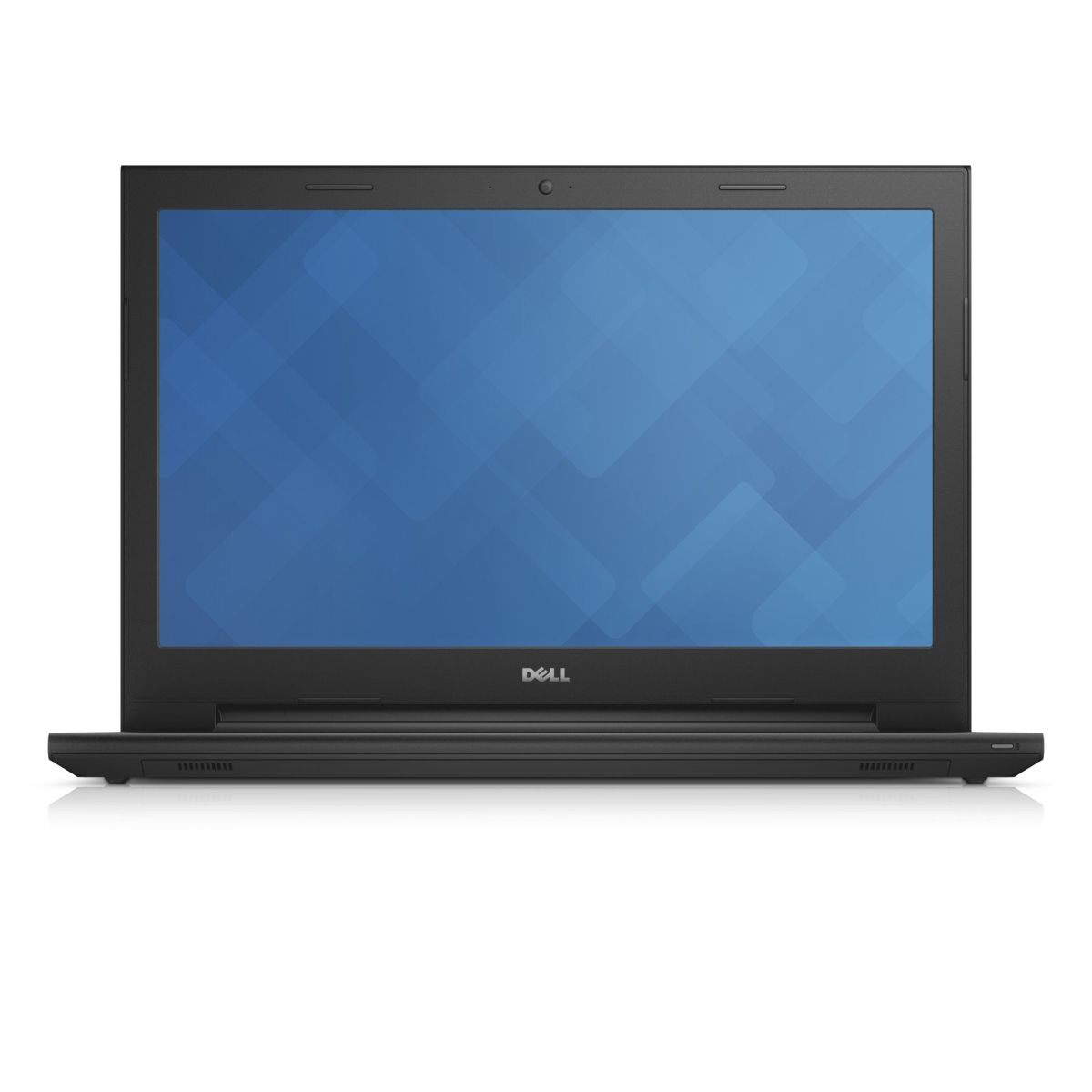

DELL Inspiron 3542 RAM upgrade specifications
DELL Inspiron 3000 Series 3542 laptop features one SO-DIMM memory slot supporting DDR3L-SDRAM modules. Maximum RAM capacity reaches 8 GB. Compatible memory specifications include 1600 MHz frequency operation. RAM upgrade slots accommodate SO-DIMM form factor modules. Memory specifications define upgrade compatibility and maximum supported capacity for this DELL Inspiron 3542 model.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 1x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR3L-SDRAM |
| Frequency | 1600 MHz |
| Maximum RAM | 8 GB |
| Voltage | 1.35V (Low Voltage) |
| Number of pins | 204-pin |
| Interface | PC3L |
| PC Speed Rating | PC3L-1600 (PC3L-12800) |
| Bandwidth | 12.8 GB/s |
| Laptop Release date | 11 February 2019 |
Additional Notes
- The presence of a single SO-DIMM slot excludes dual-channel memory configurations, resulting in a single-channel memory architecture that limits total memory bandwidth.
- Upgrading the memory requires the removal of the existing module rather than add-on expansion because no empty slots are available on the Dell Inspiron 3542 motherboard.
- The requirement for DDR3L indicates the system operates at a low voltage of 1.35V, making standard 1.5V DDR3 modules incompatible and potentially preventing the system from POSTing.
- Installing a module with a frequency higher than 1600 MHz causes the system to downclock the RAM to match the maximum hardware bus speed supported by the chipset.
- Total system memory capacity is restricted by the BIOS and chipset architecture to 8 GB, meaning 16 GB modules will not be recognized or addressed correctly.
- The physical layout requires an SODIMM form factor, which prohibits the use of full-sized desktop DIMM modules or high-density server-grade memory.
- Integrated graphics sharing the system RAM will experience a performance ceiling because the single-channel bus must handle both CPU and GPU data requests simultaneously.
