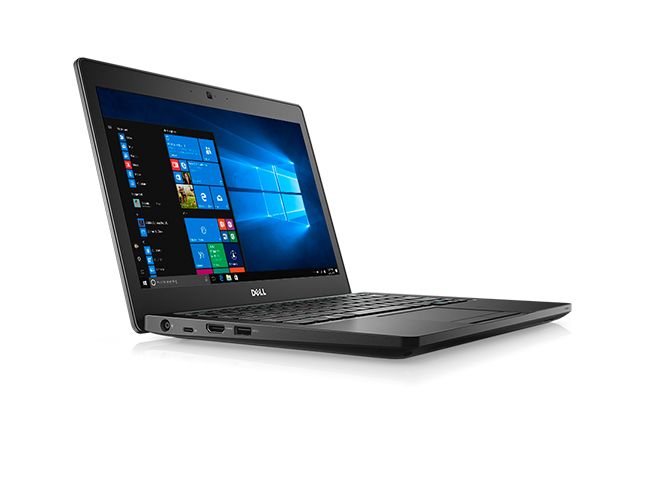

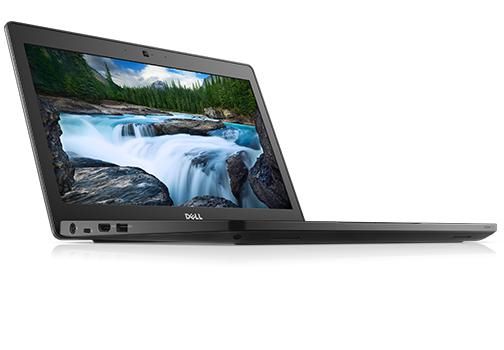

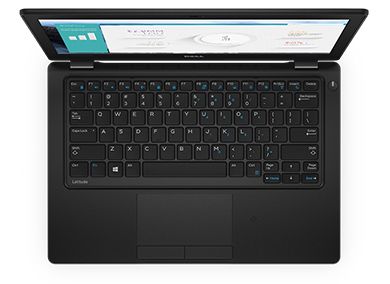

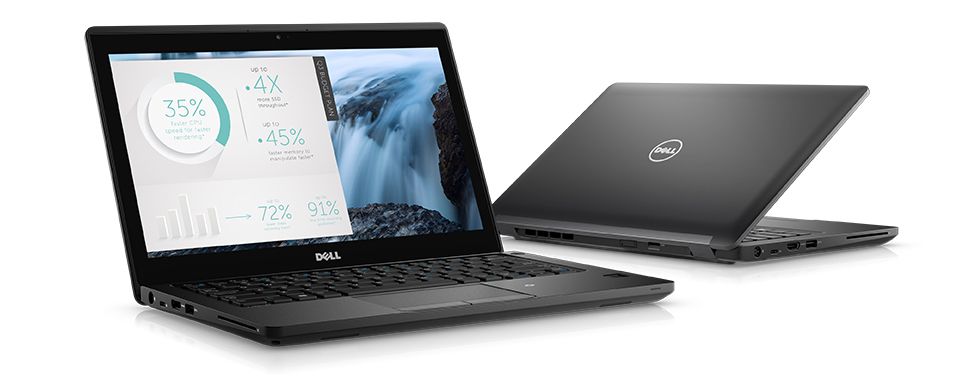

DELL Latitude 5280 RAM upgrade specifications

DELL Latitude 5000 series model 5280 supports DDR4-SDRAM memory upgrades through 2x SO-DIMM slots. Maximum compatible RAM capacity reaches 32 GB total. Memory specifications include SO-DIMM form factor with 2400 MHz frequency. Upgrade configurations accommodate various capacity options within the 32 GB maximum threshold. Compatible memory modules must match DDR4-SDRAM specifications and SO-DIMM physical specifications for proper installation in available slots.

Additional Notes

• Dual channel memory architecture requires installing matched modules in both slots to maximize memory bandwidth and system throughput.
• The 32 GB ceiling restricts the hardware to 16 GB densities per slot, preventing the use of high density 32 GB single sticks.
• Memory modules with speeds exceeding 2400 MHz will automatically downclock to align with the chipset bus limitations.
• The SO DIMM form factor necessitates 260 pin modules, as 204 pin or 288 pin variants are physically incompatible with the motherboard layout.
• Internal memory access requires the removal of the entire base cover, which may involve delicate plastic clips prone to snapping if handled without proper prying tools.
• System stability depends on using Non-ECC unbuffered memory, as parity checking ECC modules will cause a failure to boot.
• Low voltage 1.2V DDR4 is the required standard to ensure thermal efficiency and prevent voltage mismatch within the power delivery circuit.
• Mixing modules of different frequencies or latencies results in the system defaulting to the slowest shared timing profile to maintain signal integrity.
