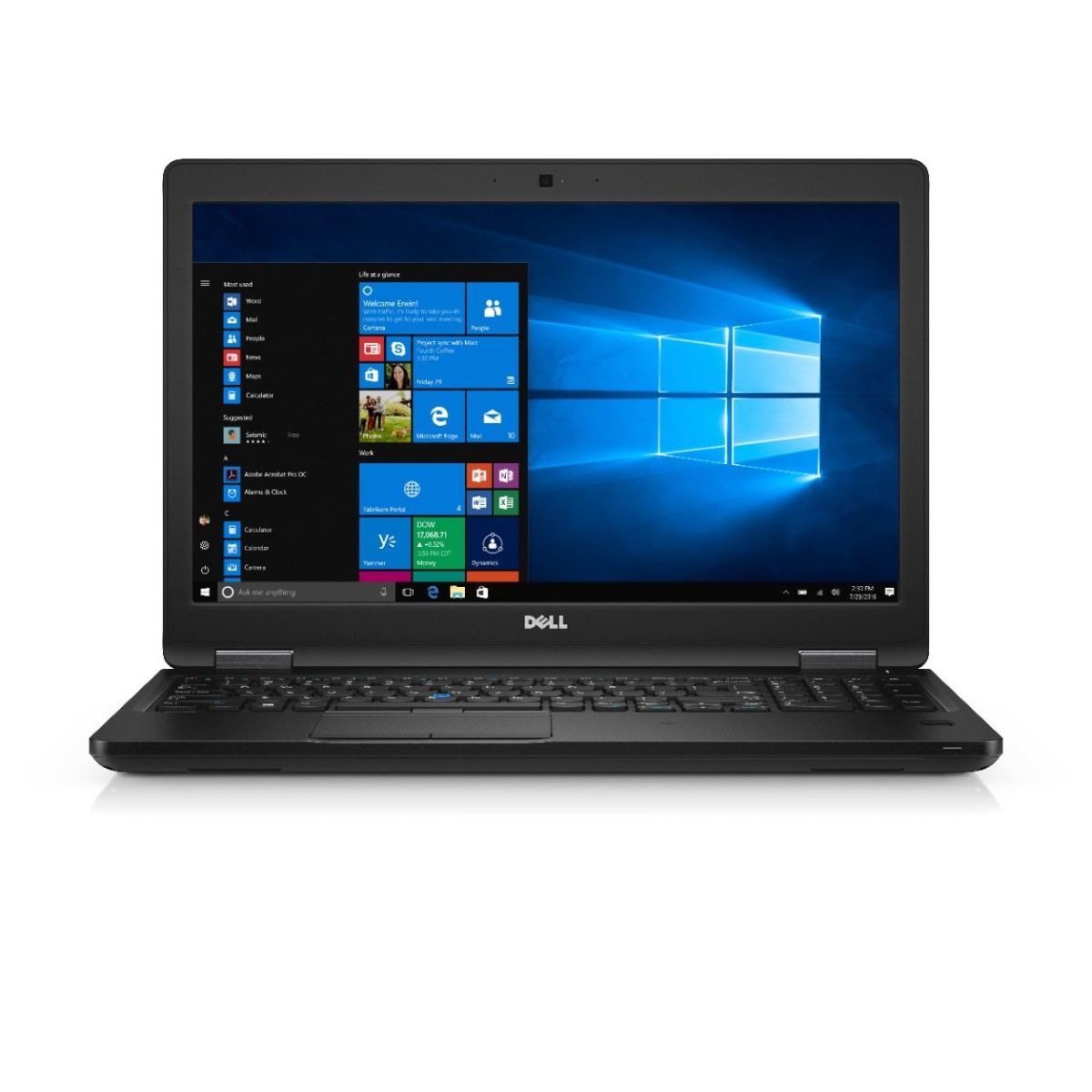

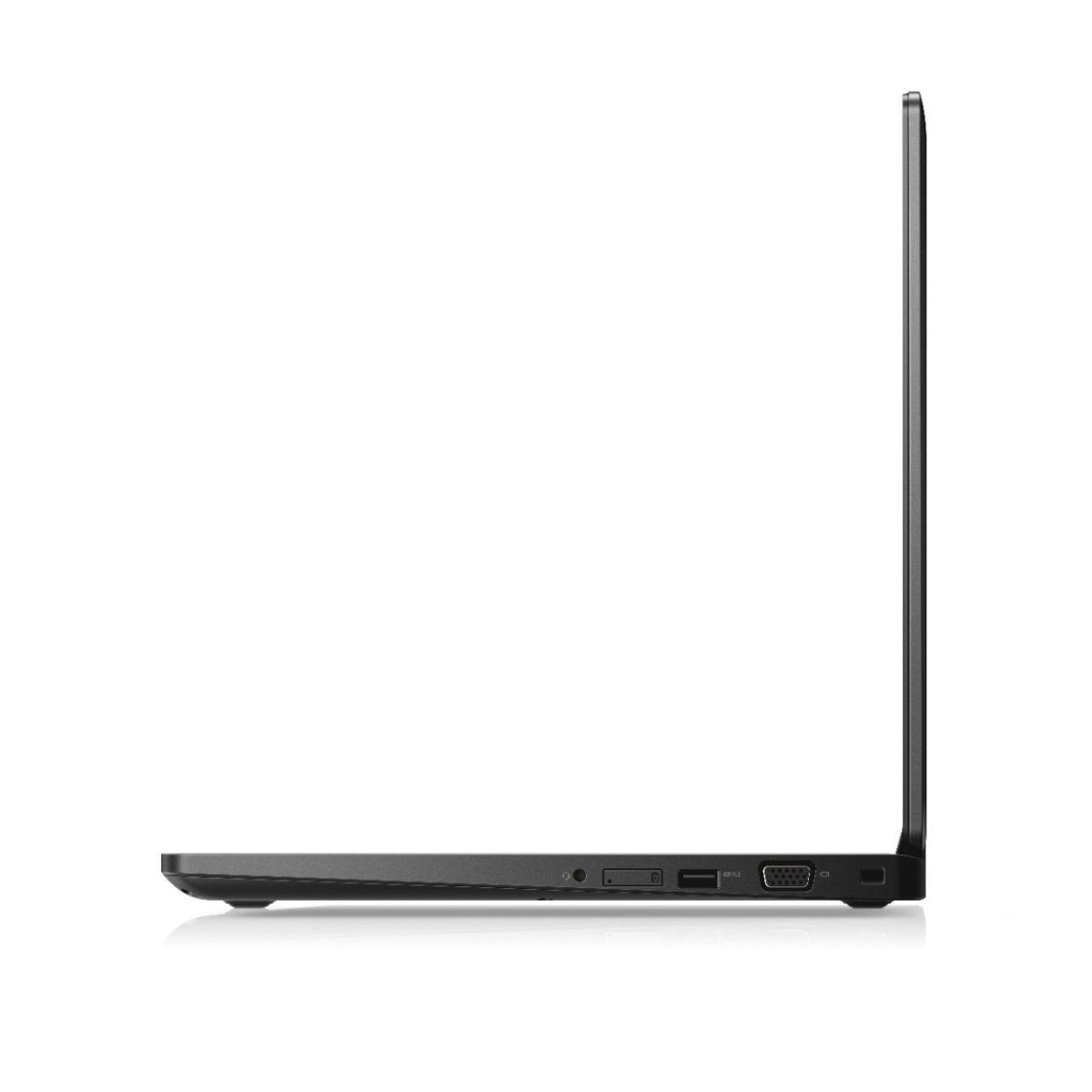

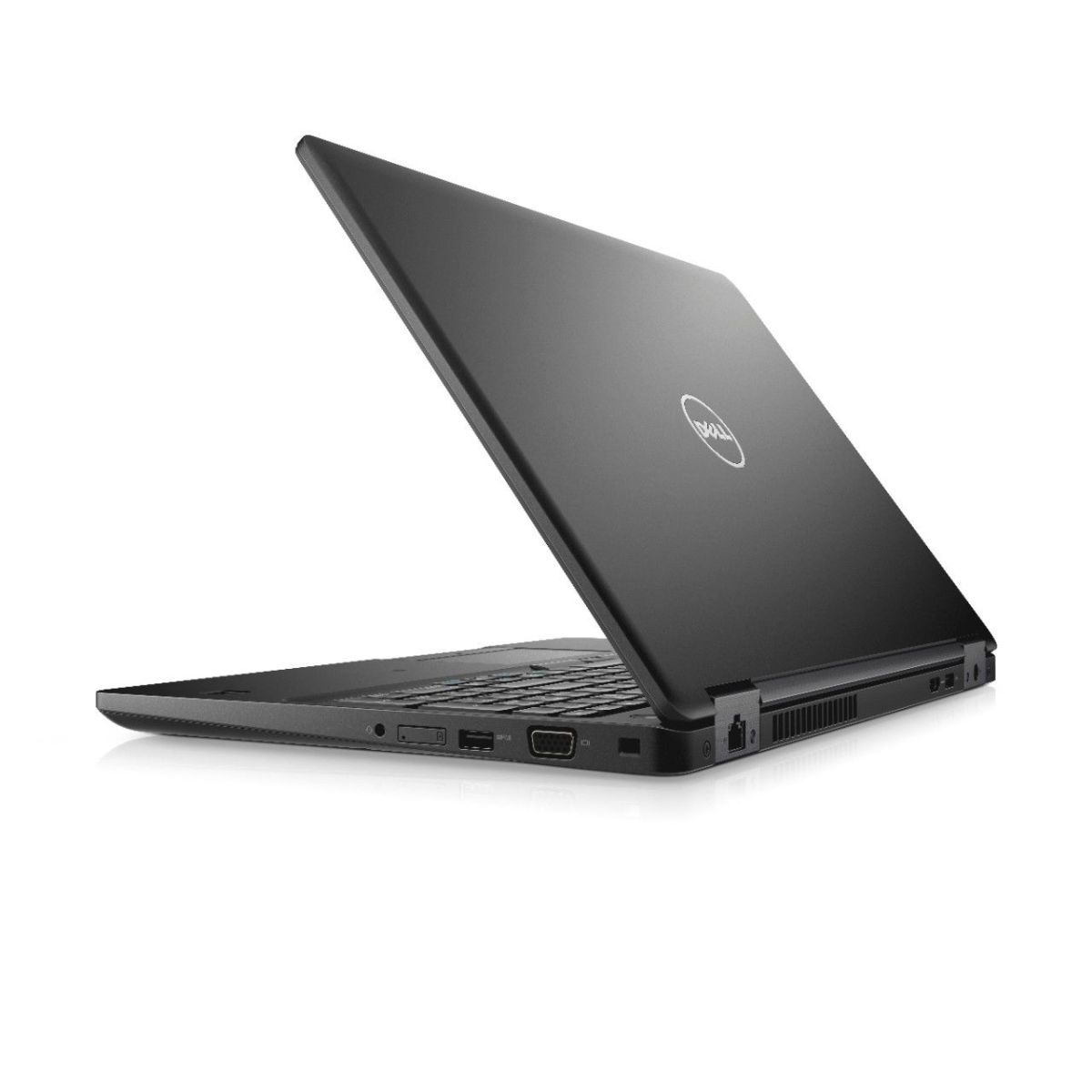

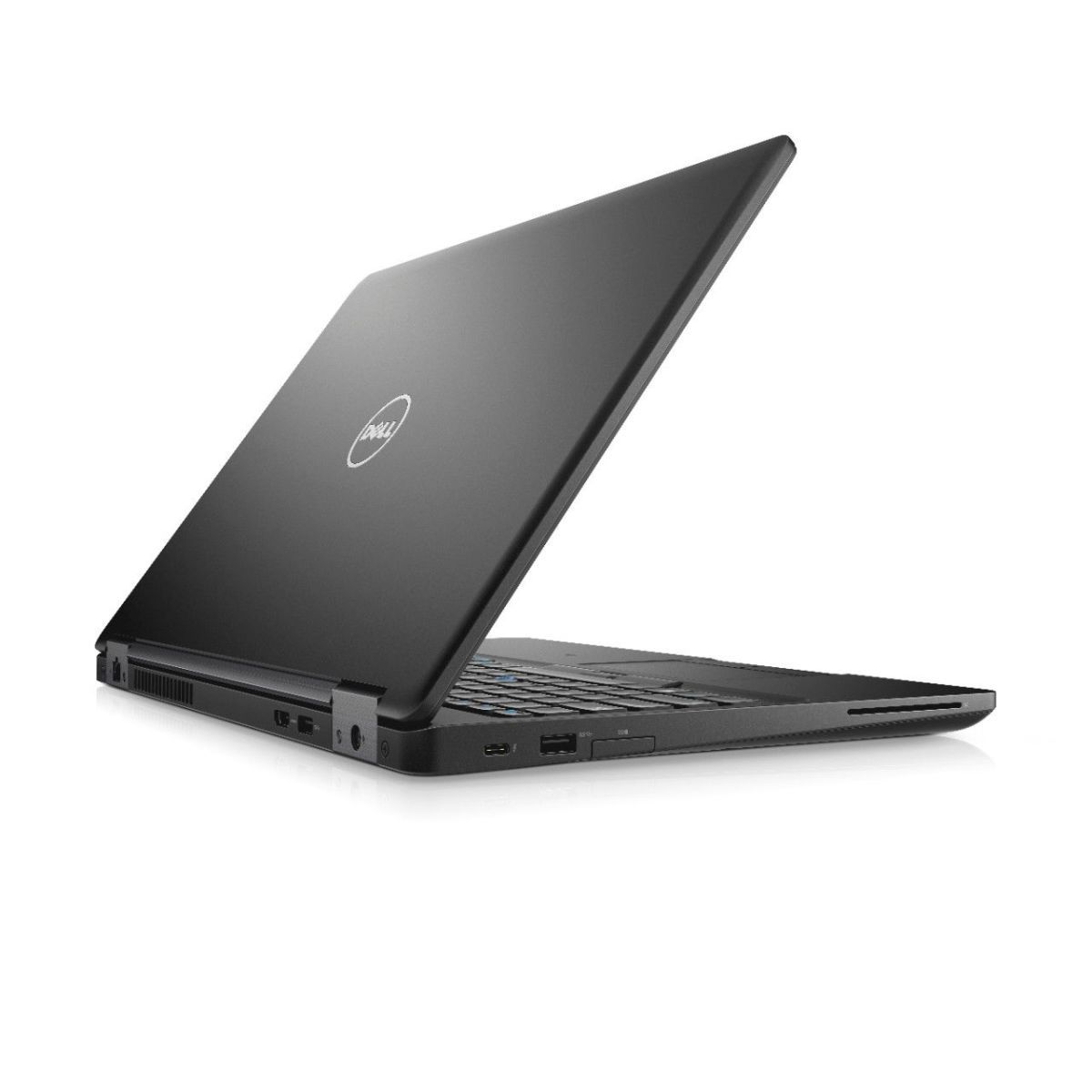

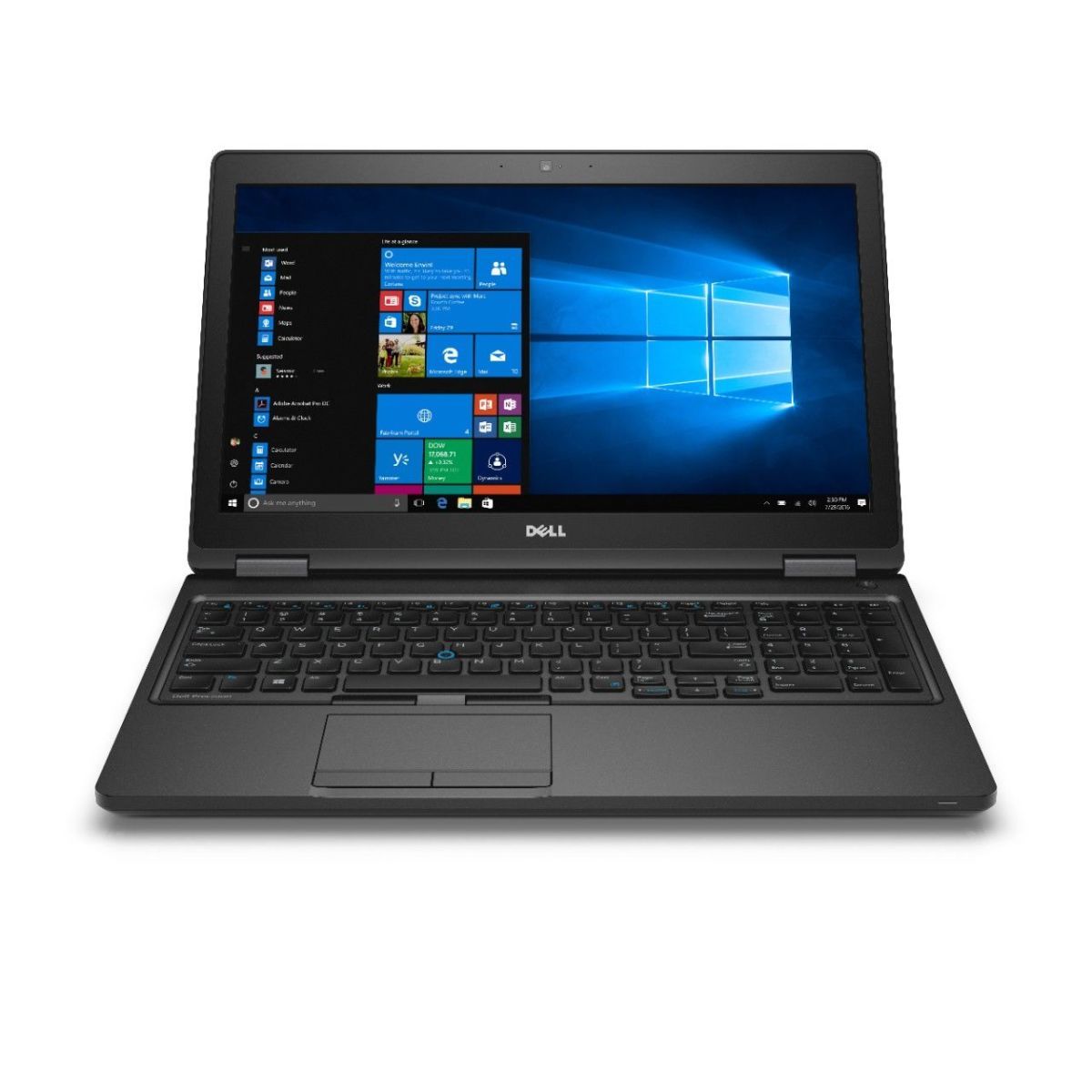

DELL Precision M3520 RAM upgrade specifications

The Dell Precision M3520 laptop accommodates DDR4-SDRAM memory upgrades through two SO-DIMM slots, supporting a maximum RAM capacity of 32 GB. Compatible memory modules operate at 2400 MHz frequency and utilize the SO-DIMM form factor. Specifications indicate the M3520 from Dell's Precision 3000 series supports memory expansion up to the stated maximum capacity. RAM upgrade slots allow for modular memory installation compatible with DDR4 specifications.

Additional Notes

• Dual channel mode is only achievable by installing matched capacity modules in both available slots to bypass single channel bandwidth limitations.
• The 2400 MHz clock speed acts as a hard limit for the memory controller, meaning higher frequency RAM modules will automatically downclock to match the system bus.
• The 32 GB threshold indicates a hardware or BIOS limitation on density, preventing the use of 32 GB single sticks to reach 64 GB configurations.
• Utilizing two memory modules of differing capacities will trigger an asymmetrical flex mode, potentially reducing overall throughput for memory intensive applications.
• The absence of soldered memory on the motherboard ensures that the entire system memory remains serviceable and replaceable in the event of a module failure.
• The SO-DIMM design requires 260 pin modules, which are incompatible with desktop DIMM hardware or previous DDR3 generations due to physical keying and voltage differences.
• System stability depends on using non ECC unbuffered modules, as the workstation chipset in this specific mobile series does not support error correcting code protocols for memory parity.
