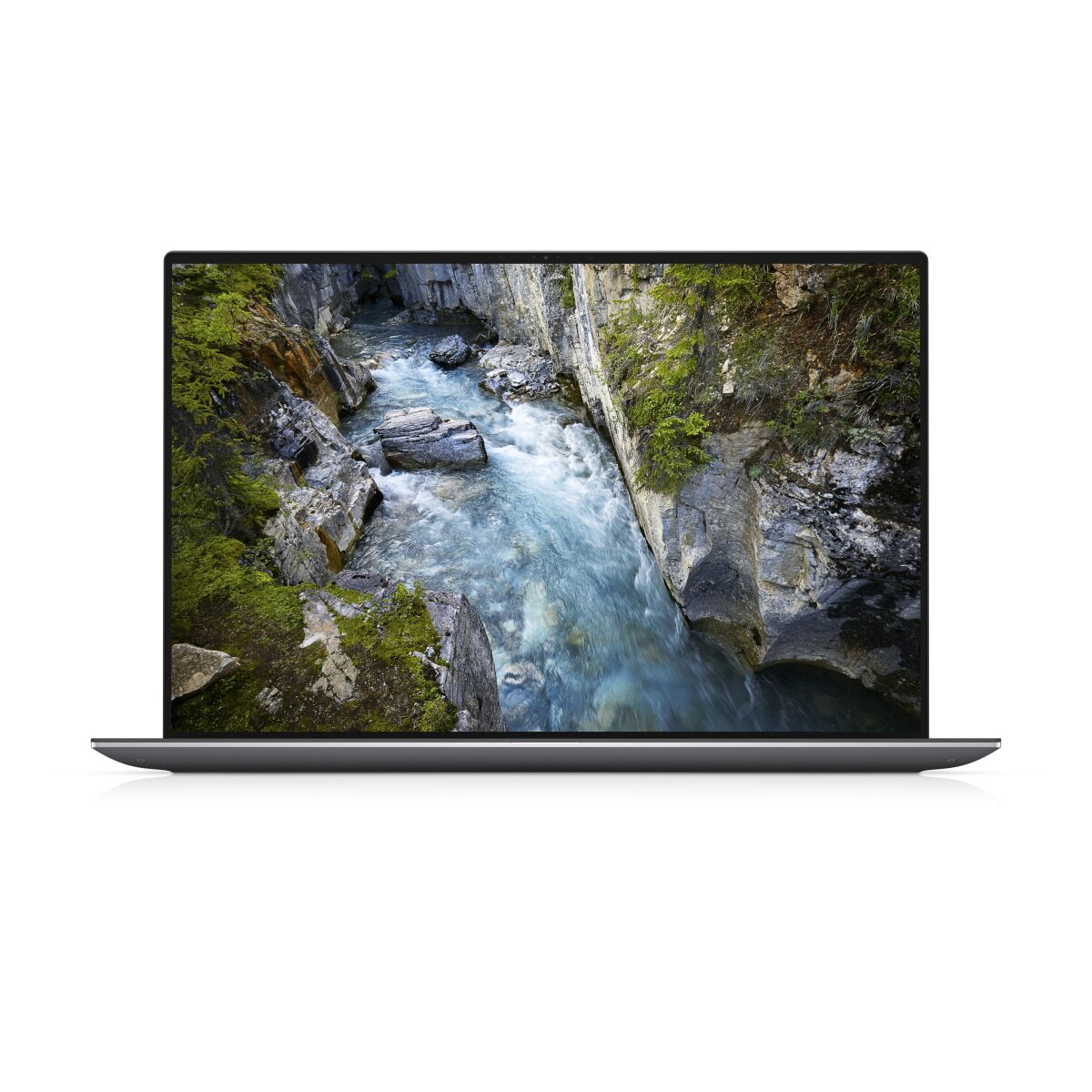

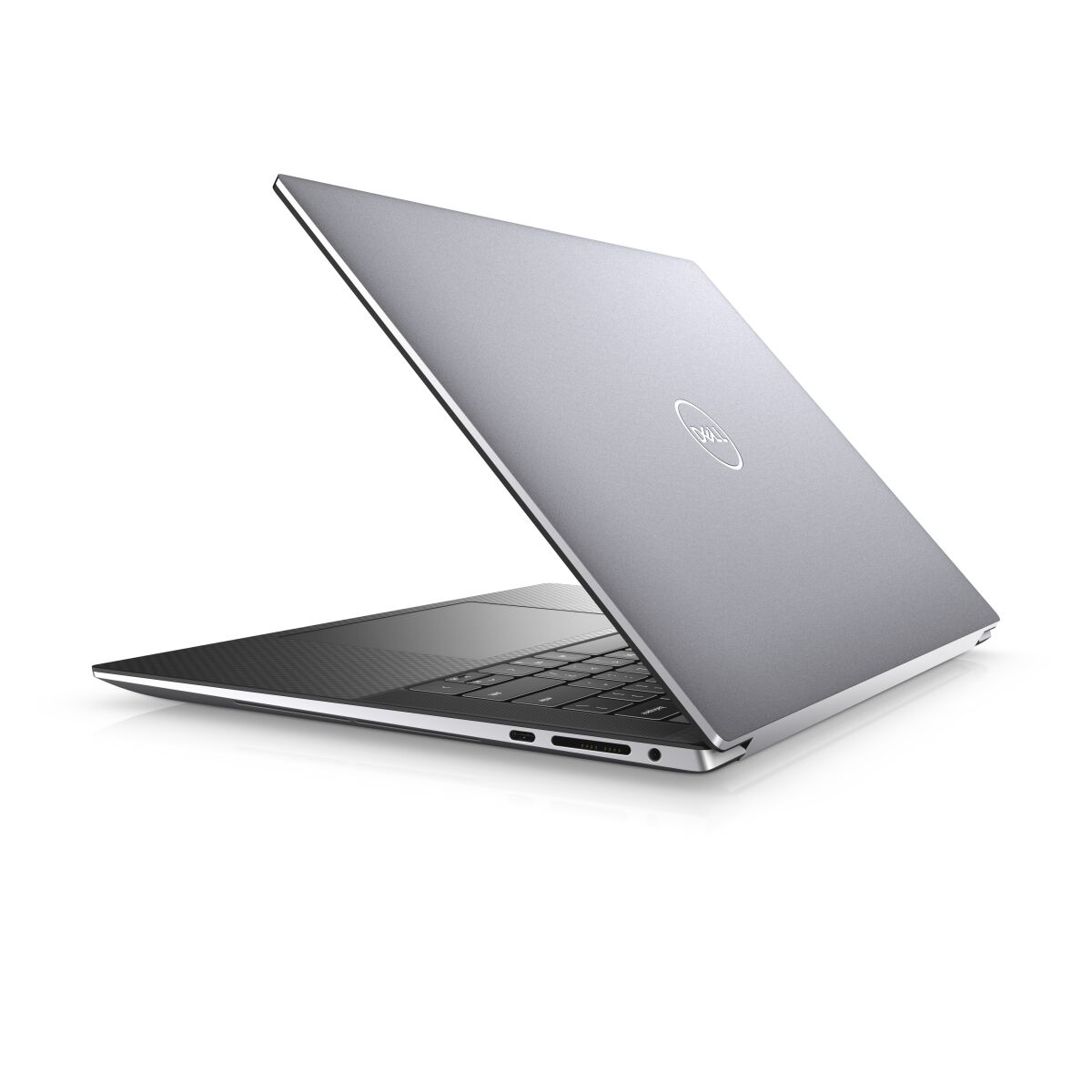

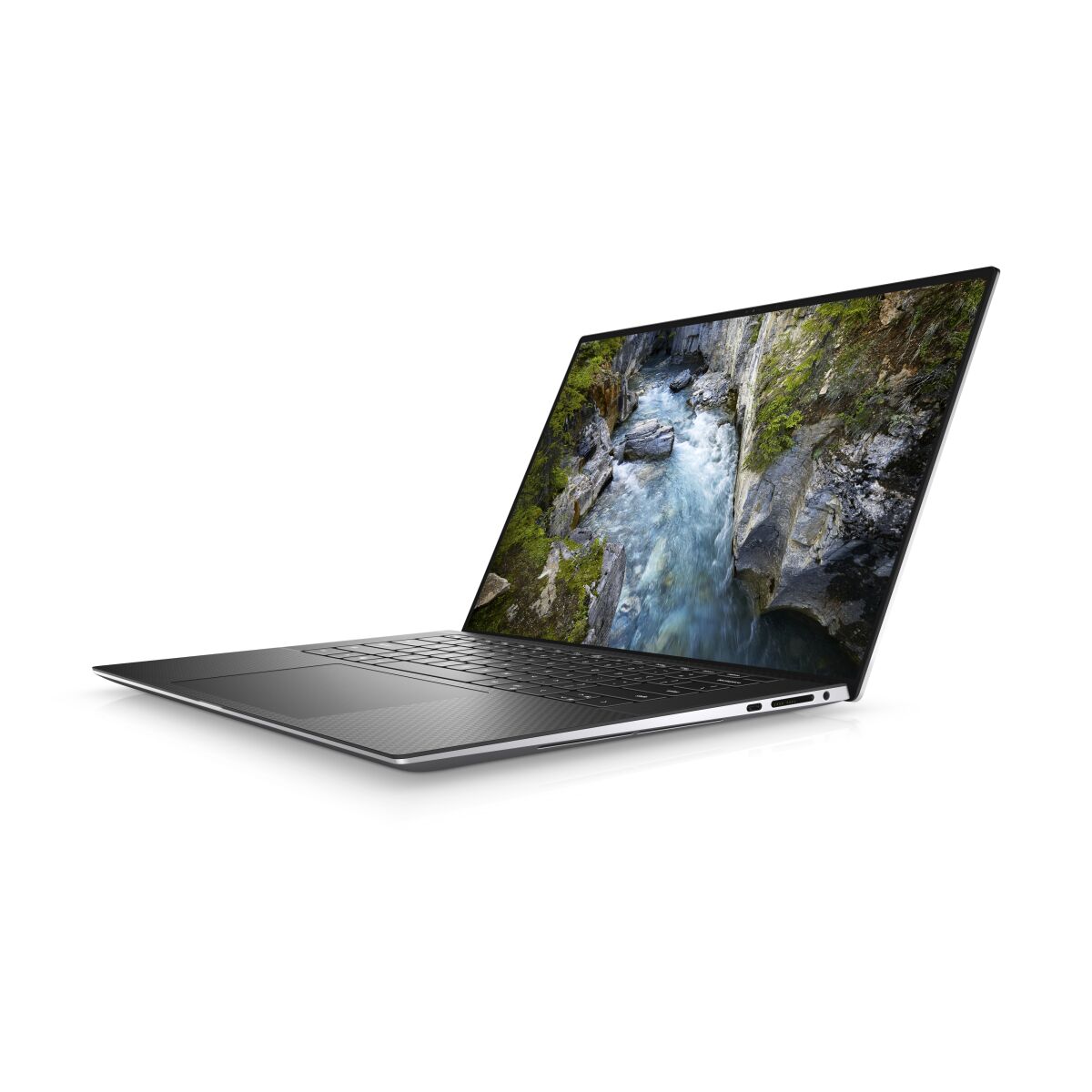

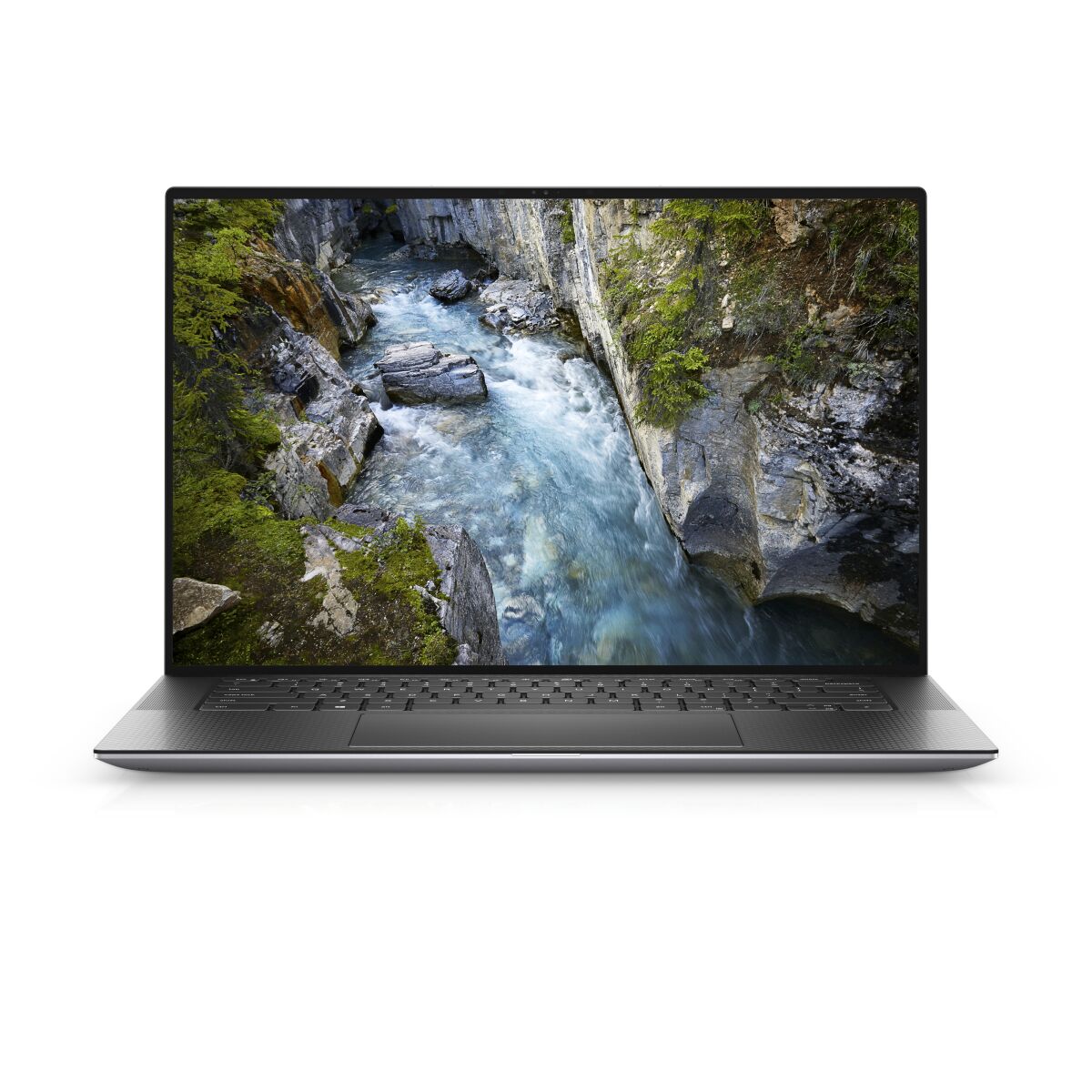

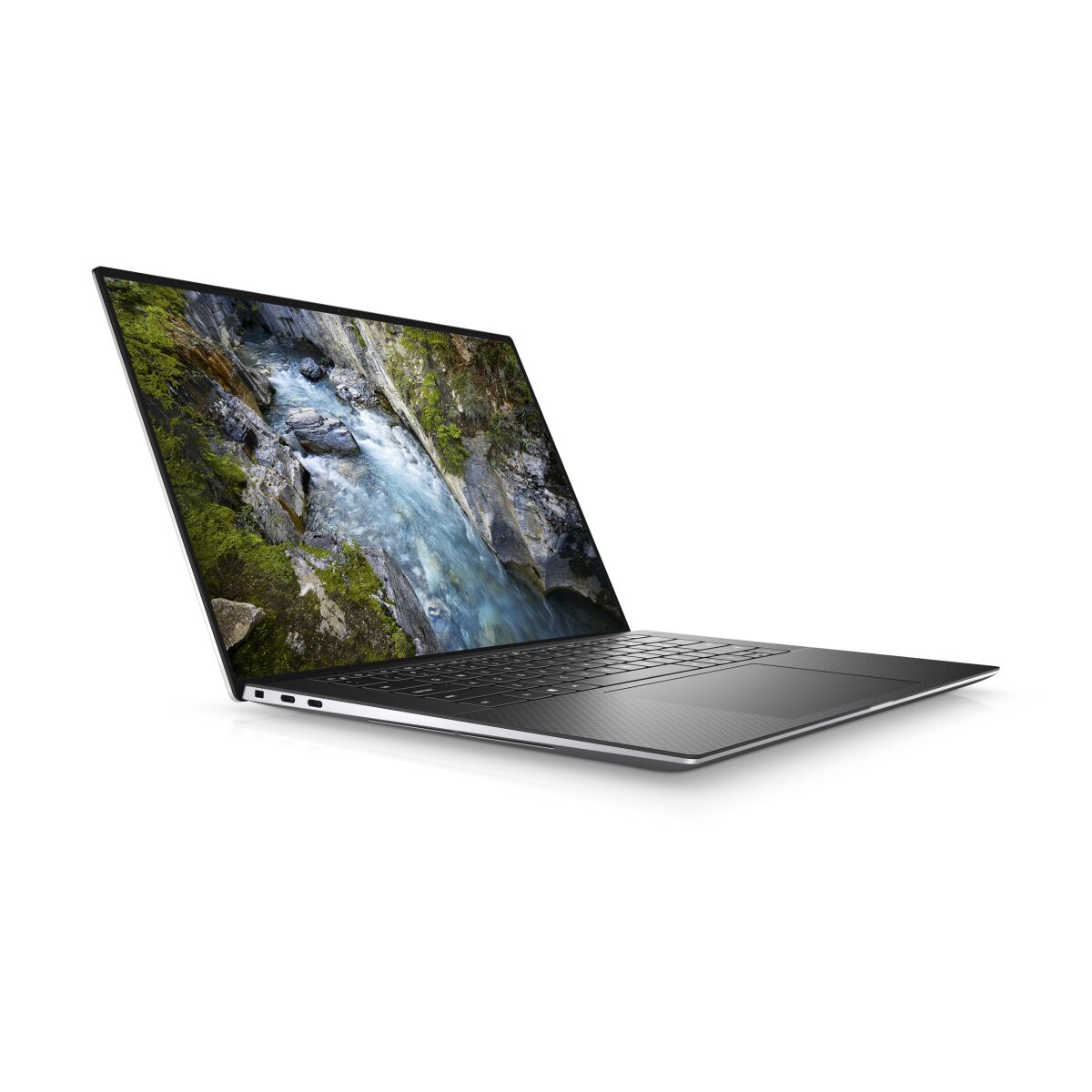

DELL Precision 5560 RAM upgrade specifications

Dell Precision 5560 memory upgrade specifications support DDR4-SDRAM modules in SO-DIMM form factor. The laptop contains 2 memory slots for expansion. Maximum supported RAM capacity reaches 64 GB total. Compatible upgrades operate at 3200 MHz frequency. Memory modules must conform to SO-DIMM specifications for proper installation in Dell Precision 5000 series model 5560.

Additional Notes

• The DELL Precision 5560 workstation enforces a 32 GB per-slot ceiling, preventing use of higher-density 48 GB or 64 GB modules despite their physical compatibility with the SO-DIMM form factor.
• Dual-channel architecture requires matched module pairs to avoid reverting to single-channel mode, which halves effective memory bandwidth and degrades performance in bandwidth-sensitive workloads like 3D rendering or video encoding.
• Mixing modules with different ranks (single-rank versus dual-rank) forces the memory controller to operate all modules at the lower rank configuration, reducing potential throughput even when frequencies match.
• Installing non-JEDEC standard modules or those requiring XMP profiles may result in automatic downclocking to 2933 MHz or lower, as mobile workstations typically lack manual memory timing controls found in desktop systems.
• Both SO-DIMM slots reside beneath the bottom panel assembly, requiring complete base cover removal and voiding certain warranty seals depending on regional service policies.
• ECC versus non-ECC module compatibility depends on the installed processor variant, as only Xeon-equipped configurations support error-correcting code memory while Core i-series models reject ECC modules entirely.
• Operating mixed capacities such as 16 GB paired with 32 GB enables flex mode, which runs only the matched 16 GB portion of each module in dual-channel while relegating the excess 16 GB to slower single-channel operation.
• Thermal constraints in the compact chassis design may throttle sustained memory-intensive operations when modules exceed 1.2V specification, particularly when combined with high CPU and GPU workloads.
• Populating both slots increases total power draw by approximately 3 to 5 watts compared to single-module configurations, marginally reducing battery runtime during unplugged operation.
• Modules rated below 3200 MHz function without issue but lock the entire memory subsystem to their lower speed, negating any benefit from mixing with faster modules.
