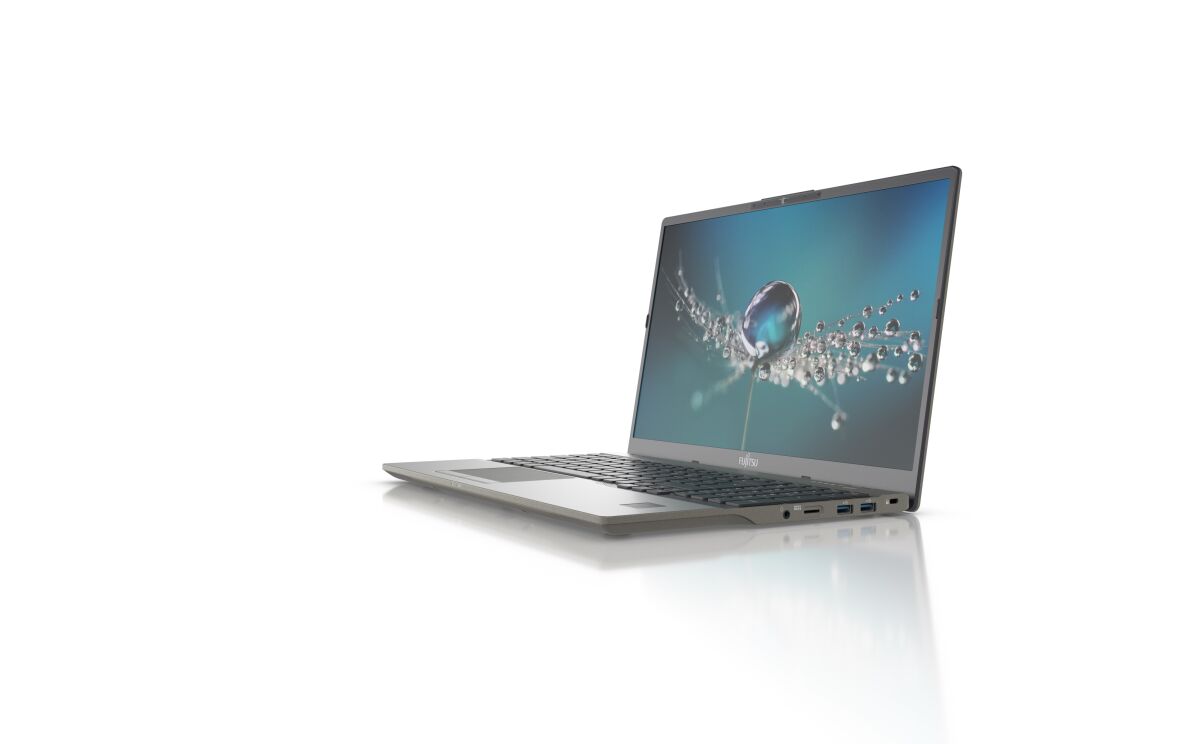

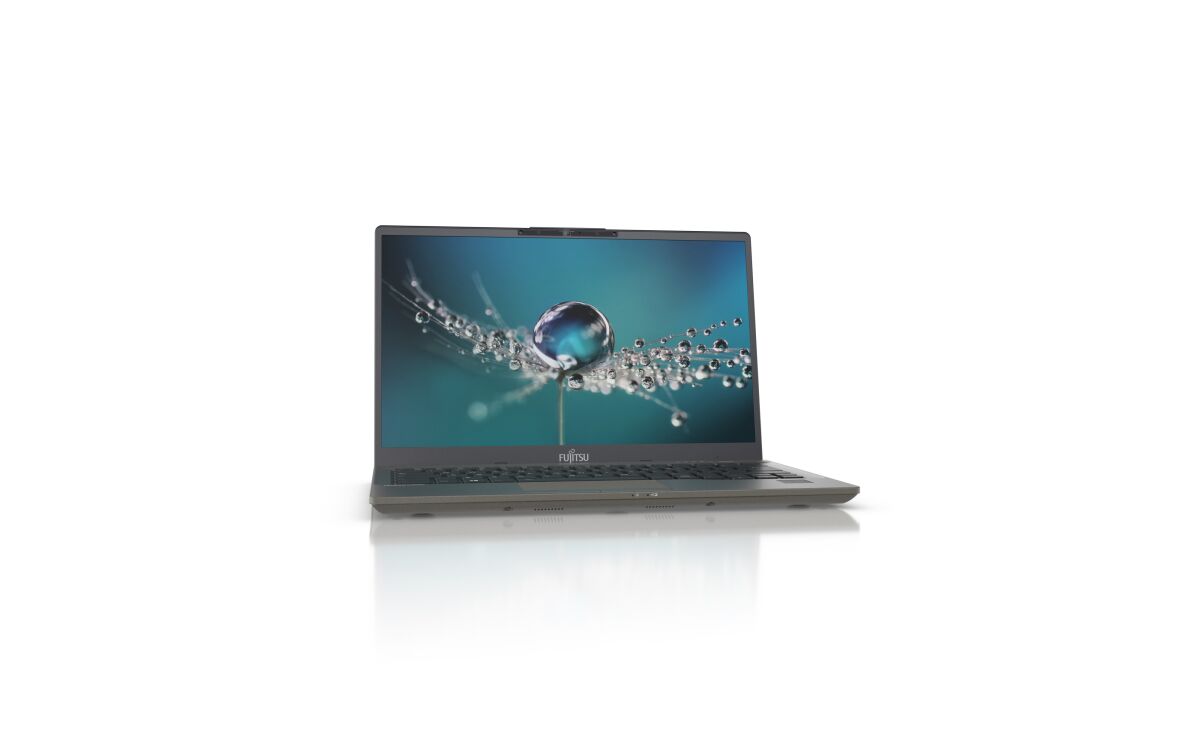

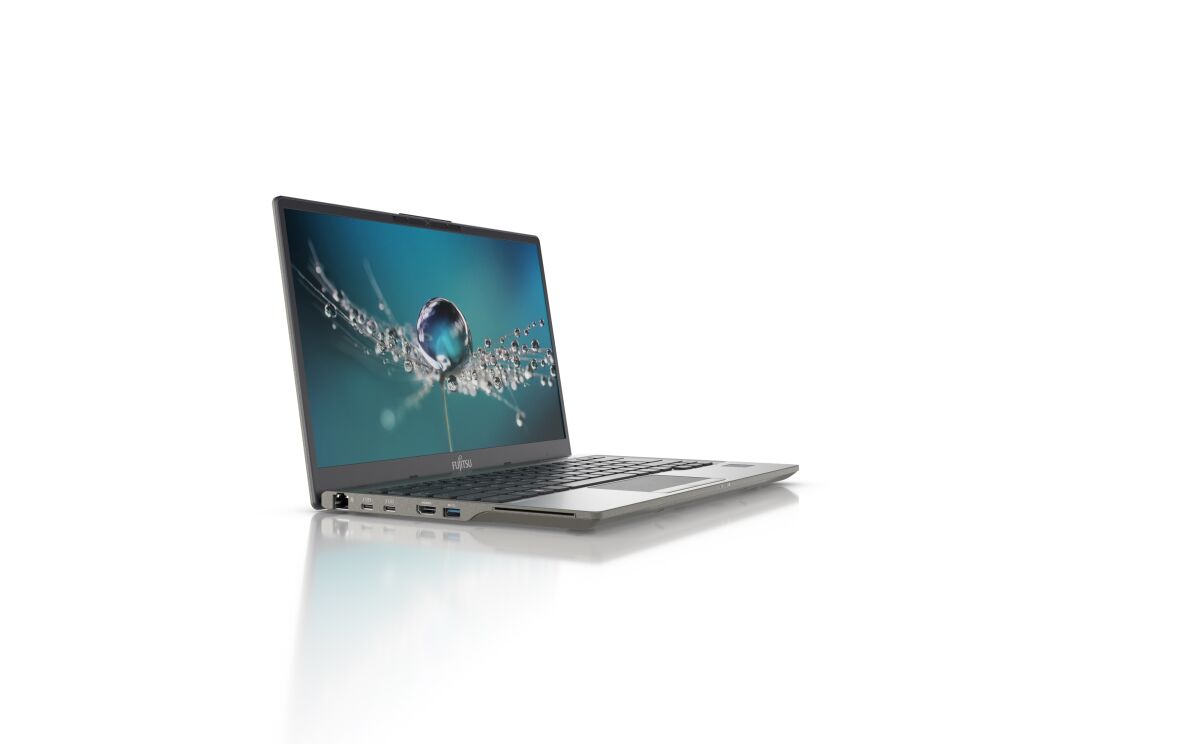

FUJITSU LIFEBOOK U7411 RAM upgrade specifications

The Fujitsu LIFEBOOK U Series model U7411 supports DDR4-SDRAM memory upgrades with a maximum capacity of 64 GB across 2x SO-DIMM slots. Compatible memory operates at 3200 MHz frequency and utilizes the SO-DIMM form factor. Specifications enable RAM upgrade configurations to reach the maximum supported capacity through compatible DDR4-SDRAM modules installed in the available slots.

Additional Notes

• Dual channel architecture enables a 128 bit memory bus when 2 matching modules are installed to maximize integrated graphics throughput.
• The presence of 2 physical SO-DIMM slots allows for the replacement of existing factory modules without soldering limitations.
• The **FUJITSU LIFEBOOK U7411** supports high density 32 GB modules in each slot to reach the maximum 64 GB capacity for virtualization or heavy multitasking.
• Latency performance relies on unbuffered non-ECC modules as buffered or registered memory types are electrically incompatible.
• Installing modules with frequencies exceeding 3200 MHz will result in a downclock to the maximum supported speed of the system chipset.
• Physical access to the memory slots involves removing the chassis base plate which requires a standard Phillips head driver and non-marring pry tools.
• Upgrading memory preserves the factory warranty provided no physical damage occurs to the internal headers during the installation process.
• Synchronizing clock speeds between both slots prevents the system from defaulting to the lower frequency of a mismatched pair.
