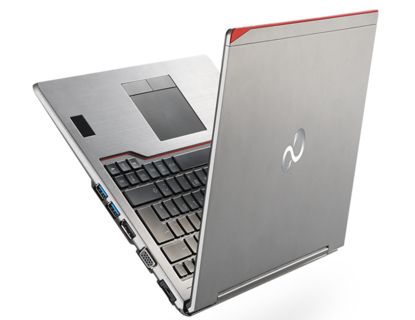

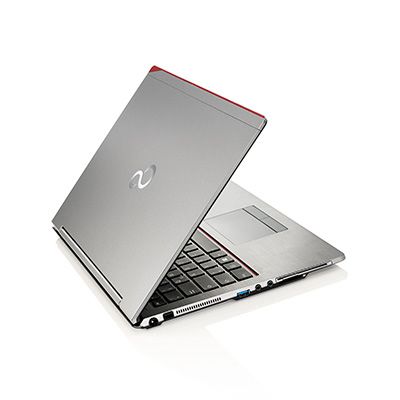

FUJITSU LIFEBOOK U745 RAM upgrade specifications

FUJITSU LIFEBOOK U Series U745 laptop RAM upgrade specifications indicate DDR3L-SDRAM memory compatibility. The upgrade capacity accommodates one SO-DIMM slot supporting maximum RAM expansion to 12 GB total. Memory operates at 1600 MHz frequency. The laptop configuration combines on-board memory with SO-DIMM expansion capability. Compatible memory upgrades require DDR3L-SDRAM type modules for proper functionality and performance specifications.

Additional Notes

• The FUJITSU LIFEBOOK U745 contains soldered memory on the motherboard, reducing the available slot count to a single user-accessible SO-DIMM position.
• DDR3L voltage requirements (1.35V) differ from standard DDR3 (1.5V), making non-low-voltage modules incompatible with this system.
• The 12 GB maximum capacity indicates 4 GB of non-removable onboard memory, allowing only an 8 GB module in the remaining slot.
• Installing a module faster than 1600 MHz will trigger automatic downclocking to match the system's supported frequency specification.
• The hybrid memory configuration prevents balanced dual-channel operation, as asymmetric capacity distribution between soldered and socketed memory creates single-channel mode for the excess capacity.
• Physical access to the SO-DIMM slot typically requires bottom panel removal, which may expose warranty seals depending on regional service policies.
• Module height restrictions common to ultraportable chassis may exclude certain high-density or heat-spreader equipped SO-DIMMs from physical compatibility.
• The onboard memory component cannot be serviced or upgraded independently, making the soldered portion a permanent capacity baseline for the system's lifespan.
• Mixed-vendor configurations between soldered and aftermarket modules can introduce timing incompatibilities despite meeting official specifications.
• PC3L-12800 designation corresponds to the 1600 MHz frequency requirement, serving as the standard compatibility identifier for replacement modules.
