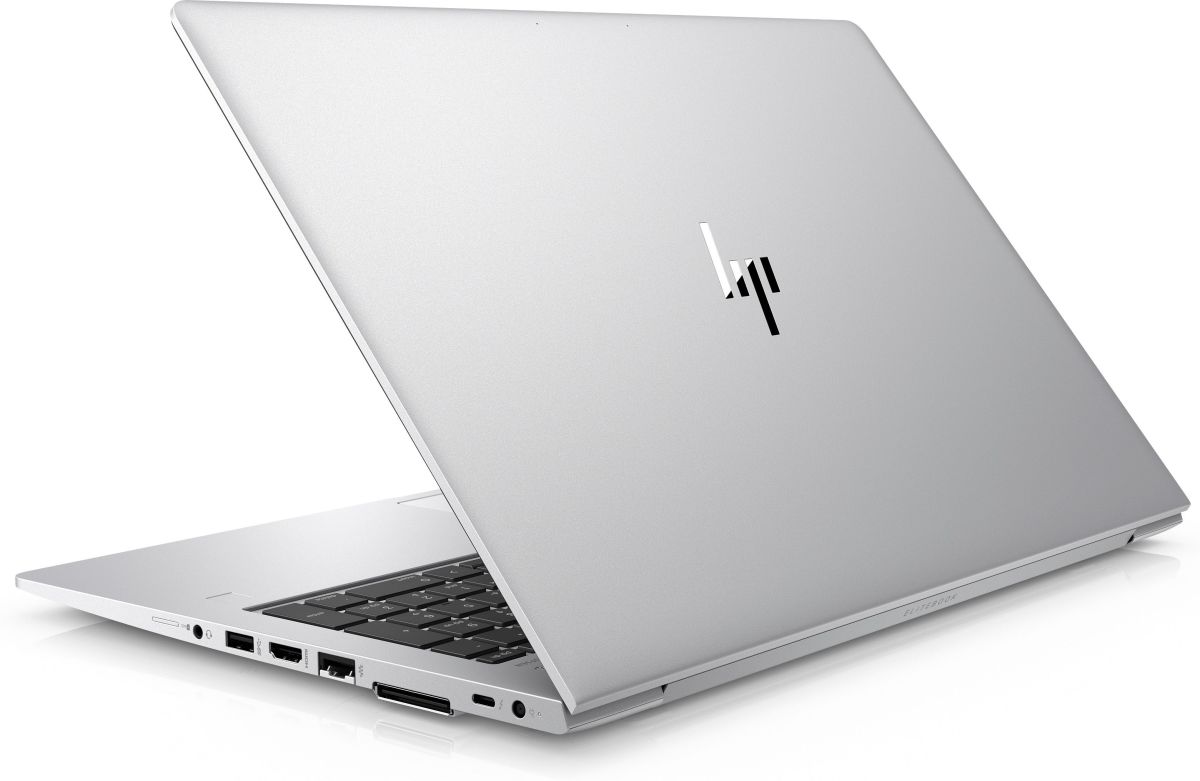

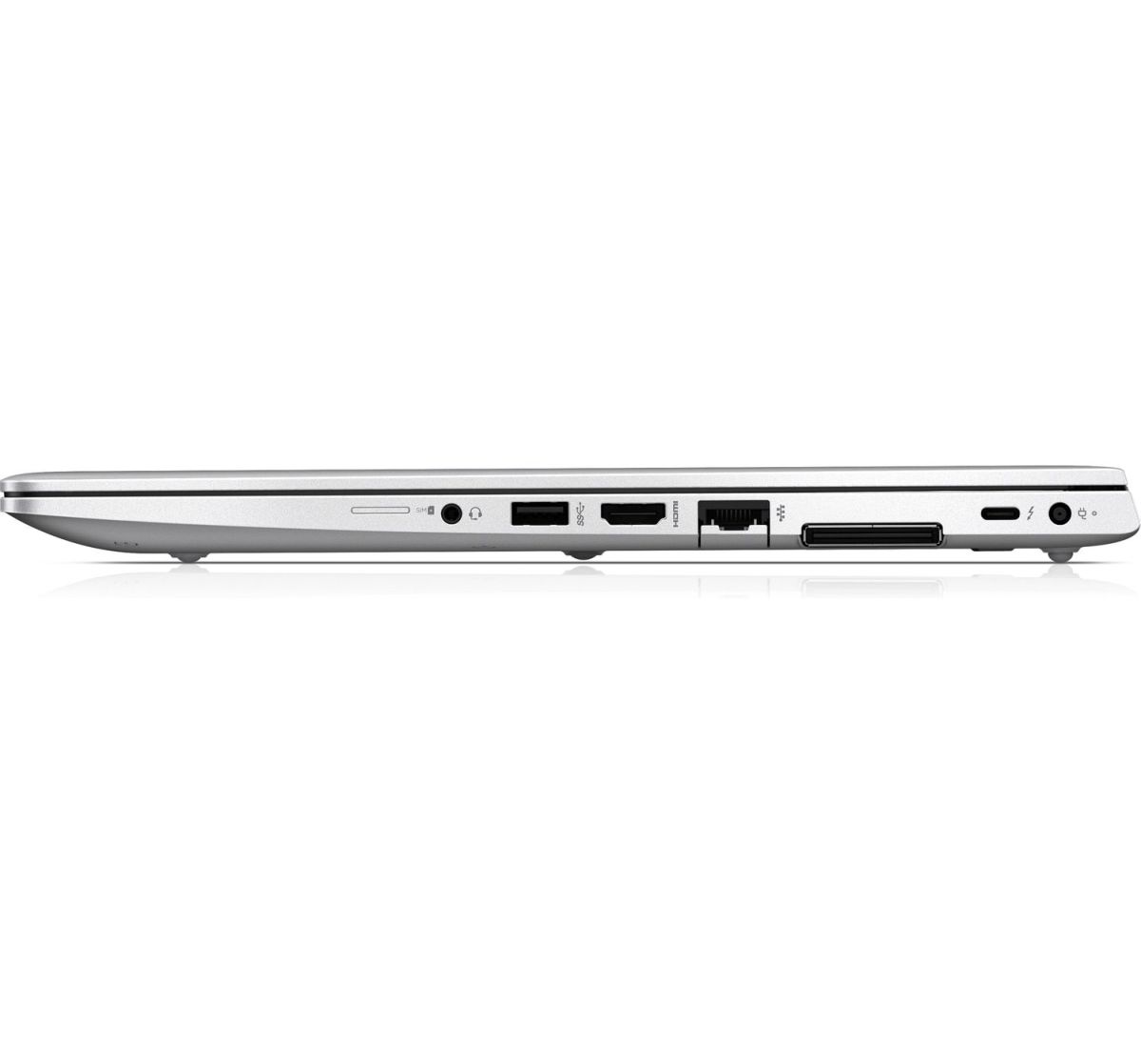

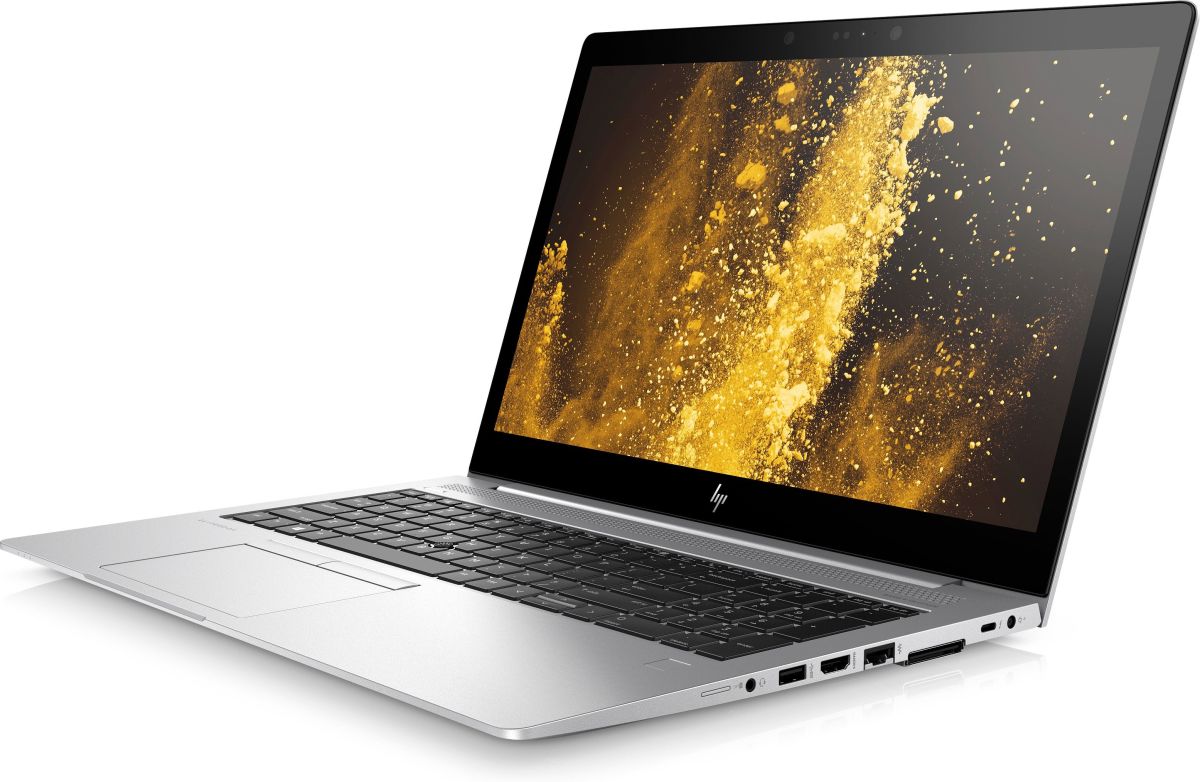

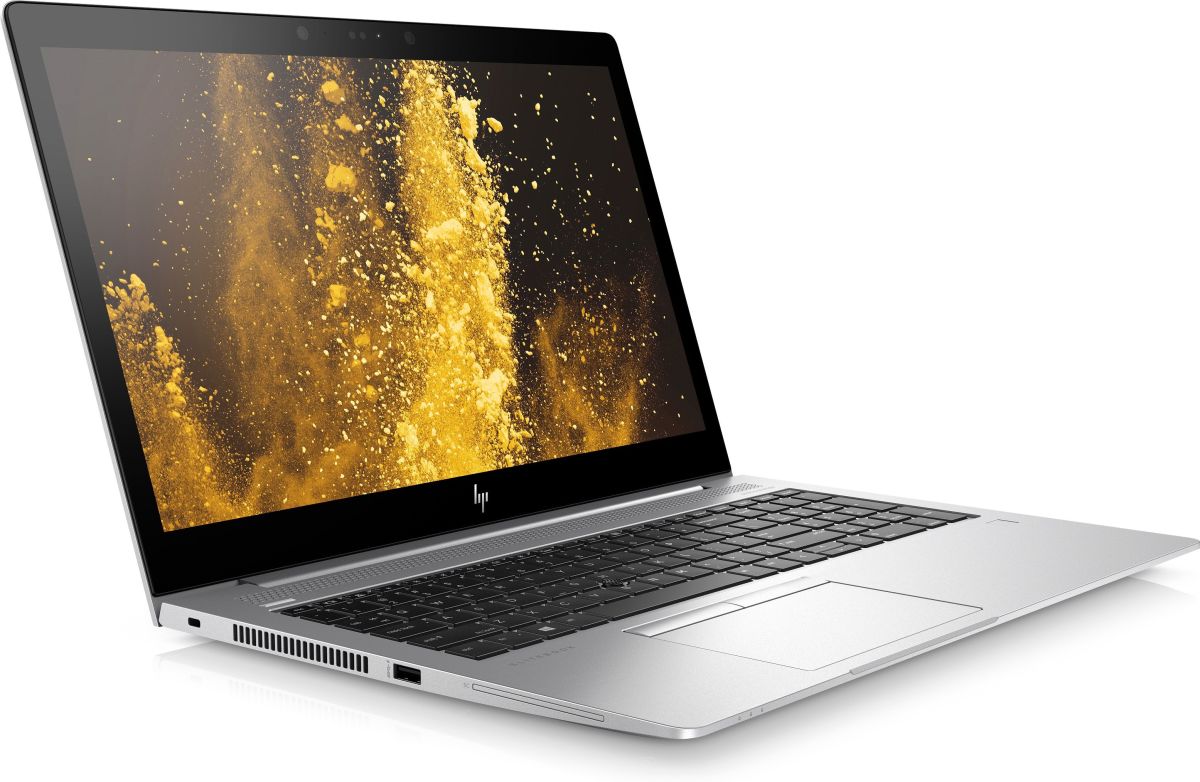

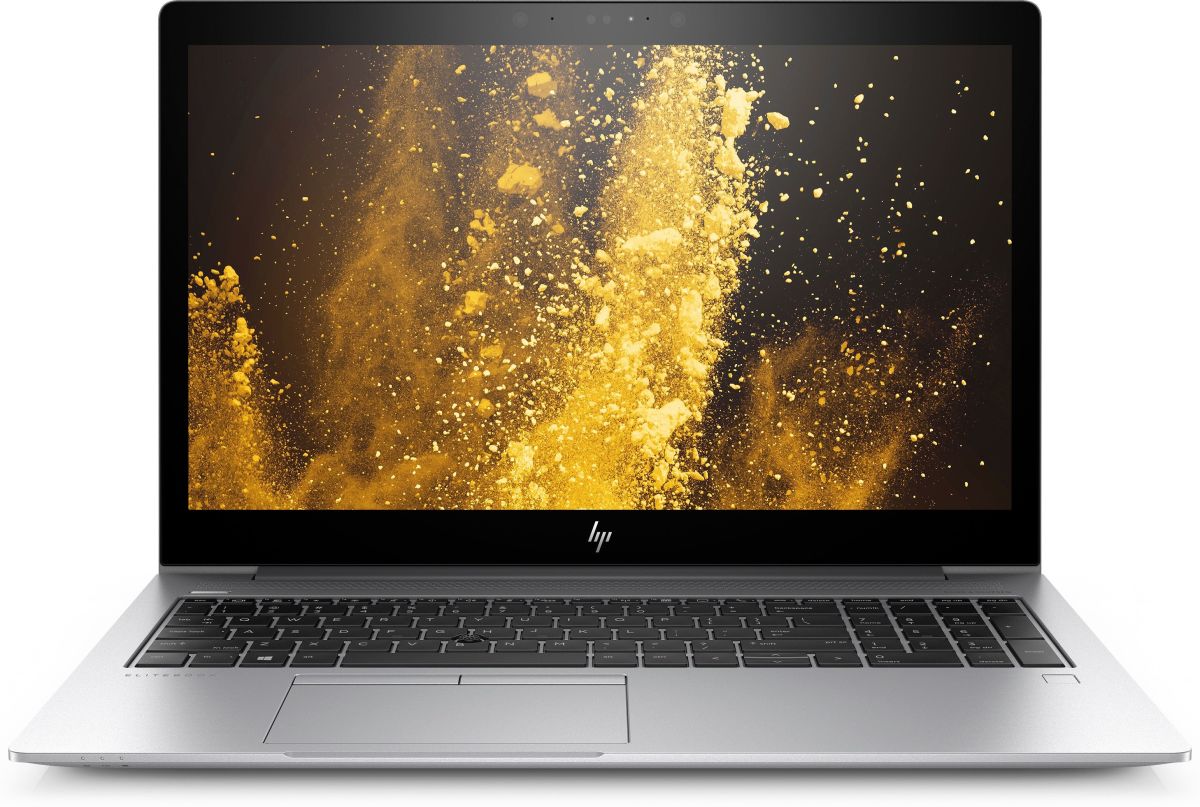

HP Elitebook 850G5 RAM upgrade specifications

The HP Elitebook 850G5 laptop features two SO-DIMM memory slots supporting DDR4-SDRAM technology. The upgrade specifications indicate a maximum RAM capacity of 32 GB total, with compatible modules operating at 2400 MHz frequency. This configuration allows users to expand the memory capacity through compatible DDR4 SO-DIMM modules installed in the available slots.

Additional Notes

• The 32 GB maximum capacity constraint requires 2 modules of 16 GB each, as the system provides exactly 2 slots with no alternative configuration.
• DDR4-2666 or DDR4-3200 modules will downclock to 2400 MHz when installed, as the memory controller enforces the lower frequency limit.
• Single-channel operation results when only 1 module is installed, reducing memory bandwidth by approximately 50% compared to dual-channel configuration.
• Non-ECC unbuffered modules are required for SO-DIMM slots in consumer-grade EliteBook models, as registered or ECC memory typically causes boot failures.
• Mixing modules with different densities (8 GB + 16 GB) forces the system into flex mode, which operates only the matched capacity portion in dual-channel.
• The 260-pin SO-DIMM standard applies to DDR4 laptop memory, distinguishing it from incompatible 204-pin DDR3 modules.
• Voltage specification defaults to 1.2V for DDR4, while low-voltage 1.05V variants may not initialize properly on this platform.
• CAS latency variations (CL15, CL16, CL17) at 2400 MHz produce minimal real-world performance differences due to the bandwidth ceiling.
• Module height exceeding 30mm may interfere with keyboard assembly or thermal components in the EliteBook's slim chassis design.
• Warranty preservation requires following HP's Quick Specs documentation, as third-party RAM technically qualifies as a customer-installable component.
• The 8th generation Intel Core platform in the 850G5 limits memory speed regardless of module capability, tying performance to chipset specifications.
• Asymmetric configurations using modules from different manufacturers risk stability issues due to timing parameter mismatches during SPD negotiation.
