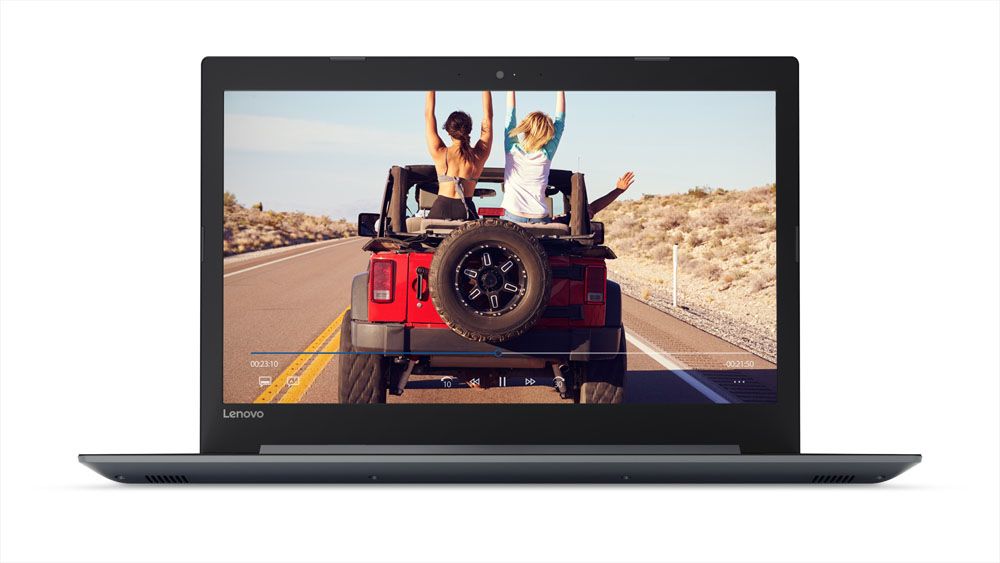

LENOVO IdeaPad V320 RAM upgrade specifications
Lenovo IdeaPad V Series V320 laptop supports DDR4-SDRAM memory upgrade with one SO-DIMM slot available for expansion. Maximum compatible RAM capacity reaches 16 GB. Memory specifications include 2133 MHz frequency with hybrid on-board and SO-DIMM form factor configuration. Upgrade slots accommodate single memory module installation for enhanced multitasking performance and system responsiveness.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 1x SO-DIMM |
| Form factor | On-board + SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2133 MHz |
| Maximum RAM | 16 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2133 (PC4-17064) |
| Bandwidth | 17.1 GB/s |
| Laptop Release date | 12 September 2017 |
Additional Notes
- The V320 architecture splits memory between soldered on-board capacity and a single upgradeable SO-DIMM slot, meaning base RAM cannot be replaced or removed without board-level service.
- Single SO-DIMM configuration creates an asymmetrical dual-channel limitation if on-board capacity differs from the upgrade module, potentially reducing memory bandwidth efficiency below the theoretical DDR4 maximum.
- The 2133 MHz frequency indicates DDR4-2133 or JEDEC standard-class memory; newer DDR4-2400, DDR4-2666, or DDR4-3200 modules will downclock to 2133 MHz, negating speed advantages from higher-spec components.
- 16 GB maximum addressable capacity constrains workloads involving virtual machines, large dataset processing, or concurrent application suites; upgrading beyond on-board allocation requires filling the single SO-DIMM slot with a 16 GB module.
- SO-DIMM form factor is laptop-specific and non-interchangeable with desktop UDIMM modules; sourcing compatible memory requires explicit SO-DIMM DDR4-2133 specification to avoid incompatible purchases.
- Warranty retention during RAM upgrades depends on Lenovo's service policy for user-replaceable components; SO-DIMM slots are typically designated as field-upgradeable, but verification against the specific service document is required before installation.
- Thermal constraints in ultrabook form factors may impact performance if on-board memory already operates near junction temperature; adding an additional module increases cumulative heat dissipation in a confined space.
