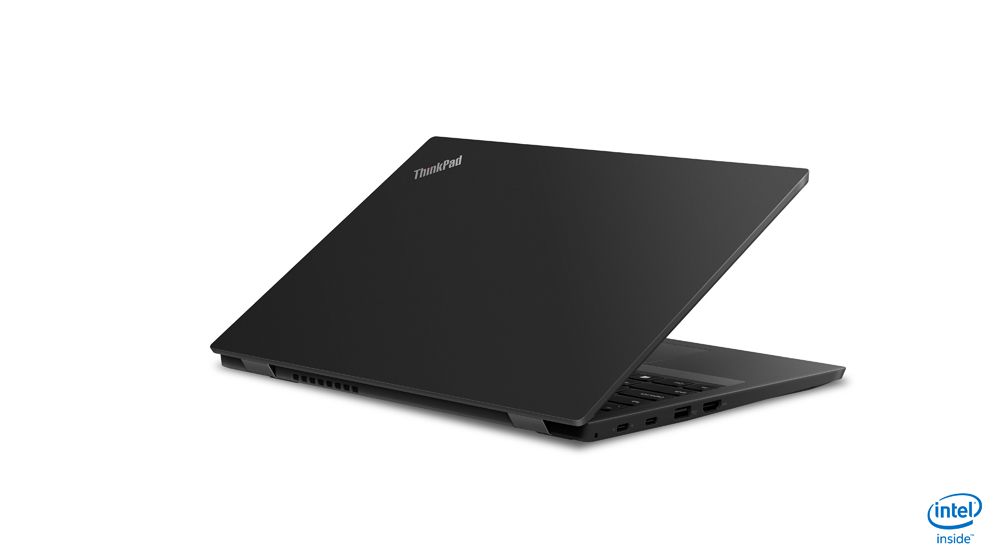

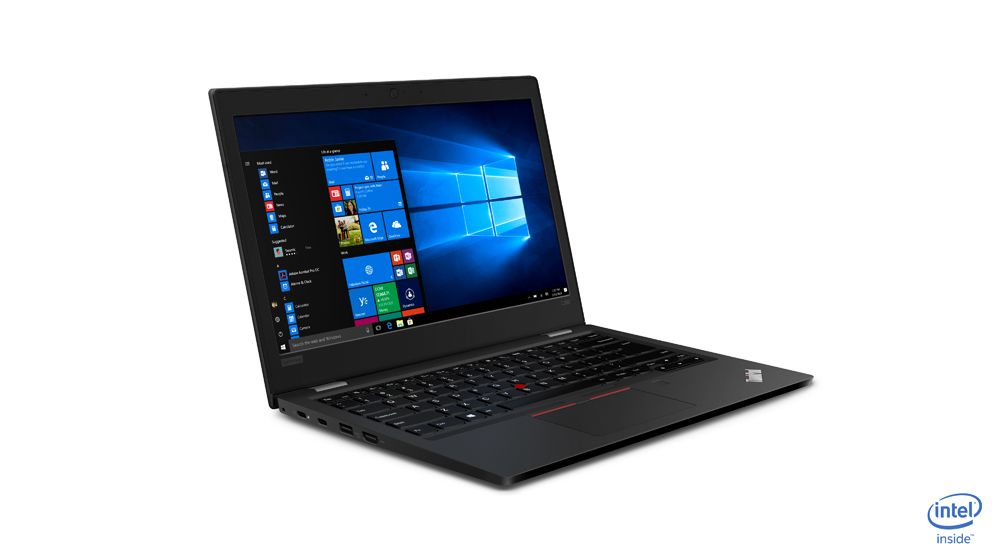

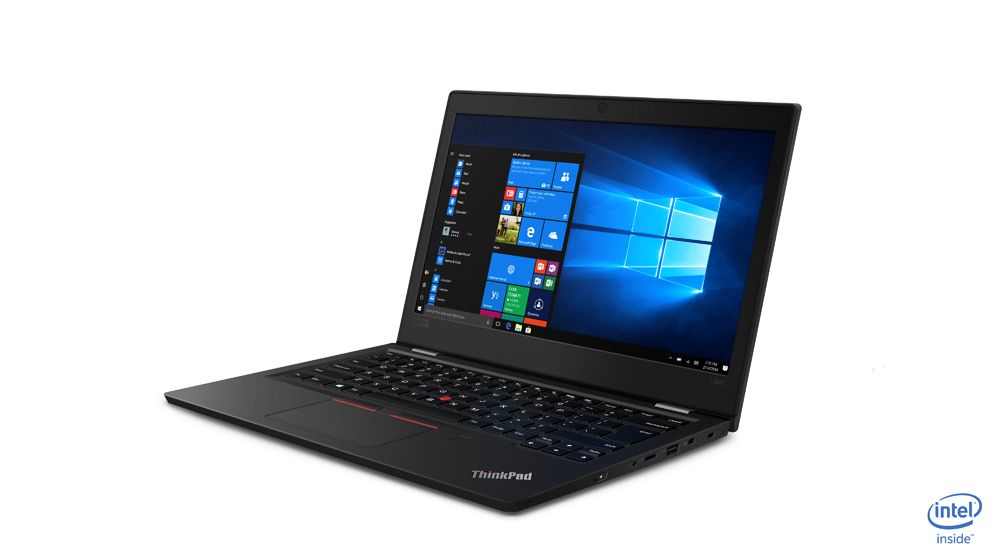

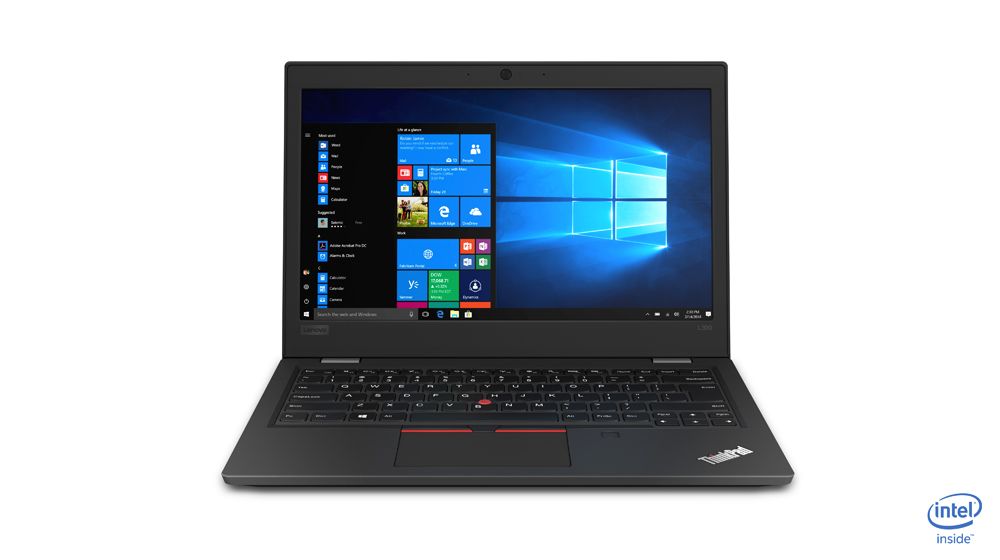

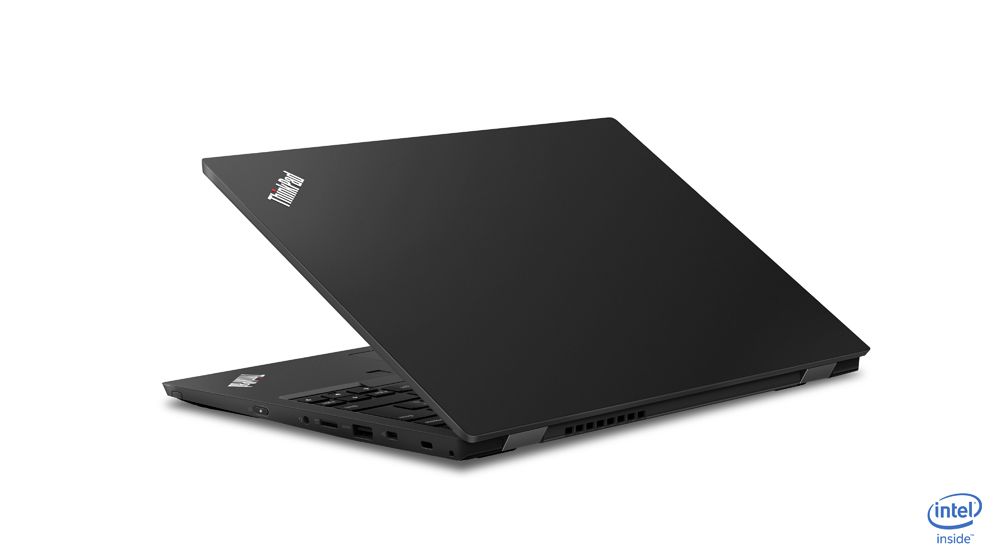

LENOVO ThinkPad L390 RAM upgrade specifications
Lenovo ThinkPad L390 memory upgrade specifications support DDR4-SDRAM modules in SO-DIMM form factor. The laptop features 2 memory slots and supports maximum RAM capacity of 32 GB. Compatible memory operates at 2400 MHz frequency. Upgrade options allow installation of additional or replacement SO-DIMM modules to reach the specified maximum capacity within the available memory slots.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2400 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2400 (PC4-19200) |
| Bandwidth | 19.2 GB/s |
| Laptop Release date | 17 December 2018 |
Additional Notes
- Dual channel architecture is achievable by installing two identical memory modules to increase memory bandwidth compared to single stick configurations.
- The presence of 2 physical slots ensures that factory memory is replaceable and allows for a symmetrical 16 plus 16 arrangement for maximum capacity.
- Installing modules with frequencies higher than 2400 MHz results in automatic downclocking to match the system bus speed limit.
- The SO-DIMM form factor requires 260-pin DDR4 modules and lacks compatibility with desktop DIMM or older DDR3 hardware.
- Maximum memory capacity supports professional virtualization or heavy multitasking workloads beyond standard office use requirements.
- Accessing the memory slots requires removal of the bottom chassis cover which may involve captive screws and plastic clips.
- System stability depends on using non-ECC unbuffered memory as registered or ECC modules will prevent successful POST cycles.
- Lower latency timings on aftermarket kits provide minor performance gains but must operate at 1.2 volts to meet standard motherboard power delivery.
