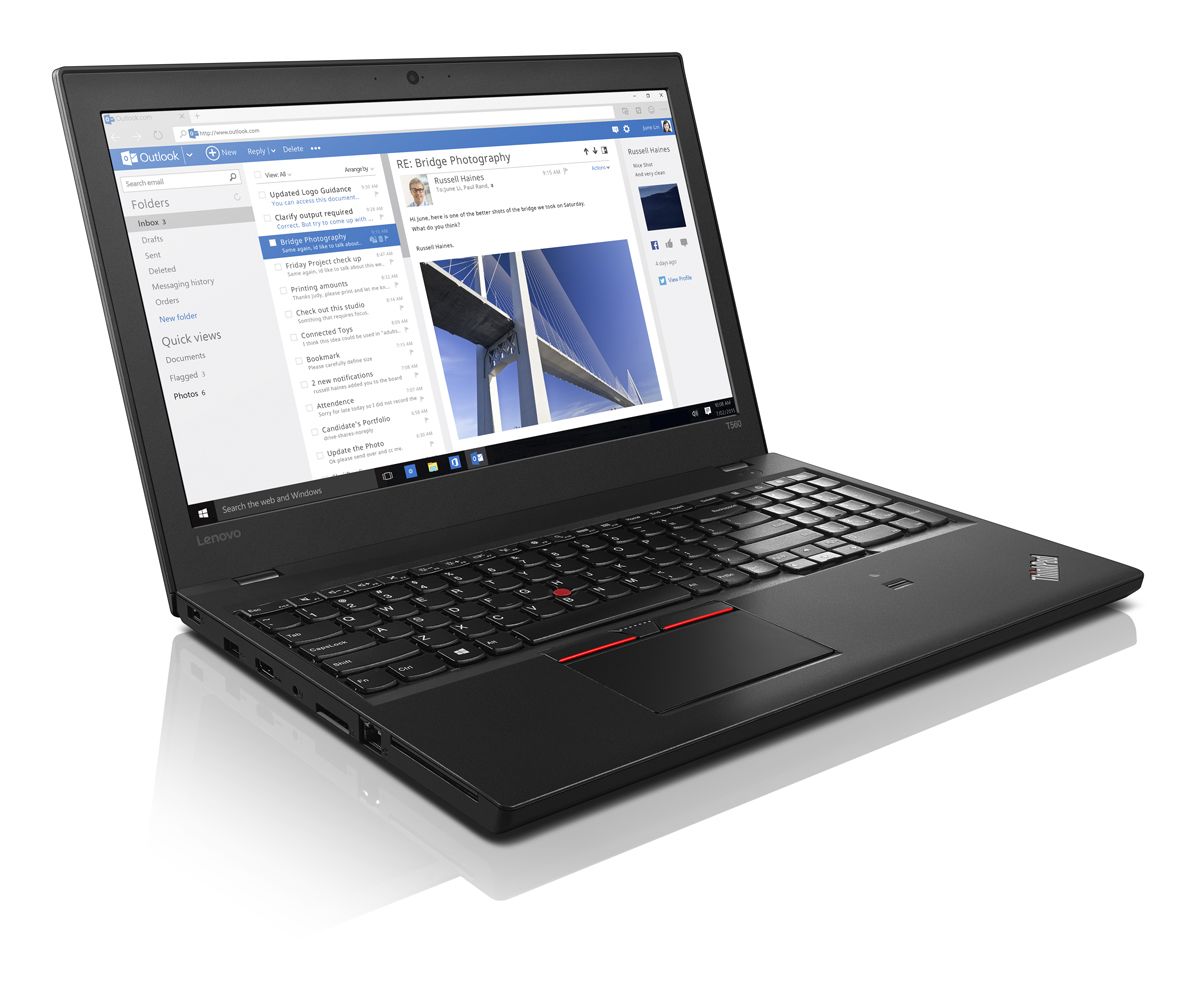

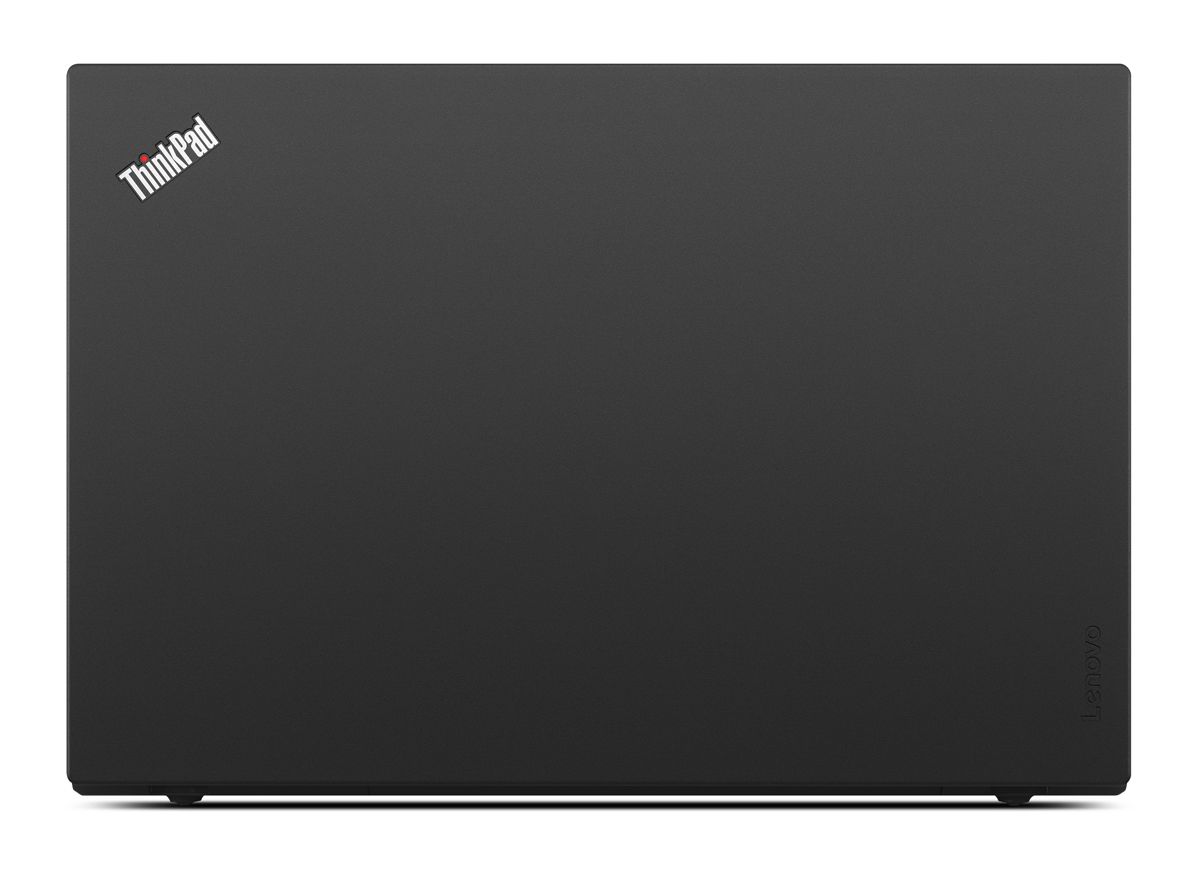

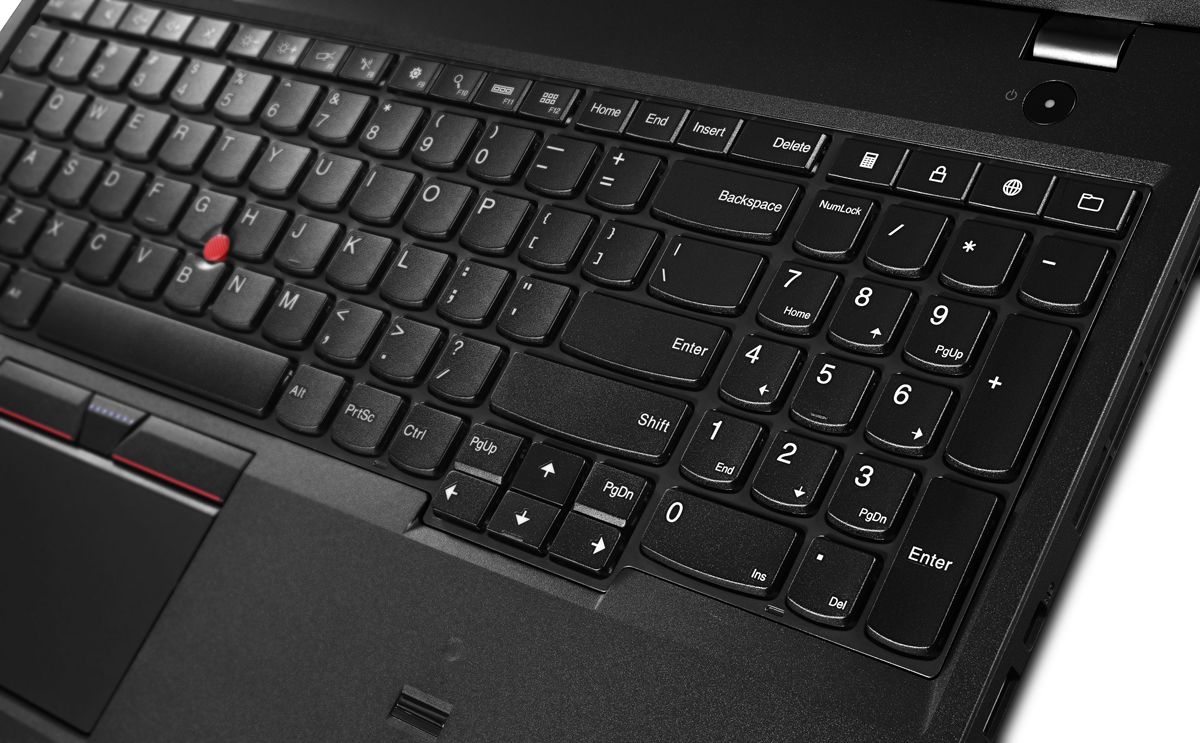

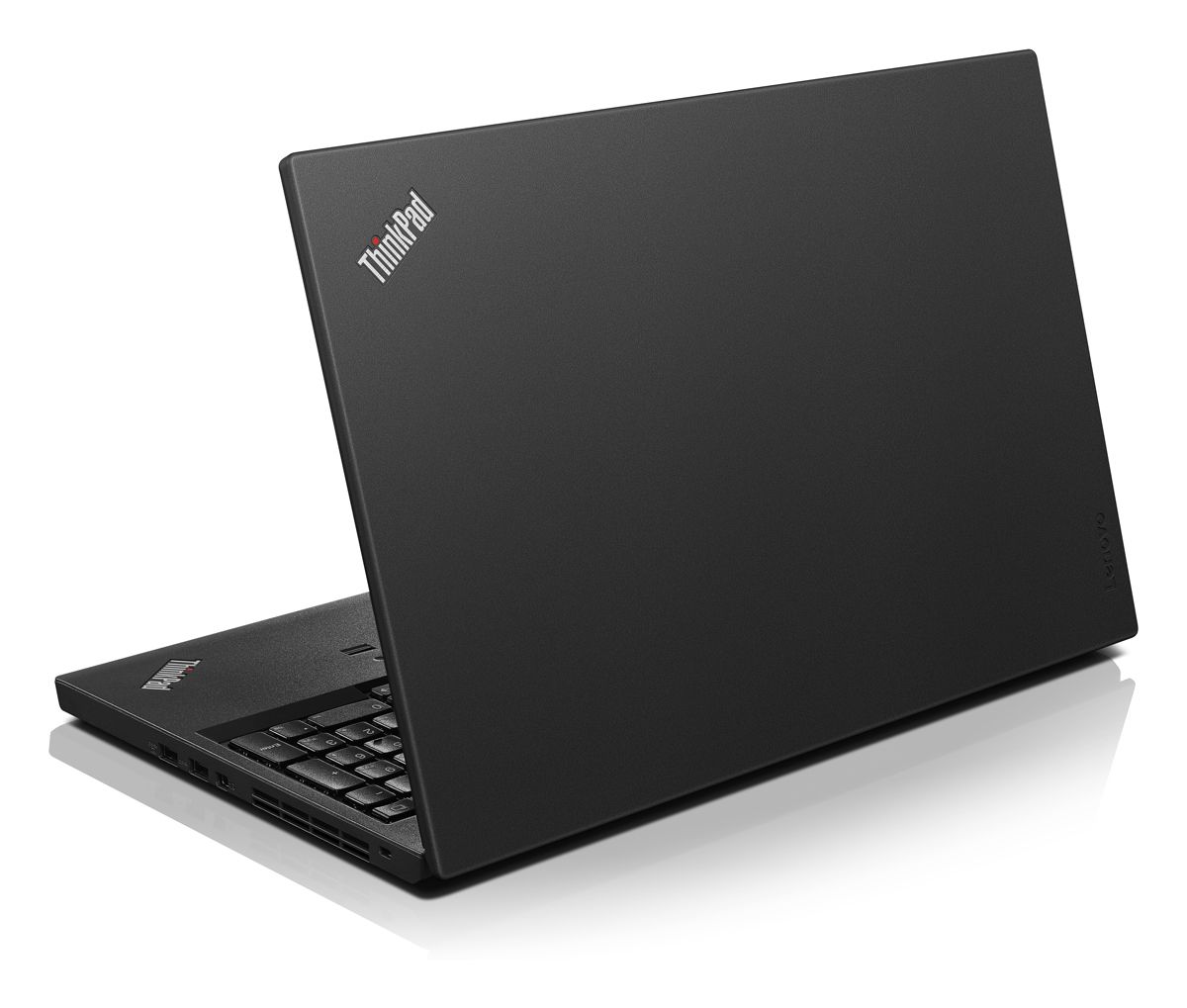

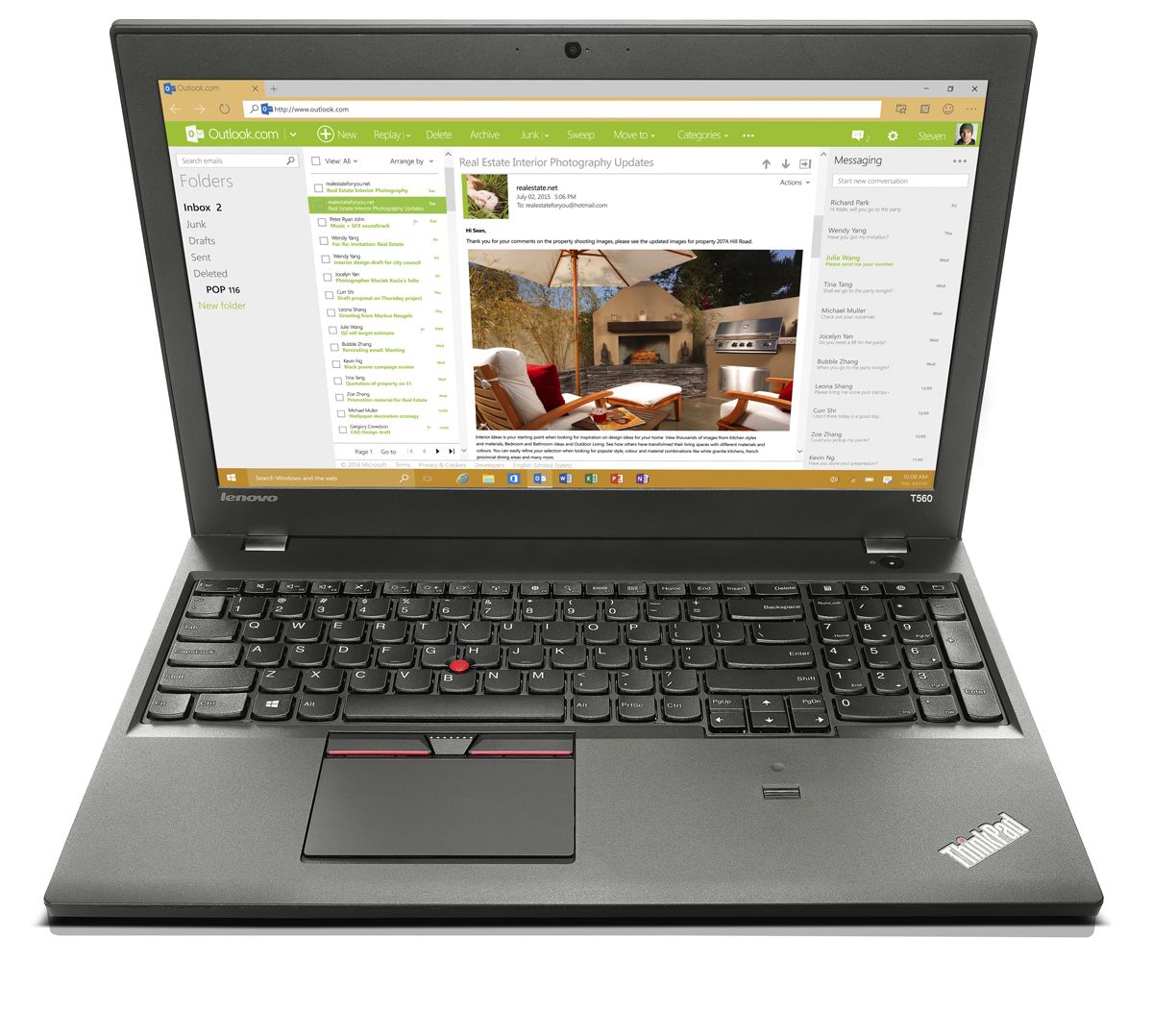

LENOVO ThinkPad T560 RAM upgrade specifications

The Lenovo ThinkPad T560 laptop contains two SO-DIMM memory slots supporting DDR3L-SDRAM upgrades. The T560 model accommodates a maximum RAM capacity of 32 GB total, with memory modules operating at 1600 MHz frequency. Upgrade specifications indicate compatible memory utilizes the SO-DIMM form factor. The T560 series allows memory expansion through its dual slots, enabling users to upgrade from factory configurations up to the maximum 32 GB capacity supported by this ThinkPad T family model.

Additional Notes

• Dual channel memory architecture is only achievable when both slots contain identical capacity and speed modules to maximize data throughput.
• The system requires low voltage 1.35V modules to function because standard 1.5V DDR3 memory is physically compatible but will prevent the machine from booting.
• Upgrading to the maximum 32 GB configuration necessitates the use of high density 16 GB modules which are less common than standard 8 GB variants for this generation of hardware.
• Memory latency remains constrained by the 1600 MHz clock ceiling regardless of whether higher rated modules are installed as the motherboard firmware dictates the operating speed.
• Access to the SO-DIMM slots requires the removal of the bottom chassis cover which may involve loosening captive screws and disengaging plastic clips.
• Total system bandwidth is shared between the processor and the integrated graphics chip meaning larger memory capacities directly improve graphical performance in memory intensive applications.
• Operating system limitations such as 32 bit versions will prevent the utilization of memory capacities exceeding 4 GB regardless of the hardware installed.
• Internal battery isolation via the BIOS is a necessary safety protocol before hardware installation to prevent short circuits on the motherboard logic gates.
