MSI Creator A13VET-009FR RAM upgrade specifications

MSI A13VET-009FR MSI A13VET-009FR MSI A13VET-009FR MSI A13VET-009FR MSI A13VET-009FR

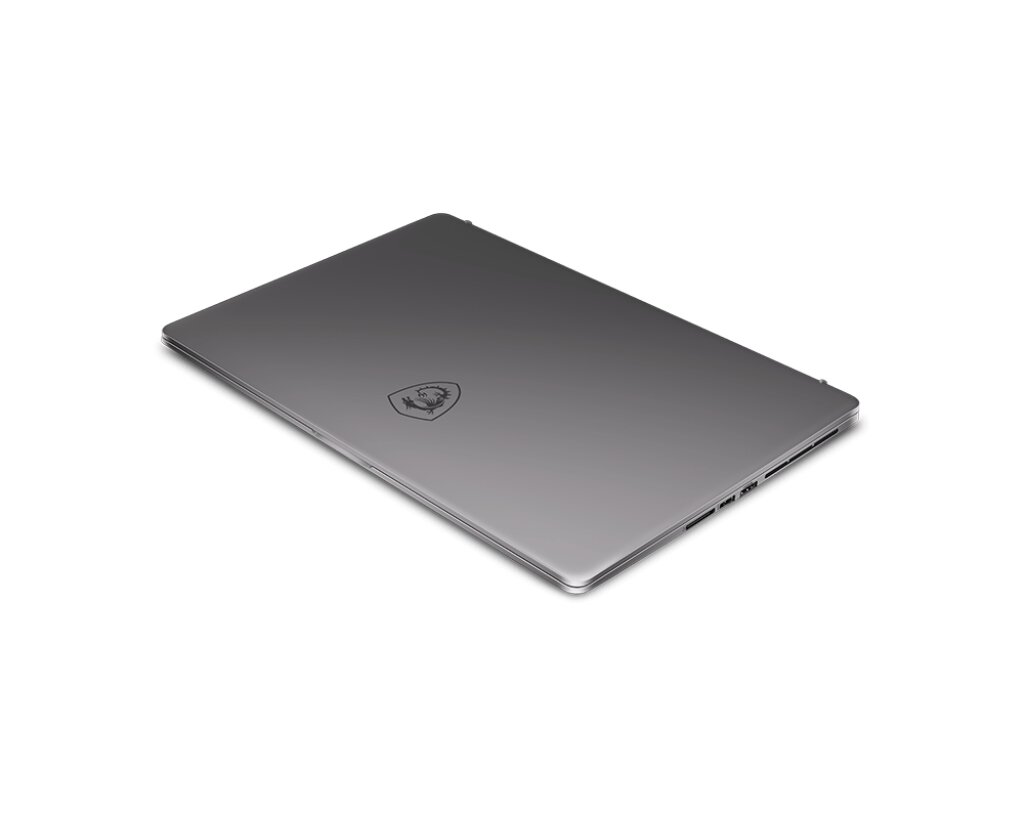

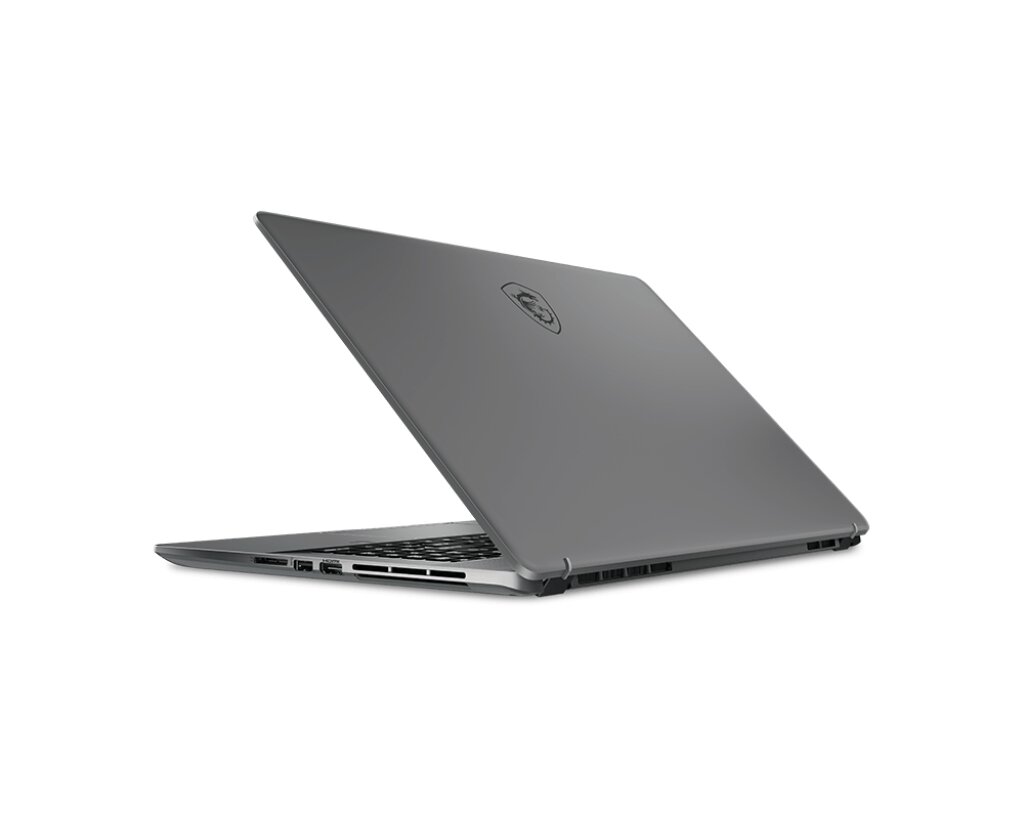

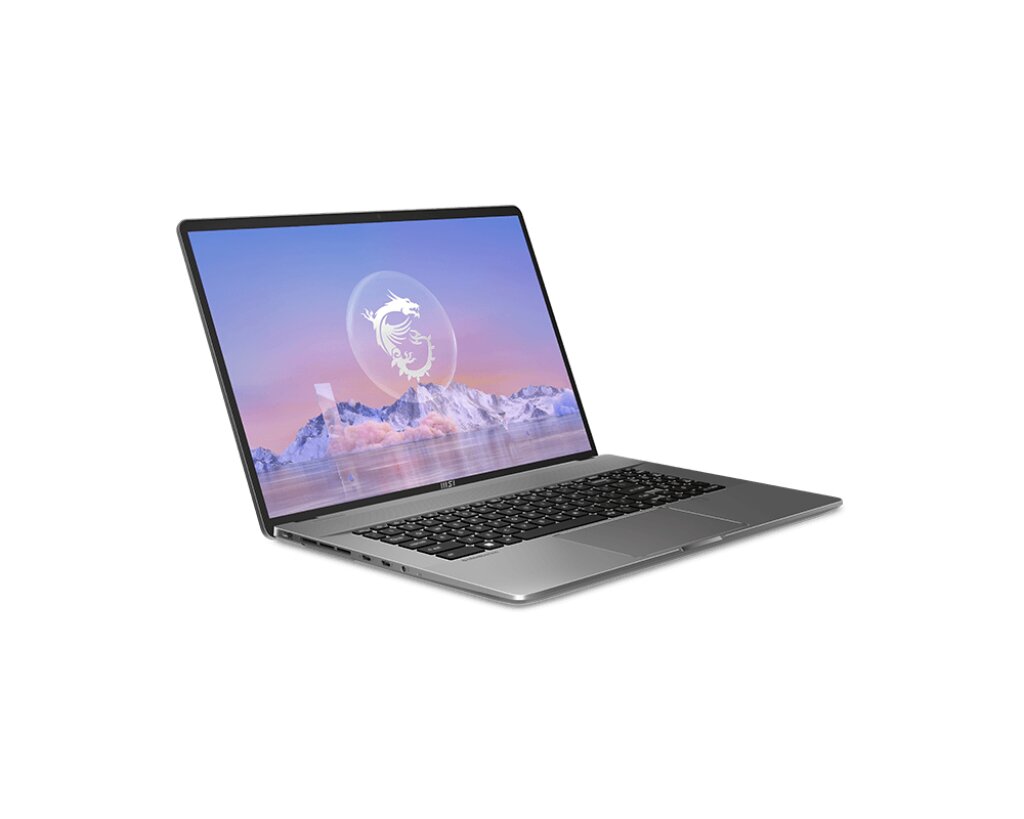

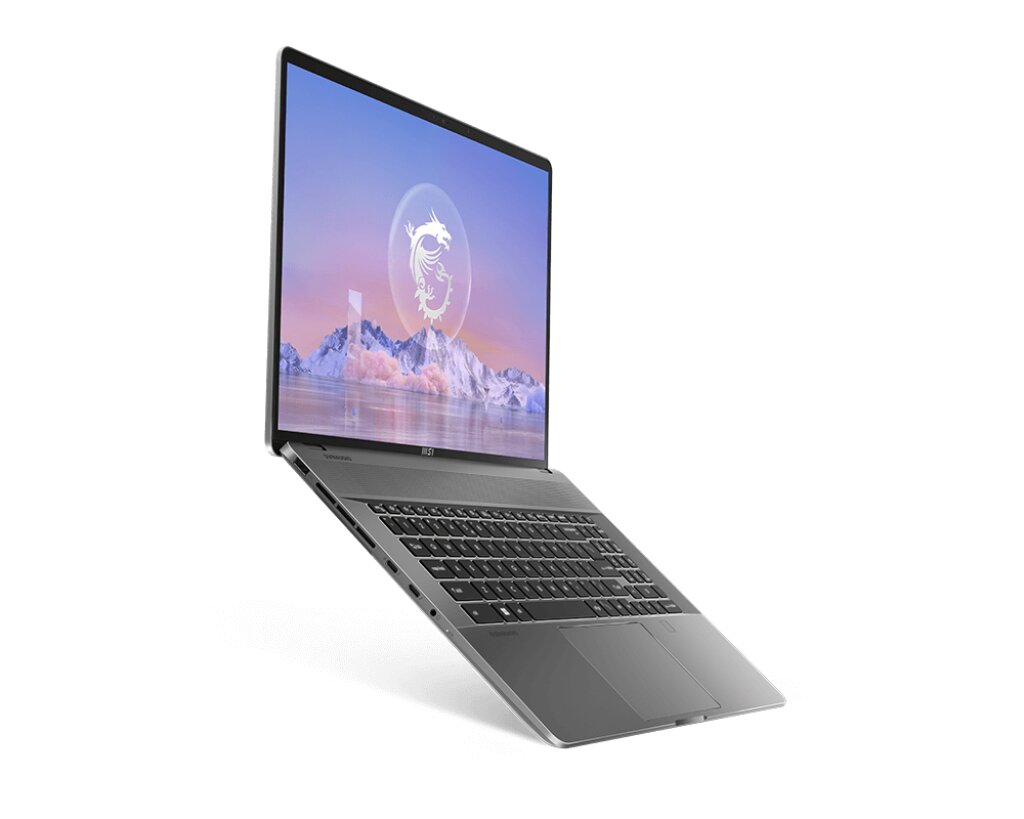

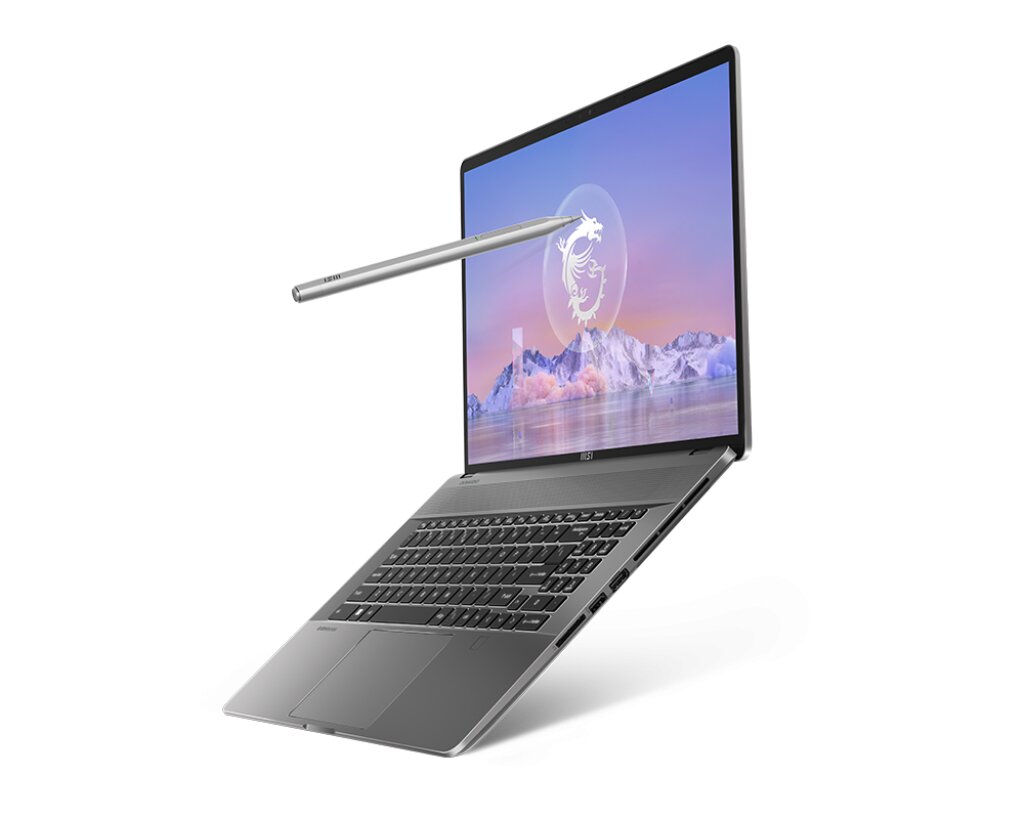

MSI Creator Z17 HX Studio A13VET-009FR laptop features two SO-DIMM memory slots supporting DDR5-SDRAM upgrade capacity. Maximum RAM specifications indicate 64 GB total capacity at 5600 MHz frequency. Compatible upgrades utilize SO-DIMM form factor DDR5 memory modules. Existing memory configuration accommodates RAM expansion through available slots, with specifications supporting high-speed DDR5 memory for enhanced multitasking performance on Creator series mobile workstation.

Memory Upgrade Specifications

SpecificationValue
Memory slots2x SO-DIMM
Form factorSO-DIMM
Memory typeDDR5-SDRAM
Frequency5600 MHz
Maximum RAM64 GB
Voltage1.1V
Number of pins262-pin
InterfacePC5
PC Speed RatingPC5-5600 (PC5-44800)
Bandwidth44.8 GB/s
Laptop Release date10 February 2023

Additional Notes

  • Dual-channel architecture requires 2 identical modules to achieve peak memory bandwidth and mitigate potential CPU bottlenecks during rendering tasks.
  • The MSI Creator A13VET-009FR motherboard architecture utilizes 2 physical slots, meaning 64 GB configurations require the removal of any pre-installed modules to reach maximum capacity.
  • Installation of memory with speeds exceeding 5600 MHz will result in downclocking to match the system bus limitations regardless of the component rating.
  • Upgrading requires standard SO-DIMM modules as the chassis does not support soldered LPDDR5 variants common in smaller form factors.
  • The selection of non-ECC DDR5 unbuffered memory is mandatory to maintain system stability within the power delivery constraints of the mobile chipset.
  • Latency performance depends on matching the CAS latency of both modules to prevent the system from defaulting to the slowest shared timing profile.
