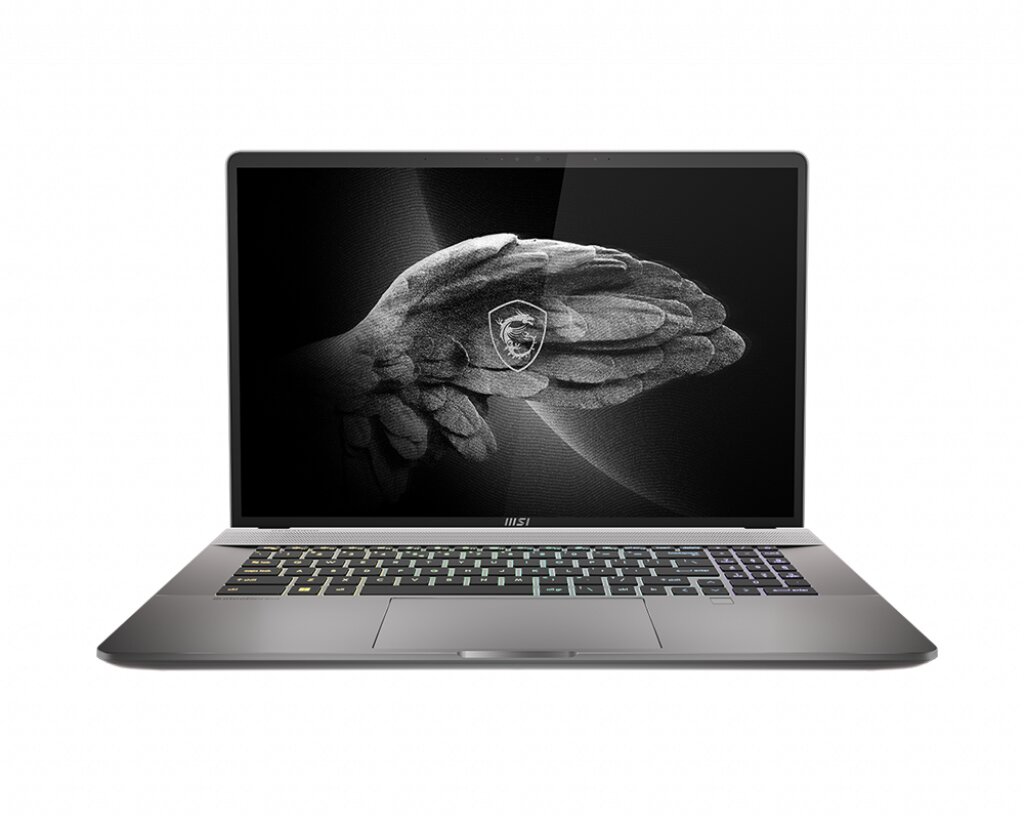

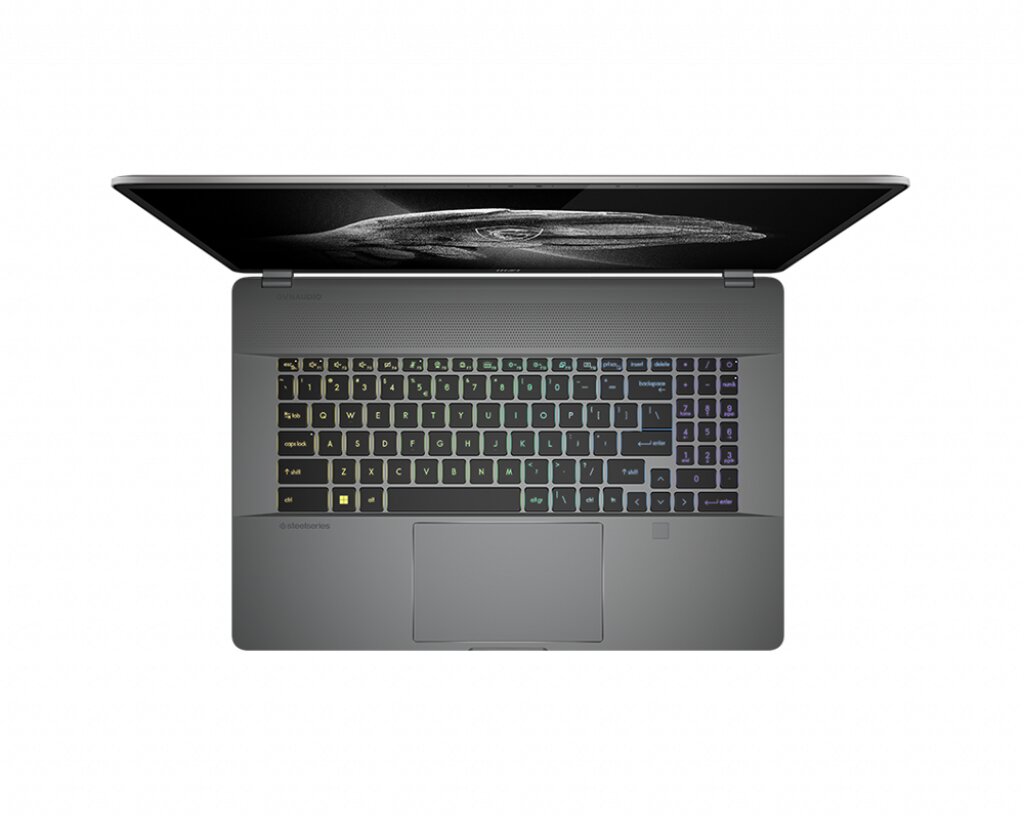

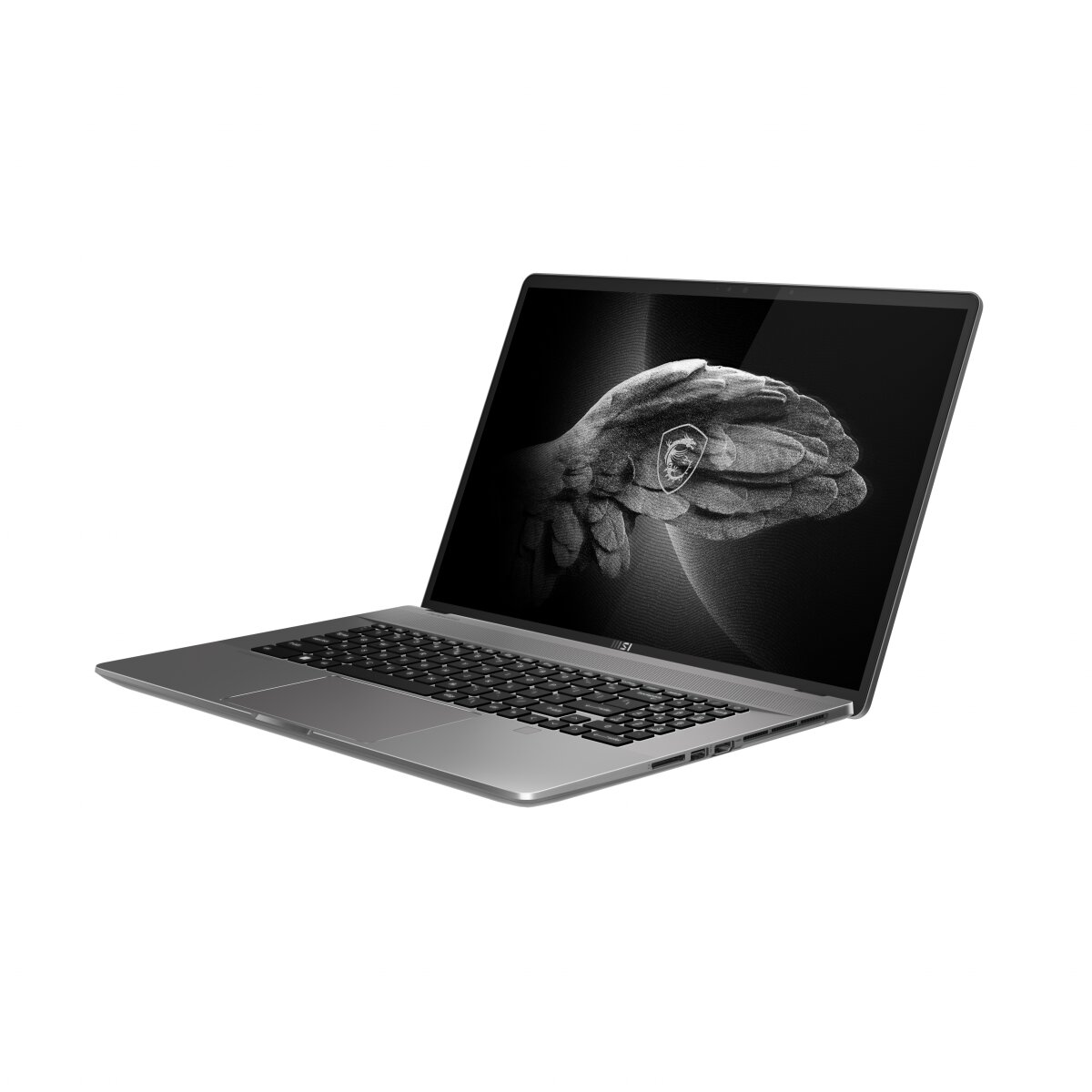

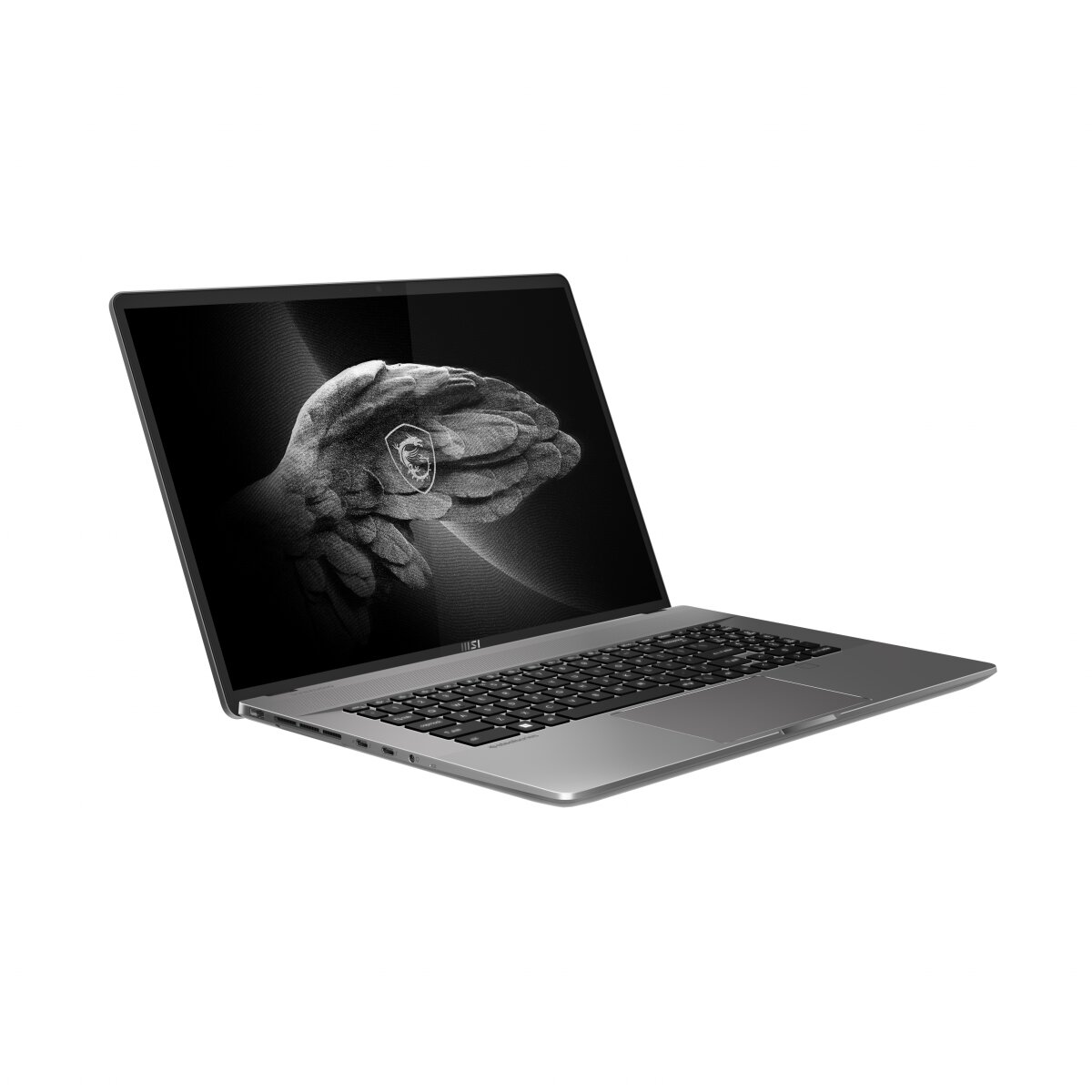

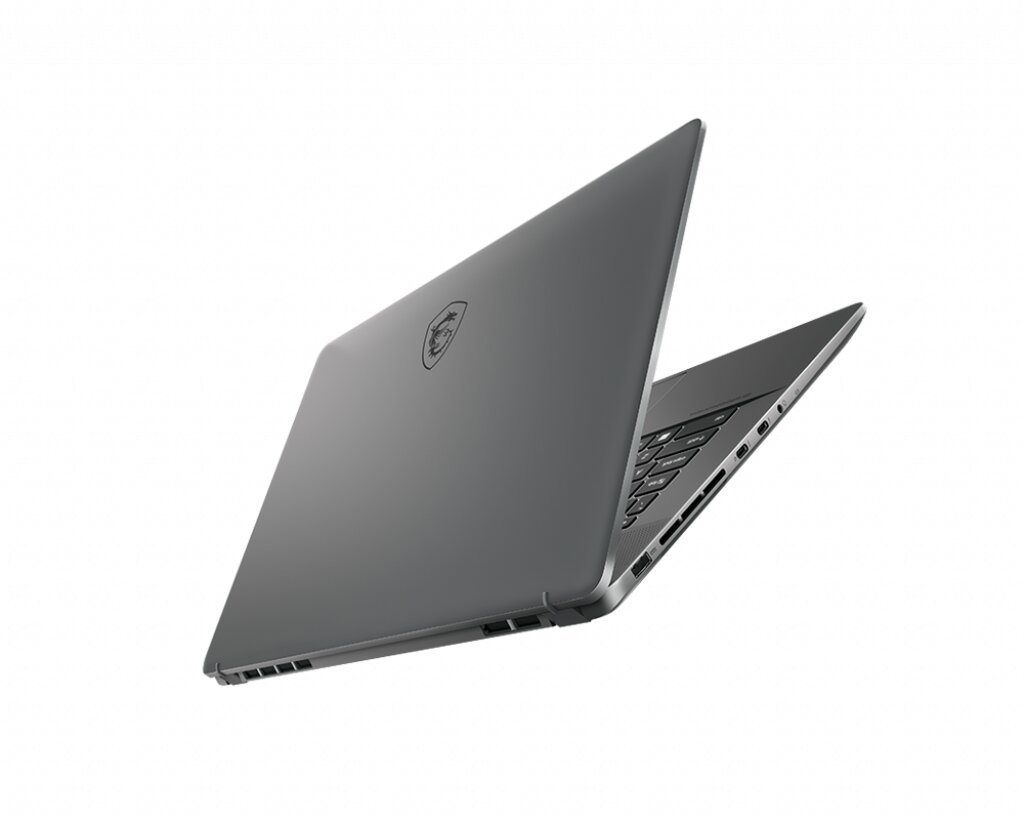

MSI Creator Z17 A12UHT-063NEU RAM upgrade specifications

The MSI Creator Z17 A12UHT-063NEU laptop features DDR5-SDRAM memory upgrade capabilities with two SO-DIMM slots supporting maximum capacity of 128 GB RAM. Compatible memory modules operate at 4800 MHz frequency, providing specifications for expanded storage capacity. The Z17 series supports SO-DIMM form factor upgrades, enabling users to expand system memory beyond factory configurations for enhanced multitasking and performance requirements.

Additional Notes

• The MSI Creator Z17 A12UHT-063NEU contains 2 SO-DIMM slots operating at DDR5-4800 MHz, establishing a dual-channel architecture that delivers approximately 76.8 GB/s theoretical bandwidth. This bandwidth supports sustained data transfer demands for video editing and 3D rendering workloads without saturation across the memory bus.
• DDR5-4800 MHz operates at native JEDEC specification, meaning memory modules rated at higher frequencies (DDR5-5200 MHz, DDR5-5600 MHz) will downclock to 4800 MHz unless BIOS overclocking profiles are enabled. This frequency floor remains stable within warranty parameters but negates speed advantages of premium modules.
• SO-DIMM form factor restricts upgrade options to mobile-grade memory modules only. Desktop DDR5 UDIMM modules are physically incompatible and cannot be forced into the SO-DIMM slots without component damage.
• Maximum addressable capacity reaches 128 GB (64 GB per slot), enabling dual-slot population without orphaning existing modules during upgrade cycles. A single 64 GB SO-DIMM can replace both original modules, consolidating to single-channel operation if cost preservation takes priority over bandwidth.
• The 2-slot configuration creates a constraint on simultaneous memory speed validation. Mixing DDR5 modules of different latency grades (CAS 38 versus CAS 40) forces the controller to operate at the slower latency specification, potentially reducing performance by 2-3% in latency-sensitive applications despite matching frequency ratings.
