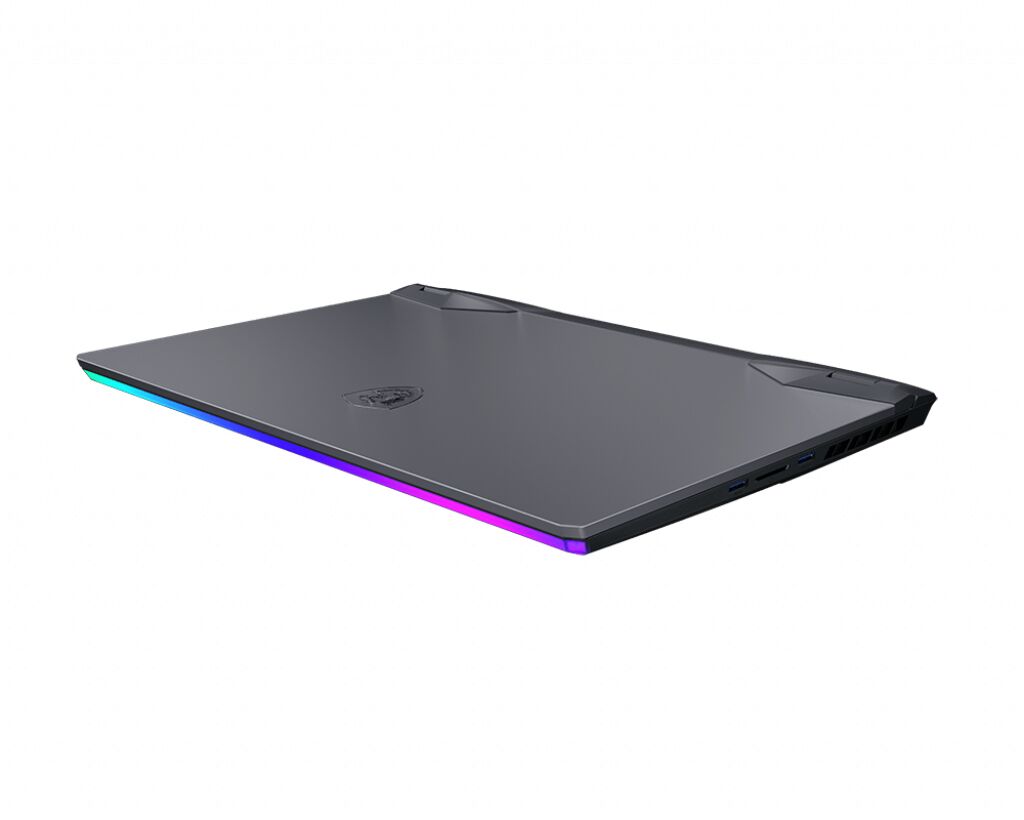

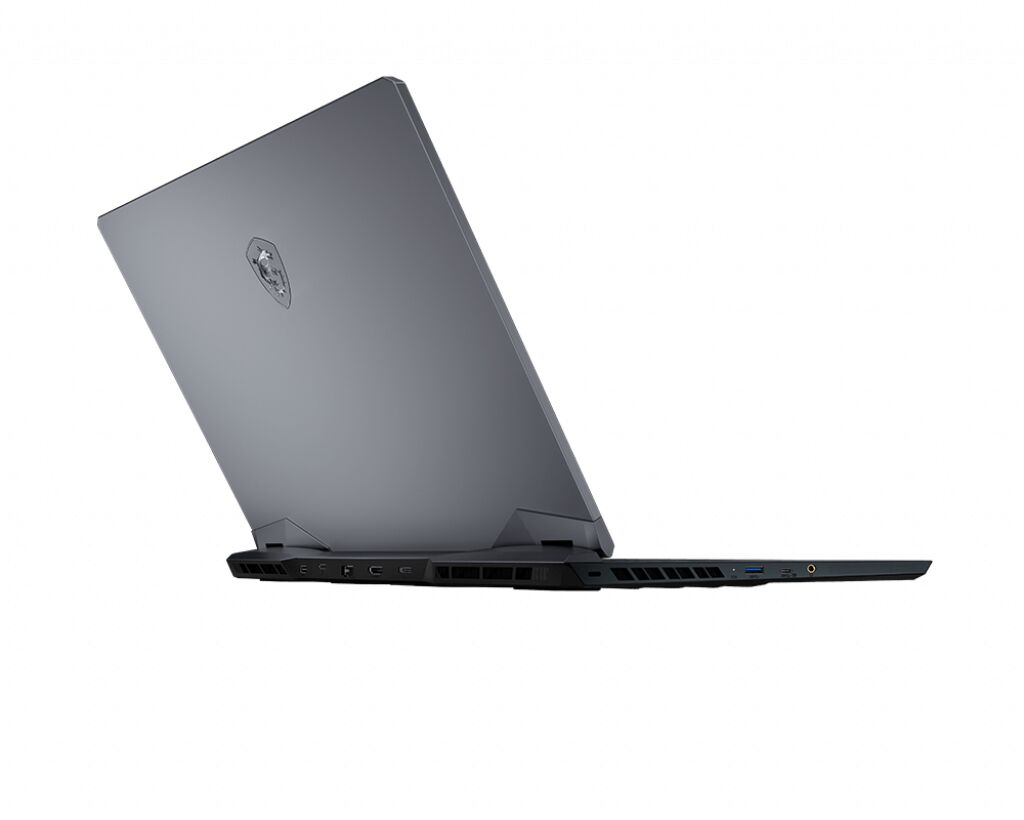

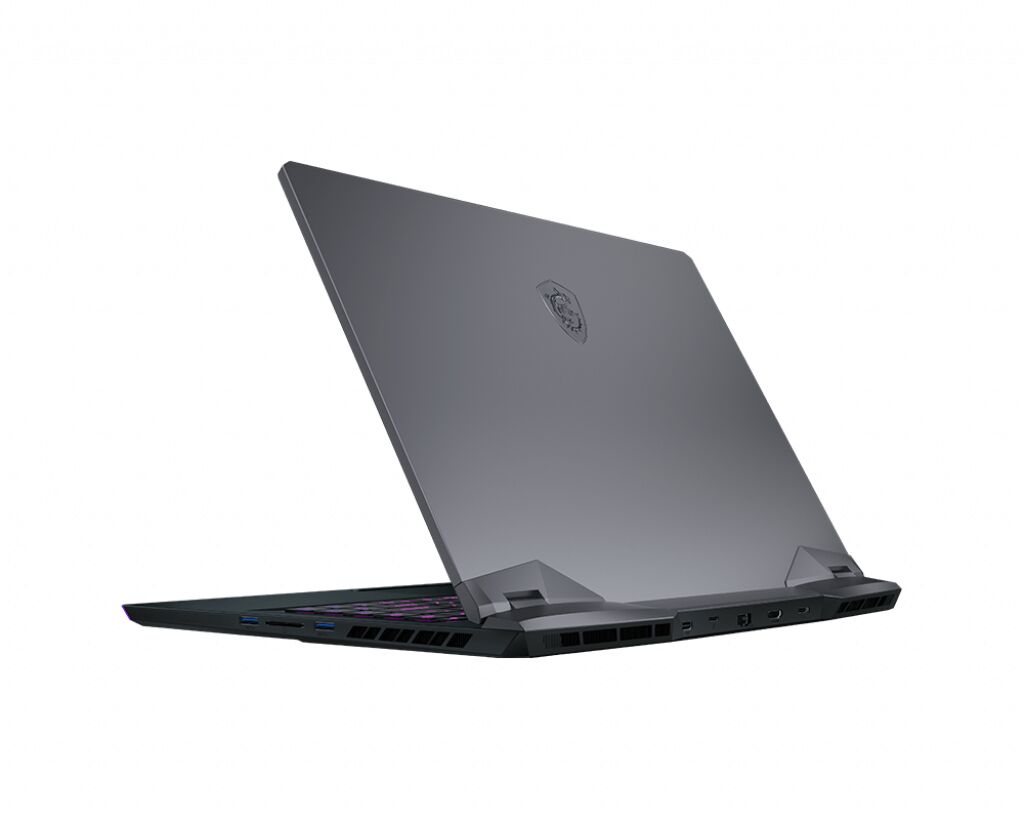

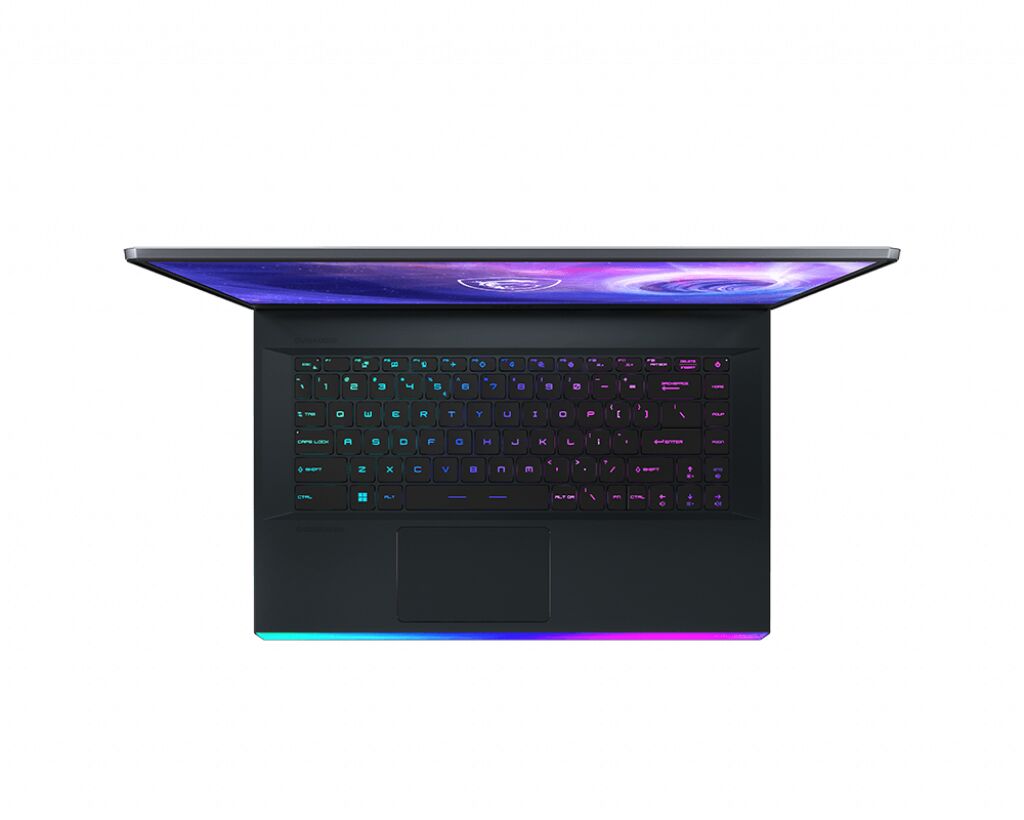

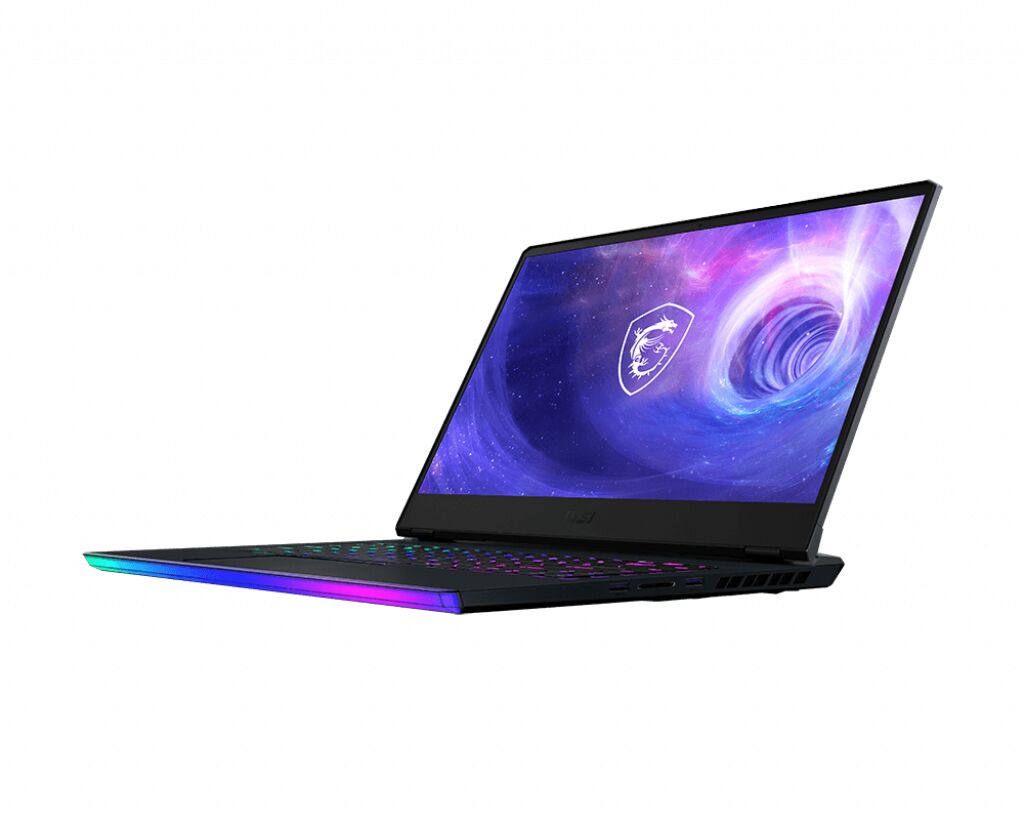

MSI Gaming GE66 12UH-280UK Raider RAM upgrade specifications
MSI GE66 12UH-280UK Raider gaming laptop supports DDR5-SDRAM memory upgrade via 2x SO-DIMM slots. Maximum RAM capacity reaches 64 GB total. Compatible memory modules operate at 4800 MHz frequency. Specifications enable significant memory expansion for enhanced multitasking and gaming performance. Upgrade configurations accommodate DDR5 SO-DIMM form factor modules, providing flexibility in RAM capacity selection for this MSI GE series laptop model.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR5-SDRAM |
| Frequency | 4800 MHz |
| Maximum RAM | 64 GB |
| Voltage | 1.1V |
| Number of pins | 262-pin |
| Interface | PC5 |
| PC Speed Rating | PC5-4800 (PC5-38400) |
| Bandwidth | 38.4 GB/s |
| Laptop Release date | 23 March 2022 |
Additional Notes
- The MSI GE66 12UH-280UK Raider contains 2 SO-DIMM slots operating as a paired configuration, meaning both slots must be populated simultaneously to achieve dual-channel performance. Upgrading with a single module will force single-channel operation and reduce memory bandwidth by approximately 50 percent, creating a significant performance penalty in gaming and content creation workloads.
- DDR5-4800 MHz modules are the native JEDEC standard for this platform. Faster aftermarket modules (DDR5-5200, DDR5-5600, or higher) will operate at reduced timings or lower frequencies due to memory controller constraints, negating overclocking benefits and offering minimal real-world performance improvement over the baseline specification.
- The 64 GB maximum capacity ceiling represents a platform limitation, not a module limitation. Upgrading to 2x32 GB SO-DIMM kits saturates all available upgrade potential, leaving no headroom for future expansion beyond this point.
- SO-DIMM physical dimensions (67.6 x 31.25 mm) introduce clearance constraints in gaming laptop chassis design. Some aftermarket heatspreaders or tall heat sink configurations on premium DDR5 modules may contact internal components, requiring verification before installation. Compact or low-profile SO-DIMM designs minimize this risk.
- Memory upgrade operations on this model typically involve removing bottom panel access covers rather than keyboard disassembly, reducing warranty risk during installation if manufacturer service documentation is followed. However, opening sealed panels may void thermal warranty coverage on the system.
