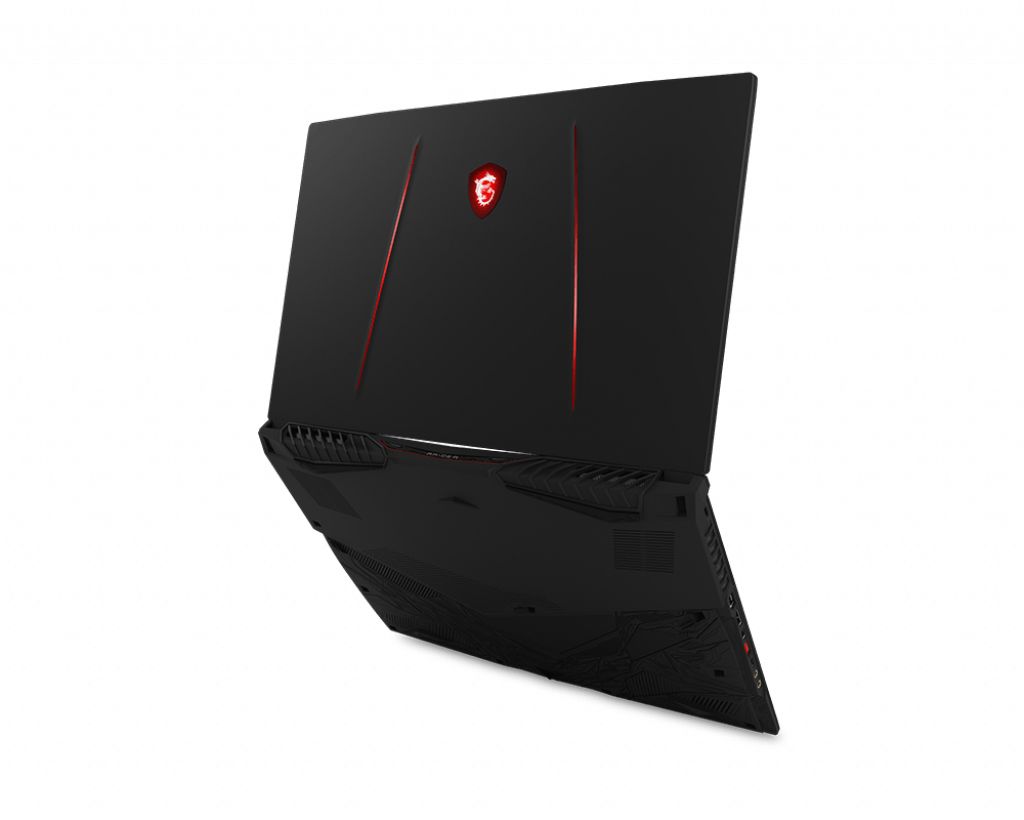

MSI Gaming GE75 8SF-032ES Raider RAM upgrade specifications
The MSI GE75 8SF-032ES Raider Gaming series laptop features DDR4-SDRAM memory specifications with two SO-DIMM slots for RAM upgrade capabilities. Compatible memory operates at 2666 MHz frequency with maximum capacity of 32 GB total. Each slot supports up to 16 GB modules, enabling users to expand memory from factory configuration through standard SO-DIMM form factor upgrades. Specifications detail memory upgrade potential for enhanced multitasking and performance optimization in the GE75 Raider model line.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2666 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2666 (PC4-21328) |
| Bandwidth | 21.3 GB/s |
| Laptop Release date | 10 January 2019 |
Additional Notes
- The 2 SO-DIMM slot configuration enforces a symmetric dual-channel architecture; unmatched capacity modules will operate in single-channel mode on the smaller capacity module, reducing effective bandwidth by approximately 50 percent.
- DDR4-2666 MHz frequency represents the JEDEC standard supported by the 8th generation Intel processor in this model; memory modules rated above 2666 MHz will automatically downclock to 2666 MHz unless Intel XMP profiles are manually enabled in BIOS, which may void certain warranty coverage depending on MSI's policy.
- The 32 GB maximum capacity limit restricts this platform to 2 modules of 16 GB each; future memory expansion beyond 32 GB cannot occur without replacing existing modules entirely.
- SO-DIMM modules occupy significantly less physical space than standard DIMM modules, which limits the thickness of heat spreaders on upgraded modules; passive cooling performance in high-temperature gaming scenarios may be constrained compared to desktop-class memory.
- The gaming classification and 2-slot configuration indicate no integrated memory soldering; all RAM is user-accessible and replaceable without warranting disassembly of soldered components.
