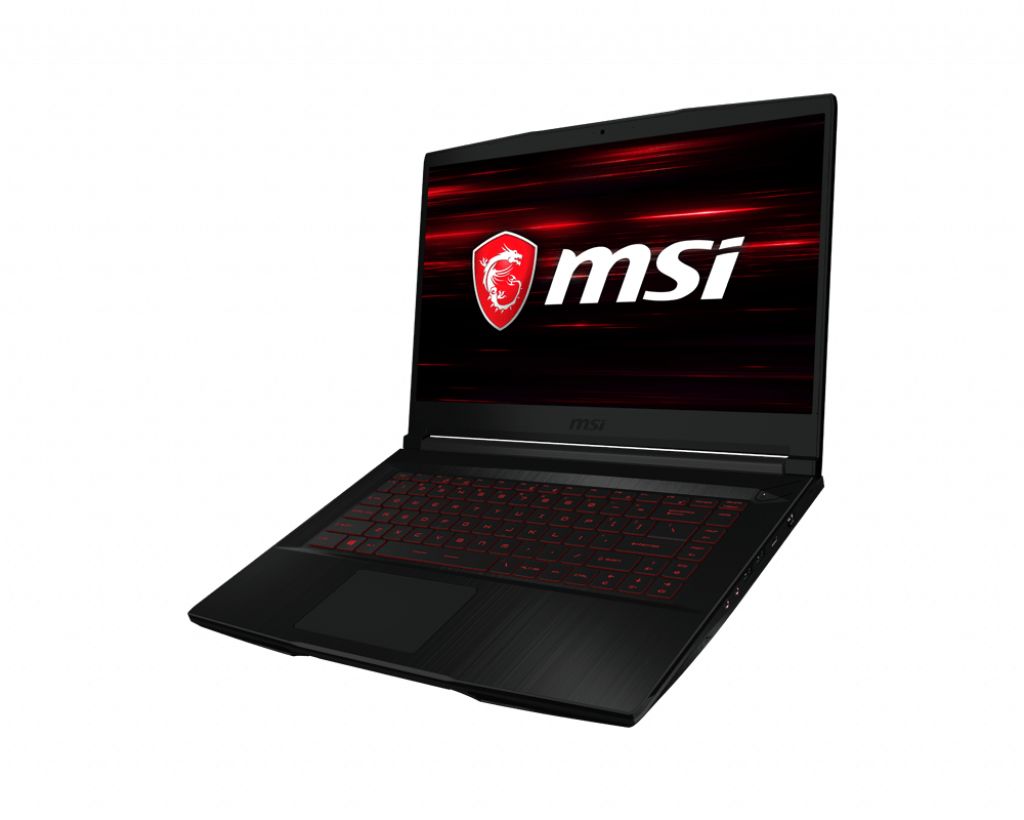

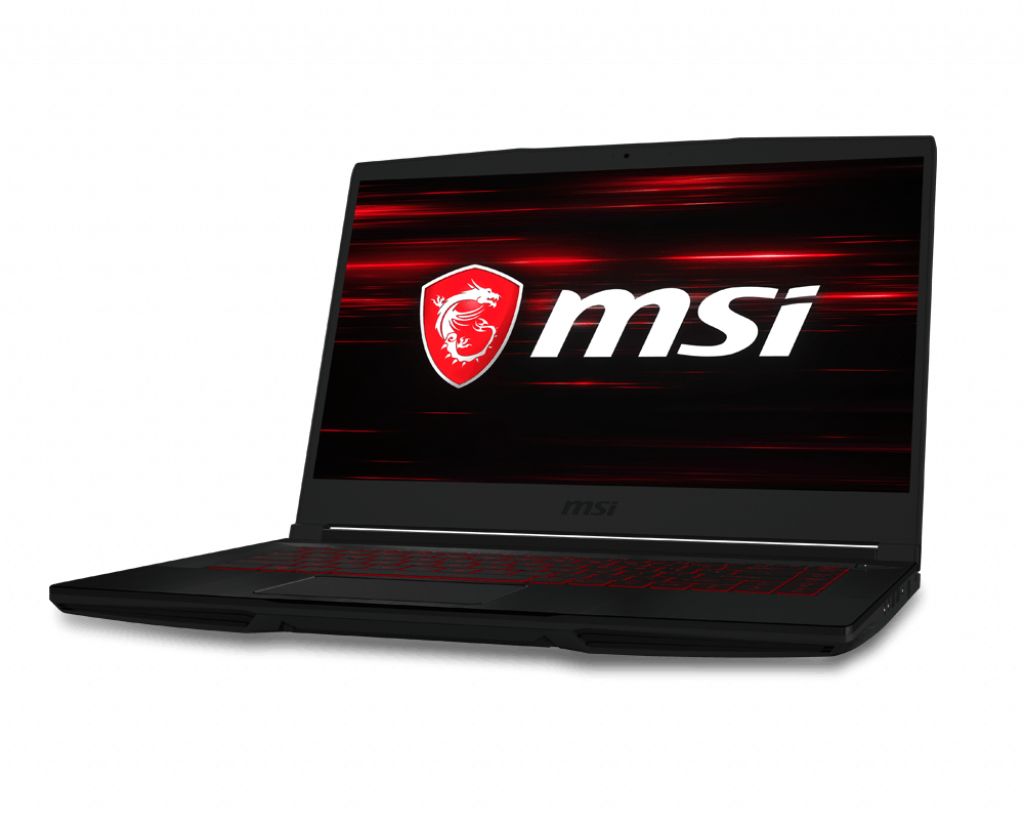

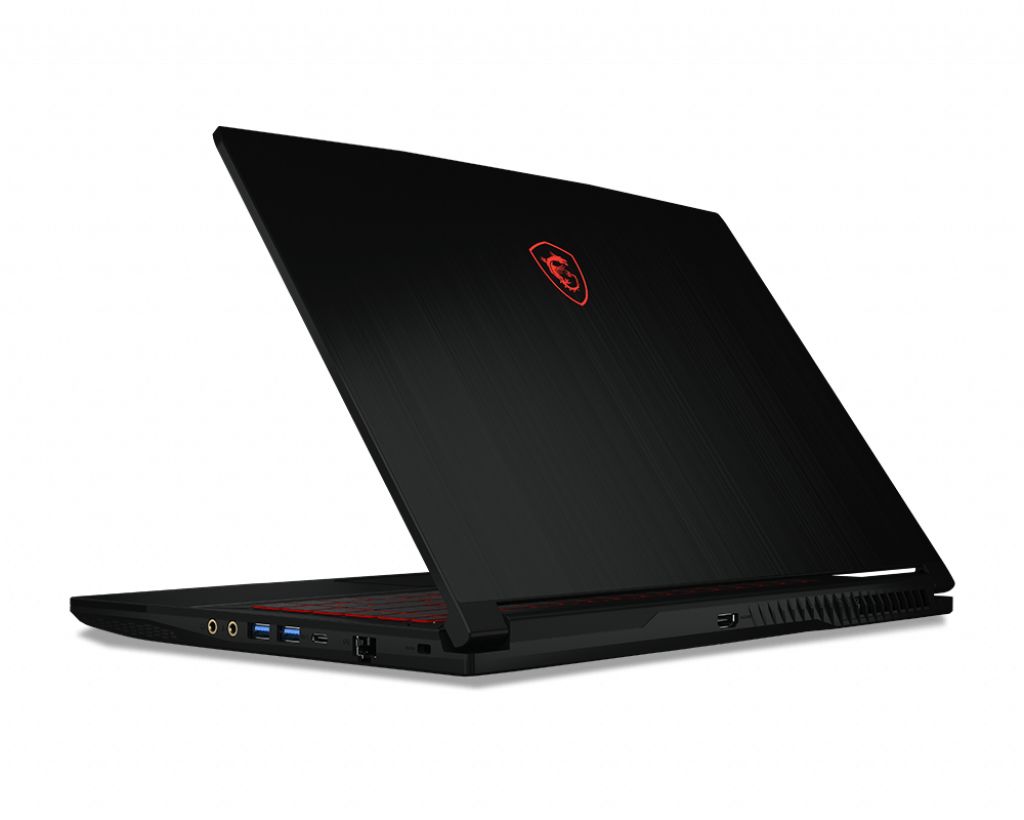

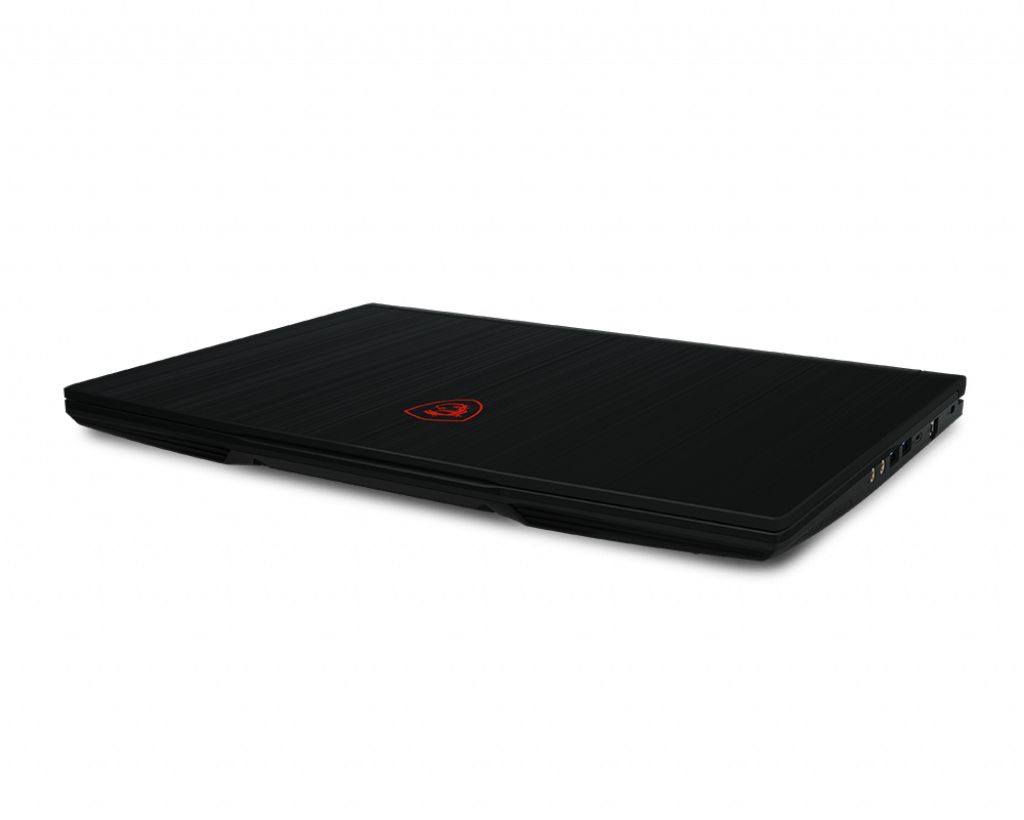

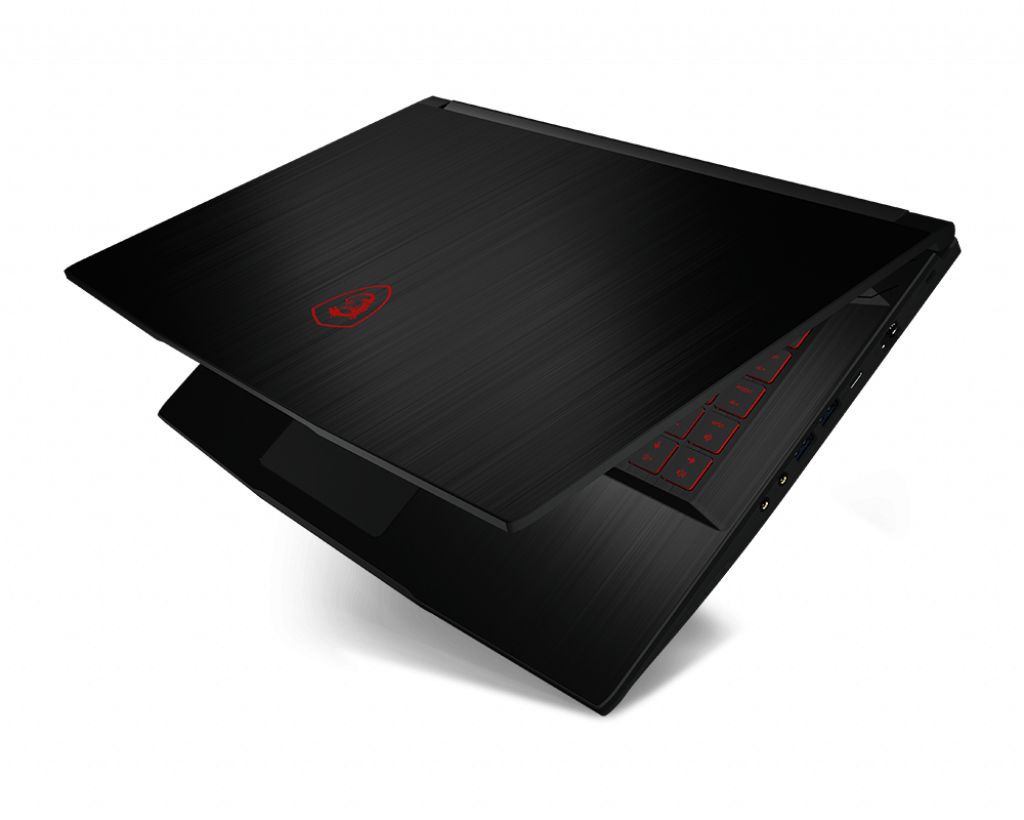

MSI Gaming GF63 9SC-214IT Thin RAM upgrade specifications
MSI GF63 9SC-214IT Thin gaming laptop memory upgrade specifications. Compatible RAM: DDR4-SDRAM SO-DIMM modules at 2666 MHz frequency. Memory configuration features 2 SO-DIMM slots supporting maximum upgrade capacity of 64 GB total. Current specifications and compatible memory modules enable RAM expansion for enhanced multitasking performance on MSI GF Gaming series hardware.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2666 MHz |
| Maximum RAM | 64 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2666 (PC4-21328) |
| Bandwidth | 21.3 GB/s |
| Laptop Release date | 08 May 2019 |
Additional Notes
- The MSI GF63 9SC-214IT Thin contains 2 SO-DIMM slots operating at 2666 MHz, which represents a generation-old speed standard relative to contemporary DDR4 modules (3200 MHz and above). Systems using this frequency may experience reduced throughput in memory-intensive workloads compared to newer configurations.
- Dual SO-DIMM configuration permits symmetric expansion without removing existing modules, provided both slots remain populated. Asymmetric configurations (mismatched capacity or speed between slots) trigger single-channel operation on the second module, halving effective bandwidth for that DIMM.
- The 64 GB maximum capacity ceiling (32 GB per SO-DIMM module) restricts expandability options. Consumer-grade SO-DIMM modules above 32 GB remain unavailable through standard retail channels, effectively capping upgrade potential at this specification.
- SO-DIMM modules occupy compressed form factor housing within tight chassis compartments typical of thin-profile gaming laptops. Installation requires removal of base panel covers and, in some configurations, relocation or disconnection of thermal management components. Physical clearance constraints may prevent installation of modules exceeding 30 mm in height.
- Warranty implications depend on manufacturer policy. Many OEMs restrict memory upgrades performed outside authorized service centers; self-installation may void coverage despite SO-DIMM compatibility design. Verification with MSI support prior to upgrade execution minimizes post-installation service complications.
- DDR4-2666 specification predates SPD profile standardization for faster speeds. Third-party SO-DIMM modules rated 3200 MHz or higher typically operate in backward-compatibility mode at 2666 MHz unless manual frequency adjustment occurs in BIOS, circumventing the hardware limitation through firmware configuration.
