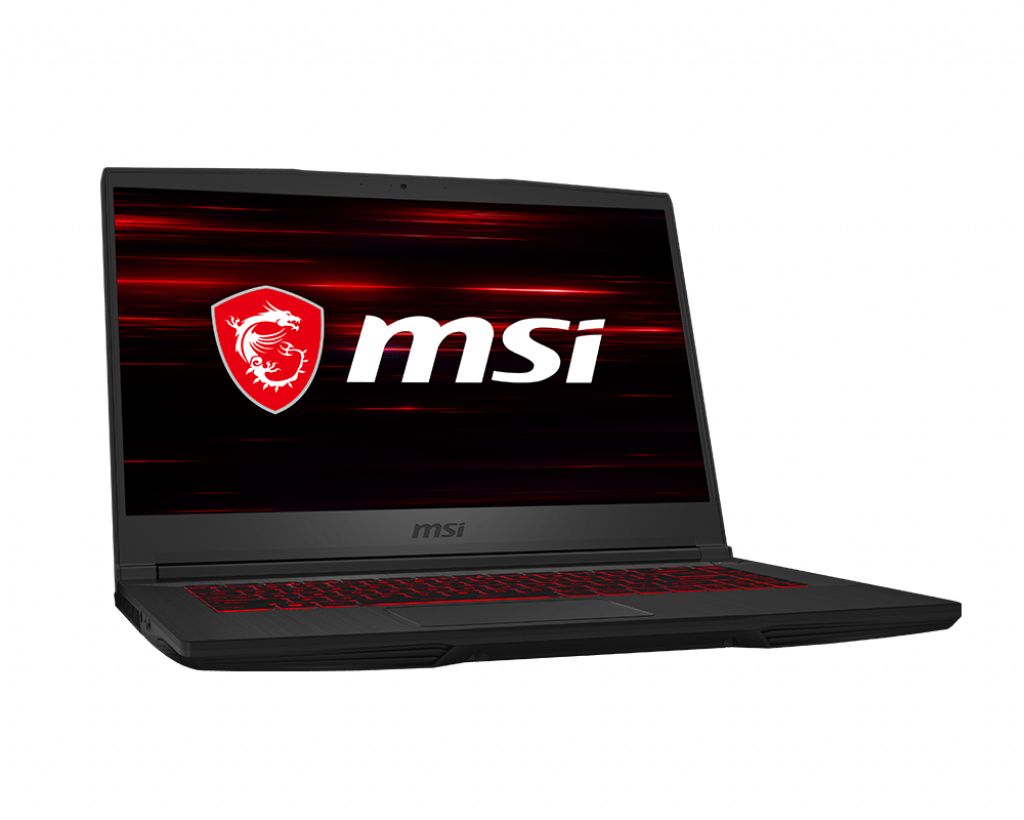

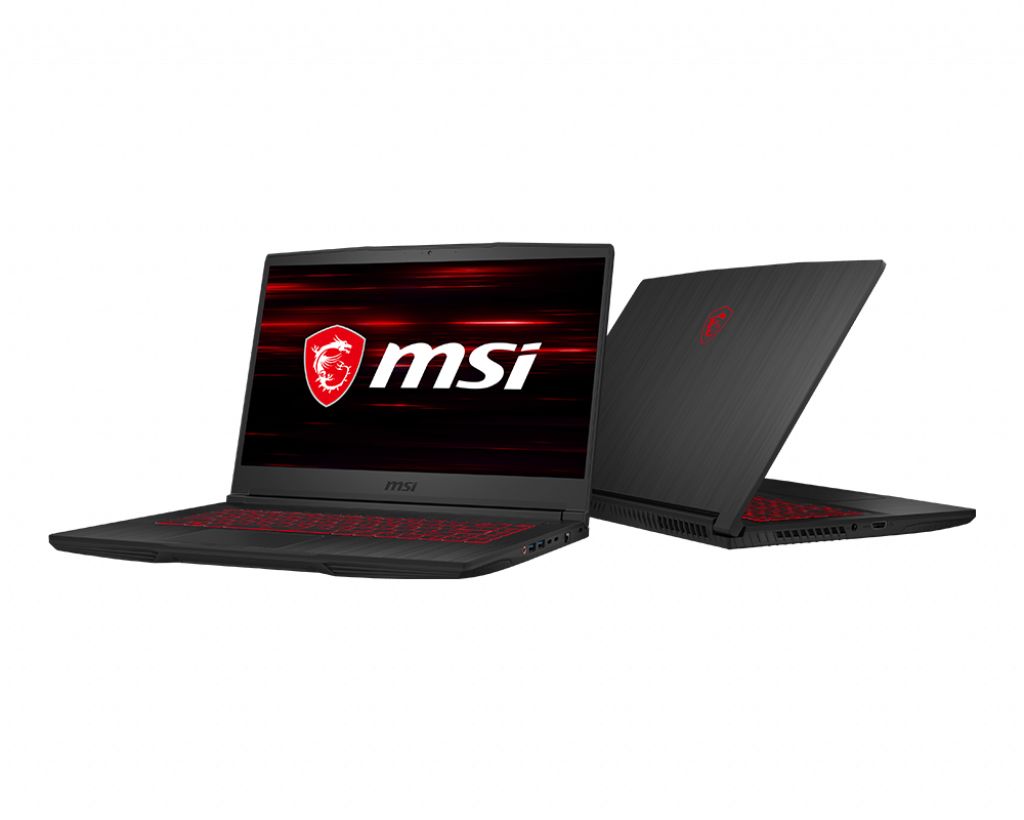

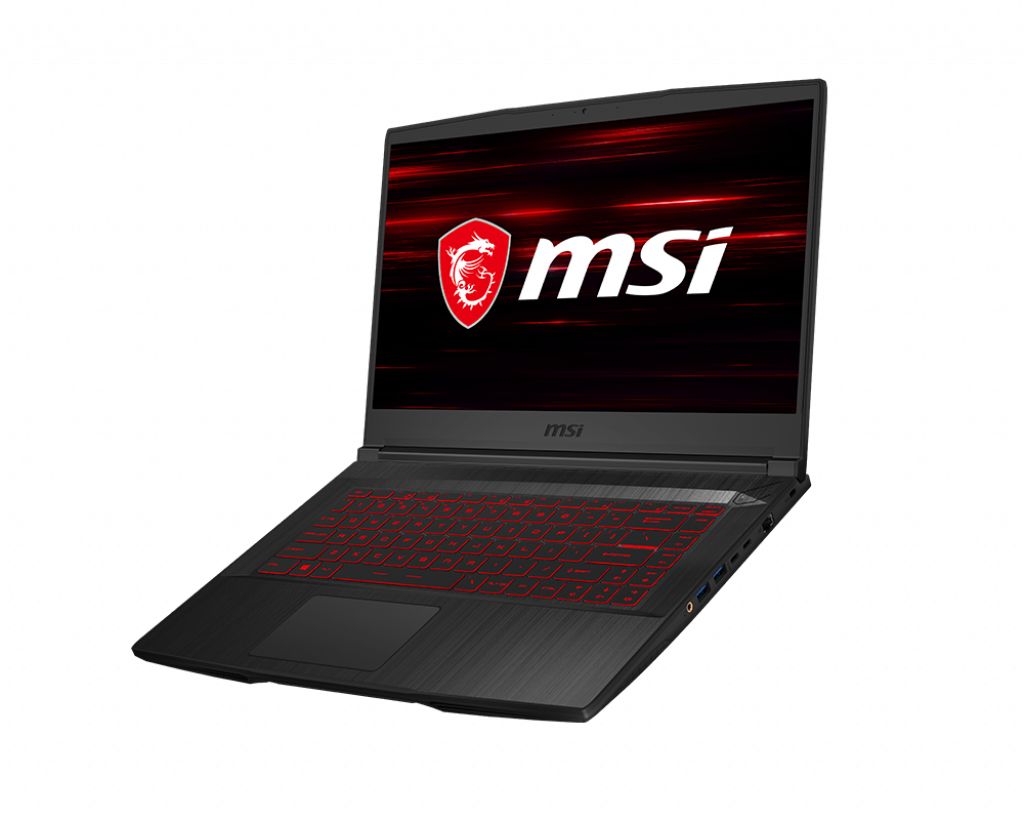

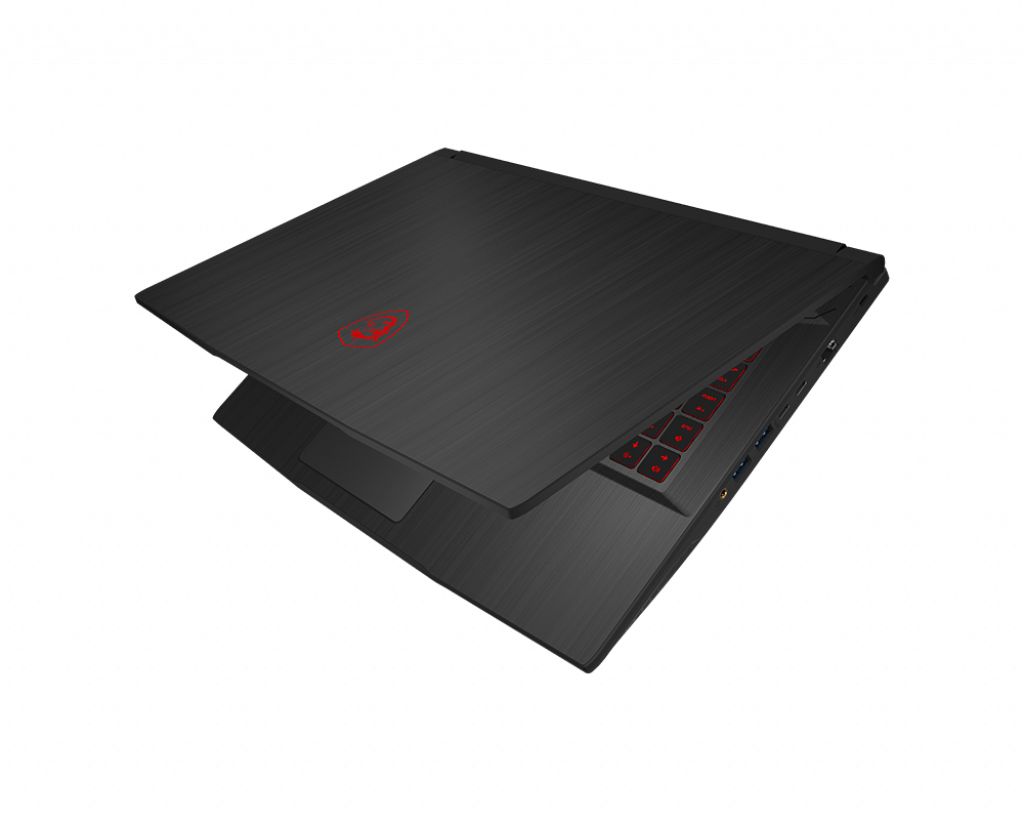

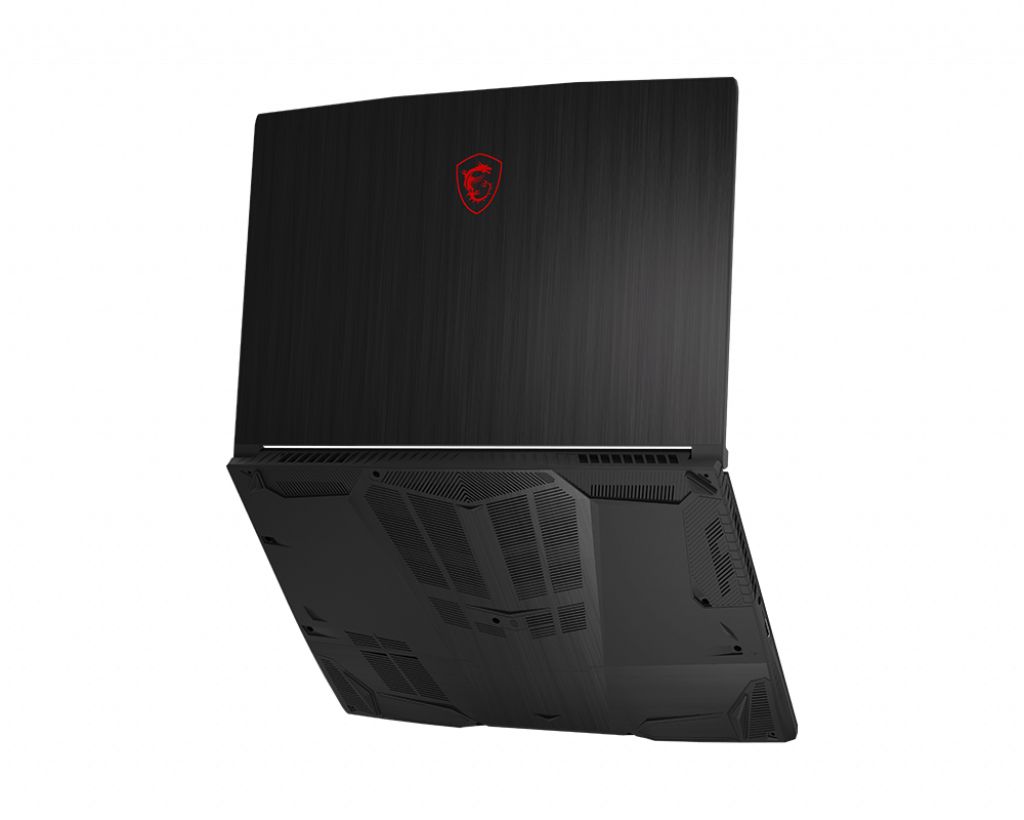

MSI Gaming GF65 9SD-010UK Thin RAM upgrade specifications

MSI GF65 9SD-010UK Thin MSI GF65 9SD-010UK Thin MSI GF65 9SD-010UK Thin MSI GF65 9SD-010UK Thin MSI GF65 9SD-010UK Thin

The MSI GF65 9SD-010UK Thin Gaming series laptop features two SO-DIMM slots for memory expansion. The system supports DDR4-SDRAM specifications at 2666 MHz frequency. Maximum RAM capacity reaches 64 GB total. Compatible memory upgrades utilize the SO-DIMM form factor. Current specifications provide detailed information regarding available slots and supported memory configurations for this Gaming series model.

Memory Upgrade Specifications

SpecificationValue
Memory slots2x SO-DIMM
Form factorSO-DIMM
Memory typeDDR4-SDRAM
Frequency2666 MHz
Maximum RAM64 GB
Voltage1.2V
Number of pins260-pin
InterfacePC4
PC Speed RatingPC4-2666 (PC4-21328)
Bandwidth21.3 GB/s
Laptop Release date04 September 2019

Additional Notes

  • Dual channel mode is only achievable by installing a matched pair of modules to utilize both SO-DIMM slots simultaneously.
  • The processor architecture in the MSI GF65 9SD-010UK Thin limits memory frequency to the native 2666 MHz even if higher rated modules are installed.
  • Upgrading to the 64 GB maximum requires the replacement of all pre-installed modules because no additional unoccupied slots exist.
  • Latency performance depends on the CAS timing of the selected sticks since the BIOS typically lacks manual voltage or timing adjustments for overclocking.
  • Reaching the total capacity threshold necessitates 32 GB high-density chips which must adhere to the standard 1.2V JEDEC profile to ensure boot stability.
  • Heat management during intense workloads is influenced by memory density as high-capacity modules generate additional thermal load within the compact chassis.
  • Internal access for memory installation requires the removal of the entire base panel which involves breaking a factory seal sticker in certain regions.
