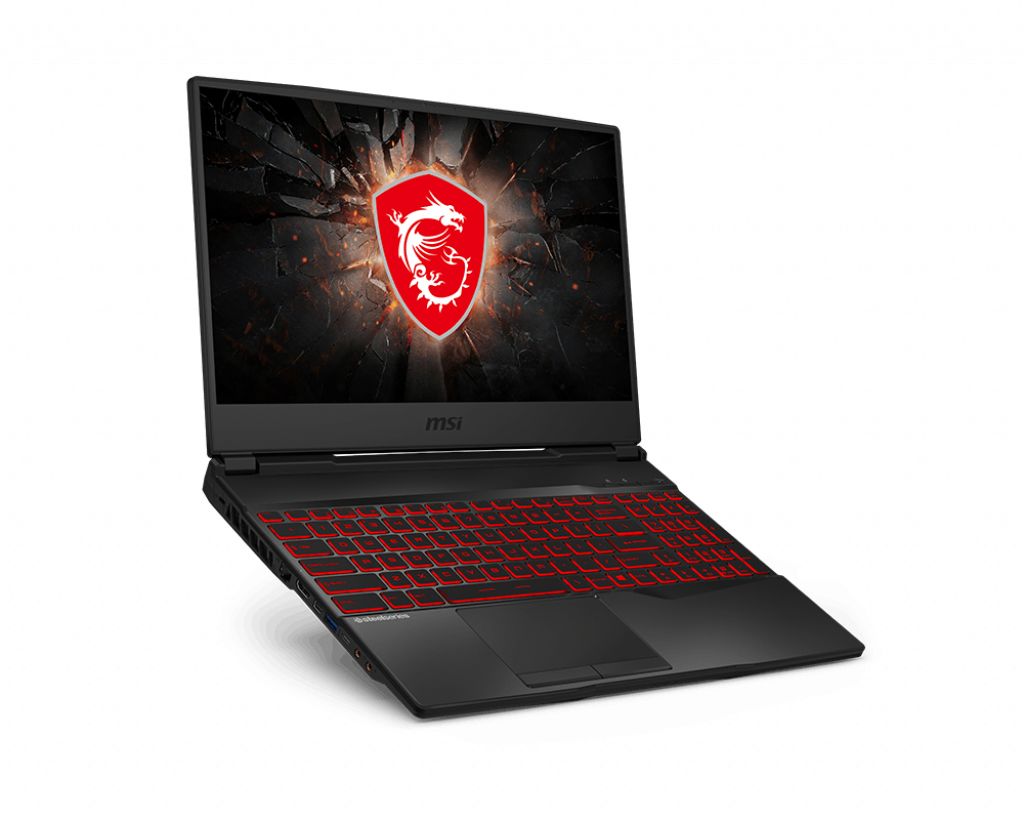

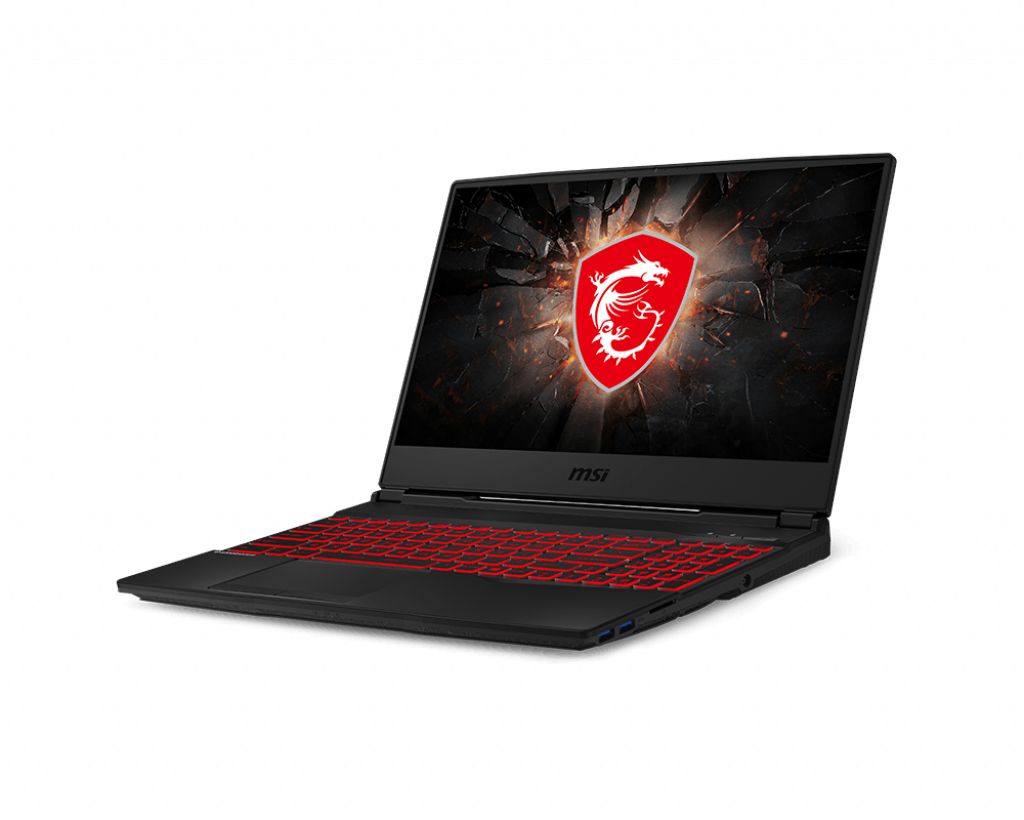

MSI Gaming GL65 9SD-008BE RAM upgrade specifications
The MSI GL65 9SD-008BE Gaming series laptop supports DDR4-SDRAM memory upgrades with 2x SO-DIMM slots. Maximum compatible RAM capacity reaches 64 GB total. Memory operates at 2666 MHz frequency. Upgrade specifications accommodate SO-DIMM form factor modules. The GL65 9SD-008BE platform supports memory expansion for enhanced multitasking and performance capabilities in gaming and professional applications.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2666 MHz |
| Maximum RAM | 64 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2666 (PC4-21328) |
| Bandwidth | 21.3 GB/s |
| Laptop Release date | 05 January 2020 |
Additional Notes
- The MSI GL65 9SD-008BE supports a theoretical maximum of 64 GB total system memory, which requires two 32 GB modules operating in dual-channel configuration.
- The 2666 MHz frequency specification indicates compatibility with DDR4-2666 modules, though higher-rated modules will downclock to match the chipset's supported speed ceiling.
- SO-DIMM form factor restricts compatibility to notebook-specific memory modules, as standard desktop DIMM modules are physically incompatible with the smaller slot dimensions.
- The dual-slot configuration enables asymmetric installations, though unmatched module capacities will disable dual-channel mode and reduce memory bandwidth by approximately 50 percent.
- Access to the memory slots typically requires bottom panel removal, which may involve warranty seal breakage depending on regional service policies.
- Non-ECC unbuffered modules are required, as gaming-oriented platforms lack the memory controller support for error-correcting code functionality.
- Mixing modules with different clock speeds will force all installed memory to operate at the lowest common frequency, creating potential performance degradation.
- The 9th generation Intel mobile platform architecture limits memory overclocking through XMP profiles, enforcing JEDEC standard speeds regardless of module specifications.
- Single-rank versus dual-rank module topology affects memory interleaving, with dual-rank configurations potentially offering marginal bandwidth improvements in specific workloads.
- Voltage specifications must remain within the DDR4 standard 1.2V range, as the mobile platform does not support elevated voltages used in enthusiast desktop overclocking.
