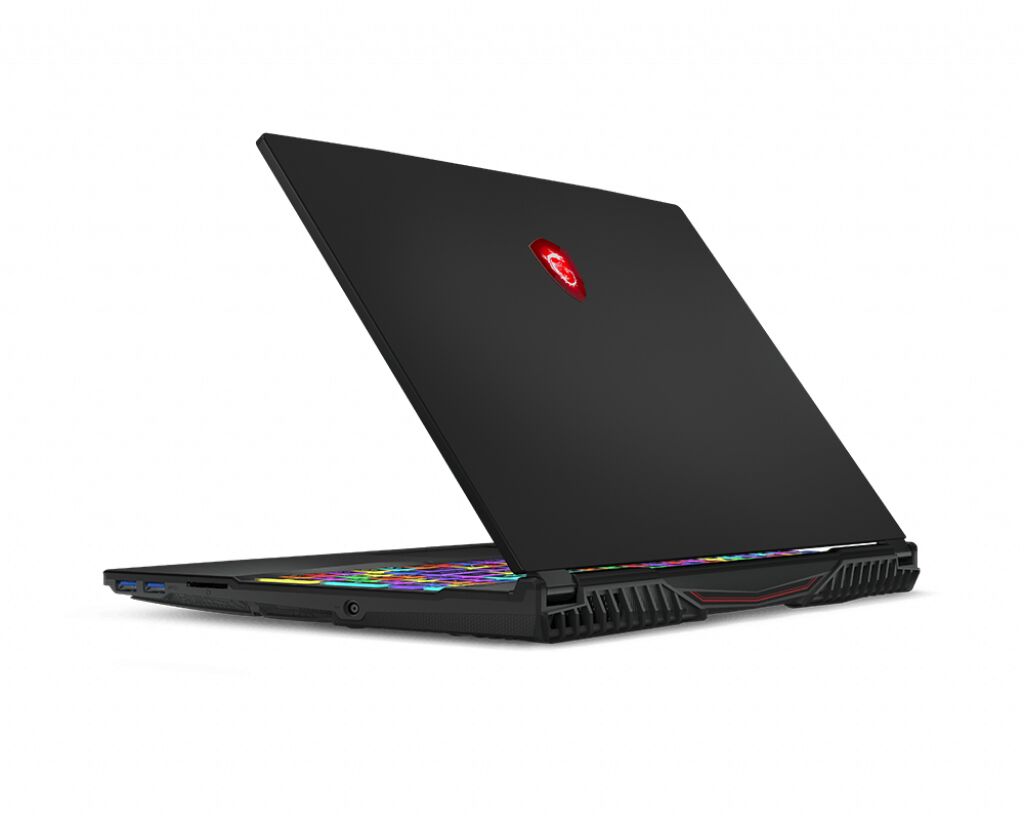

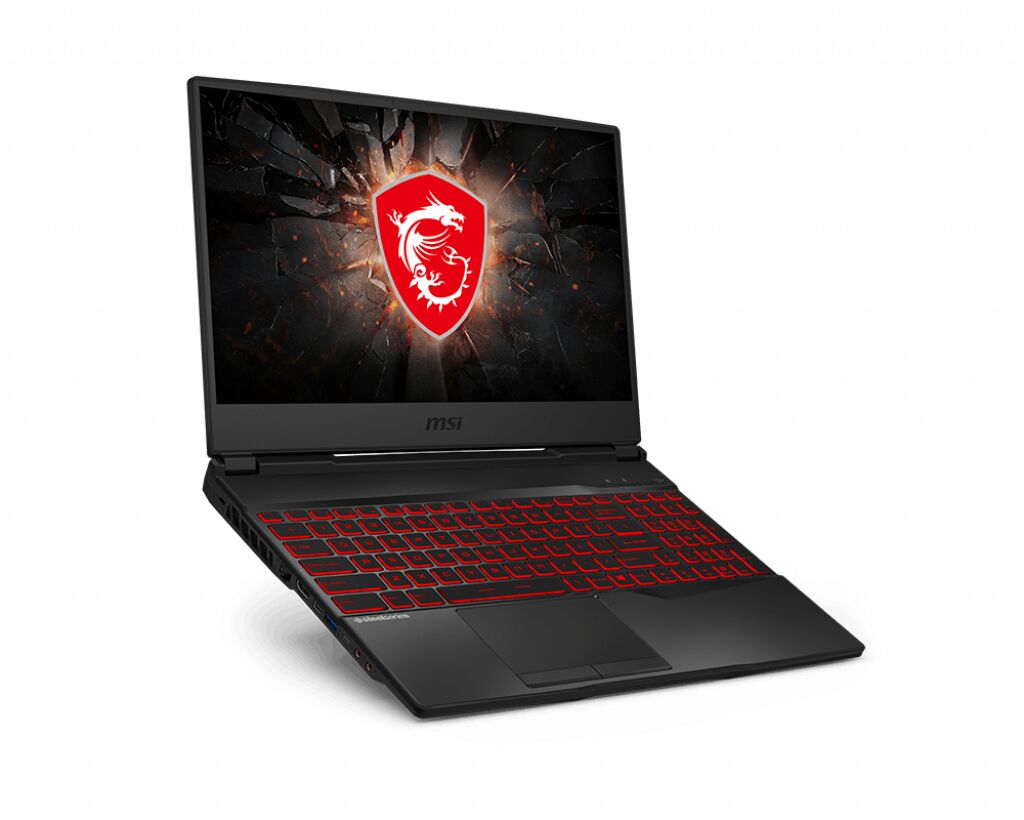

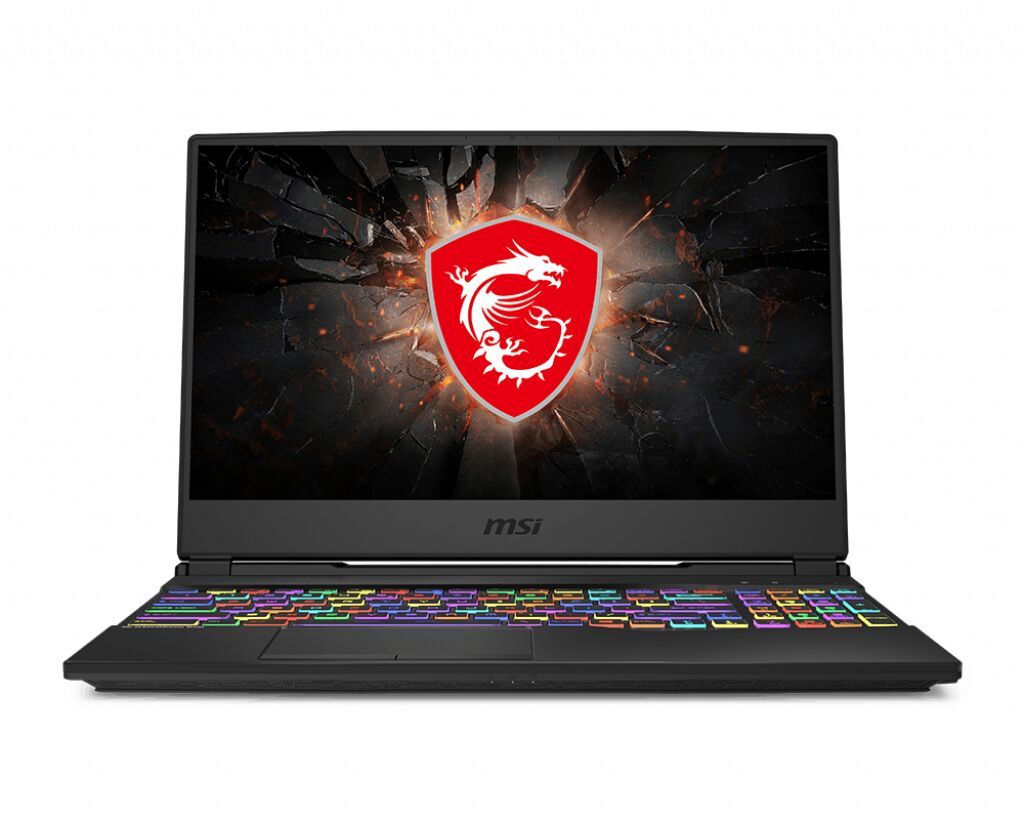

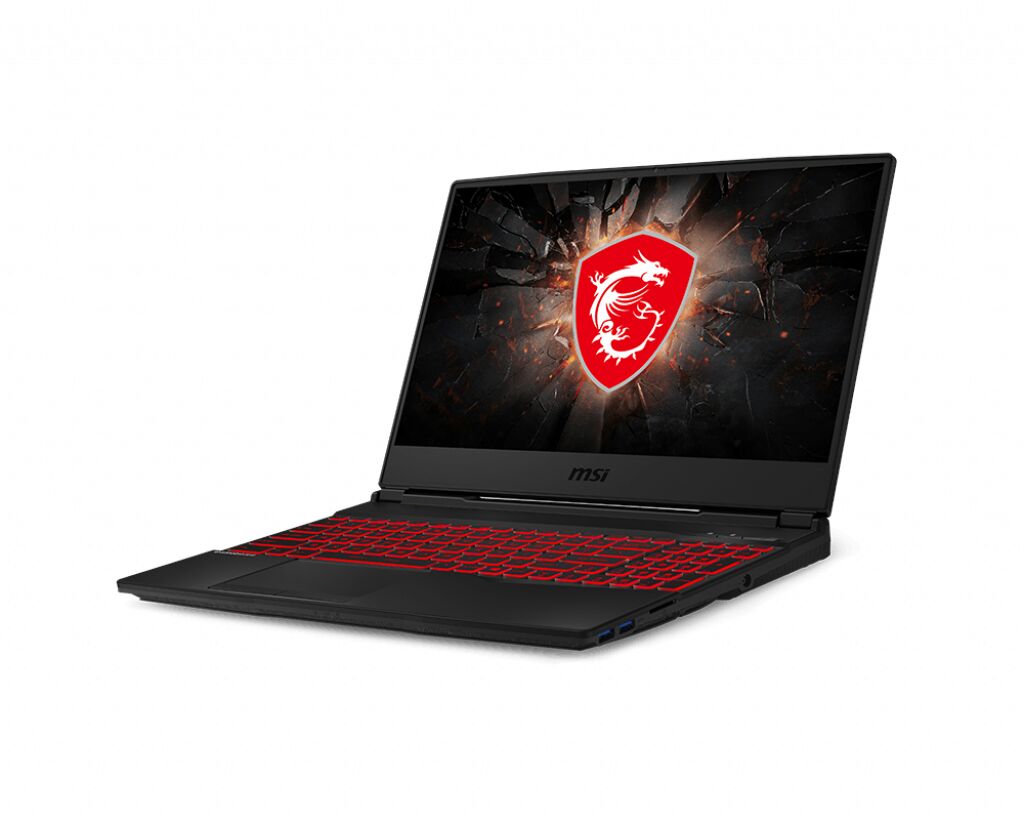

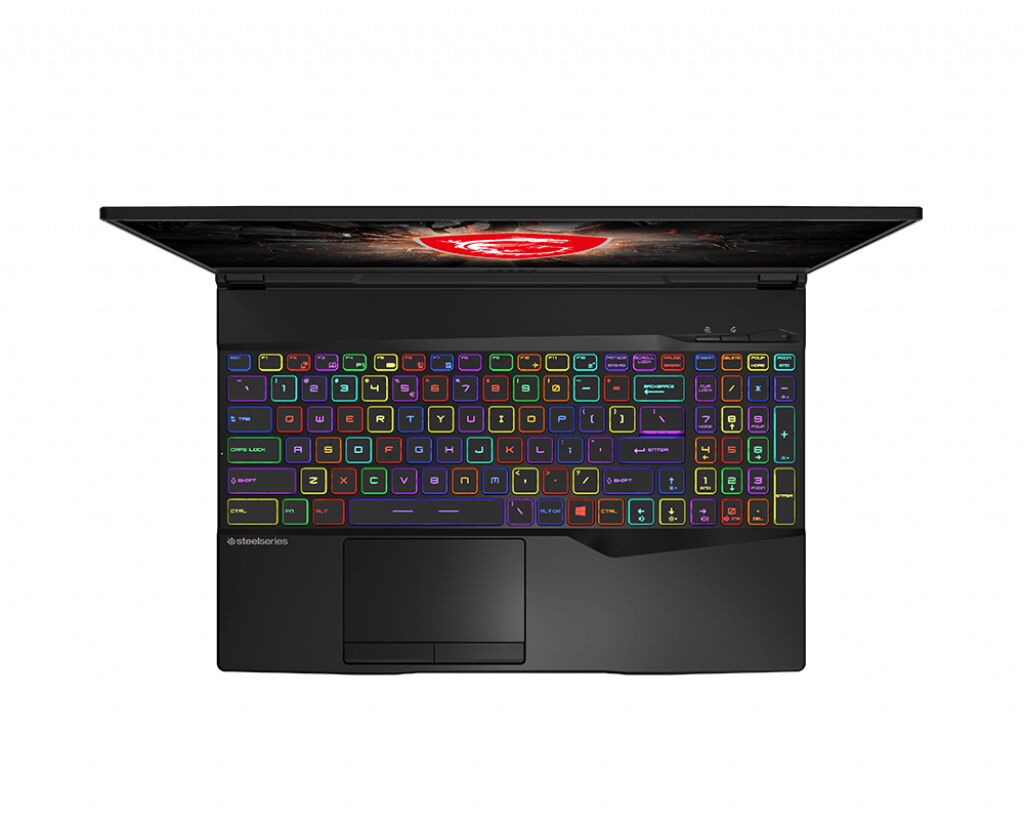

MSI Gaming GL65 9SD-017CN RAM upgrade specifications

MSI GL65 9SD-017CN MSI GL65 9SD-017CN MSI GL65 9SD-017CN MSI GL65 9SD-017CN MSI GL65 9SD-017CN

MSI GL65 9SD-017CN gaming laptop memory upgrade specifications detail DDR4-SDRAM compatibility with 2x SO-DIMM slots supporting maximum RAM capacity of 64 GB. Compatible memory modules operate at 2666 MHz frequency. Upgrade specifications indicate SO-DIMM form factor for memory expansion, enabling users to enhance system performance through RAM installation in available slots on the GL series gaming model.

Memory Upgrade Specifications

SpecificationValue
Memory slots2x SO-DIMM
Form factorSO-DIMM
Memory typeDDR4-SDRAM
Frequency2666 MHz
Maximum RAM64 GB
Voltage1.2V
Number of pins260-pin
InterfacePC4
PC Speed RatingPC4-2666 (PC4-21328)
Bandwidth21.3 GB/s
Laptop Release date15 June 2020

Additional Notes

  • The dual slot design requires replacing both existing modules to reach the maximum 64 GB capacity as no additional expansion ports exist.
  • Utilizing two matching modules enables dual channel bandwidth which is critical for reducing frame time inconsistencies during high load scenarios on the MSI GL65 9SD-017CN gaming laptop.
  • Installing modules with frequencies exceeding 2666 MHz results in automatic downclocking to match the hardware controller limitations.
  • The SO-DIMM form factor necessitates 260 pin modules specifically designed for limited vertical clearance within mobile chassis environments.
  • Accessing the memory slots requires removal of the bottom panel which involves breaking the factory seal and potentially impacting regional warranty terms depending on local consumer laws.
  • Memory stability at the 64 GB threshold depends on using non ECC unbuffered modules to ensure compatibility with the mobile chipset architecture.
  • Latency performance is dictated by the highest CAS latency value present when mixing modules of different brands or batches.
