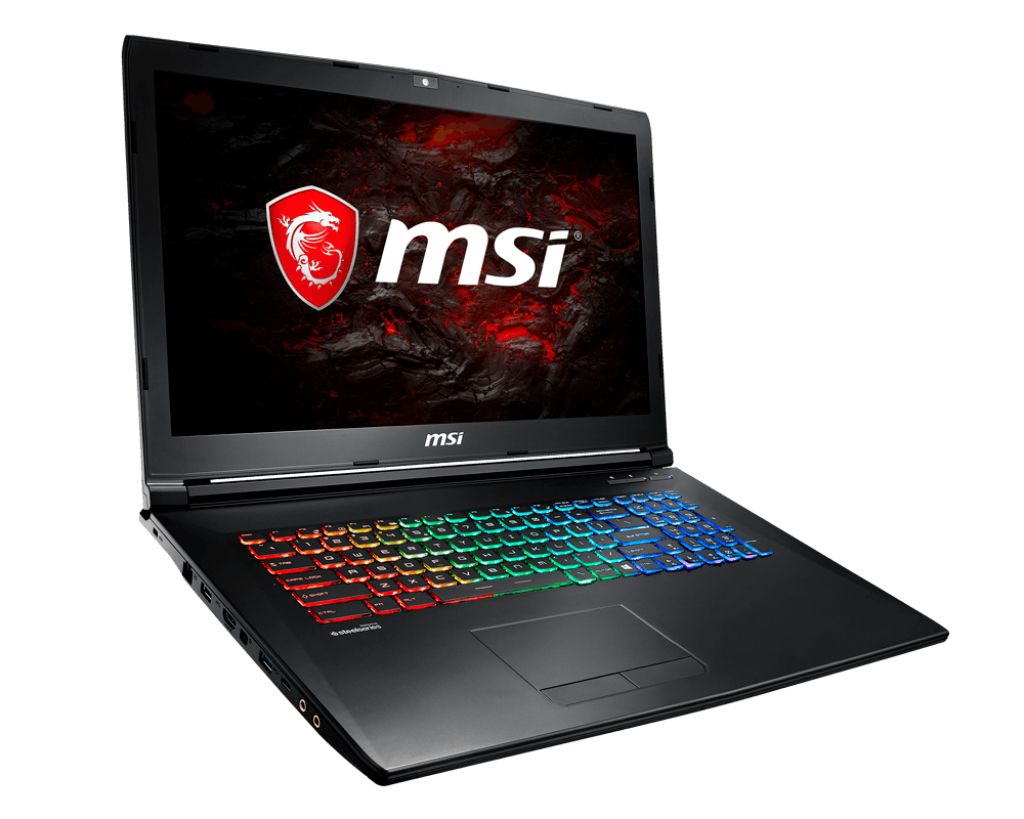

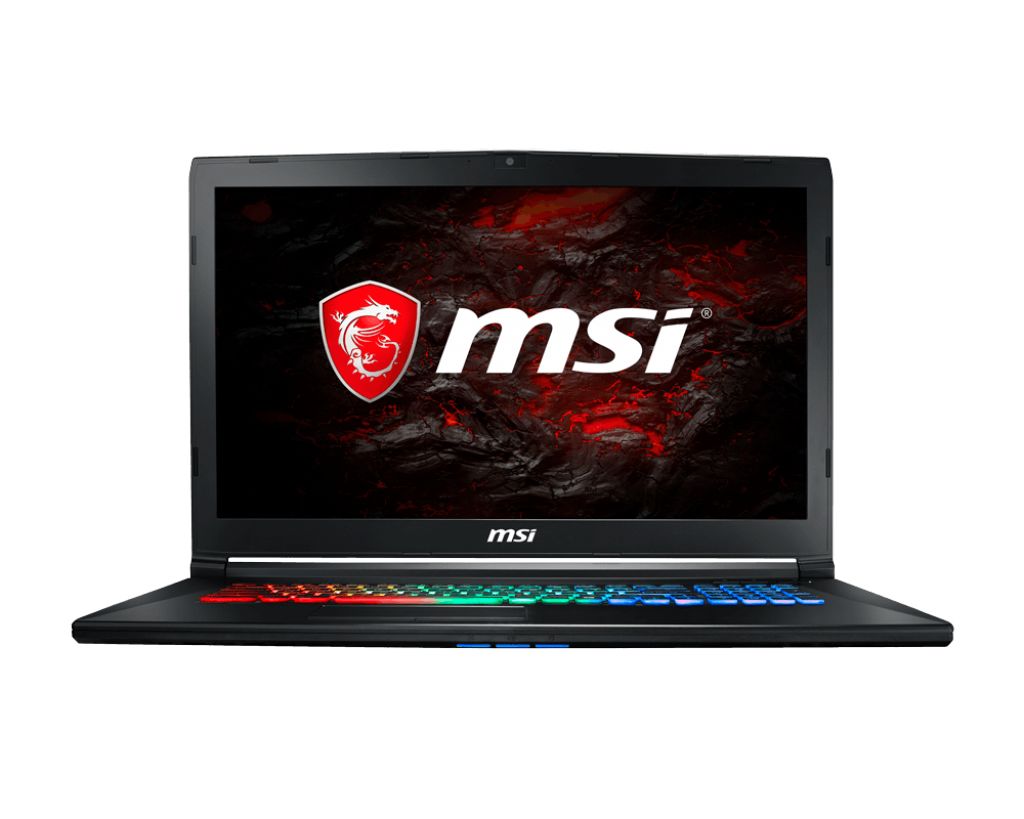

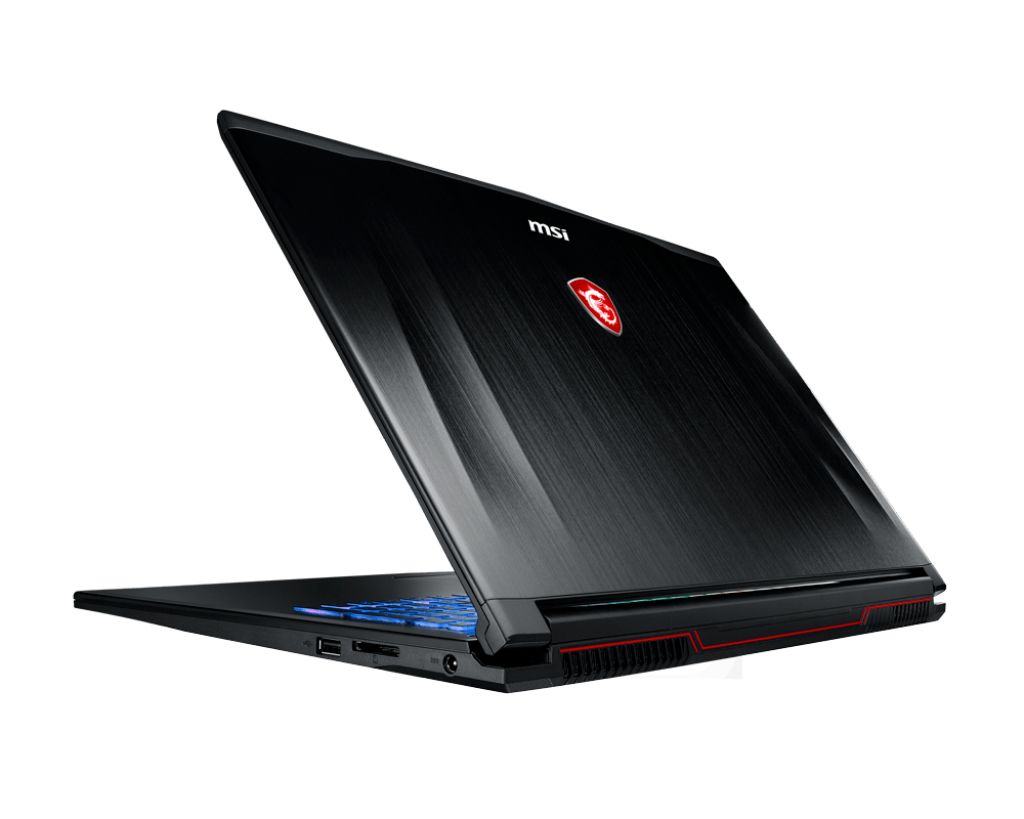

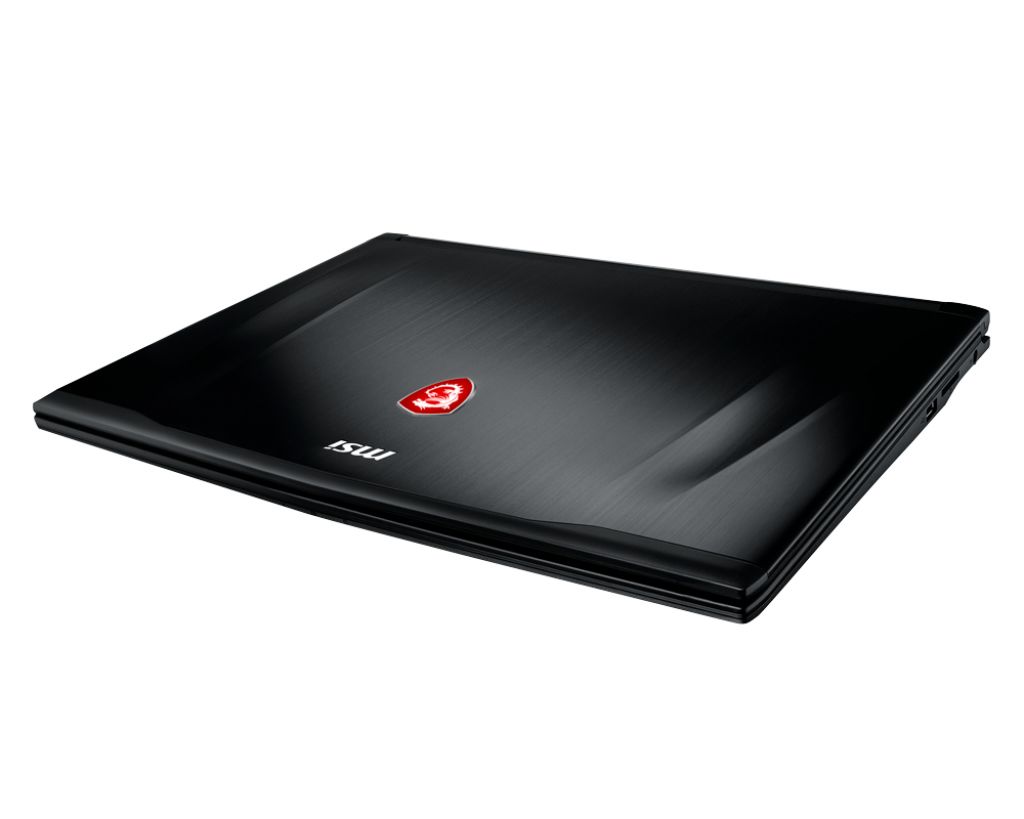

MSI Gaming GP72MVR 7RFX-863CZ Leopard Pro RAM upgrade specifications
The MSI GP72MVR 7RFX-863CZ Leopard Pro gaming laptop supports DDR4-SDRAM memory upgrades with two SO-DIMM slots. Maximum supported RAM capacity reaches 32 GB, accommodating DDR4 modules operating at 2400 MHz frequency. Compatible memory upgrades utilize the SO-DIMM form factor. Current specifications and upgrade options depend on existing memory configuration within the two available slots.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2400 MHz |
| Maximum RAM | 32 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2400 (PC4-19200) |
| Bandwidth | 19.2 GB/s |
| Laptop Release date | 25 May 2019 |
Additional Notes
- Dual channel mode requires identical module capacities across both slots to maximize memory controller bandwidth.
- The 32 GB limit necessitates 16 GB modules as the highest possible density per slot for the MSI GP72MVR 7RFX-863CZ Leopard Pro.
- Installation of memory clocked higher than 2400 MHz results in automatic downclocking to the system bus limit.
- Upgrading from a factory single stick configuration to a dual stick setup yields significant improvements in minimum frame rates for gaming applications.
- Internal component access involves removing the entire bottom chassis cover which may require specialized tools to avoid damaging plastic clips.
- The SO-DIMM form factor excludes the use of standard desktop RAM modules due to physical length and pin count differences.
- Mixing modules with different latency ratings forces the system to operate at the timings of the slowest installed stick.
- The architecture supports 1.2V DDR4 modules which reduces heat generation compared to older 1.35V or 1.5V standards.
