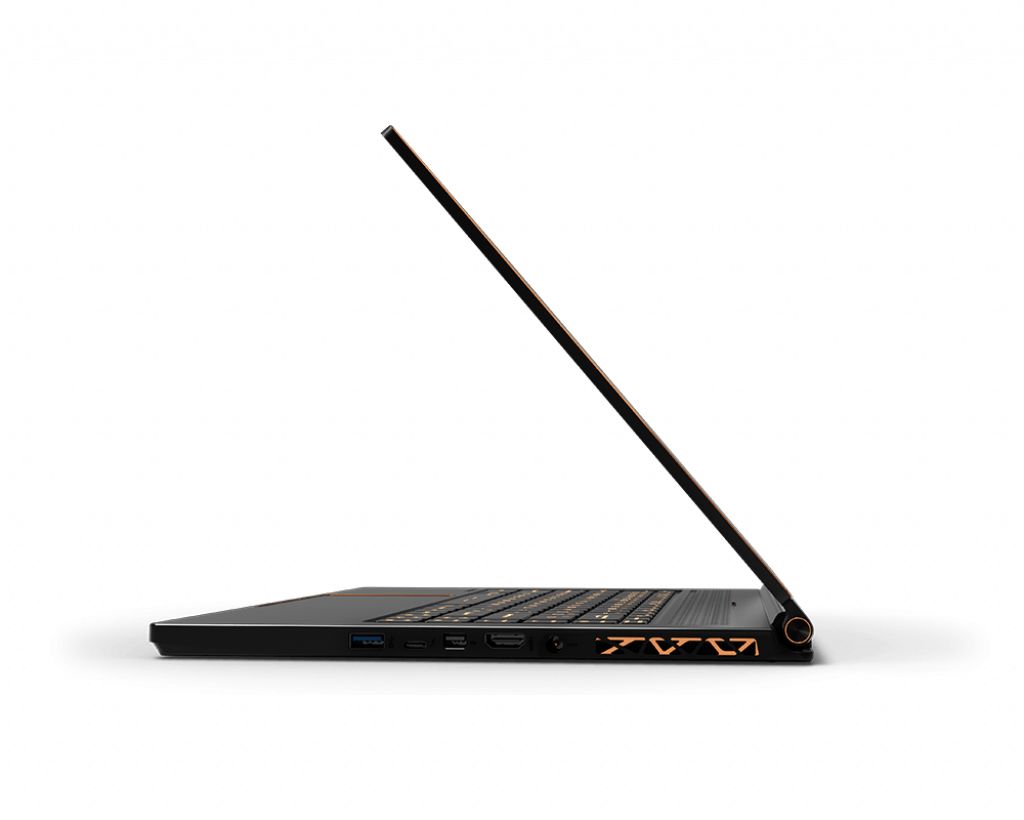

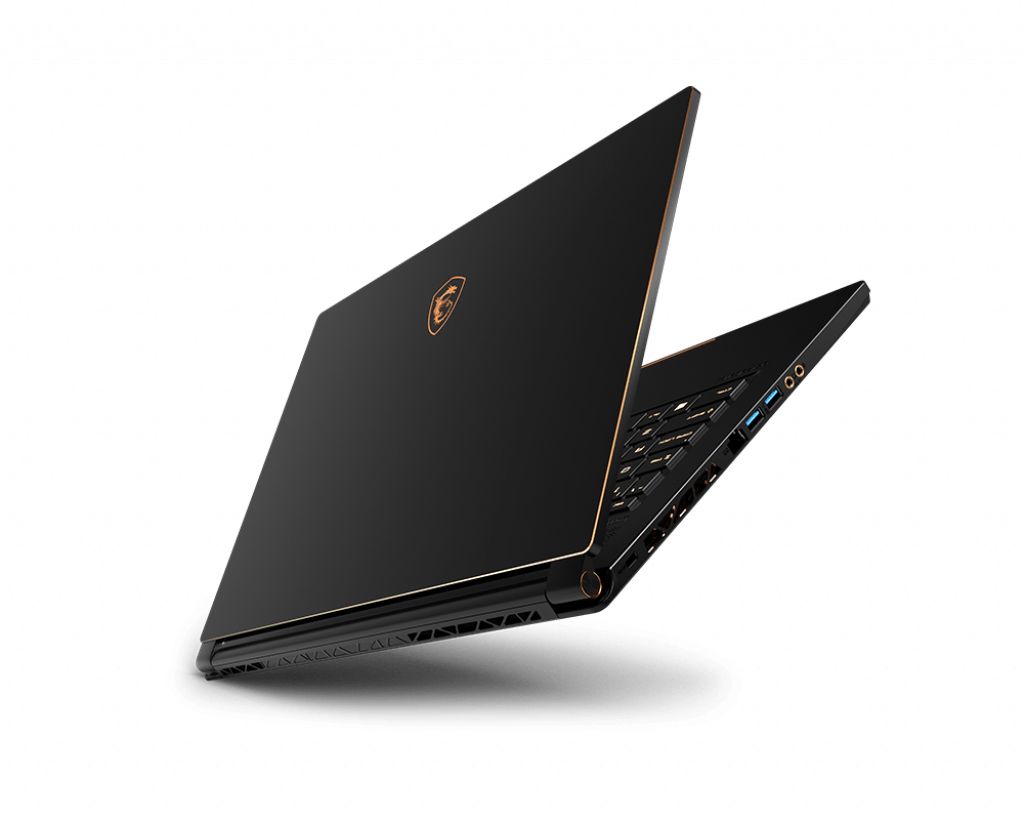

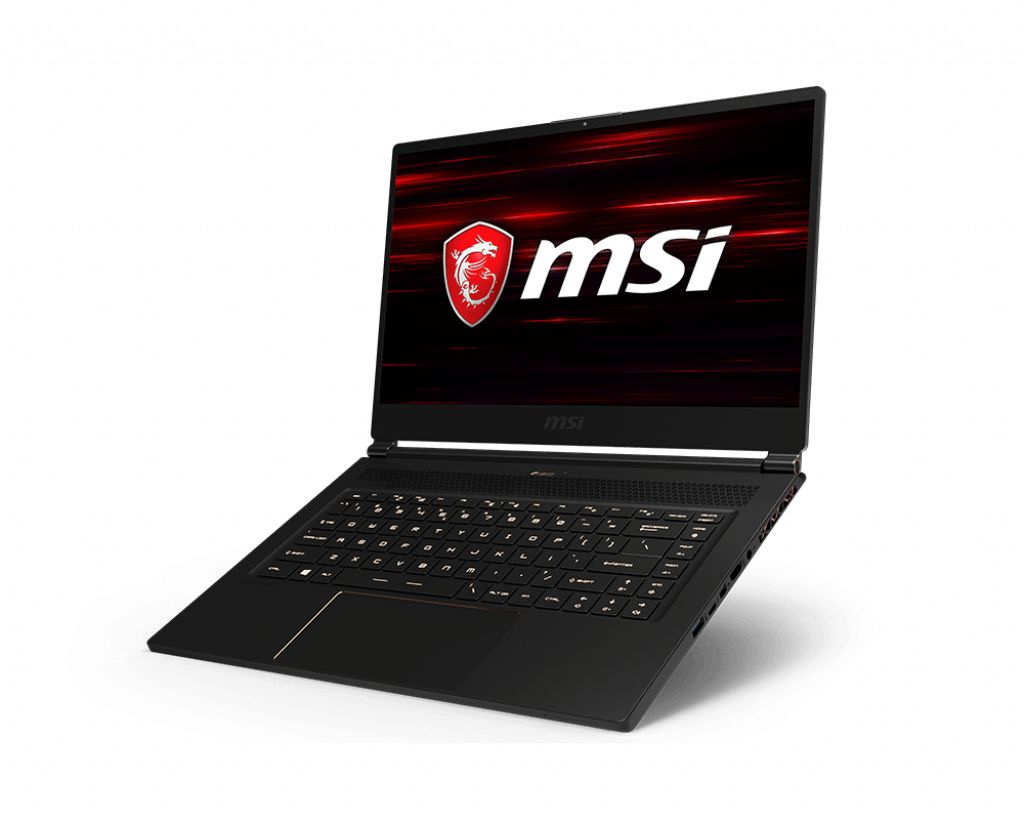

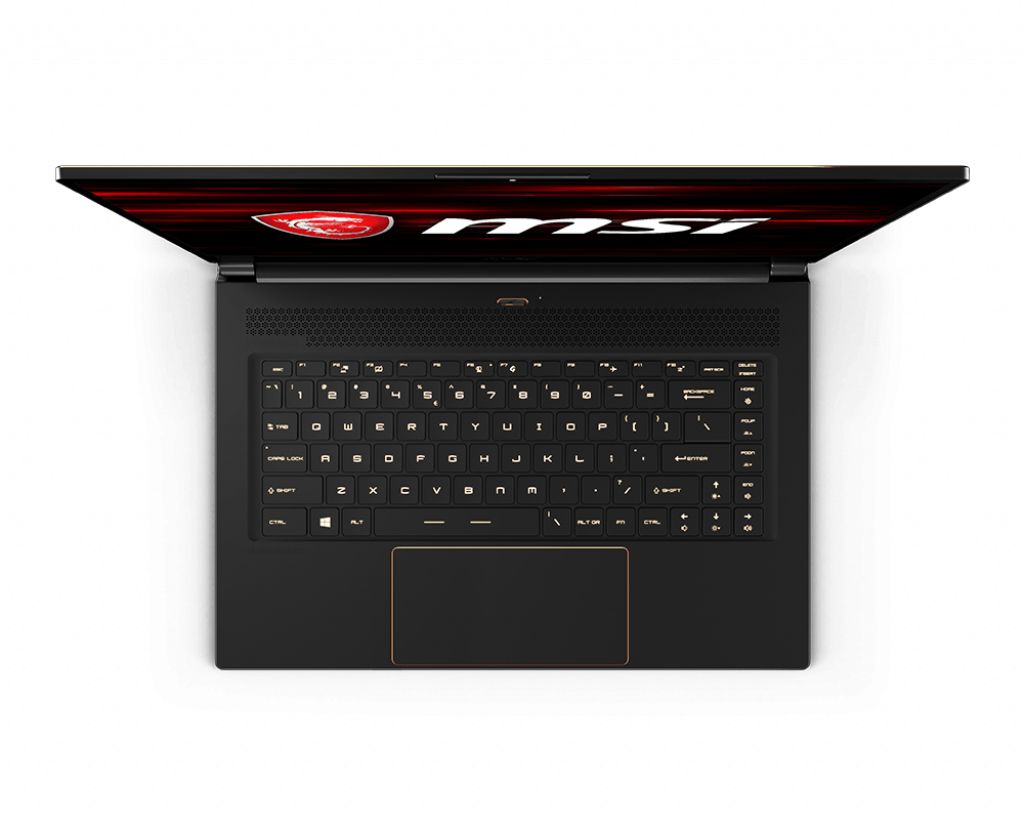

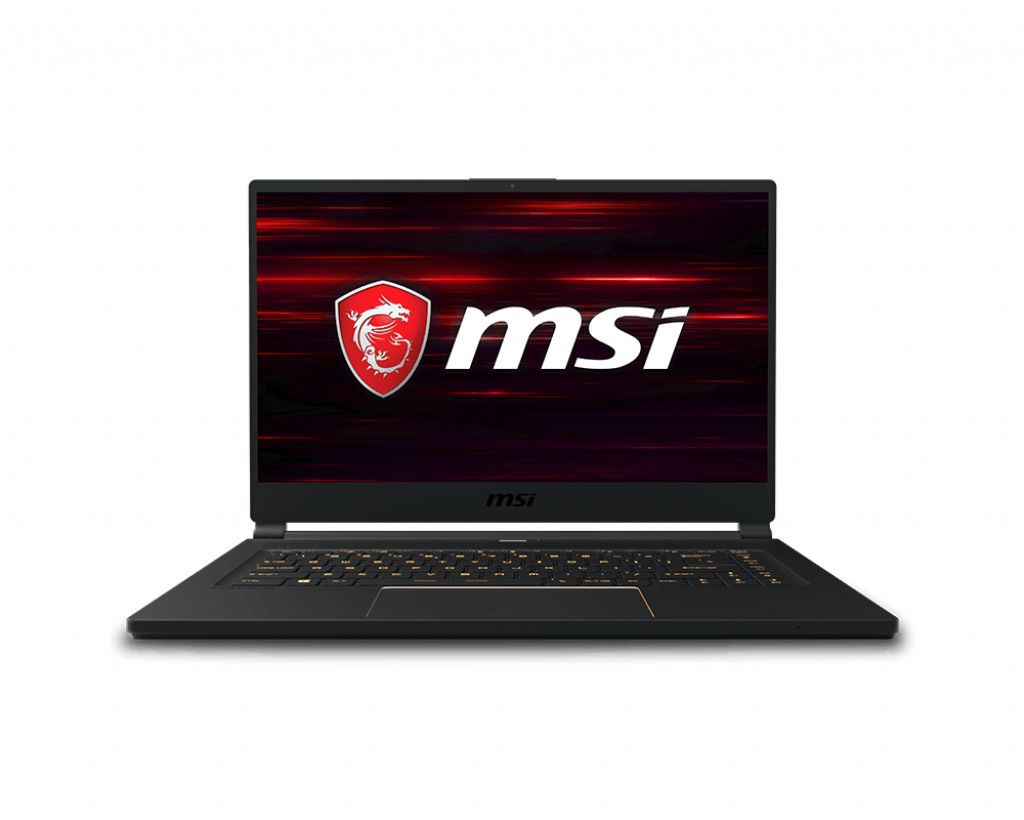

MSI Gaming GS65 Stealth Thin 8RF-250ES RAM upgrade specifications

The MSI GS65 Stealth Thin 8RF-250ES Gaming series laptop features DDR4-SDRAM memory upgrade specifications. The system contains 2 SO-DIMM memory slots with maximum RAM capacity of 32 GB. Compatible memory modules operate at 2666 MHz frequency and utilize the SO-DIMM form factor. Upgrade configurations support DDR4-SDRAM modules installed in the dual slot configuration to achieve specifications compatible with this MSI Gaming GS series model.

Additional Notes

• The MSI GS65 Stealth Thin 8RF-250ES supports dual-channel memory architecture through its 2 SO-DIMM slots, enabling symmetric configurations such as 2x8 GB or 2x16 GB for optimal bandwidth utilization.
• DDR4-2666 operates at PC4-21300 standard, delivering 21.3 GB/s theoretical bandwidth per module, which doubles to 42.6 GB/s in dual-channel mode when both slots are populated with matching modules.
• The 32 GB ceiling requires purchasing 16 GB modules rather than 8 GB sticks when planning for maximum capacity, affecting initial investment costs for future-proof configurations.
• SO-DIMM modules measure 67.6 mm in length compared to standard desktop DIMM at 133.35 mm, making desktop memory physically incompatible despite identical DDR4 electrical specifications.
• Installing a single module defaults the system to single-channel mode, reducing memory bandwidth by approximately 50% compared to dual-channel operation, potentially impacting integrated graphics performance and memory-intensive applications.
• Mixed-capacity configurations such as 8 GB plus 16 GB will operate in flex mode, running dual-channel for the matched 16 GB portion and reverting to single-channel for the remaining 8 GB.
• DDR4-2666 modules rated at higher speeds such as 2933 MHz or 3200 MHz will downclock automatically to 2666 MHz due to chipset and processor limitations on this platform.
• Non-standard module heights exceeding 30 mm may create clearance conflicts with the keyboard deck or thermal components in ultra-thin chassis designs.
• Voltage specification for DDR4-2666 is standardized at 1.2V, ensuring compatibility with JEDEC-compliant modules while low-voltage variants offer no performance advantage on this platform.
• CAS latency typically ranges from CL17 to CL19 for DDR4-2666, with tighter timings providing marginal performance improvements of 1-3% in latency-sensitive workloads.
• Upgrading memory does not void manufacturer warranty when performed according to service manual guidelines, unlike modifications to soldered components or unauthorized disassembly procedures.
• Mismatched memory speeds between slots will force both modules to operate at the lower frequency, making it inefficient to pair DDR4-2666 with DDR4-2400 or DDR4-2133 modules.
