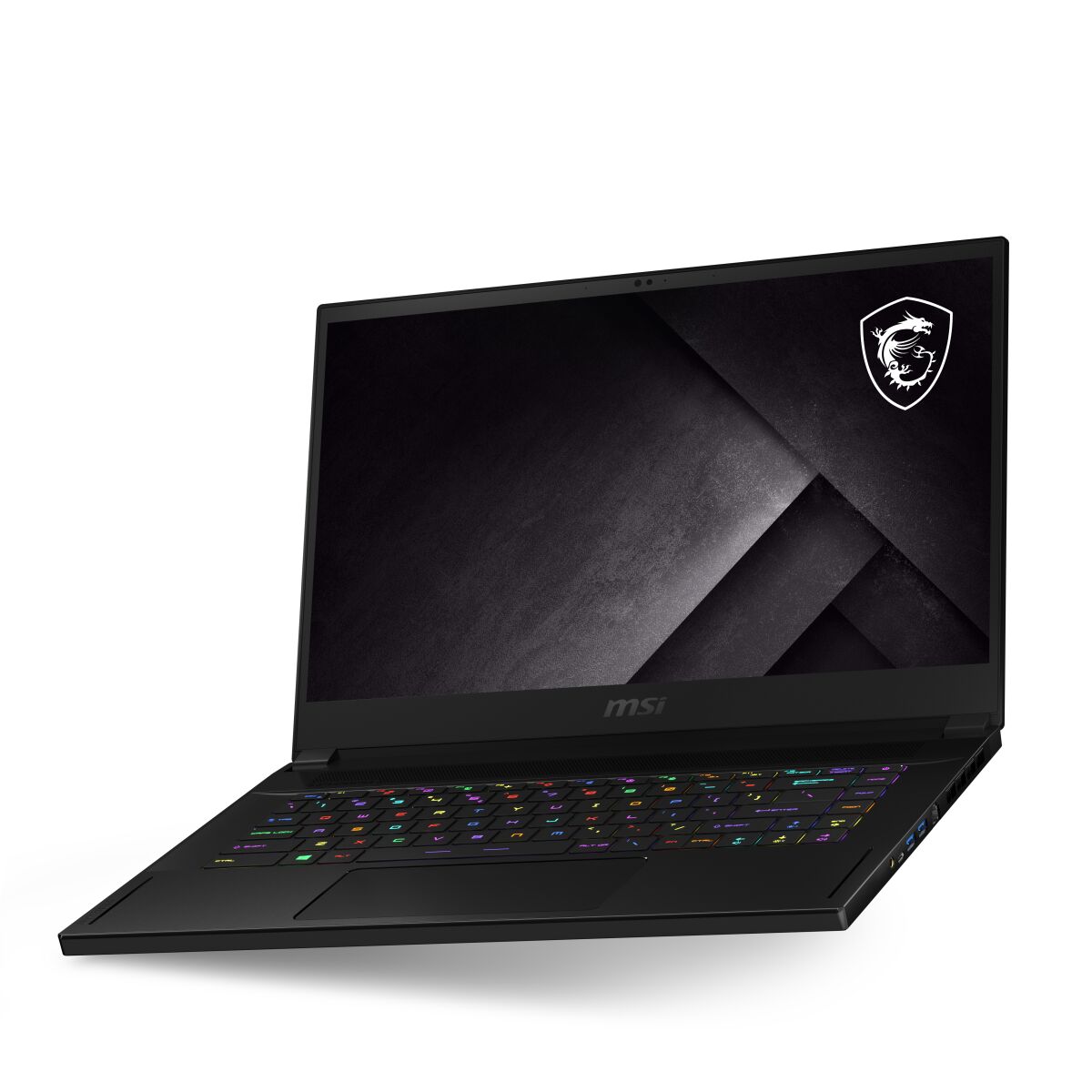

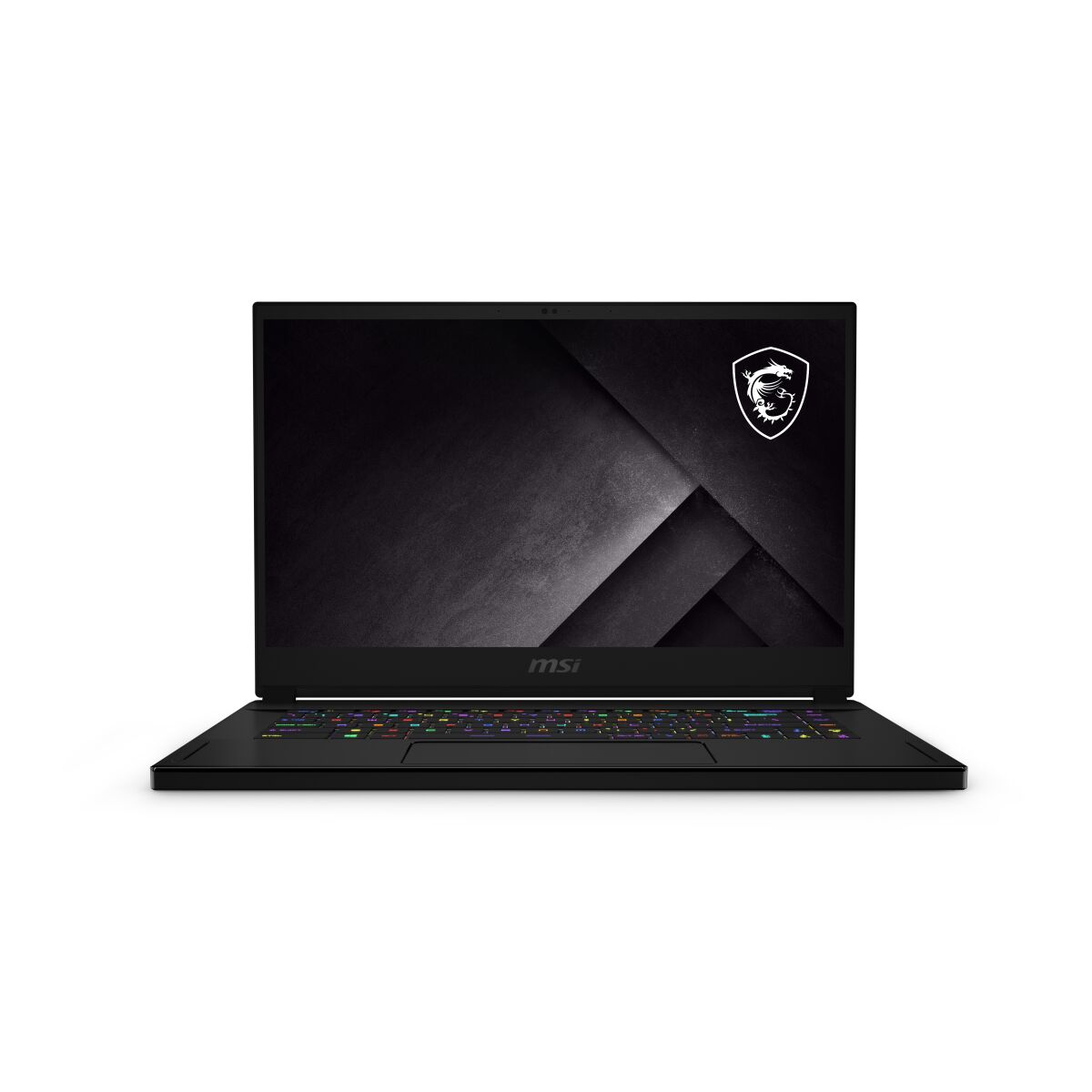

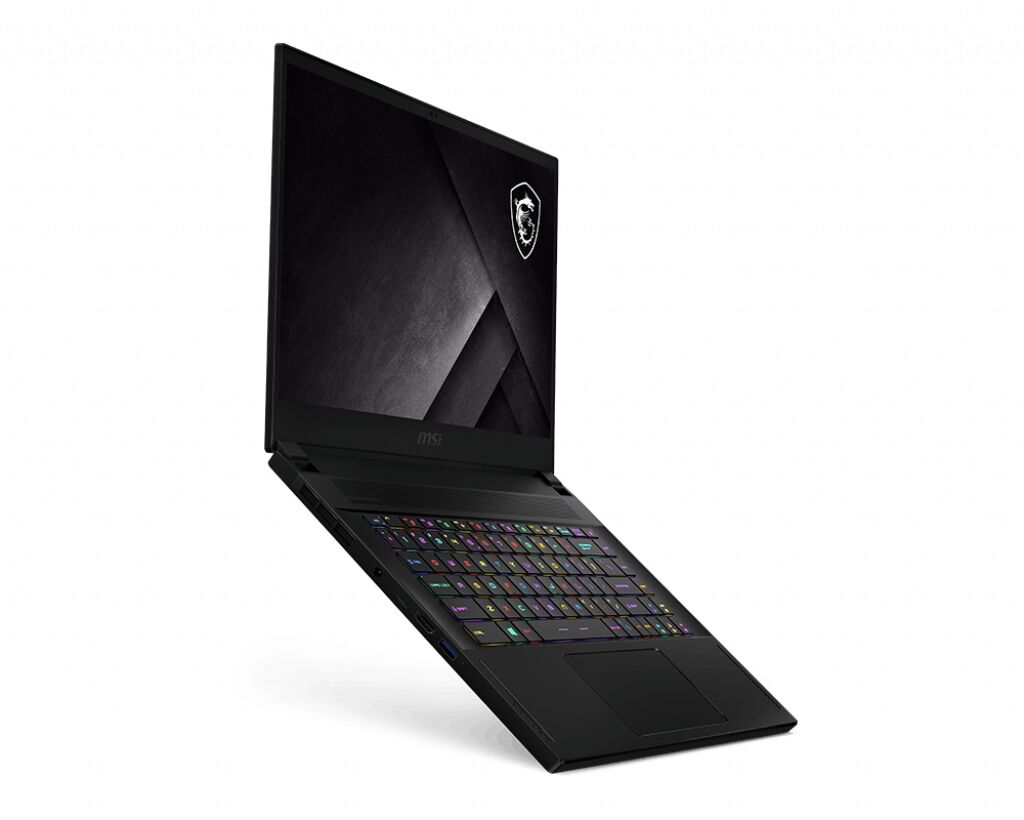

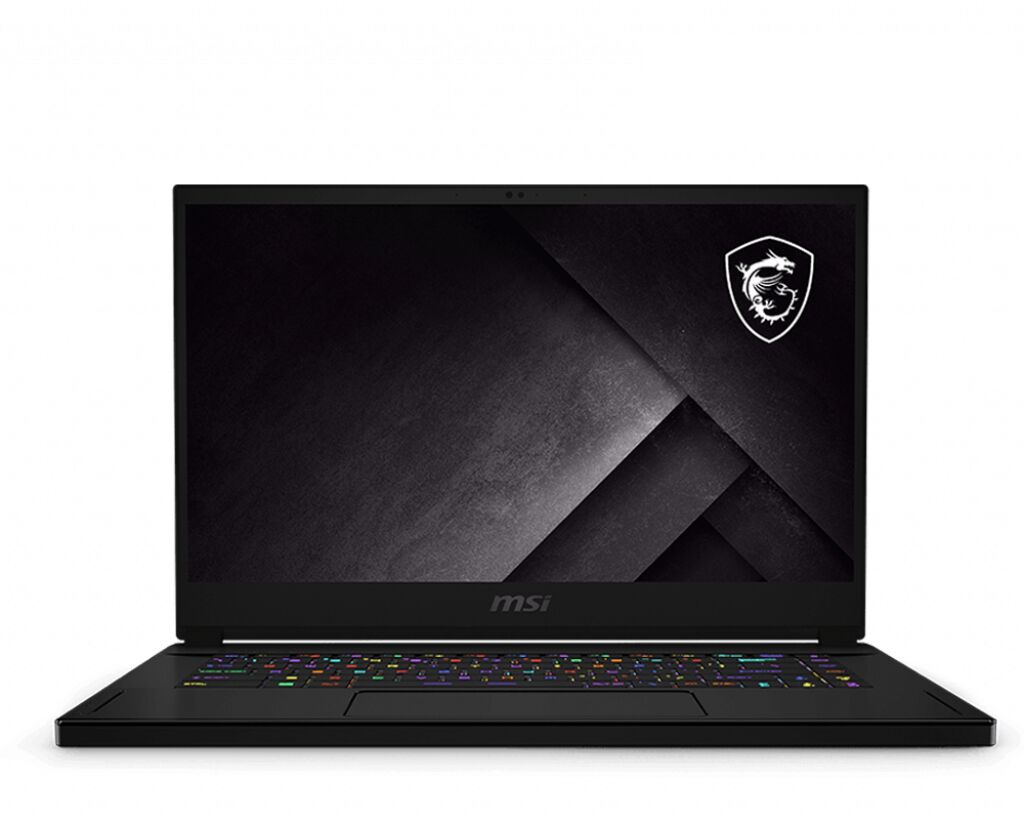

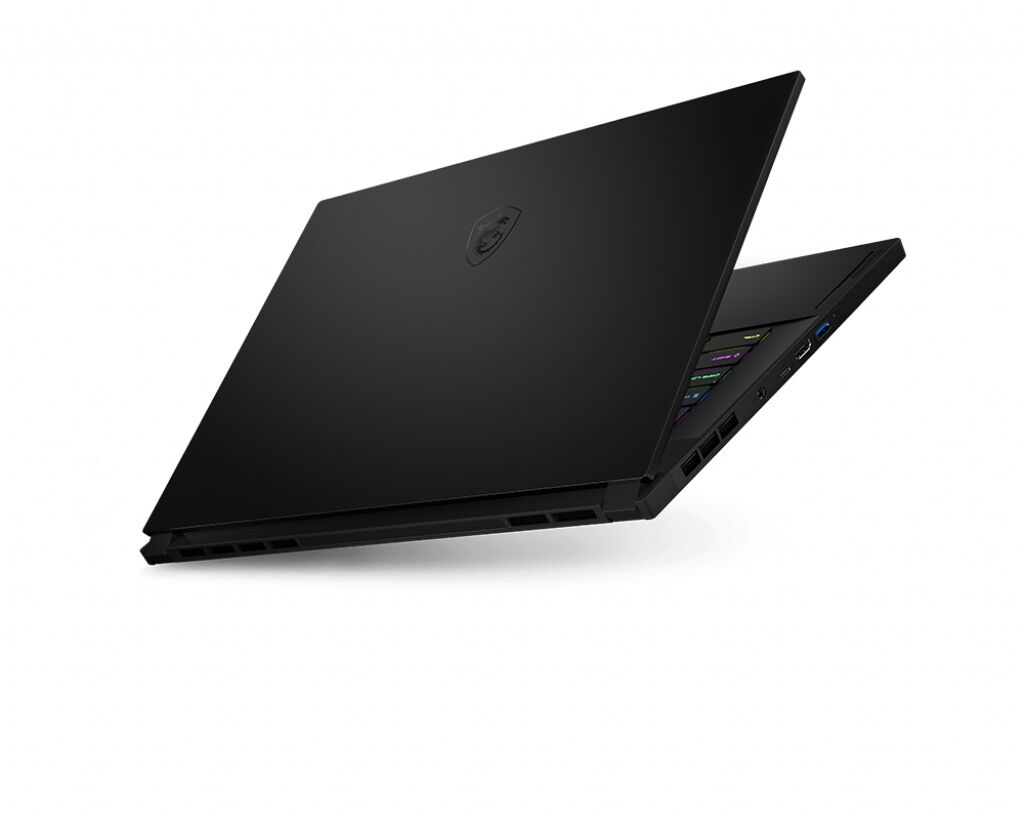

MSI Gaming GS66 10UH-065PL Stealth RAM upgrade specifications
MSI GS66 10UH-065PL Stealth gaming laptop features DDR4-SDRAM memory upgrade capacity. The system includes 2x SO-DIMM slots for RAM expansion, supporting maximum memory capacity of 64 GB total. Compatible DDR4 modules operate at 3200 MHz frequency. The GS66 Stealth series specifications allow users to upgrade RAM by installing SO-DIMM memory modules into available slots. Maximum supported upgrade capacity reaches 64 GB when both memory slots are fully populated with compatible DDR4-SDRAM modules.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 64 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 06 May 2021 |
Additional Notes
- The MSI GS66 10UH Stealth contains 2 SO-DIMM slots operating in dual-channel configuration, which means memory bandwidth reaches approximately 51.2 GB/s at rated frequency. Single-channel operation from incomplete slot population reduces bandwidth by half, creating a measurable performance penalty in memory-intensive workloads.
- DDR4-3200 specification indicates compatibility only with DDR4 modules rated for 3200 MHz or higher. Installing lower-frequency DDR4 modules results in automatic downclocking of all memory to the slowest module's rated speed, reducing system performance uniformly.
- The 64 GB maximum capacity constraint derives from SO-DIMM physical limitations and motherboard firmware, not from slot count. Each slot accommodates 32 GB modules maximum, meaning full capacity requires 2x32 GB configuration rather than stacking additional modules.
- SO-DIMM form factor requires modules measuring approximately 67 mm length and 30 mm height. Clearance above RAM slots may restrict cooler heights or heatsink designs during upgrades, particularly in compact gaming chassis designs typical of this product class.
- The 10th generation Intel processor platform (indicated by "10UH" designation) predates DDR5 support by 2 processor generations. BIOS updates cannot enable DDR5 compatibility regardless of firmware version, eliminating this as a future upgrade path.
- Mixing module capacities (example: 16 GB plus 32 GB) maintains dual-channel operation but creates asymmetric addressing, potentially reducing performance efficiency compared to identical paired modules.
