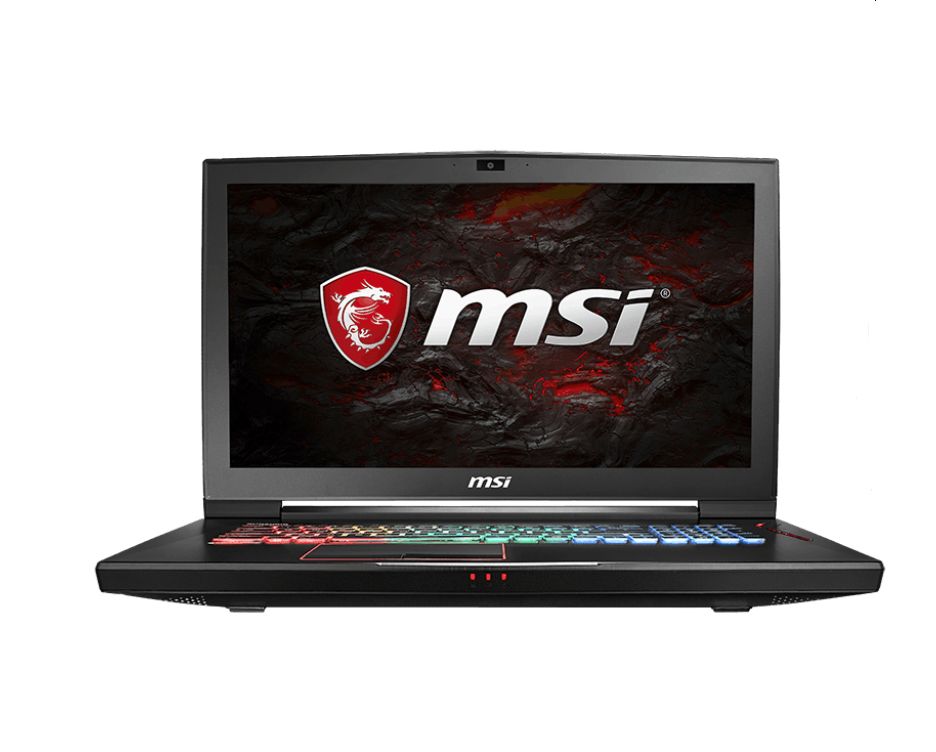

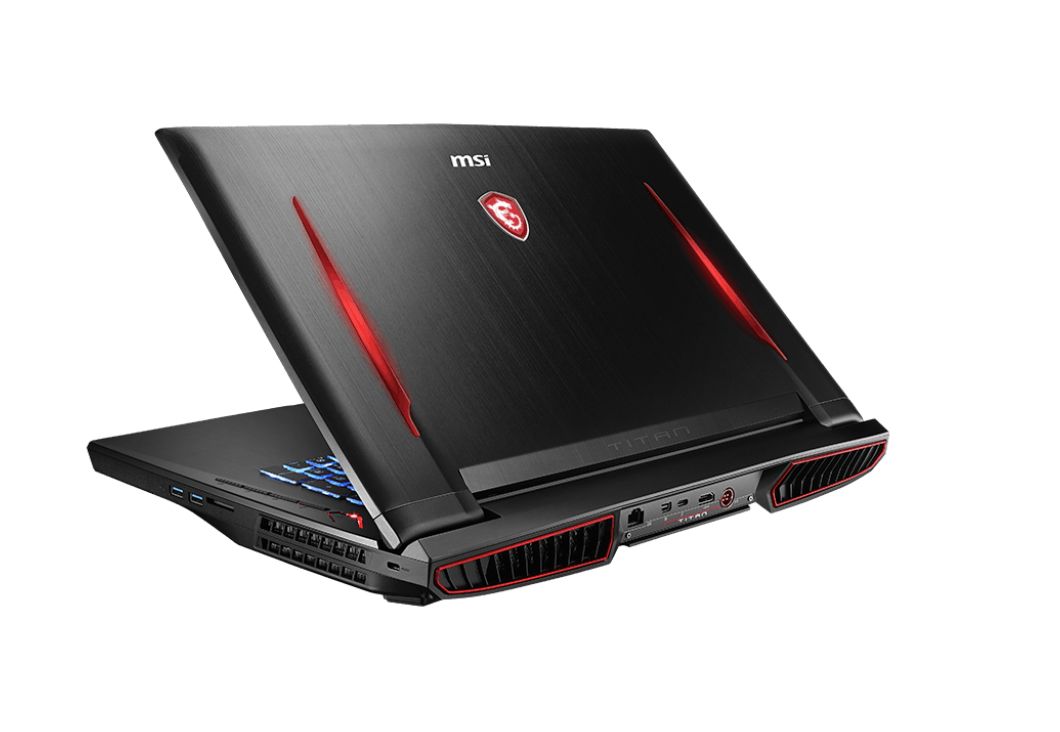

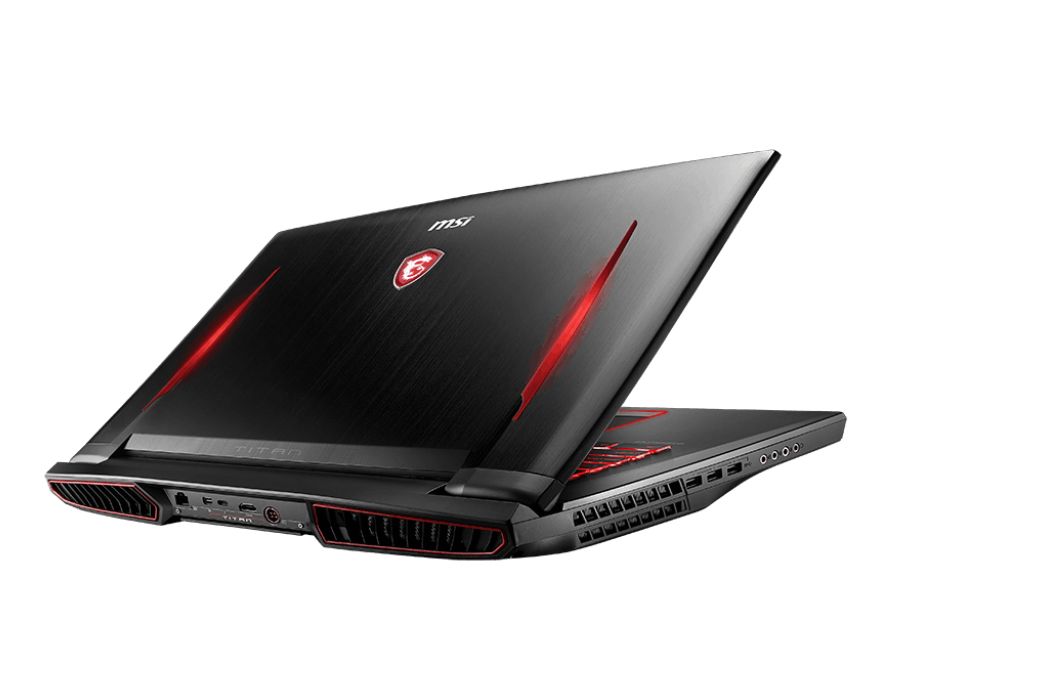

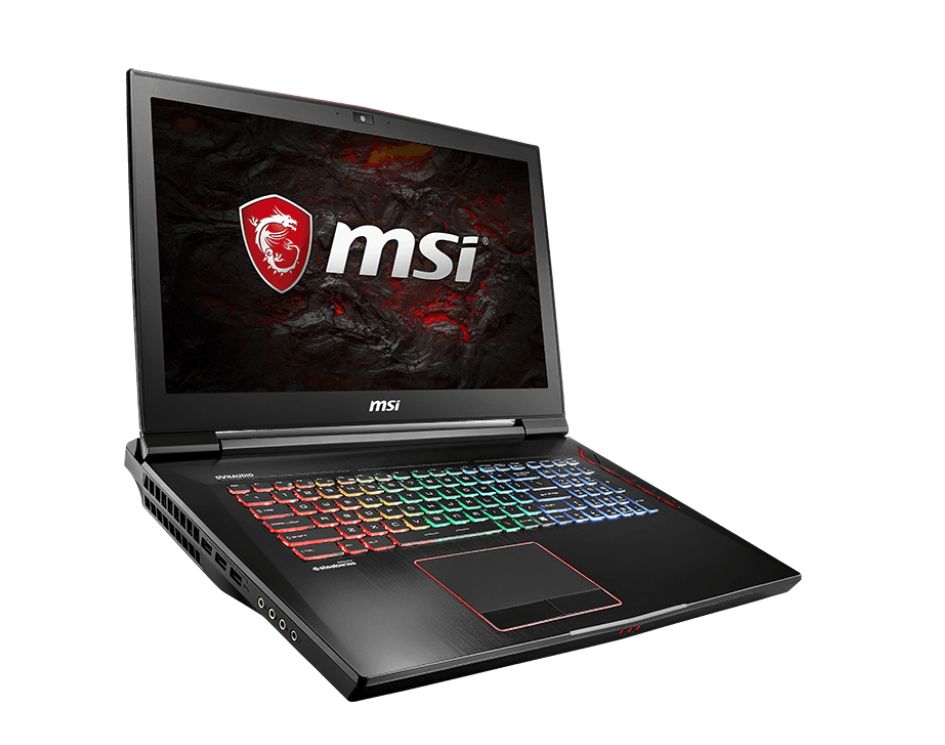

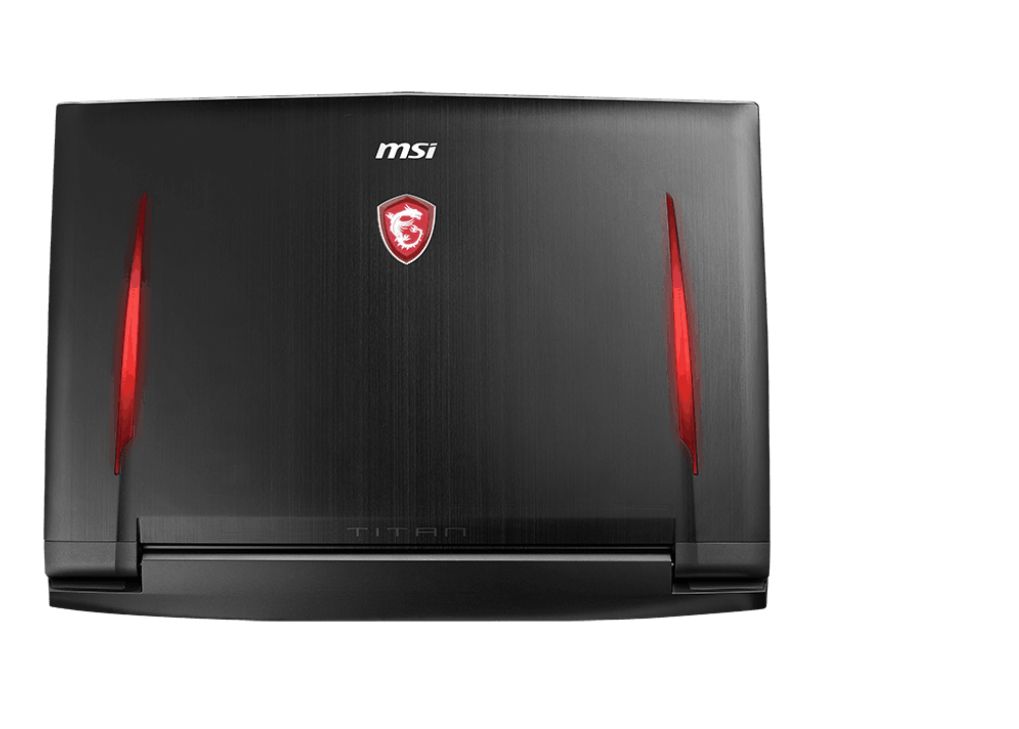

MSI Gaming GT75VR 7RF-012 Titan Pro RAM upgrade specifications
The MSI GT75VR 7RF-012 Titan Pro gaming laptop supports DDR4-SDRAM memory upgrades through four SO-DIMM slots. Maximum compatible memory capacity reaches 64 GB total. Standard specifications include 2400 MHz frequency operation. Memory upgrade configurations are available for the GT series Titan Pro model, allowing users to expand RAM capacity beyond factory specifications. Replacement and additional memory modules must match SO-DIMM form factor compatibility requirements for the GT75VR 7RF-012 platform.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 4x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2400 MHz |
| Maximum RAM | 64 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2400 (PC4-19200) |
| Bandwidth | 19.2 GB/s |
| Laptop Release date | 01 July 2017 |
Additional Notes
- The 4 SO-DIMM slots allow configurations of 4x16GB modules to reach the 64GB maximum capacity.
- DDR4-2400 represents the official JEDEC standard speed supported by the 7th generation Intel chipset in this model.
- Higher frequency modules such as DDR4-2666 or DDR4-3200 will downclock to 2400MHz when installed in this system.
- The SO-DIMM form factor physically differs from standard desktop DIMM modules and requires laptop-specific memory purchases.
- Mixing memory modules with different capacities across the 4 slots remains possible but may disable dual-channel operation depending on configuration.
- Non-matching module specifications (speed, latency, or rank configuration) across slots can force all modules to run at the lowest common specification.
- The 7th generation Intel mobile platform limits memory bandwidth to dual-channel operation regardless of the number of populated slots.
- User-accessible memory slots in gaming laptops typically allow upgrades without voiding the manufacturer warranty when following proper installation procedures.
- Operating voltage for DDR4-2400 SO-DIMM modules is standardized at 1.2V, which differs from DDR3 generation compatibility.
- Populating all 4 slots with higher density modules may increase power consumption and heat generation compared to 2-slot configurations with equivalent total capacity.
