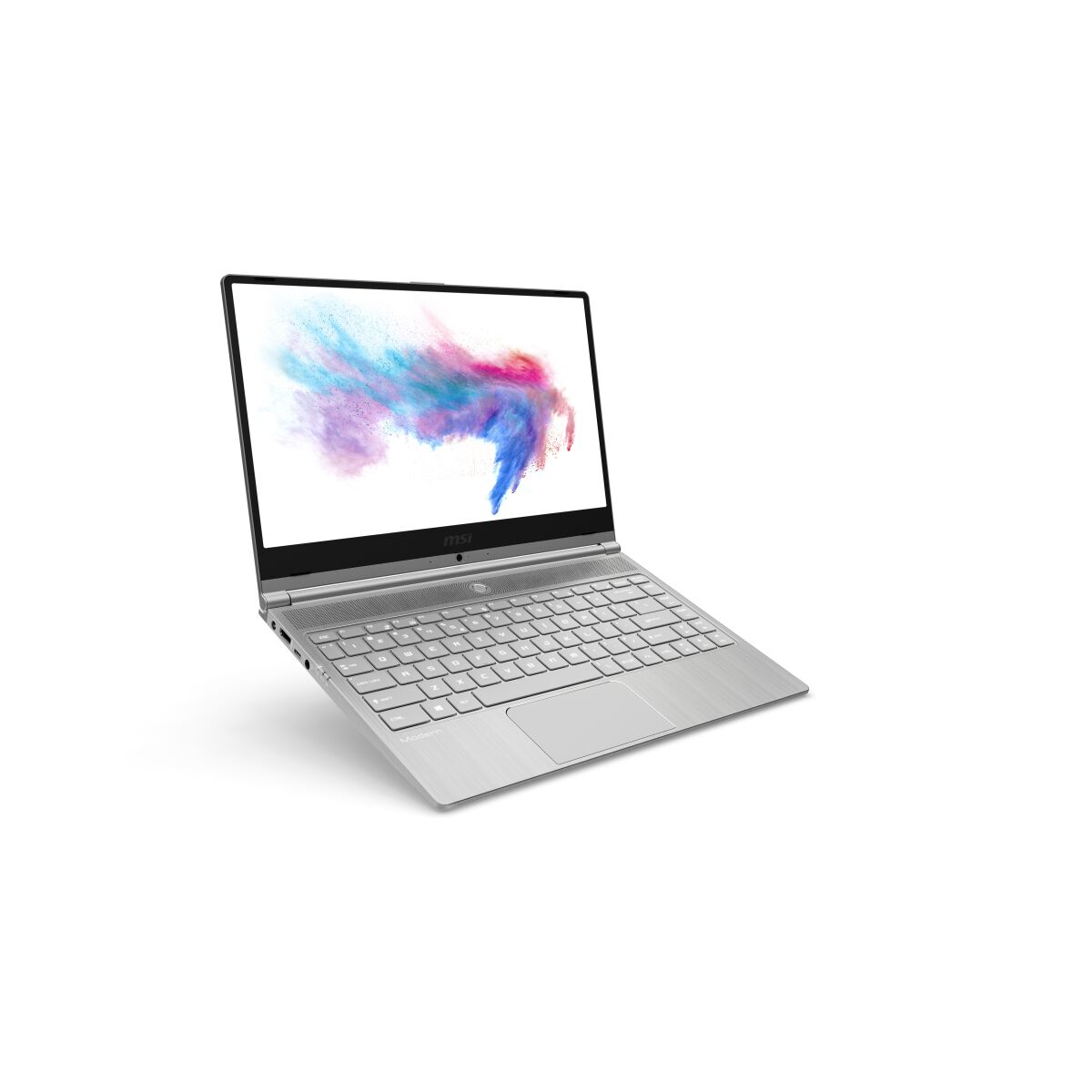

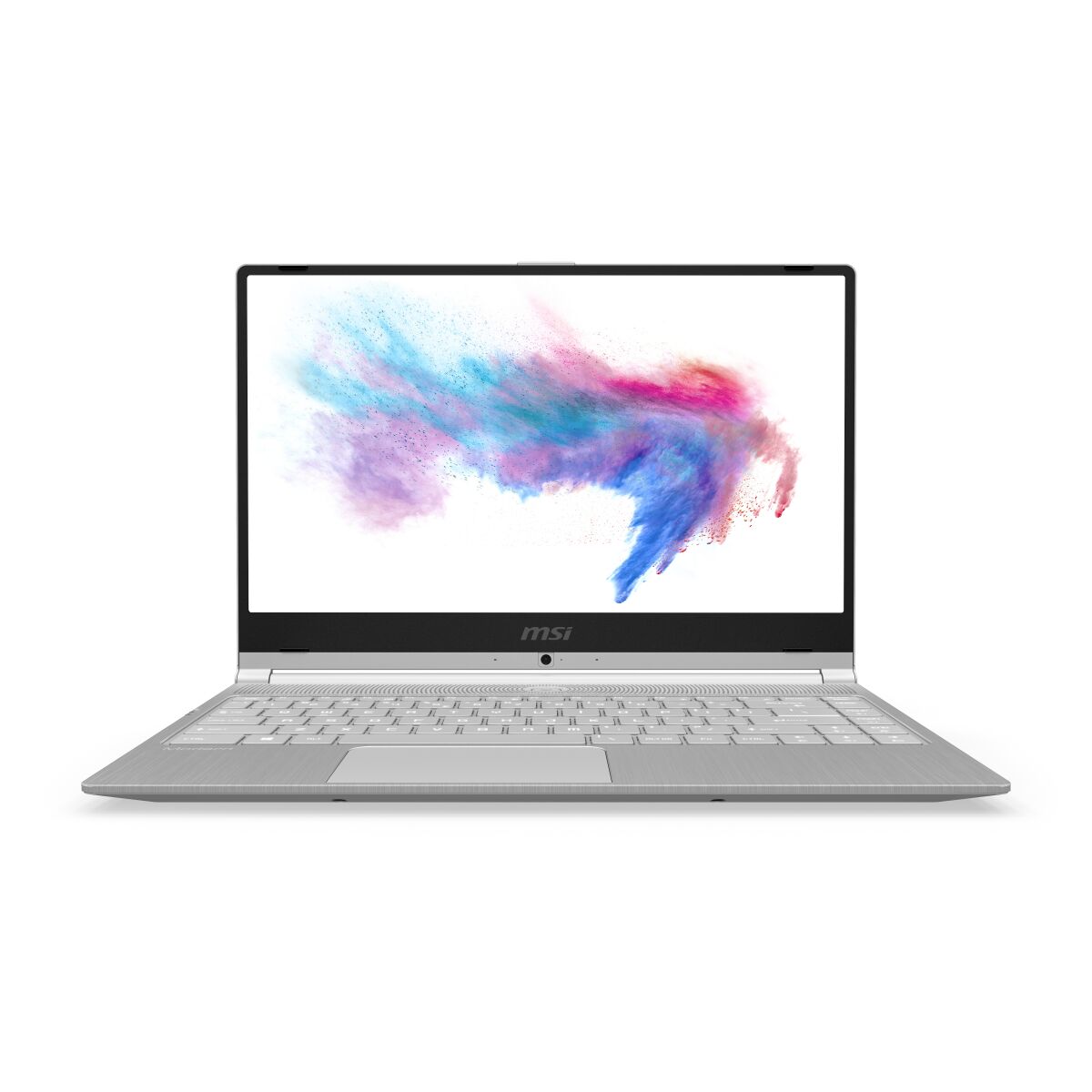

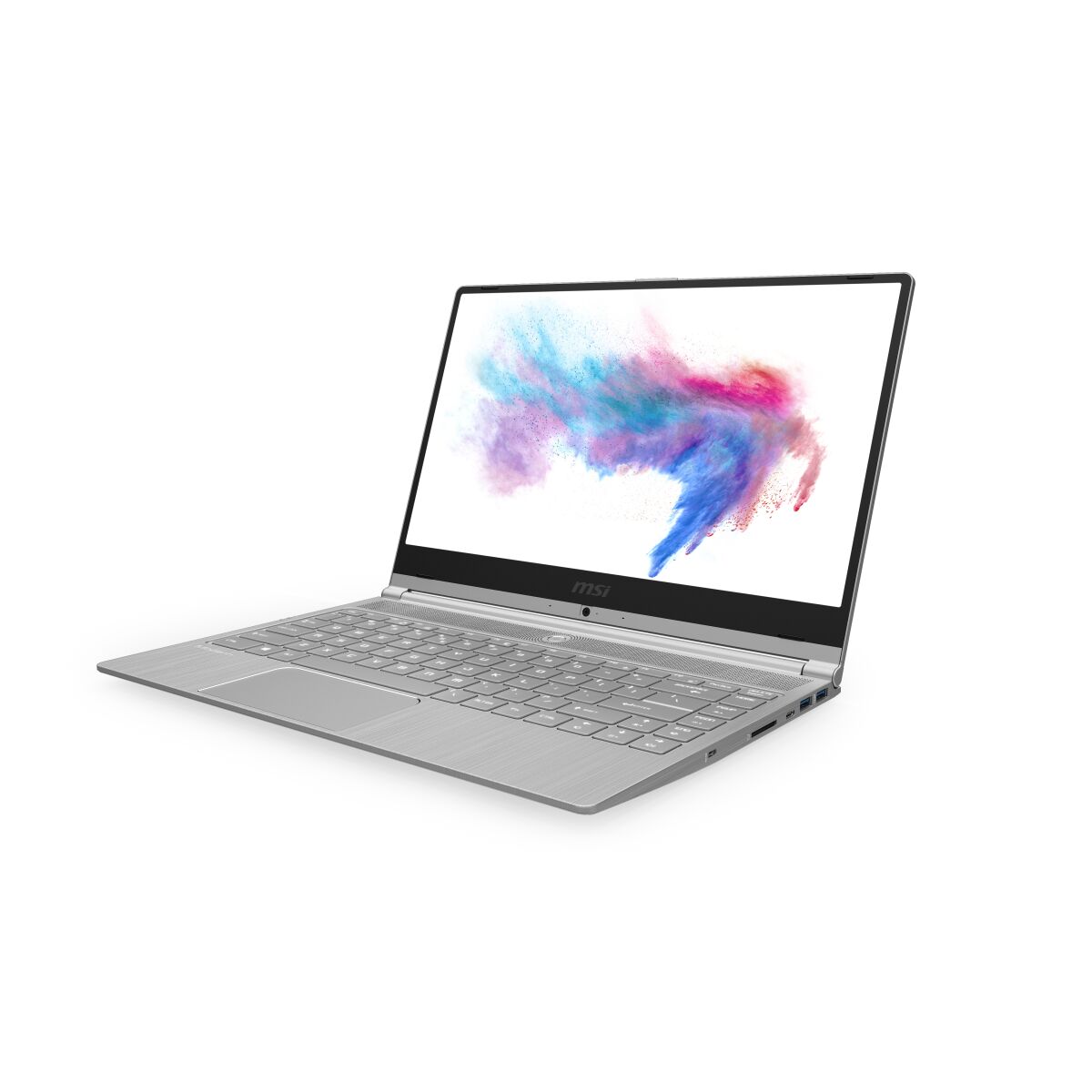

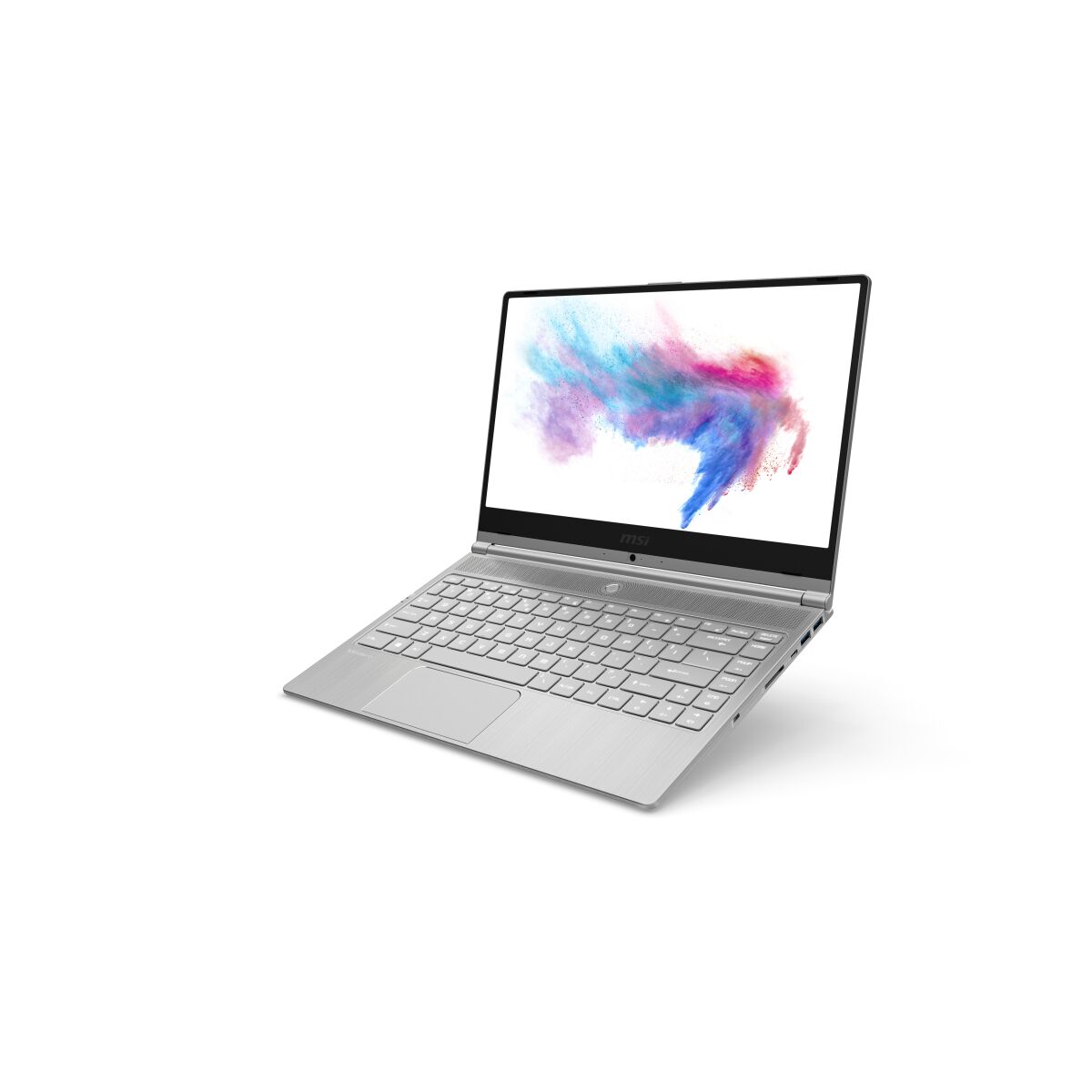

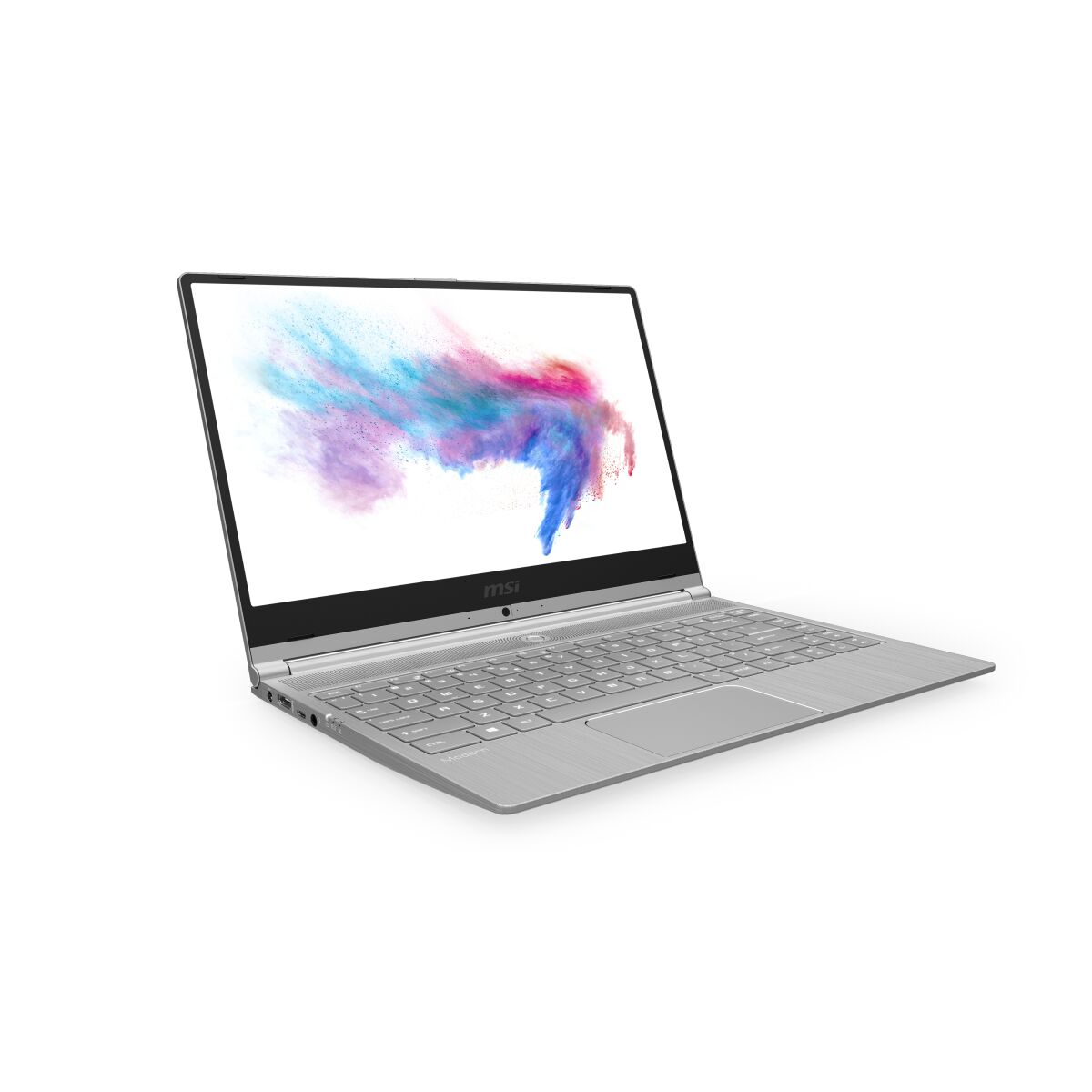

MSI Modern 14 A10RB-447IT RAM upgrade specifications

The MSI Modern 14 A10RB-447IT laptop features DDR4-SDRAM memory with upgrade capacity to maximum 32 GB. The system includes 1x SO-DIMM slot for memory expansion. Compatible RAM specifications require DDR4 modules operating at 2666 MHz frequency in SO-DIMM form factor. Memory upgrade allows users to enhance multitasking performance and application responsiveness on the Modern 14 series machine.

Additional Notes

• The single SO-DIMM slot architecture prevents dual-channel memory operation, limiting memory bandwidth to approximately 21 GB/s compared to the 42 GB/s achievable with two slots operating in parallel.
• Upgrading from a lower capacity module requires complete replacement rather than expansion, as the MSI Modern 14 A10RB-447IT offers no secondary slot for adding supplementary memory.
• The 2666 MHz specification reflects JEDEC standard DDR4-2666 timing, typically running at CL19 latencies, which introduces approximately 14.3 nanoseconds of initial memory access delay.
• Installing a module rated above 2666 MHz will result in automatic downclocking to match the supported frequency ceiling, negating any speed advantage of higher-specification RAM.
• The 32 GB maximum capacity constraint stems from chipset and BIOS limitations rather than physical slot restrictions, preventing recognition of emerging 64 GB SO-DIMM modules.
• SO-DIMM installations require alignment of the notch positioned offset from center at approximately 2/5ths along the module length to prevent incorrect insertion that could damage the 260-pin connector.
• Single-channel operation particularly impacts integrated graphics performance, reducing frame rates by 15-30% in GPU-dependent tasks compared to equivalent dual-channel configurations.
• Memory replacement typically requires bottom panel removal, potentially voiding warranty seals depending on regional consumer protection regulations and manufacturer service policies.
• DDR4 operates at 1.2 volts standard, with the SO-DIMM form factor dissipating approximately 2-3 watts under load, contributing to overall thermal envelope within the confined chassis space.
• Non-ECC unbuffered modules represent the only compatible type, as the consumer-grade platform lacks the memory controller features necessary for error-correcting code support.
