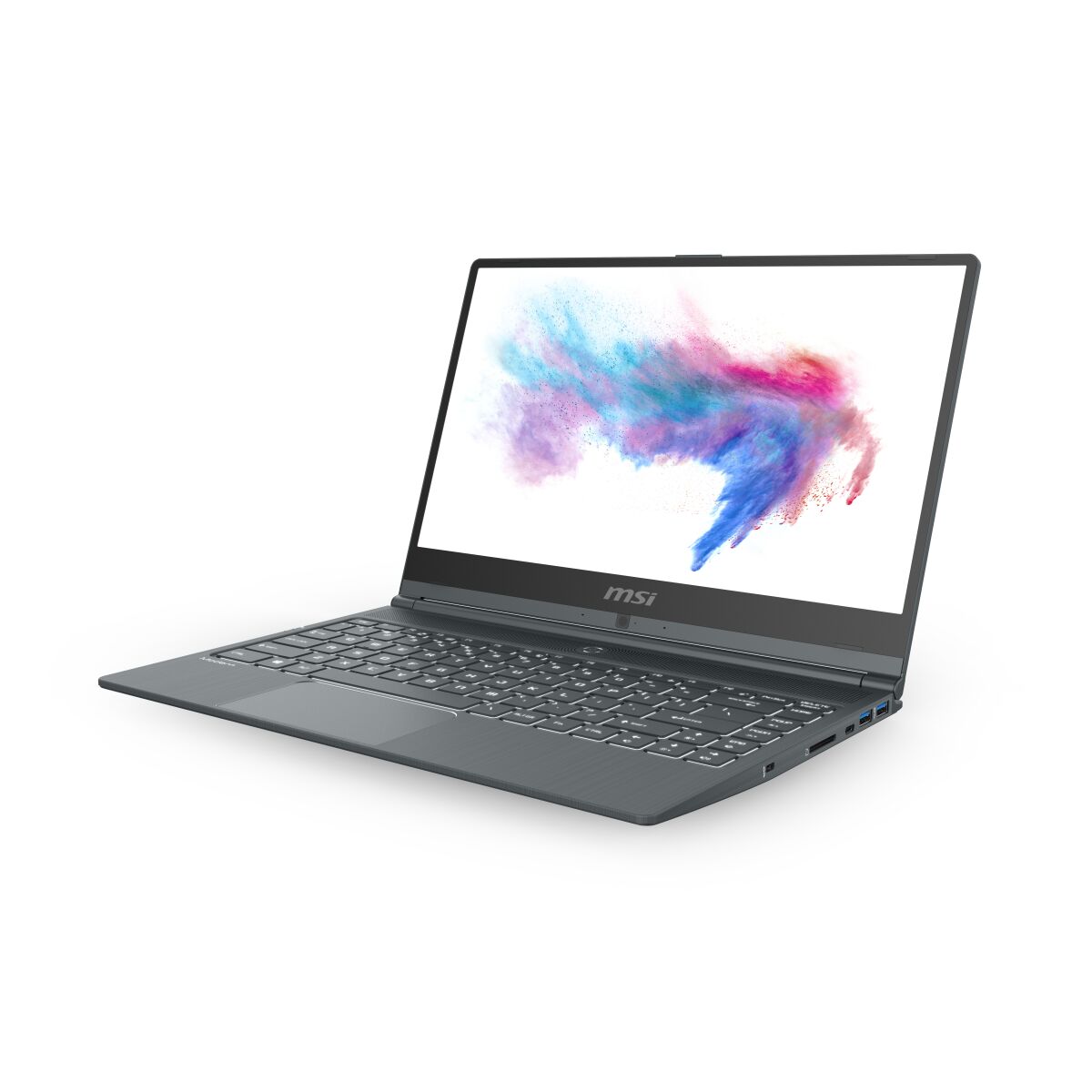

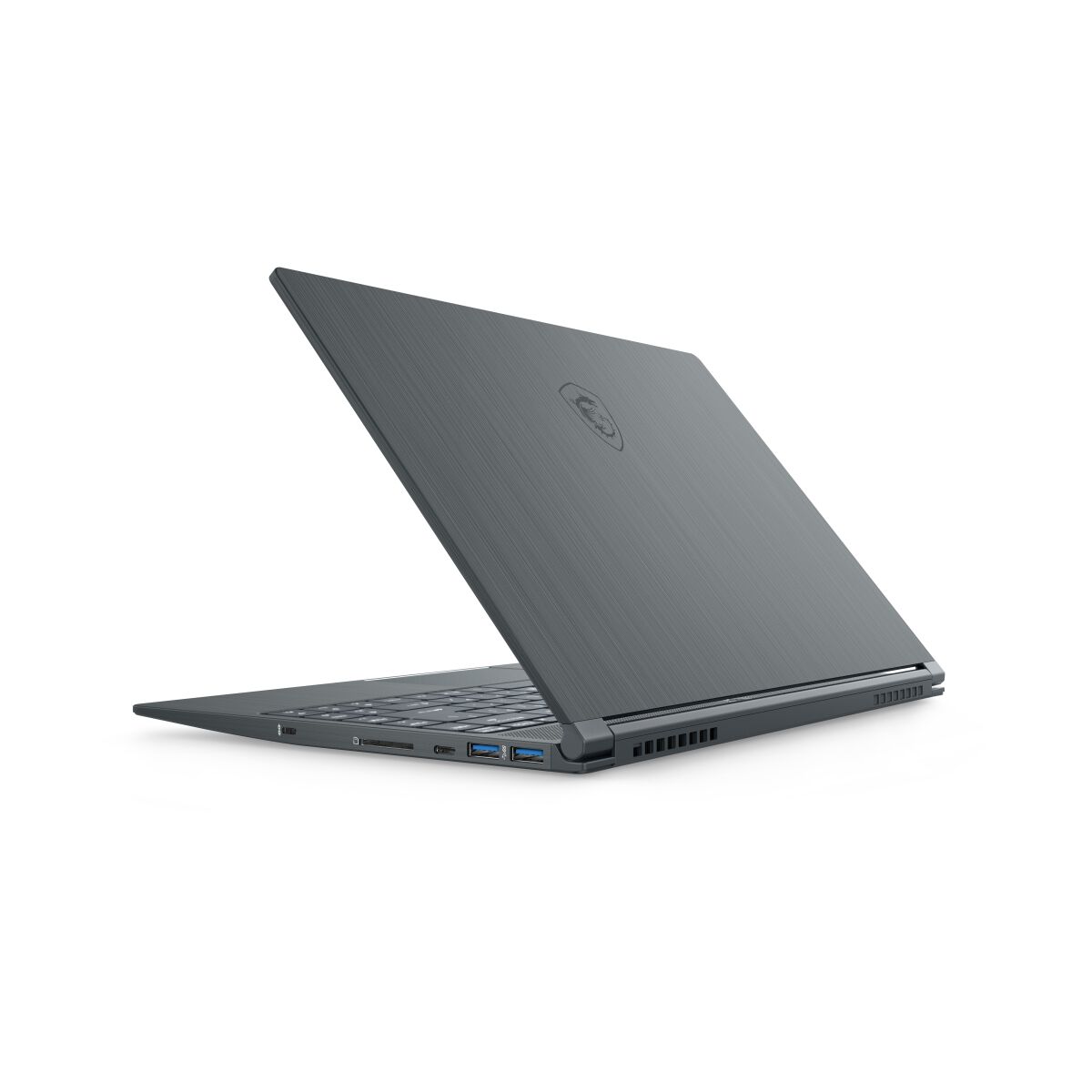

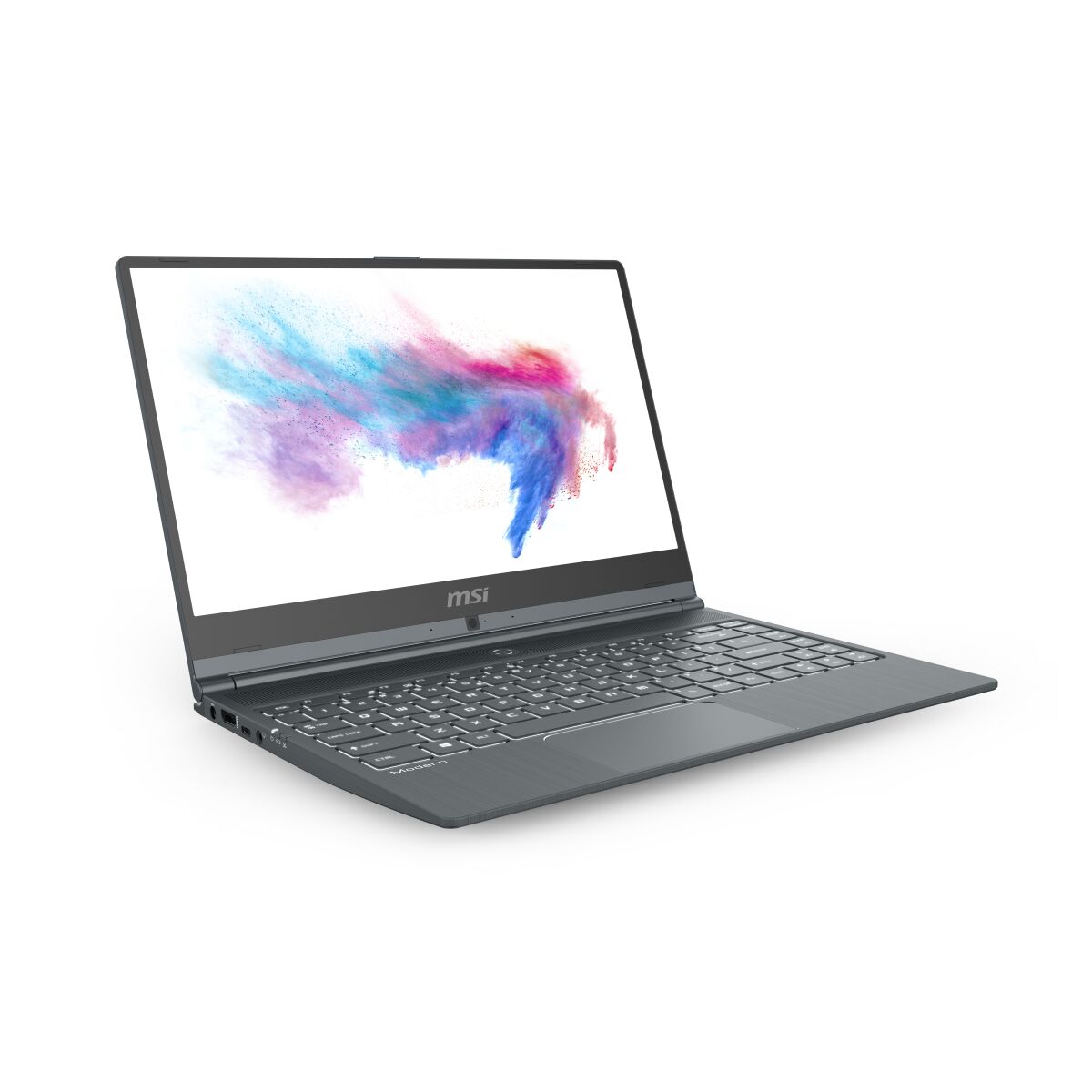

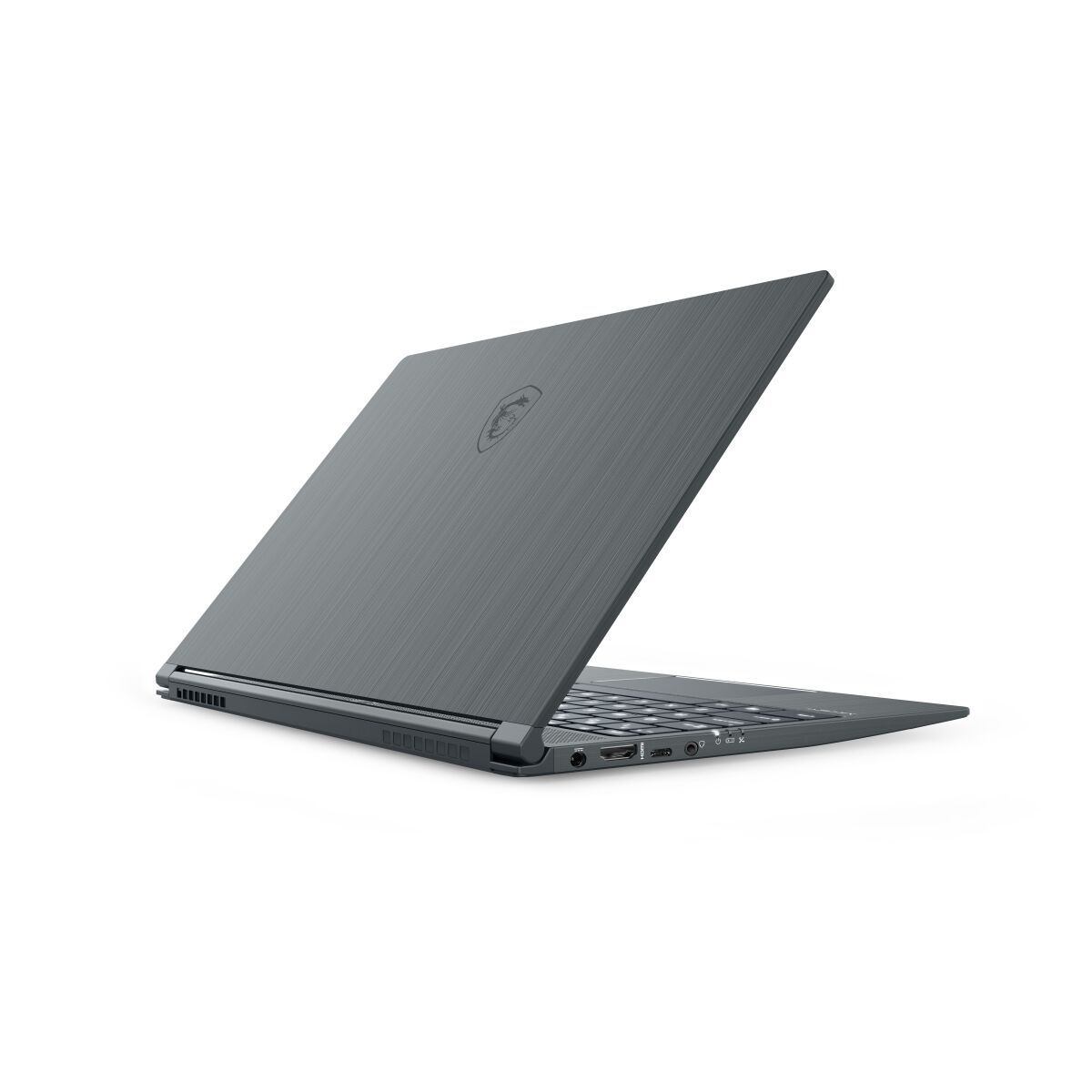

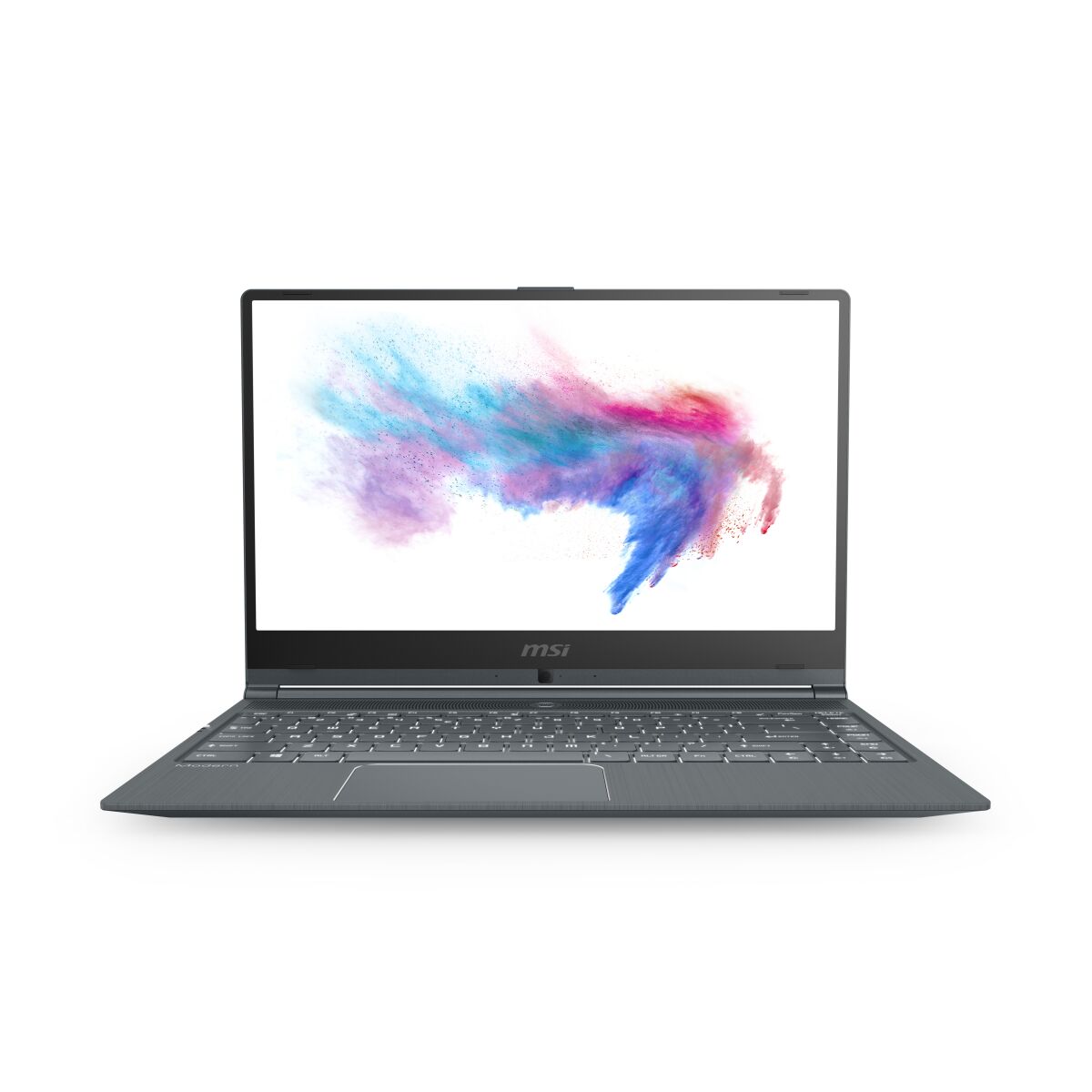

MSI Modern 14 A10RB-681CA RAM upgrade specifications

MSI Modern 14 A10RB-681CA laptop RAM upgrade specifications include DDR4-SDRAM memory support with 1x SO-DIMM slot configuration. Maximum memory capacity reaches 32 GB with 2666 MHz frequency specifications. Compatible RAM modules utilize SO-DIMM form factor for this specific MSI Modern series model. Upgrade specifications indicate single memory slot availability for RAM expansion on the 14 A10RB-681CA notebook configuration.

Additional Notes

• The MSI Modern 14 A10RB-681CA features a single memory slot configuration that prevents dual-channel operation, limiting memory bandwidth to approximately 21.3 GB/s compared to the 42.6 GB/s available in dual-channel systems.
• Integrated graphics performance suffers measurably in single-channel mode, with frame rates in GPU-intensive applications typically reduced by 15 to 30 percent relative to dual-channel configurations.
• The 2666 MHz frequency specification reflects the maximum JEDEC standard speed supported by 10th generation Intel mobile processors without overclocking.
• Upgrading to the 32 GB maximum requires replacing the existing module entirely, as the single slot architecture prohibits additive capacity expansion.
• SO-DIMM modules operating at speeds above 2666 MHz will automatically downclock to match the controller's maximum supported frequency.
• The soldered memory design is absent in this model, making RAM replacement accessible without specialized equipment or risks to warranty-protected components.
• Memory latency remains fixed at JEDEC-specified timings for DDR4-2666, typically CL19, regardless of module manufacturer or XMP profile capabilities.
• The single-slot limitation derives from the chassis thickness constraints common to 14-inch ultraportable designs prioritizing weight reduction below 1.3 kilograms.
• Power consumption for a single 32 GB module at 2666 MHz approximates 3 to 4 watts under load, marginally impacting battery runtime compared to lower-capacity configurations.
• Module height must not exceed 30mm to ensure clearance beneath the keyboard assembly and avoid physical contact with internal thermal components.
