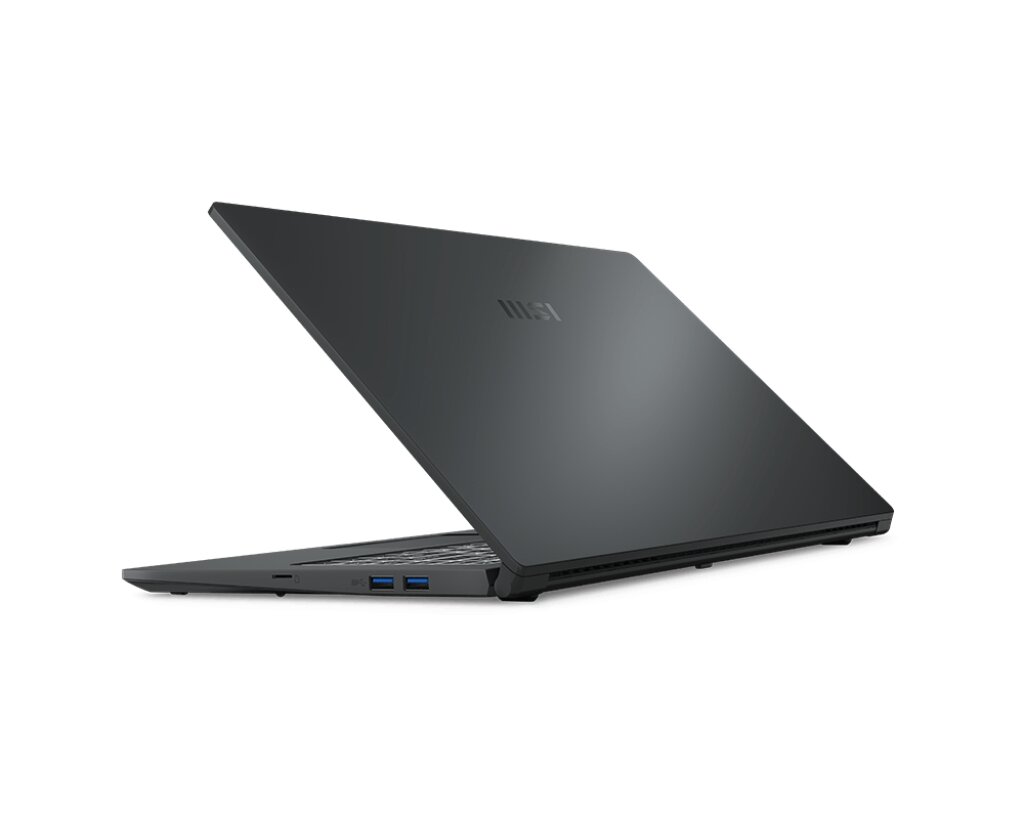

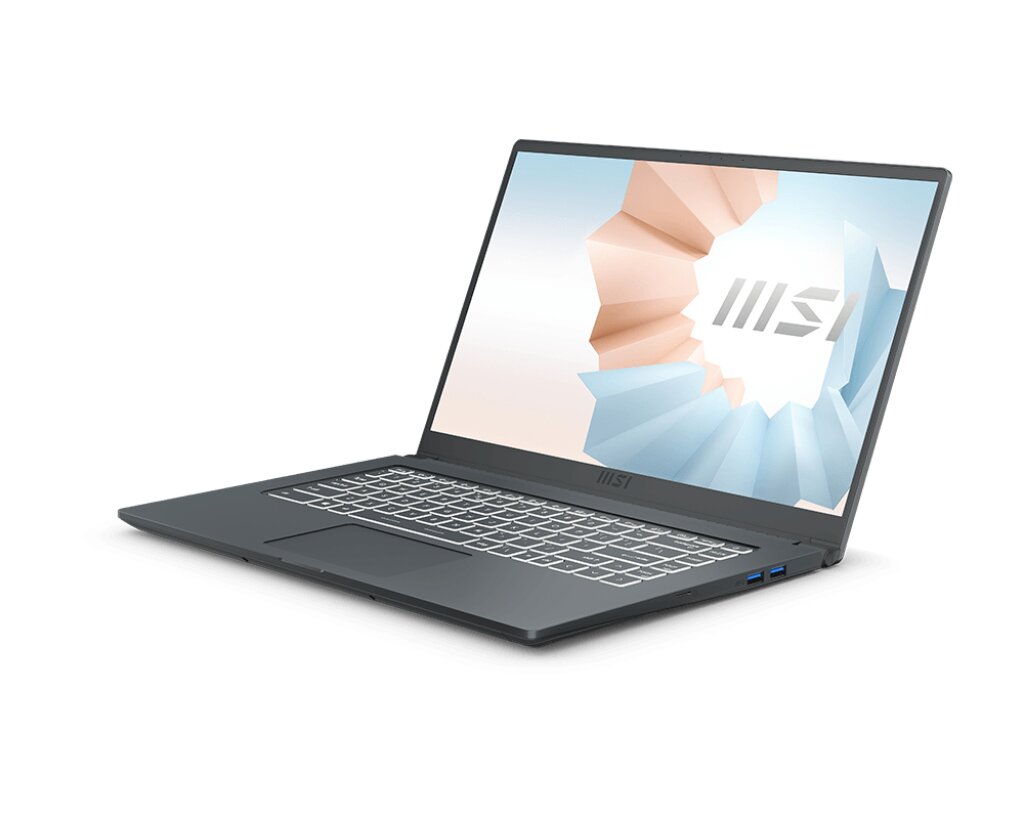

MSI Modern 15 A11M-1050XES RAM upgrade specifications
MSI Modern 15 A11M-1050XES laptop contains two SO-DIMM slots for memory upgrade. Compatible RAM specifications include DDR4-SDRAM operating at 3200 MHz frequency. Maximum supported memory capacity reaches 64 GB total. Upgrade options accommodate standard SO-DIMM form factor modules. Current specifications and compatible memory configurations available for this MSI model series enable RAM expansion up to the supported maximum capacity.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 64 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 28 October 2022 |
Additional Notes
- The presence of 2 physical SO-DIMM slots allows for dual-channel memory configurations, which significantly increases memory bandwidth compared to single-channel setups.
- Upgrading the MSI Modern 15 A11M-1050XES to the 64 GB maximum requires the removal of all factory-installed modules because no memory is soldered to the mainboard.
- Integrating modules with speeds higher than 3200 MHz will result in a downclocking bottleneck determined by the processor memory controller limitations.
- Matching the capacity and timings of both modules is necessary to maintain system stability and prevent asynchronous memory operation.
- The architectural reliance on DDR4 technology precludes the installation of DDR5 modules due to physical pin alignment and voltage differences.
- Accessing the memory slots involves removing the entire bottom chassis cover, which may require specialized tools to avoid damaging plastic clips or internal ribbon cables.
- High-capacity 32 GB modules must be dual-rank to achieve the supported 64 GB total system density within the 2 available slots.
