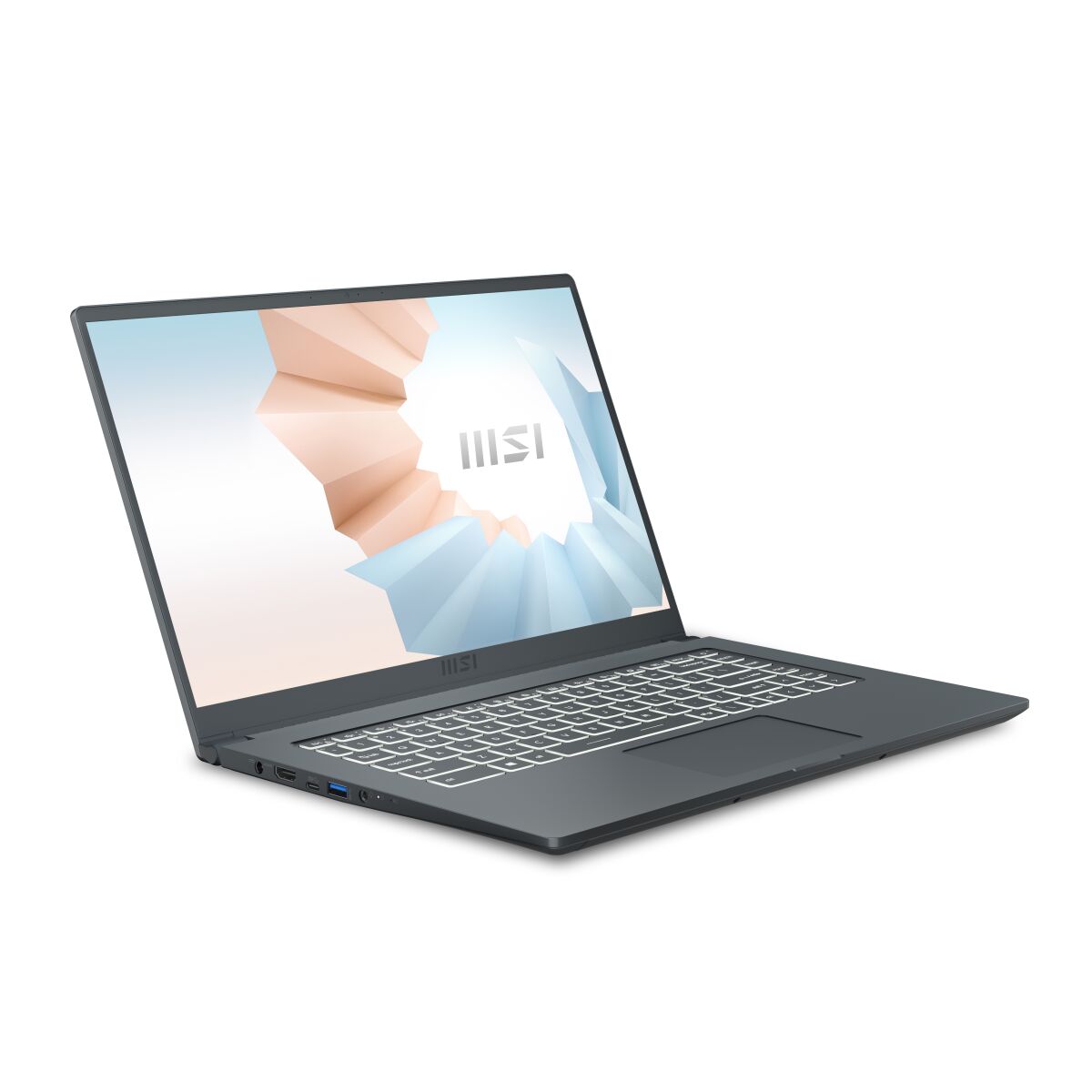

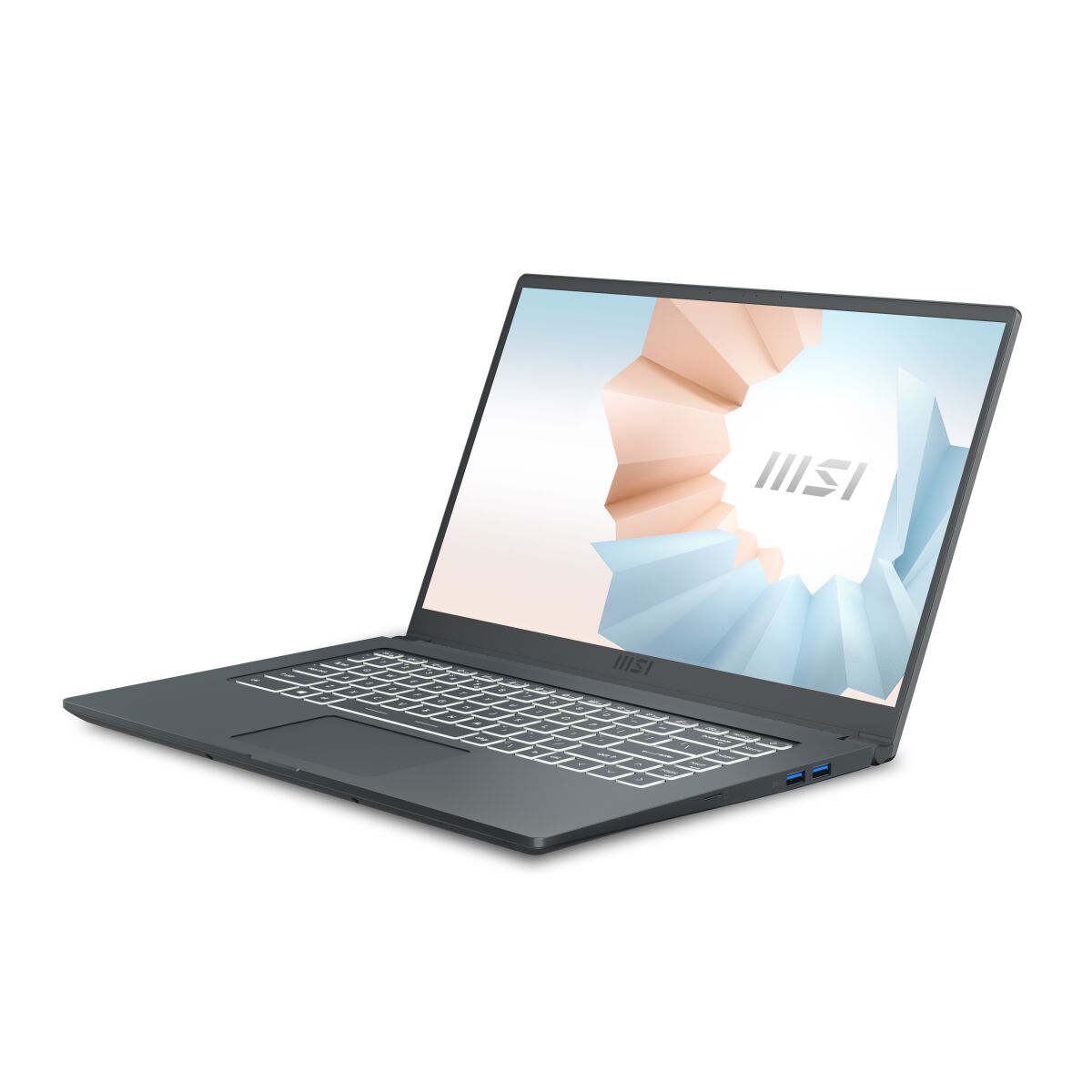

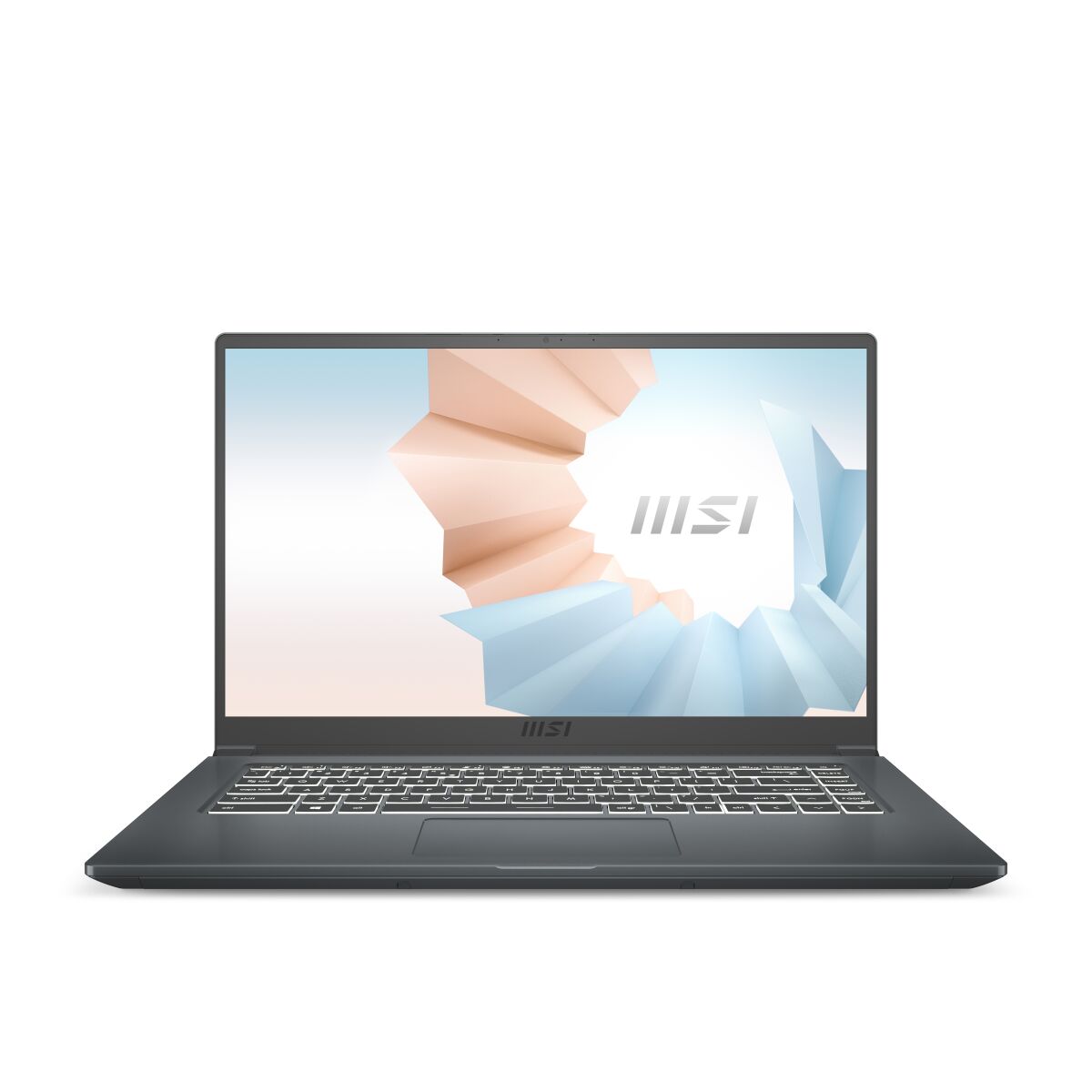

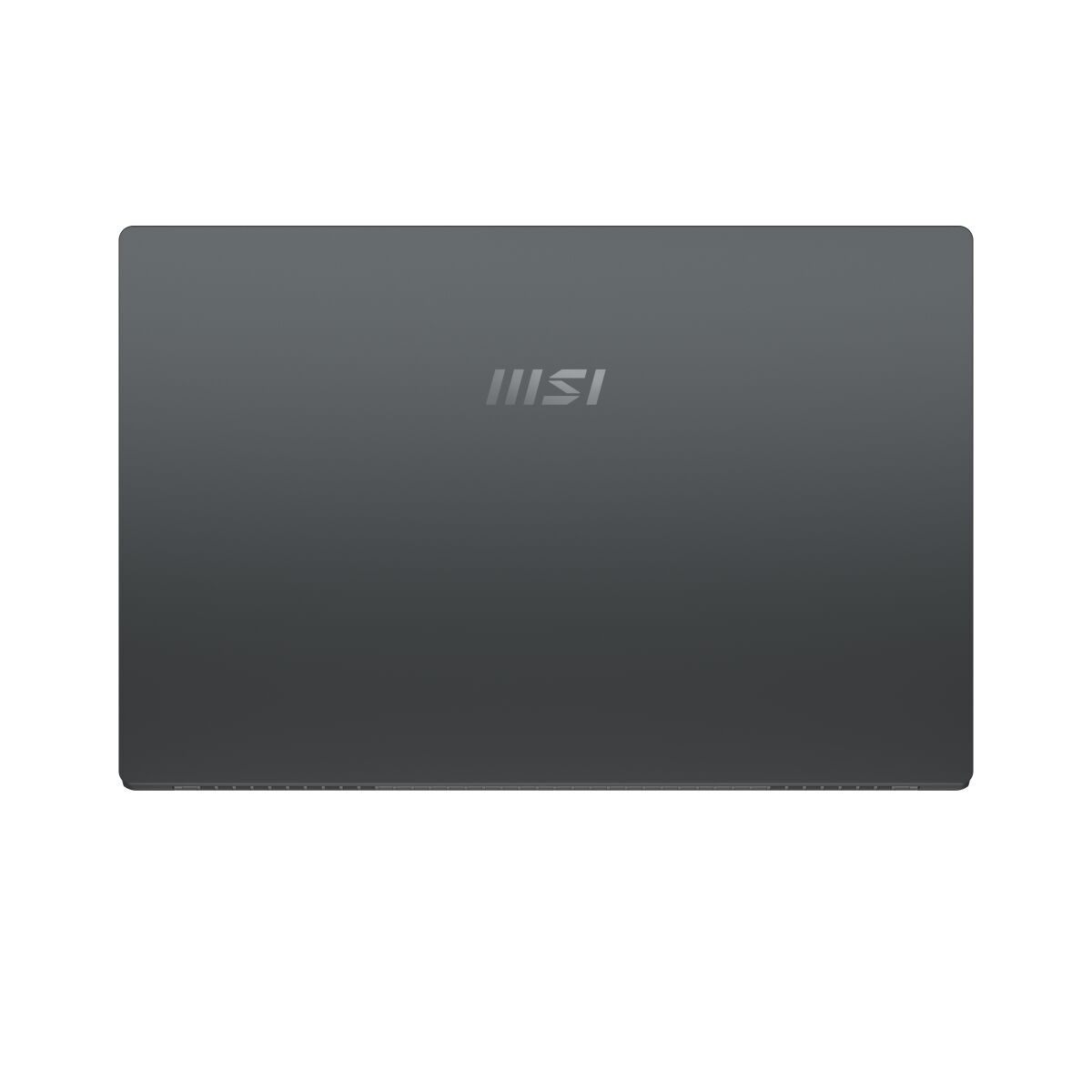

MSI Modern 15 A5M-203NL RAM upgrade specifications
The MSI Modern 15 A5M-203NL laptop features two SO-DIMM slots for DDR4-SDRAM memory upgrades. The maximum RAM capacity supported is 64 GB total, with compatible memory modules operating at 3200 MHz frequency. Users can upgrade the existing memory configuration by installing additional or replacement DDR4 SO-DIMM modules in the available slots to enhance system performance and multitasking capabilities.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 3200 MHz |
| Maximum RAM | 64 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-3200 (PC4-25600) |
| Bandwidth | 25.6 GB/s |
| Laptop Release date | 01 October 2021 |
Additional Notes
- The MSI Modern 15 A5M-203NL contains 2 SO-DIMM slots with a 64 GB ceiling, indicating that both slots must be populated with 32 GB modules to reach maximum capacity. Single-slot upgrades will not saturate the upgrade potential of this configuration.
- DDR4-3200 memory operates at a standardized frequency that establishes compatibility with the underlying chipset architecture. Modules rated above 3200 MHz will downclock to 3200 MHz automatically, eliminating any performance benefit from premium-tier memory while consuming the same power budget.
- The SO-DIMM form factor is exclusive to notebook platforms and incompatible with desktop DIMM modules. Third-party memory must explicitly state SO-DIMM compatibility; desktop memory will not physically insert into these slots.
- Upgrading to 64 GB from lower configurations will increase thermal output and power draw within the confined chassis. The battery runtime will contract proportionally, and passive heat dissipation to the memory modules may require existing thermal padding to remain undisturbed during installation.
- Dual-channel architecture becomes accessible only when 2 populated SO-DIMM slots deliver matched capacity to the memory controller. Mismatched configurations (such as 8 GB + 16 GB) will default to single-channel operation on the smaller module, creating a memory bandwidth penalty on the entire system.
- Factory memory is soldered or adhered to the motherboard on certain MSI Modern 15 variants. If onboard memory exists, the 64 GB maximum applies only to the upgradeable SO-DIMM slots; total system RAM may exceed 64 GB but only the slotted modules are user-replaceable.
