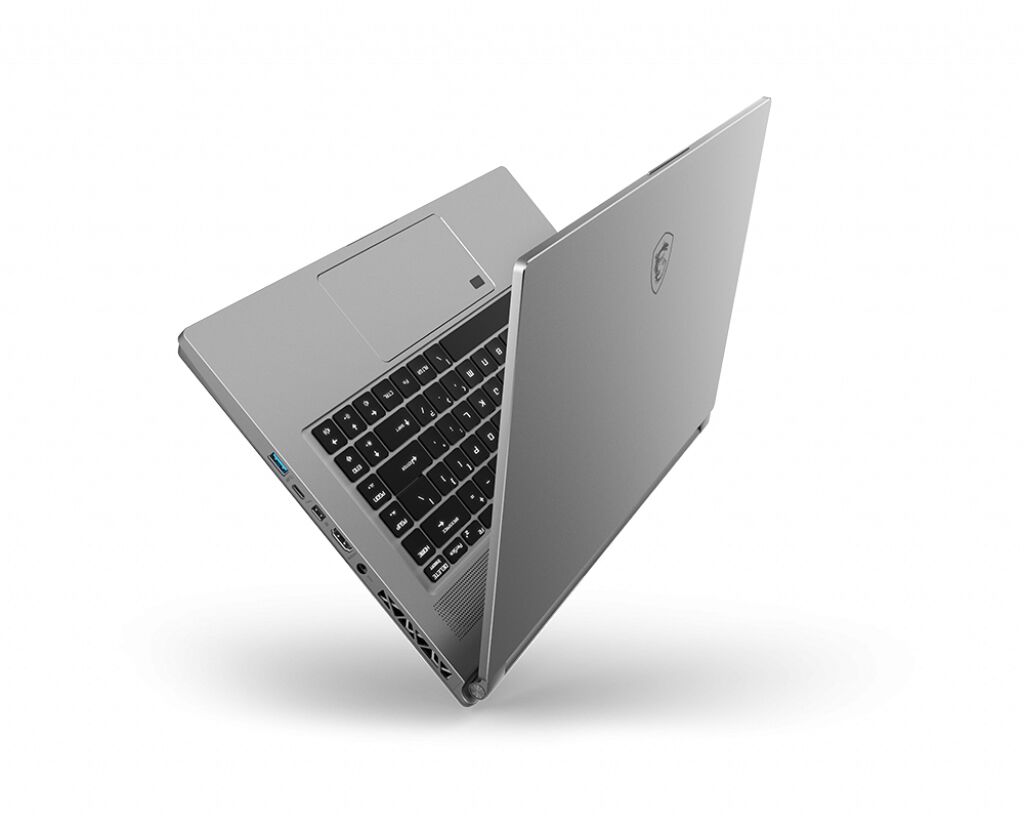

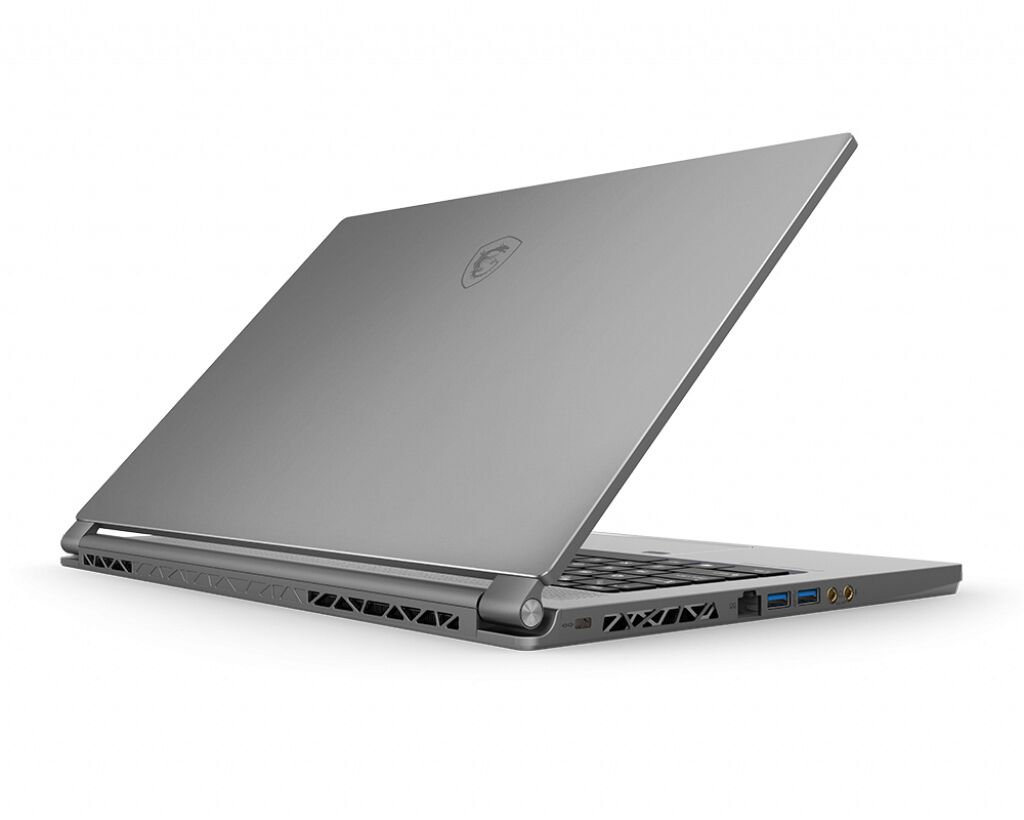

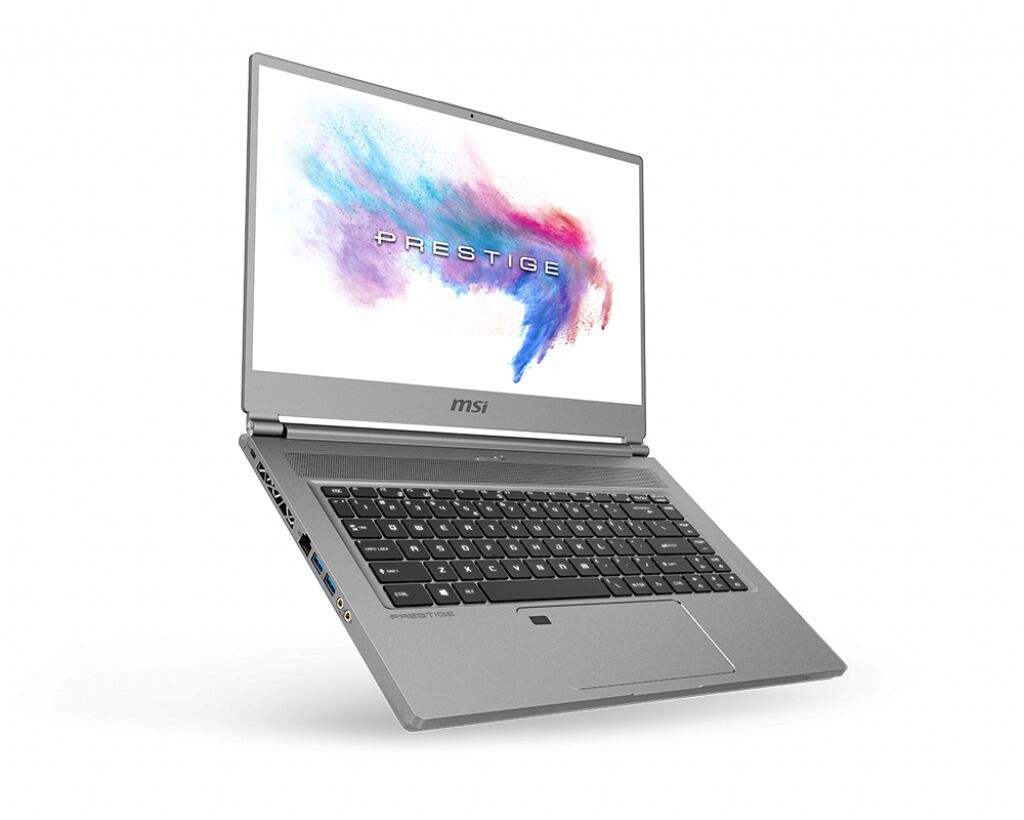

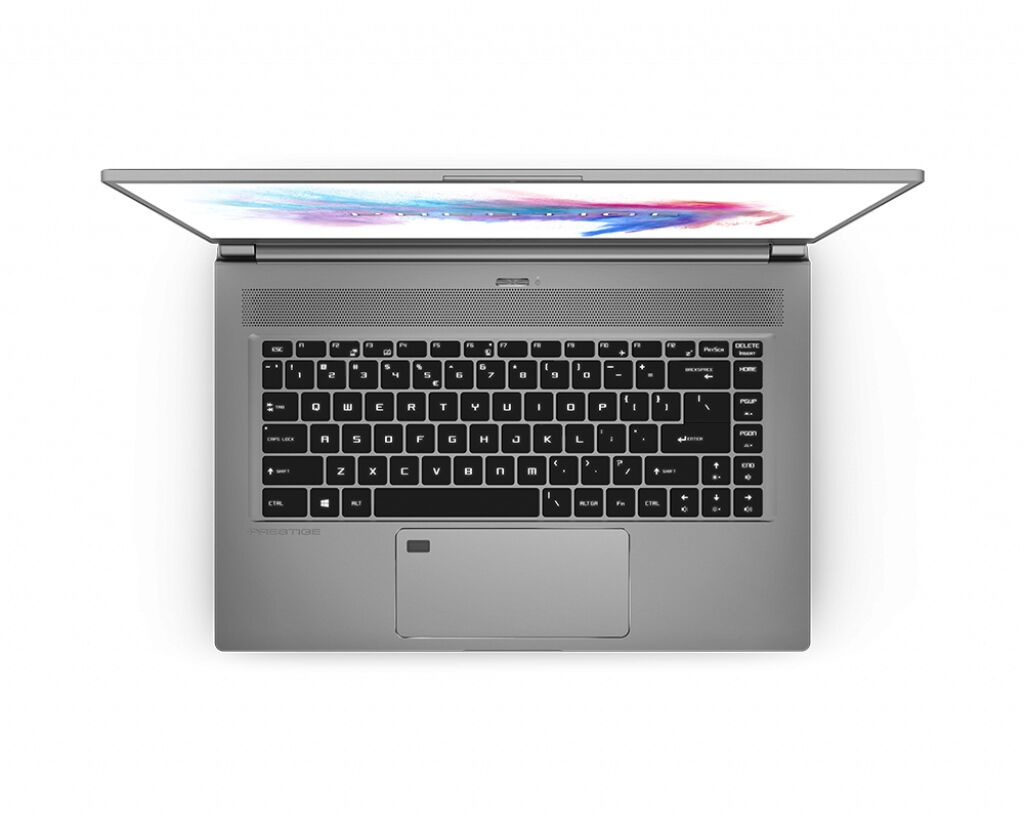

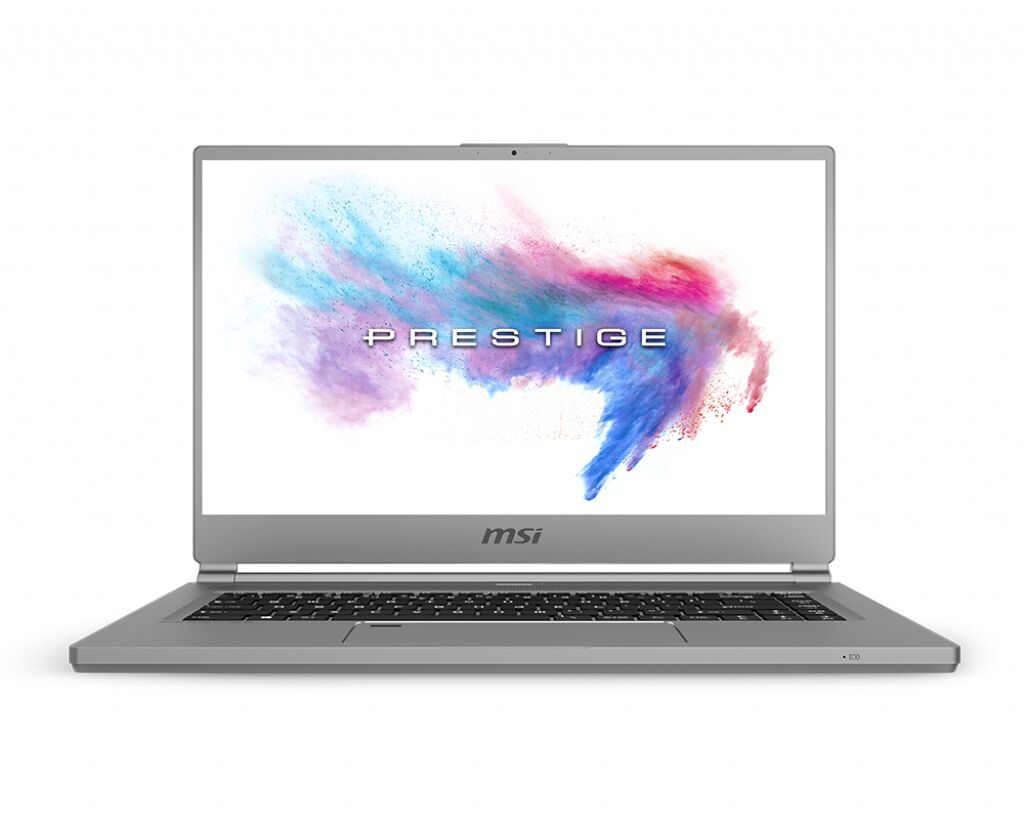

MSI Prestige P65 9SE-1449 Creator RAM upgrade specifications
The MSI Prestige P series P65 9SE-1449 Creator laptop features DDR4-SDRAM memory with two SO-DIMM slots supporting maximum RAM capacity of 64 GB. Memory upgrade specifications indicate compatible DDR4 modules operating at 2666 MHz frequency. The SO-DIMM form factor allows for RAM upgrade capability on this creator-class mobile workstation. Maximum memory capacity and slot configuration enable flexible memory expansion for enhanced multitasking and content creation performance.
Memory Upgrade Specifications
| Specification | Value |
|---|---|
| Memory slots | 2x SO-DIMM |
| Form factor | SO-DIMM |
| Memory type | DDR4-SDRAM |
| Frequency | 2666 MHz |
| Maximum RAM | 64 GB |
| Voltage | 1.2V |
| Number of pins | 260-pin |
| Interface | PC4 |
| PC Speed Rating | PC4-2666 (PC4-21328) |
| Bandwidth | 21.3 GB/s |
| Laptop Release date | 15 May 2020 |
Additional Notes
- The internal layout of the MSI P65 9SE-1449 Creator features a flipped motherboard design where the RAM slots face the keyboard deck rather than the bottom panel.
- Upgrading memory requires the full removal of the motherboard from the chassis which risks damage to delicate ribbon cables for the trackpad and keyboard.
- Dual channel architecture mandates identical module capacities to maintain peak memory bandwidth for rendering and computational tasks.
- Selecting modules with speeds higher than 2666 MHz results in automatic downclocking to match the integrated memory controller limitations of the 9th generation processor.
- The 64 GB limit is achieved by utilizing 2 high density 32 GB sticks since the hardware does not support 4 slot configurations.
- Physical clearance for memory is restricted by the ultra thin chassis profile necessitating the use of standard height modules without oversized heat spreaders.
- Thermal pads on the factory RAM may lose adhesion during the extraction process requiring replacement to ensure heat dissipation in the cramped internal compartment.
- Accessing the SO-DIMM slots involves breaking factory seals on the bottom screws which may impact warranty coverage depending on regional consumer protection laws.
