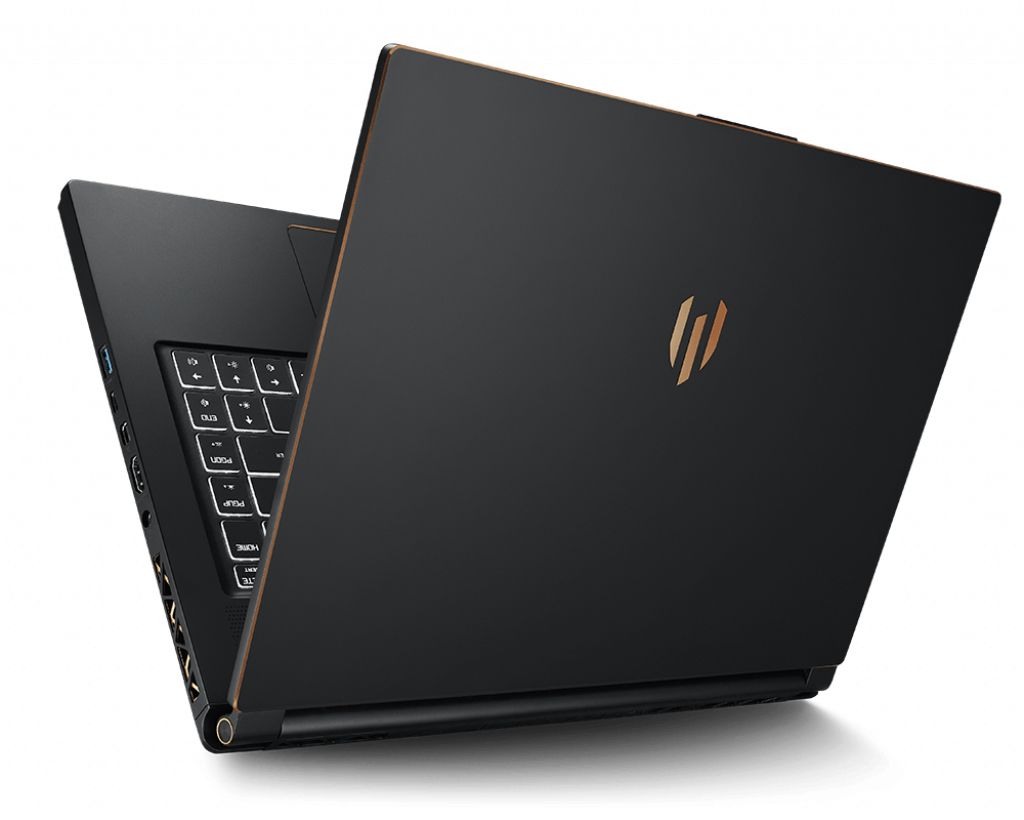

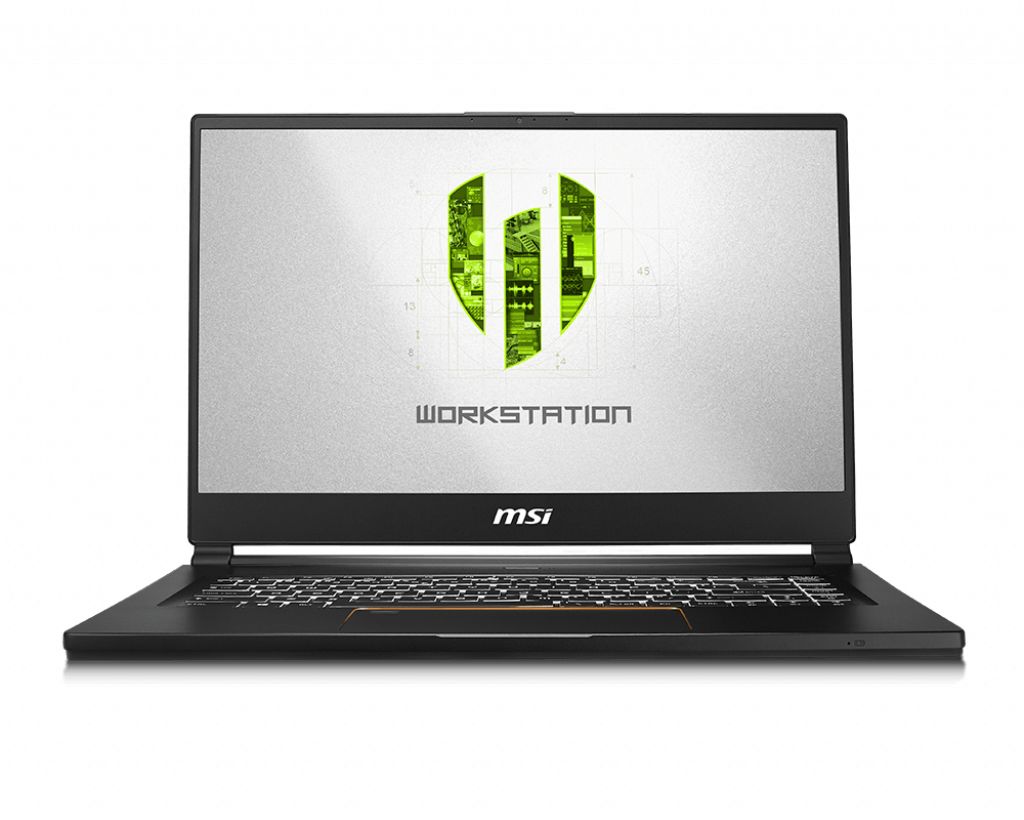

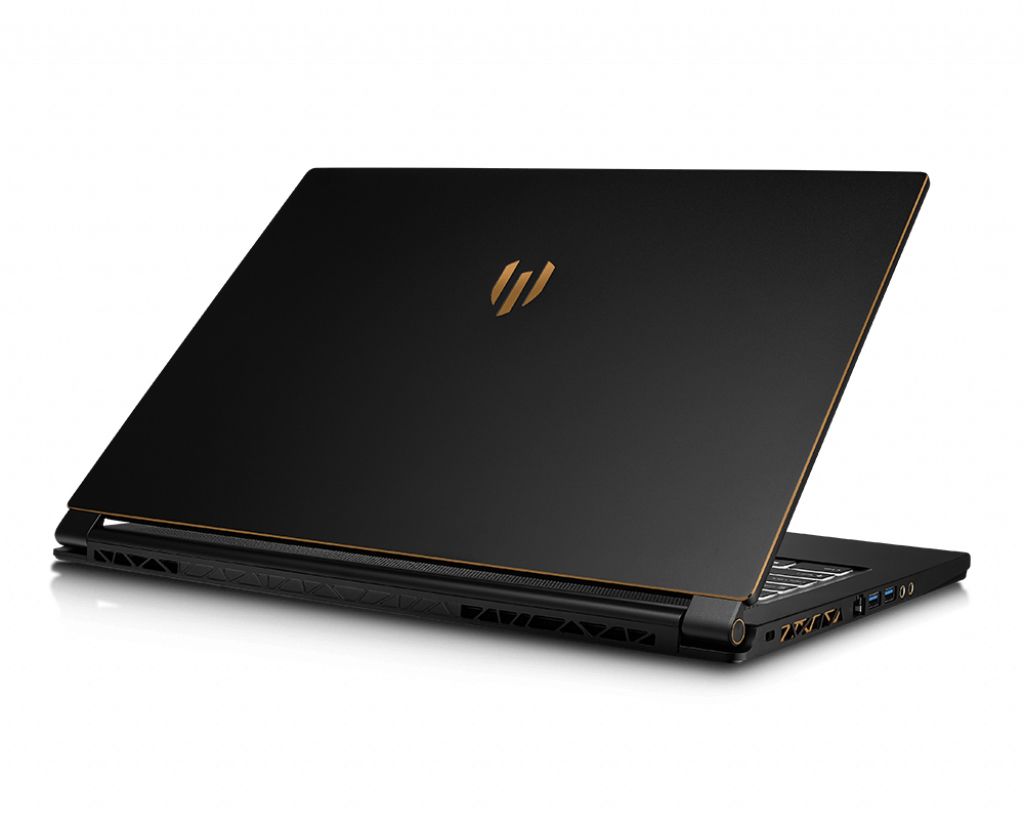

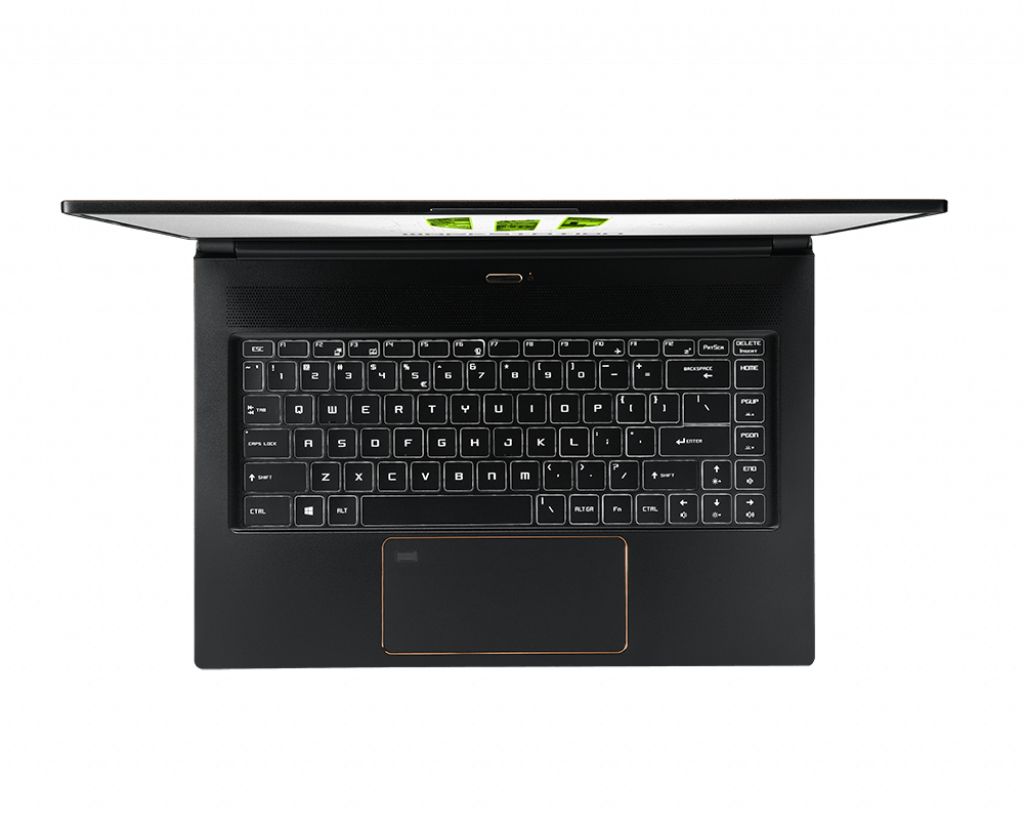

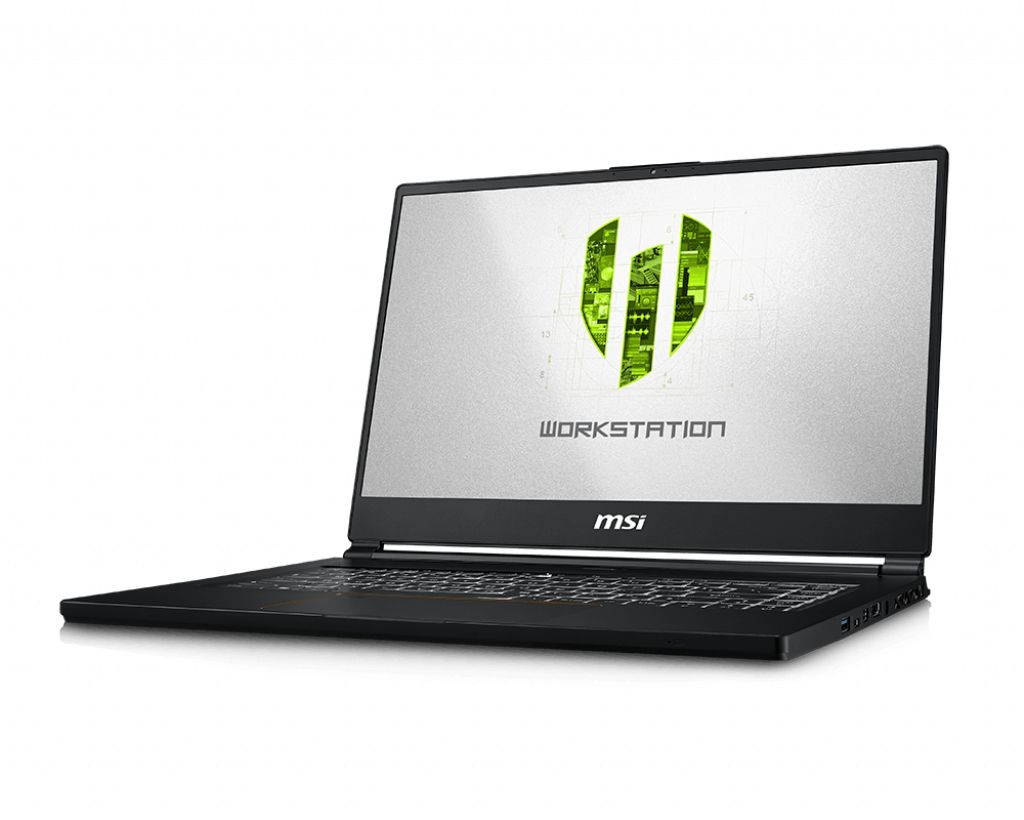

MSI Workstation WS65 9TK-877FR RAM upgrade specifications

MSI WS65 9TK-877FR workstation features two SO-DIMM memory slots supporting DDR4-SDRAM upgrade specifications. Maximum RAM capacity reaches 64 GB total, with compatible memory operating at 2666 MHz frequency. Memory upgrades for this WS65 series model utilize standard SO-DIMM form factor modules, enabling capacity expansion up to the specified 64 GB maximum limit across available slots.

Additional Notes

• The 2666 MHz frequency requirement limits compatibility to DDR4 modules rated at PC4-21300 or dual-channel kits specifically validated for this speed, as higher-speed modules may not automatically downclock in all configurations.
• The MSI WS65 9TK-877FR uses a dual-channel architecture with 2 SO-DIMM slots, meaning unmatched module configurations will forfeit half the available memory bandwidth compared to matched-pair installations.
• Reaching the 64 GB ceiling requires 2 modules of 32 GB each, which constrains future expansion since both slots must be populated simultaneously and no intermediate upgrade path exists beyond this configuration.
• DDR4 SO-DIMM modules operating at 2666 MHz deliver a theoretical peak bandwidth of 21.3 GB/s per channel, totaling 42.6 GB/s in dual-channel mode when both slots contain identical specifications.
• Mixing modules with different densities or timings can force the memory controller to operate at the lowest common denominator, potentially reducing effective frequency below the rated 2666 MHz.
• The SO-DIMM form factor typically requires bottom-panel disassembly for installation, and some manufacturer warranties remain intact only if no internal seals are broken during the process.
• Non-ECC unbuffered modules are the only compatible type for this platform, as registered or ECC SO-DIMMs will either fail to initialize or cause boot failures.
• Operating voltage for DDR4-2666 is standardized at 1.2V, and modules rated for higher voltages may trigger thermal throttling in compact workstation chassis with limited airflow around the memory area.
• Single-module configurations occupy only one slot but halve memory throughput, creating a performance penalty in applications reliant on concurrent read/write operations across multiple channels.
